Product Description

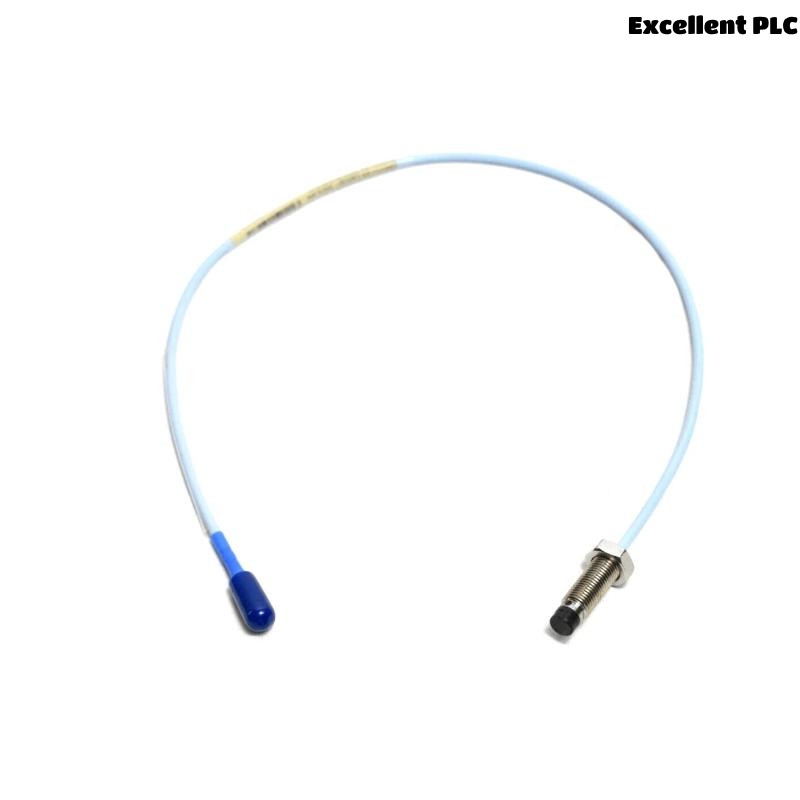

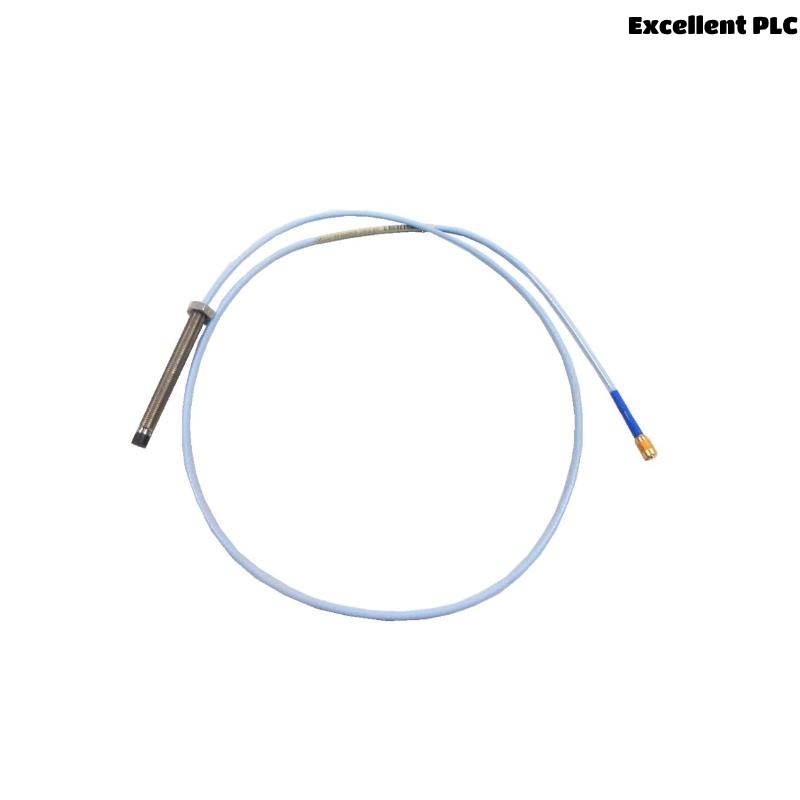

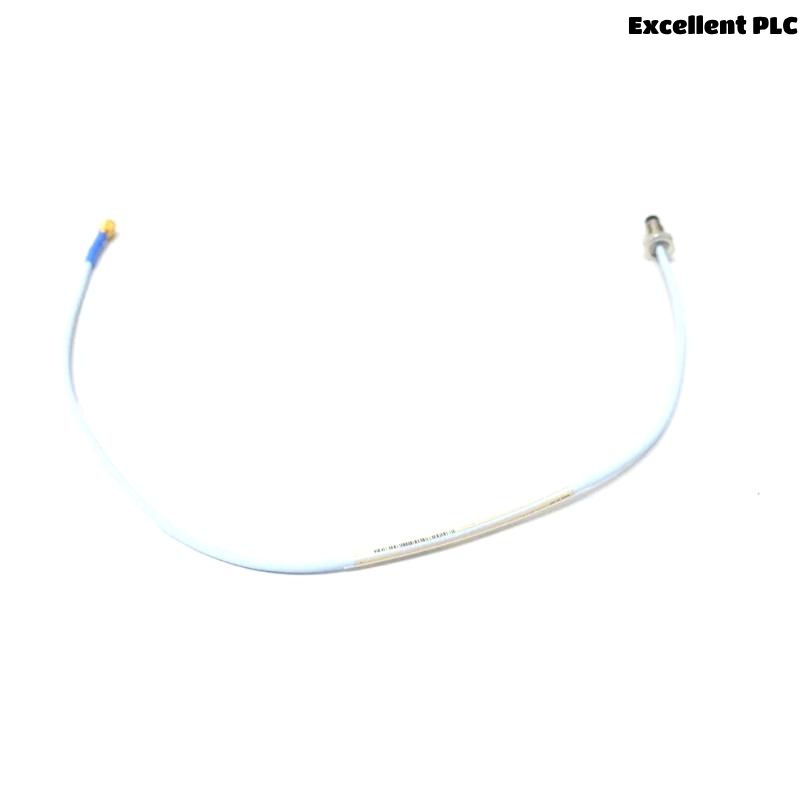

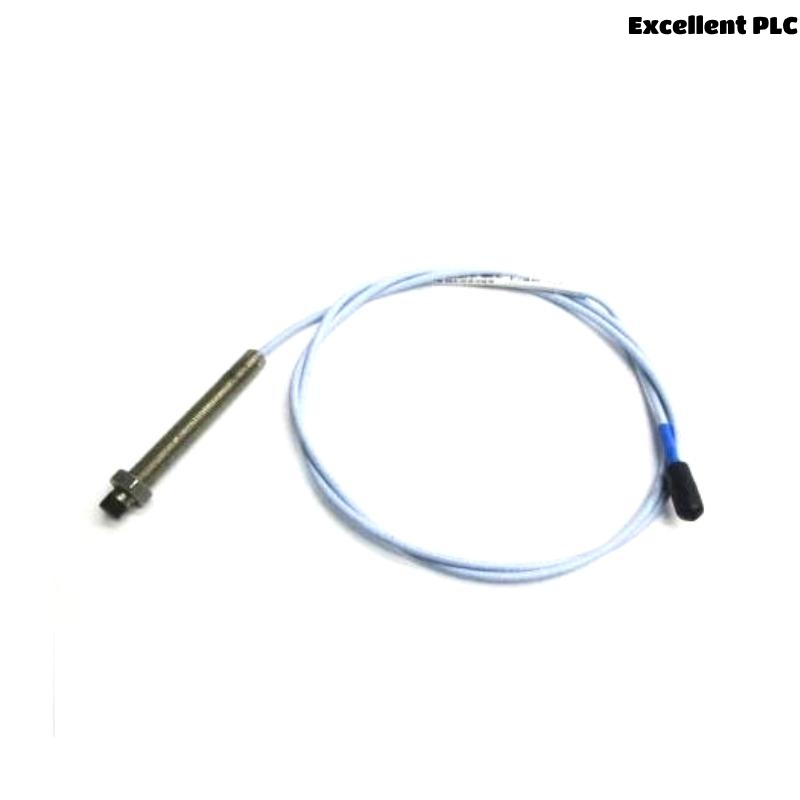

The Bently Nevada 330101-24-35-10-02-00 is part of the 3300 XL 8 mm Proximity Transducer System. It is designed to measure vibration and position of rotating machinery with high precision, offering a voltage output proportional to the distance to a conductive target surface. It is interchangeable with other 3300 series components and meets API 670 standards for mechanical integrity and performance.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330101-24-35-10-02-00 |
| Probe Tip Diameter | 8.0 mm |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Operating Temperature | -52°C to +177°C (standard probe) |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | ~1.27 mm (50 mils) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Probe Material | PPS tip, stainless steel body |
| Cable Type | 75Ω triaxial FEP insulated |
| Mounting Thread | 3/8-24 UNF |
Applications
-
Vibration monitoring on turbines, compressors, and pumps.
-
Shaft position measurements on fluid-film bearing machines.
-
Keyphasor reference signals.
-
Speed monitoring and overspeed protection systems.
Advantages
-
Fully compliant with API 670 standard.
-
High interchangeability, eliminating bench calibration.
-
Robust design with improved RFI/EMI immunity.
-
Enhanced durability through TipLoc and CableLoc technologies.
-
Wide temperature range support and extended life.
FAQ
Q1: What is the linear measurement range?
A1: The linear range is approximately 2 mm (80 mils).
Q2: Is it compatible with older 3300 series components?
A2: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm systems.
Q3: What is the recommended mounting thread size?
A3: Standard mounting uses a 3/8-24 UNF thread.
Q4: Does it support high-temperature applications?
A4: Yes, extended temperature versions are available for up to 218°C probe tip and 260°C cable.
Q5: Is calibration to materials other than AISI 4140 steel possible?
A5: Yes, custom calibration is available upon request.
Q6: Can the probe operate in high humidity environments?
A6: Yes, it is designed to perform reliably in high humidity with minimal scale factor change.
Q7: What is the weight of the probe?
A7: The total weight is approximately 0.323 kg for a 1-meter probe.
Q8: What frequency response does it offer?
A8: It provides a flat response from 0 to 10 kHz (+0, -3 dB).
Q9: Does it require special tools for installation?
A9: No, the ClickLoc connectors allow for tool-free installation.
Q10: How is the electrical isolation achieved?
A10: The mounting base of the Proximitor sensor provides electrical isolation.
Related Models (Same Series or Similar)
| Model | Total Length | Weight |
|---|---|---|
| 330101-00-08-10-02-00 | 1.0 m | 0.323 kg |
| 330102-00-20-10-02-00 | 2.0 m | 0.500 kg |
| 330103-00-04-10-02-00 | 1.0 m (metric thread) | 0.323 kg |
| 330104-00-06-10-02-00 | 1.5 m (metric thread) | 0.350 kg |
| 330105-02-12-10-02-00 | 1.0 m (reverse mount) | 0.323 kg |
| 330191-00-12-10-02-00 | 1.0 m (ETR version) | 0.323 kg |
Popular Bently Nevada Models
| Model | Function | Weight |
|---|---|---|
| 330104-00-06-10-02-00 | 8mm Metric Proximity Probe | 0.350 kg |
| 330105-02-12-05-02-00 | Reverse Mount Probe | 0.323 kg |
| 330130-030-00-00 | Extension Cable (3m) | 0.102 kg |
| 330180-10-00 | Proximitor Sensor | 0.246 kg |
| 3500/42M-01-00 | Proximitor/Seismic Monitor | 0.800 kg |
| 3500/22M-01-01-00 | Transient Data Interface | 1.200 kg |
