Product Introduction

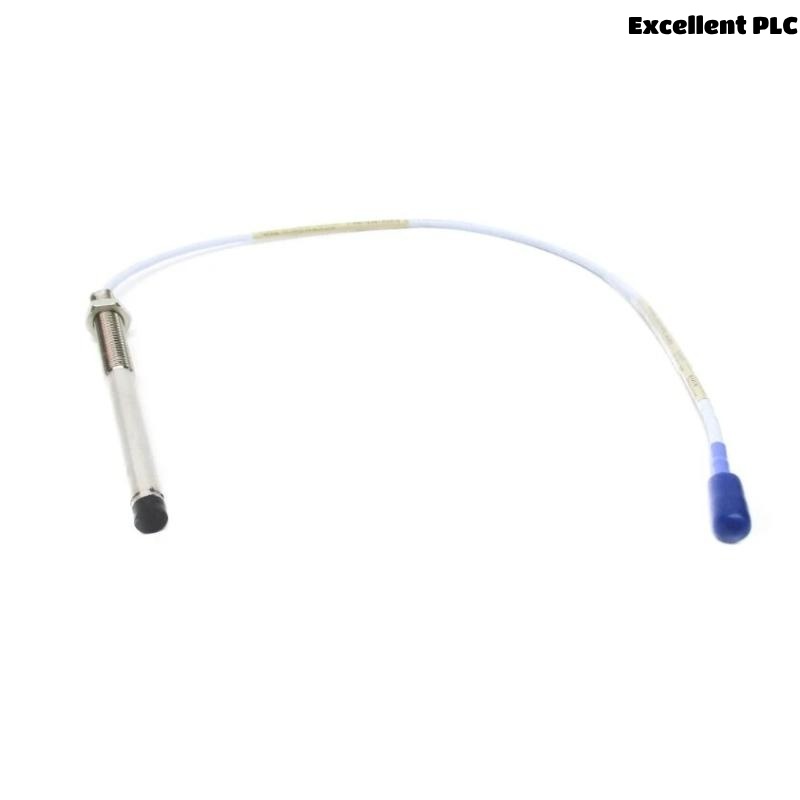

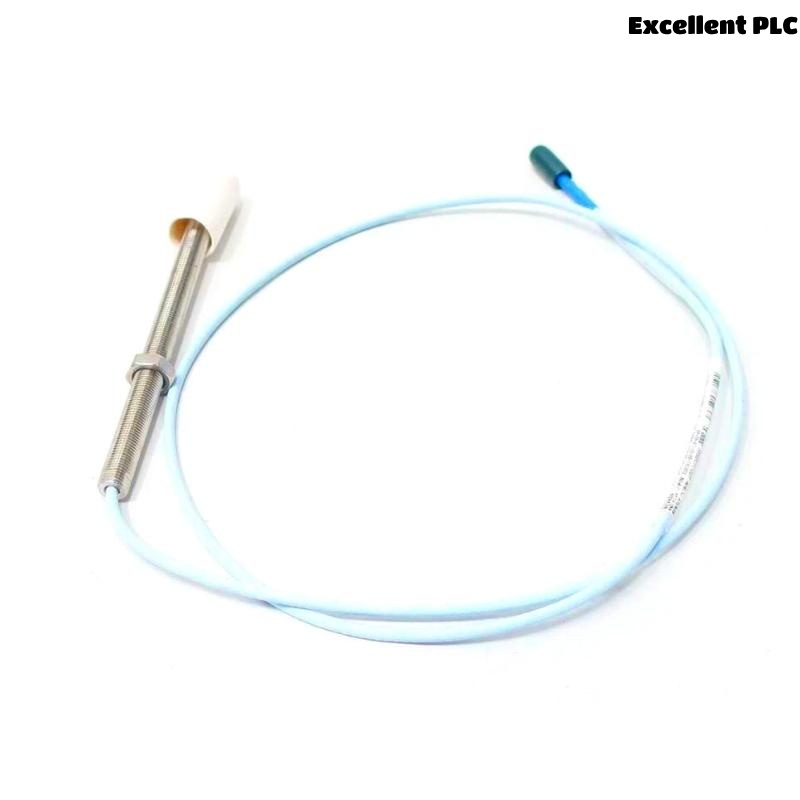

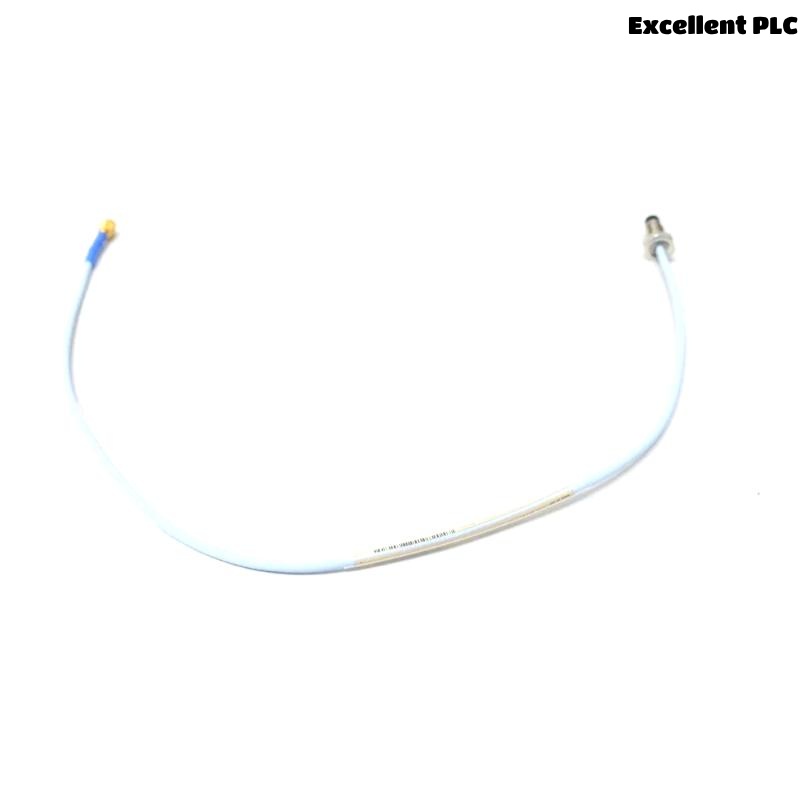

The Bently Nevada 330101-33-52-10-12-05 is part of the 3300 XL 8 mm Proximity Transducer System. It delivers reliable measurement of static (position) and dynamic (vibration) values in rotating machinery. Fully compliant with API 670 standards, it ensures superior linearity, robustness, and temperature stability for critical industrial applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330101-33-52-10-12-05 |
| Type | Proximity Probe |
| System Compatibility | 3300 XL Proximitor Sensor and Extension Cable |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Incremental Scale Factor | 7.87 V/mm ± 5% |
| Frequency Response | 0 – 10 kHz (+0, -3 dB) |
| Operating Temperature | -52°C to +177°C |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | Stainless Steel 303/304 |
| Cable Type | 75Ω triaxial, FEP insulated |
| Minimum Shaft Diameter | 50.8 mm recommended: 76.2 mm |
| Minimum Target Size | 15.2 mm diameter |
Applications
-
Vibration monitoring of fluid-film bearing machinery
-
Shaft position monitoring
-
Keyphasor and speed measurement
-
Overspeed protection systems
-
Condition monitoring in turbines, compressors, pumps, and motors
Advantages
-
Fully interchangeable components without calibration
-
Robust design with improved RFI/EMI immunity
-
ClickLoc connectors for reliable installation
-
Complies with API 670 standard
-
Wide operating temperature range
-
Optional FluidLoc to prevent fluid ingress
Frequently Asked Questions
Q1: What is the main purpose of the 330101-33-52-10-12-05 probe?
A1: It measures shaft vibration and position in rotating machinery with high accuracy.
Q2: Is it compatible with non-XL 3300 series components?
A2: Yes, it is backward-compatible and interchangeable.
Q3: What is the recommended gap voltage setting?
A3: Approximately -9 VDC (50 mils gap).
Q4: Does it require field calibration?
A4: No, it is factory calibrated and fully interchangeable.
Q5: What is the maximum operating temperature?
A5: Up to +177°C for the standard probe.
Q6: Can this probe be used for overspeed detection?
A6: Yes, when installed per Bently Nevada guidelines.
Q7: What material is the probe tip made of?
A7: PPS (Polyphenylene Sulfide) for durability.
Q8: Is it resistant to oil ingress?
A8: Yes, especially with the optional FluidLoc cable.
Q9: What is the linear measuring range?
A9: From 0.25 mm to 2.3 mm (10 to 90 mils).
Q10: Does it meet industry standards?
A10: Yes, it complies with API 670 and CE directives.
