Product Introduction

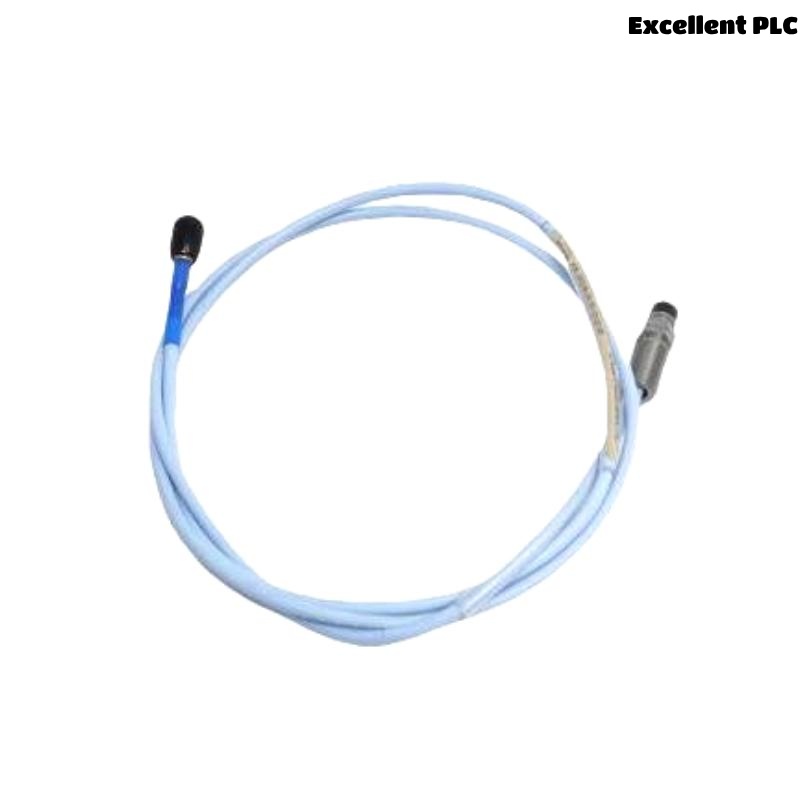

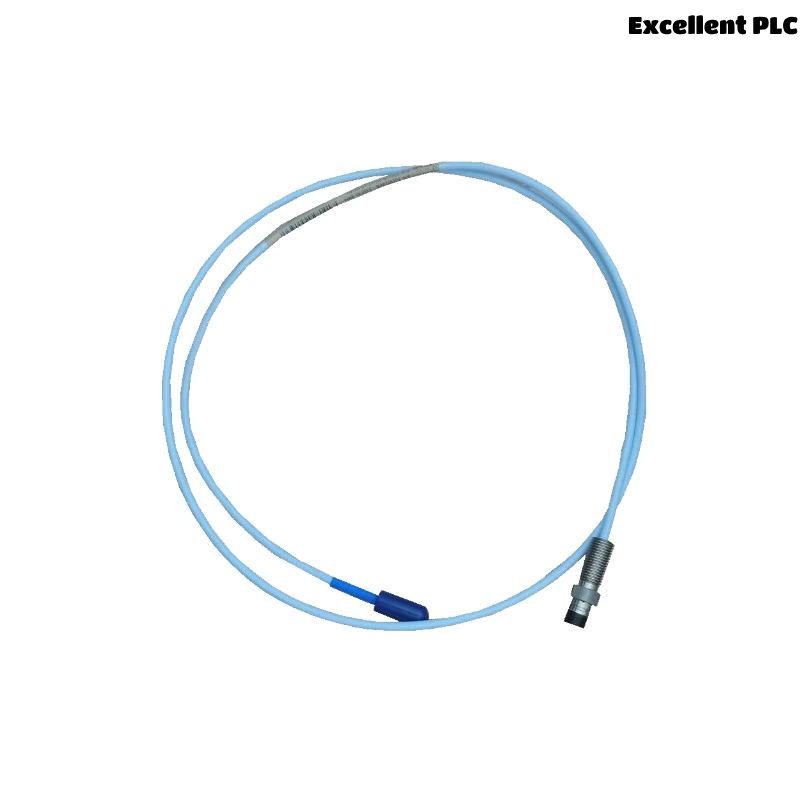

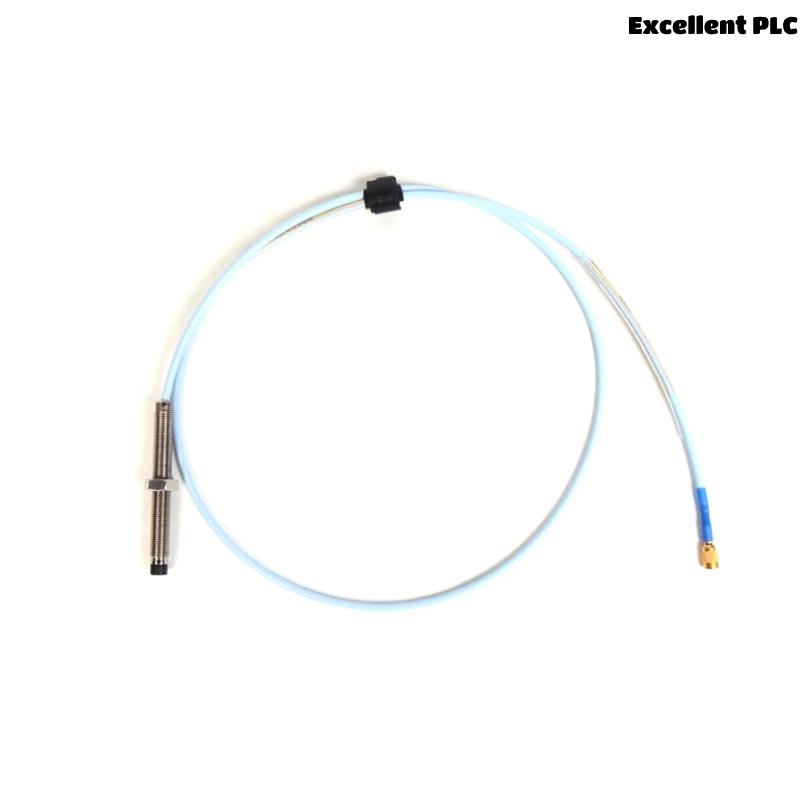

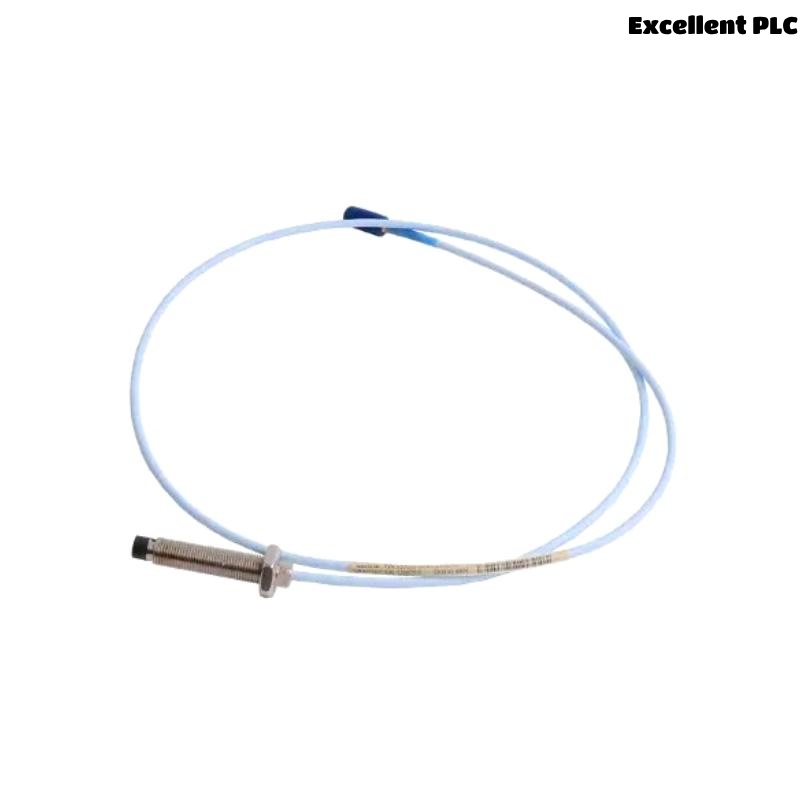

The Bently Nevada 330101-33-60-10-02-00 3300 XL 8mm Proximity Probe is a high-precision measurement device designed for detecting shaft displacement and vibration in rotating machinery. It forms a crucial part of the 3300 XL series, known for its reliability and advanced capabilities in condition monitoring and predictive maintenance. Manufactured by Bently Nevada, this probe is specifically engineered to provide accurate and real-time feedback on the condition of critical components such as motors, turbines, compressors, and pumps.
The 3300 XL 8mm proximity probe offers high sensitivity and precision, making it ideal for monitoring small mechanical displacements in a variety of industrial applications. The compact 8mm diameter allows for easy integration into systems with limited space, ensuring that it can be utilized in diverse machinery setups. It is compatible with the Bently Nevada 3300 series monitoring systems and helps in identifying potential issues like misalignment, imbalance, or wear, thereby enabling proactive maintenance and reducing downtime.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330101-33-60-10-02-00 |
| Probe Type | 3300 XL 8mm Proximity Probe |
| Measurement Type | Shaft displacement or vibration |
| Probe Diameter | 8mm |
| Total Length | 1 meter |
| Output Signal | Linear 4-20 mA or 0-10 V DC |
| Temperature Range | -40°C to +120°C (Operating) |
| Weight | 0.323 kg |
| Mounting | 1/2-20 UNF thread mount |
| Maximum Vibration Velocity | 10 ips (254 mm/s) |
| Sensitivity | 1.0 mm/mV (typical) |
| Insulation Resistance | 100 MΩ @ 500 V DC |
| Environmental Protection | IP65 (Water-resistant) |
| Connection Type | 2-wire, 3-wire (depending on model) |
| Certifications | CE, UL, RoHS |
| Compatibility | Compatible with Bently Nevada 3300 series monitoring systems |
Product Applications
The Bently Nevada 330101-33-60-10-02-00 3300 XL 8mm Proximity Probe is used across a variety of industries where continuous monitoring of rotating equipment is critical. Below are some of the most common applications:
-
Rotating Machinery Monitoring: The probe measures the displacement or vibration of rotating machinery components such as shafts, motors, turbines, and pumps to detect early signs of wear or misalignment.
-
Condition-Based Monitoring: Ideal for predictive maintenance systems, the probe provides real-time data on machinery condition, helping prevent unplanned downtimes and costly repairs.
-
Power Generation: The probe is used in power plants for monitoring turbines, generators, and other critical rotating equipment, ensuring optimal operational efficiency.
-
Oil & Gas: The probe is extensively used in the oil and gas industry for monitoring drilling rigs, pumps, and compressors to ensure they perform optimally and reliably.
-
Mining: In mining applications, the 3300 XL probe monitors crushers, conveyors, and mills, providing essential data to prevent equipment failure.
-
Water Treatment: Commonly used in water and wastewater treatment facilities to monitor motors, pumps, and mixers, ensuring smooth and efficient operation.
-
HVAC Systems: The probe is used to monitor the performance of motors and compressors in large heating, ventilation, and air conditioning systems, helping to maintain energy efficiency and prevent failure.
-
Industrial Manufacturing: Applied in automated production lines to monitor the health of motors and drives, improving manufacturing process reliability and uptime.
Product Advantages
-
High Accuracy: The 3300 XL 8mm proximity probe offers exceptional precision, providing detailed and reliable measurements of displacement and vibration, which is crucial for effective condition monitoring.
-
Compact and Space-Saving: The 8mm diameter allows this probe to be used in applications where space is limited, offering versatility in various machine types and configurations.
-
Durable Construction: The 3300 XL series is built to endure harsh environments, providing reliable performance even in challenging conditions such as high vibration, extreme temperatures, and exposure to dust or water.
-
Wide Temperature Range: With an operating range of -40°C to +120°C, this probe is suitable for use in a variety of industrial environments, including extreme cold or hot conditions.
-
Real-Time Monitoring: The 3300 XL proximity probe provides real-time data, enabling operators to monitor machinery continuously and take immediate corrective actions when necessary.
-
High Sensitivity: With a sensitivity of 1.0 mm/mV, this probe detects even the smallest mechanical imbalances or misalignments, which helps prevent catastrophic failures.
-
Environmental Protection: The probe is rated IP65, meaning it is resistant to water and dust, making it suitable for a variety of industrial applications, including those in wet or dirty environments.
-
Long Operational Life: Designed to withstand the rigors of continuous operation, the 3300 XL probe provides long-lasting reliability and reduces the need for frequent replacements.
-
Easy Integration: The probe is fully compatible with Bently Nevada 3300 series monitoring systems, ensuring quick and easy integration into existing machinery setups.
-
Cost-Effective: By detecting issues early, the probe helps minimize maintenance costs, optimize equipment life, and improve overall asset management.
Frequently Asked Questions (FAQ)
-
Q: What is the temperature range of the 3300 XL 8mm Proximity Probe?
A: The 3300 XL probe operates in a temperature range of -40°C to +120°C, making it suitable for a variety of industrial environments. -
Q: What type of output signal does the probe provide?
A: The probe provides a linear 4-20 mA or 0-10 V DC output signal, depending on the model. -
Q: What is the weight of the 3300 XL 8mm proximity probe?
A: The probe weighs 0.323 kg. -
Q: How sensitive is the 3300 XL proximity probe?
A: The sensitivity of the probe is 1.0 mm/mV, allowing it to detect even small changes in displacement or vibration. -
Q: What is the maximum vibration velocity the probe can handle?
A: The maximum vibration velocity is 10 ips (254 mm/s). -
Q: What mounting type is used for the 3300 XL probe?
A: The probe uses a 1/2-20 UNF thread mount for secure installation. -
Q: Is the 3300 XL 8mm proximity probe resistant to environmental factors?
A: Yes, the probe is rated IP65, providing protection against dust and water. -
Q: Can the 3300 XL 8mm probe be used in power generation applications?
A: Yes, the probe is commonly used in power plants for monitoring turbines, generators, and other critical equipment. -
Q: Is the 3300 XL 8mm probe compatible with other Bently Nevada monitoring systems?
A: Yes, it is fully compatible with Bently Nevada 3300 series monitoring systems. -
Q: Does the 3300 XL probe offer real-time data?
A: Yes, the 3300 XL proximity probe provides real-time displacement and vibration data, allowing for immediate response to potential issues.
Related Models and Variants
| Model Number | Description | Key Feature |
|---|---|---|
| 330101-33-60-10-02-06 | 3300 XL 8mm Proximity Probe (Extended Cable) | Longer cable length for larger setups |
| 330101-33-60-10-02-07 | 3300 XL 8mm Proximity Probe (High Sensitivity) | Higher sensitivity for precise measurements |
| 330101-33-60-10-02-08 | 3300 XL 8mm Proximity Probe (Heavy Duty) | Reinforced for harsh industrial environments |
| 330101-33-60-10-02-09 | 3300 XL 8mm Proximity Probe (Low Temperature) | Suitable for extremely cold environments |
| 330101-33-60-10-02-10 | 3300 XL 8mm Proximity Probe (Digital Output) | Provides digital signal for advanced systems |
| 330101-33-60-10-02-11 | 3300 XL 8mm Proximity Probe (Short Cable) | Shorter cable for compact applications |
Popular Bently Nevada Brand Models
| Model Number | Description | Application Focus |
|---|---|---|
| 3500/42M | Machinery Monitoring System | Condition monitoring for turbines, compressors, and pumps |
| 3300 XL 5mm | Proximity Probe | Vibration and shaft displacement measurement |
| 3500/72 | Vibration Monitor | Monitoring vibration in rotating machinery |
| 3300 XL 11mm | Proximity Probe | Shaft displacement measurement with larger clearance |
| 3500/53 | Proximity System | Accurate displacement monitoring in high-speed applications |
| 3500/22M | Accelerometer | Vibration sensor for machinery monitoring |
