Product Introduction

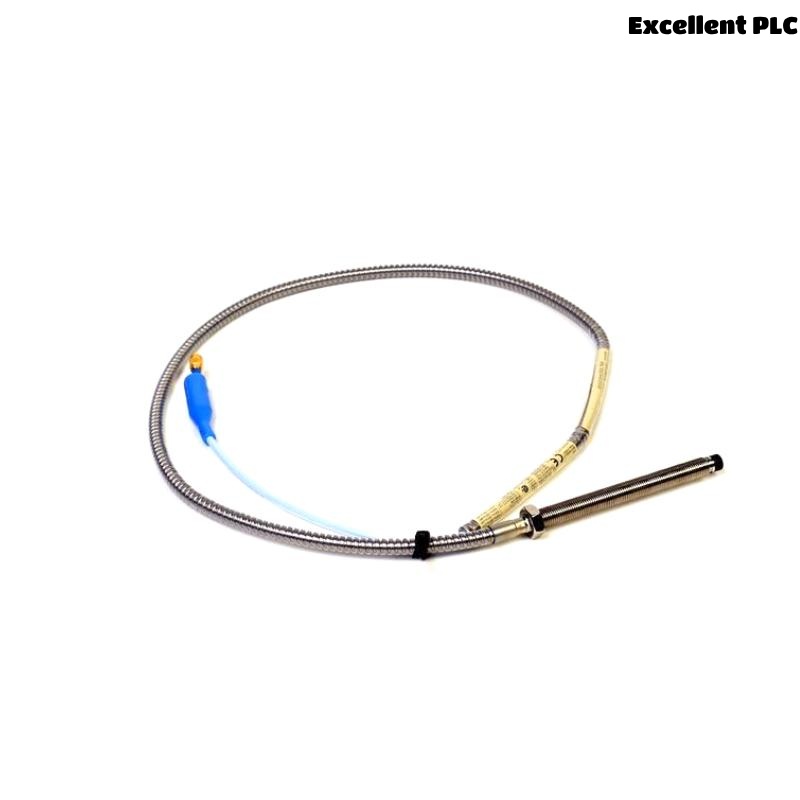

The Bently Nevada 330102-00-10-10-01-05 is a high-precision 8mm 3300 XL Proximity Probe, part of the industry-renowned 3300 XL series by Bently Nevada. Specifically designed for machinery condition monitoring and vibration measurement, this probe is typically used in critical rotating equipment such as turbines, compressors, pumps, and motors.
Built for harsh industrial environments, this model combines exceptional linearity with a robust mechanical design, ensuring consistent and accurate proximity sensing under demanding conditions. Its 8mm tip provides a standardized sensing area suitable for most general-purpose applications.
The 330102-00-10-10-01-05 probe is fully compatible with other 3300 XL system components and meets API 670 standards, making it a trusted choice in power generation, petrochemical, and heavy machinery sectors.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330102-00-10-10-01-05 |
| Series | Bently Nevada 3300 XL 8mm Proximity Probes |
| Probe Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF-2A |
| Body Style | Straight |
| Tip Material | PPS (Polyphenylene Sulfide) |
| Total Length | 1.0 meter |
| Connector Type | Miniature coaxial, standard BNC |
| Operating Temperature Range | -35°C to +177°C (-31°F to +351°F) |
| Pressure Rating | Up to 500 psi (with proper sealing) |
| Frequency Response | DC to 10 kHz |
| Linearity | ±0.07 mm (±2.8 mils) over linear range |
| Material | Probe Body: Stainless Steel; Tip: PPS |
| Compatible Drivers/Modules | 3300 XL Proximitor Sensor, 3300 Monitoring Systems |
| Approvals | API 670, CE, ATEX certified for hazardous areas |
| Weight | 0.323 kg |
Applications
The Bently Nevada 330102-00-10-10-01-05 proximity probe is ideal for a wide range of industrial machinery monitoring and protection scenarios, including:
-
Steam and Gas Turbines
-
Centrifugal Compressors
-
Large Industrial Pumps
-
Electric Motors
-
Fans and Blowers
-
Gearboxes
-
Critical Process Equipment in Oil & Gas Refineries
-
Power Generation Equipment
This probe ensures accurate shaft displacement monitoring, supports real-time vibration analysis, and enables predictive maintenance strategies, helping prevent unplanned outages.
Product Advantages
-
Robust Mechanical Construction: Stainless steel housing and durable tip material enhance longevity in harsh environments.
-
Precision Sensing: Delivers high linearity and stable performance, crucial for accurate displacement measurement.
-
API 670 Compliance: Meets stringent international standards for rotating machinery protection.
-
Wide Compatibility: Seamlessly integrates with the entire Bently Nevada 3300 XL system.
-
High Temperature and Pressure Tolerance: Operates effectively under extreme industrial conditions.
-
Reduced Downtime: Enables early fault detection and proactive maintenance.
-
Easy Installation: Standard threading and cable configuration allow fast setup and replacement.
Frequently Asked Questions (FAQ)
-
What does the “8mm” specification mean for this probe?
It refers to the diameter of the probe tip, which determines the sensing area and installation requirements. -
Is this proximity probe compatible with older Bently Nevada systems?
Yes, it is backward compatible with 3300 systems and newer 3500 monitoring systems. -
Can I use this probe in high-temperature environments?
Yes, it is rated for temperatures up to 177°C (351°F), suitable for most industrial applications. -
What is the typical linear range of this probe?
It offers a linear range of approximately 2 mm (80 mils), ensuring accurate readings within that displacement. -
Does this model meet API 670 compliance?
Absolutely. This probe is fully compliant with API 670 standards for machinery protection. -
What cable length options are available for this probe?
The 330102 series offers cable lengths from 1.0 to 9.0 meters; this particular unit comes with 1.0 meter. -
What is the response frequency of this proximity probe?
It supports a frequency response from DC to 10 kHz. -
Is the probe suitable for use in hazardous areas?
Yes, it holds certifications such as ATEX and CE for use in explosive environments, depending on system configuration. -
How do I ensure proper installation for accurate readings?
Follow manufacturer-recommended procedures, including probe gap setting and using compatible Proximitor sensors. -
What maintenance does this probe require?
It requires minimal maintenance. Regular inspections and signal verification are recommended during scheduled equipment checks.
Recommended Related Models (Same Series or Application)
| Model Number | Description | Cable Length | Tip Size | Mounting Style |
|---|---|---|---|---|
| 330102-00-05-10-01-00 | 3300 XL 8mm Probe, 5 ft cable | 5 ft | 8 mm | Straight |
| 330104-00-10-10-01-00 | 3300 XL 8mm Probe, reverse mount | 10 ft | 8 mm | Reverse Mount |
| 330130-040-00 | Extension cable for 3300 XL probes | 4 m | – | Cable Only |
| 330180-91-05 | Proximitor Sensor for 3300 XL series | – | – | DIN rail mountable |
| 330103-00-08-10-02-00 | 8mm probe with armored cable | 8 ft | 8 mm | Straight, armored |
| 330106-05-30-10-02-00 | 11mm probe, extended length | 30 ft | 11 mm | Extended length |
