Product Introduction

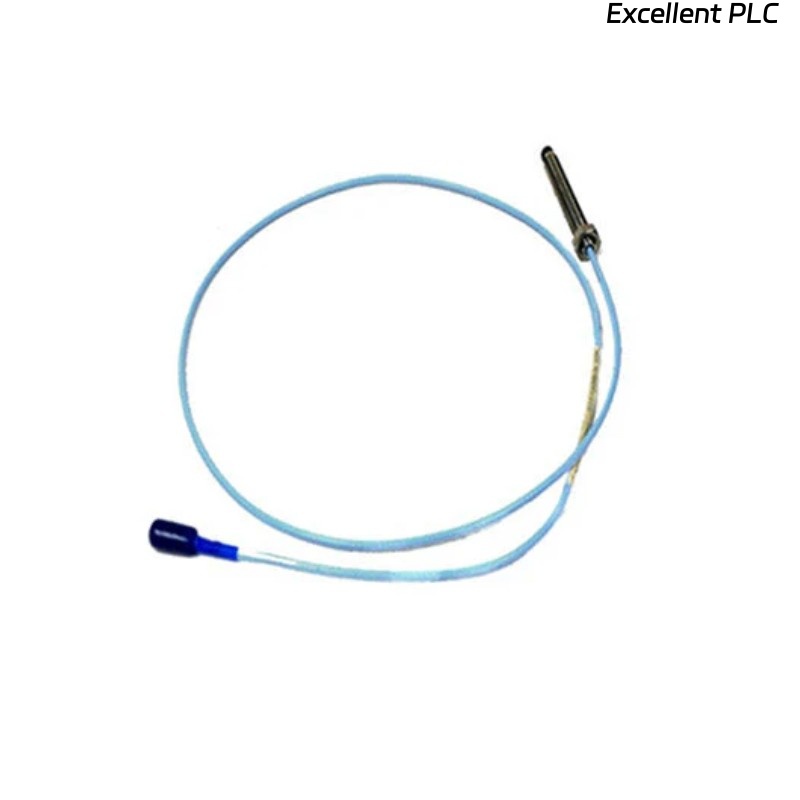

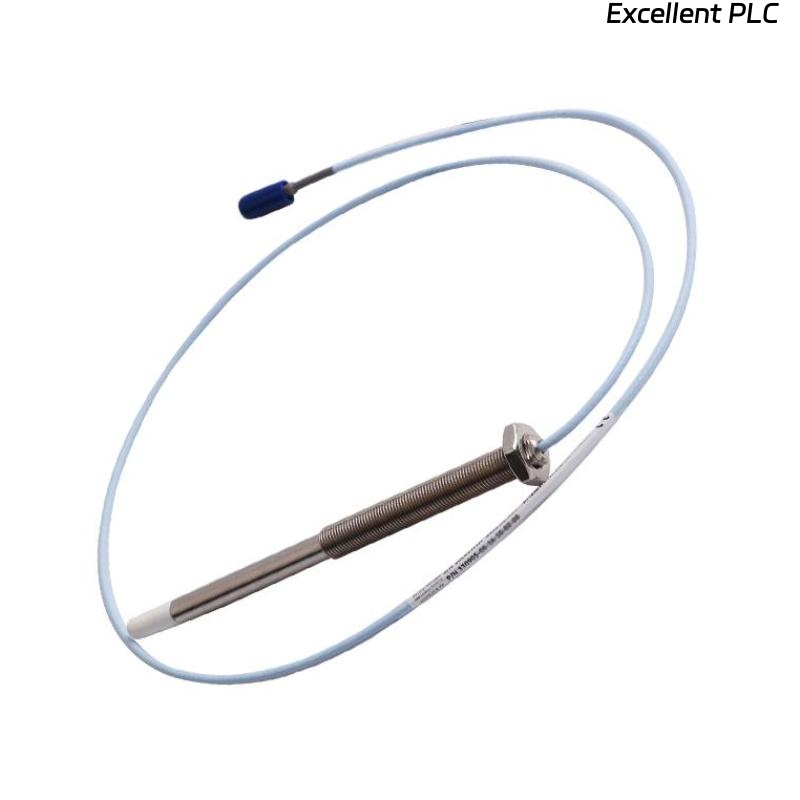

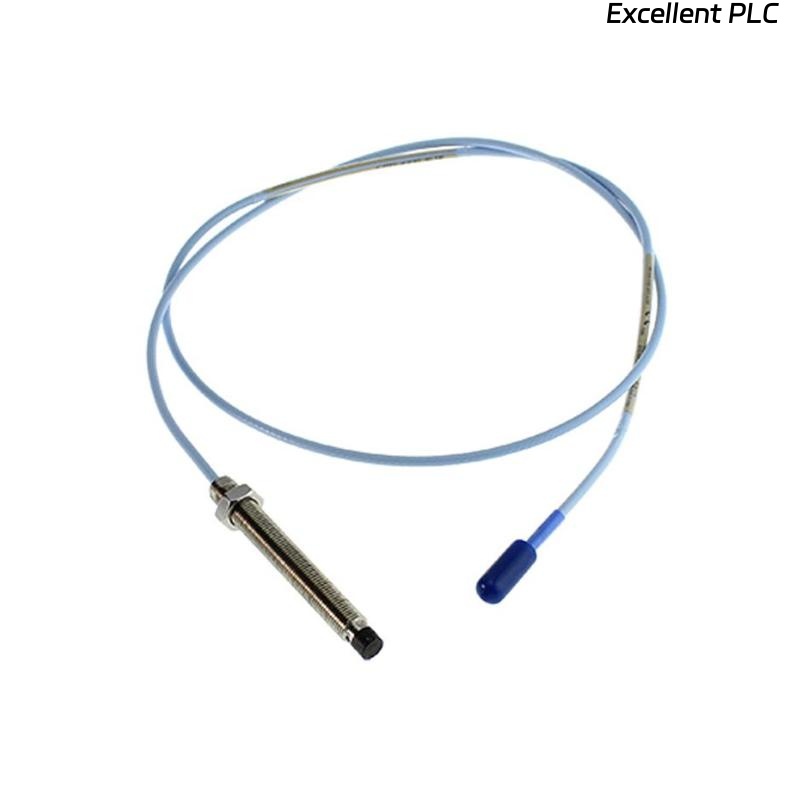

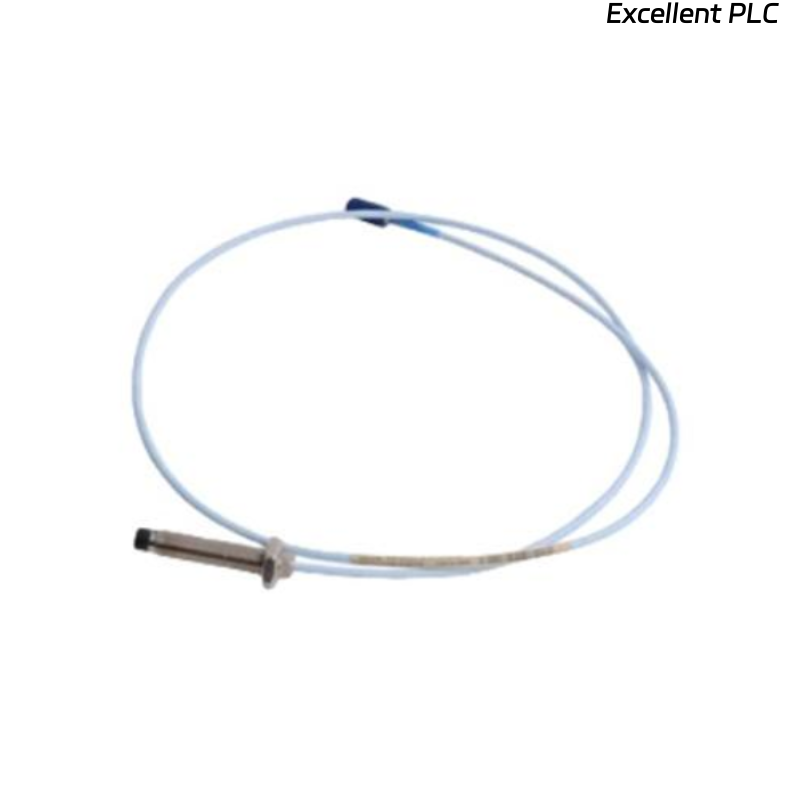

The Bently Nevada 330102-00-16-10-02-05 – 3300 XL 8 mm Proximity Probe is a high-performance non-contact sensor designed to measure shaft vibration, displacement, and position in critical rotating machinery. As part of the 3300 XL series, this probe offers extended linear measurement range, superior temperature stability, and long-term reliability in demanding industrial environments.
The probe works with a matching extension cable and proximity sensor driver to deliver accurate condition monitoring signals directly to protection and monitoring systems. It is widely deployed in turbines, compressors, pumps, gearboxes, and other high-value equipment where precise shaft measurements are essential for predictive maintenance and safe operation.
Product Parameters
| Parameter | Description |
|---|---|
| Model Number | 330102-00-16-10-02-05 |
| Series | 3300 XL 8 mm Proximity Probe |
| Measurement Range | 200 mils (5.08 mm) typical linear range |
| Tip Diameter | 8 mm (standard sensing tip) |
| Thread Size | M10 × 1 or 3/8-24 UNF (depending on variant) |
| Material | Stainless steel probe body, polymer insulated cable |
| Operating Temperature | -35 °C to +180 °C (probe) |
| Frequency Response | DC to 10 kHz (typical) |
| Power Supply | Supplied through proximitor driver (–24 VDC nominal) |
| Insulation Resistance | > 10^9 Ω at 500 VDC |
| Vibration Limit | 20 g peak (10–2000 Hz) |
| Shock Limit | 500 g, 1 ms duration |
| Total Length | 1 m |
| Weight | 0.323 kg |
Product Applications
-
Steam and Gas Turbines – monitoring rotor vibration, thrust position, and bearing clearances.
-
Centrifugal Compressors – detection of shaft instability, imbalance, and misalignment.
-
Industrial Pumps – providing protection against excessive shaft displacement and mechanical wear.
-
Gearboxes and Motors – ensuring reliable operation by monitoring dynamic shaft behavior.
-
Predictive Maintenance Systems – integrated with condition monitoring systems to prevent failures.
-
Nuclear and Power Generation Plants – used in safety-critical vibration monitoring applications.
Product Advantages
-
Extended Linear Range – delivers consistent and accurate measurements up to 200 mils (5.08 mm).
-
High Temperature Stability – maintains accuracy across a wide operating range of –35 °C to +180 °C.
-
Robust Construction – stainless steel body and rugged cable design ensure long service life.
-
Compatibility – fully compatible with Bently Nevada proximitor drivers and extension cables.
-
High Accuracy and Reliability – minimizes signal drift and guarantees long-term stability.
-
Wide Industrial Acceptance – globally recognized as an industry standard in shaft vibration monitoring.
FAQ (10 Questions & Answers)
Q1: What is the primary function of the 330102-00-16-10-02-05 proximity probe?
A1: It is used to measure shaft vibration, displacement, and position in rotating machinery, providing inputs for protection and condition monitoring systems.
Q2: Can this probe be used with any proximitor driver?
A2: No. It must be used with the corresponding 3300 XL extension cable and proximitor driver to ensure accuracy and proper calibration.
Q3: What is the difference between the 8 mm probe and the 5 mm probe?
A3: The 8 mm probe provides a larger linear measurement range, making it suitable for larger shaft sizes and high-dynamic applications, while the 5 mm probe is for more compact installations.
Q4: How long is the standard probe cable?
A4: This model comes with a 1.0 m integral cable, which must be connected to an extension cable to reach the proximitor driver.
Q5: What industries commonly use this probe?
A5: Oil and gas, petrochemical, power generation, steel, paper, and other heavy industries with critical rotating equipment.
Q6: Can the probe withstand high vibration environments?
A6: Yes, it can tolerate up to 20 g vibration and up to 500 g shock, making it reliable under severe operating conditions.
Q7: Is the probe interchangeable with older Bently Nevada probes?
A7: In most cases yes, but the 3300 XL series has specific compatibility requirements. It is recommended to use probes, extension cables, and drivers from the same series.
Q8: What maintenance does this probe require?
A8: Probes generally require no internal maintenance but should be periodically inspected for cable wear, connector integrity, and mounting security.
Q9: Can it be installed in hazardous environments?
A9: Yes, when used with certified accessories, the probe can be installed in hazardous and explosive classified areas.
Q10: How does the probe connect to the monitoring system?
A10: It connects via the extension cable to a proximitor driver, which then outputs a voltage signal proportional to shaft displacement for use in monitoring systems.
Recommended Same-Series or Related Models
| Model Number | Description | Probe Tip Size | Cable Length | Application |
|---|---|---|---|---|
| 330102-00-08-10-01-00 | 3300 XL 8 mm Probe | 8 mm | 0.8 m | General shaft monitoring |
| 330102-00-20-05-02-00 | 3300 XL 8 mm Probe | 8 mm | 2.0 m | Long cable installations |
| 330102-00-20-30-12-CN | 3300 XL 8 mm Probe | 8 mm | 3.0 m | Extended length, China variant |
| 330103-00-08-10-01-00 | 3300 XL 5 mm Probe | 5 mm | 0.8 m | Compact machinery |
| 330104-00-09-10-02-00 | 3300 XL 11 mm Probe | 11 mm | 0.9 m | Large shaft measurements |
| 330106-05-30-10-02-05 | 3300 XL 25 mm Probe | 25 mm | 3.0 m | Heavy-duty machinery |
Recommended Popular Models from Bently Nevada
| Model Number | Description | Function | Typical Application |
|---|---|---|---|
| 3500/22M | Transient Data Interface | Data acquisition | Online machinery monitoring |
| 3500/42M | Proximitor/Seismic Monitor | Vibration monitoring | Turbines, compressors |
| 3500/32M | Relay Module | Protection relay | Machinery trip systems |
| 3500/15 | Power Supply Module | Power distribution | 3500 rack systems |
| 330103-00-07-10-02-00 | 3300 XL 5 mm Probe | Shaft vibration | Compact machines |
| 330104-00-09-10-02-00 | 3300 XL 11 mm Probe | Shaft vibration | Large shaft systems |
| 330106-05-30-10-02-05 | 3300 XL 25 mm Probe | Large displacement | Heavy-duty machinery |
| 9200-06-05-10-00 | Velocity Sensor | Seismic vibration | Low-frequency monitoring |
