Product Introduction

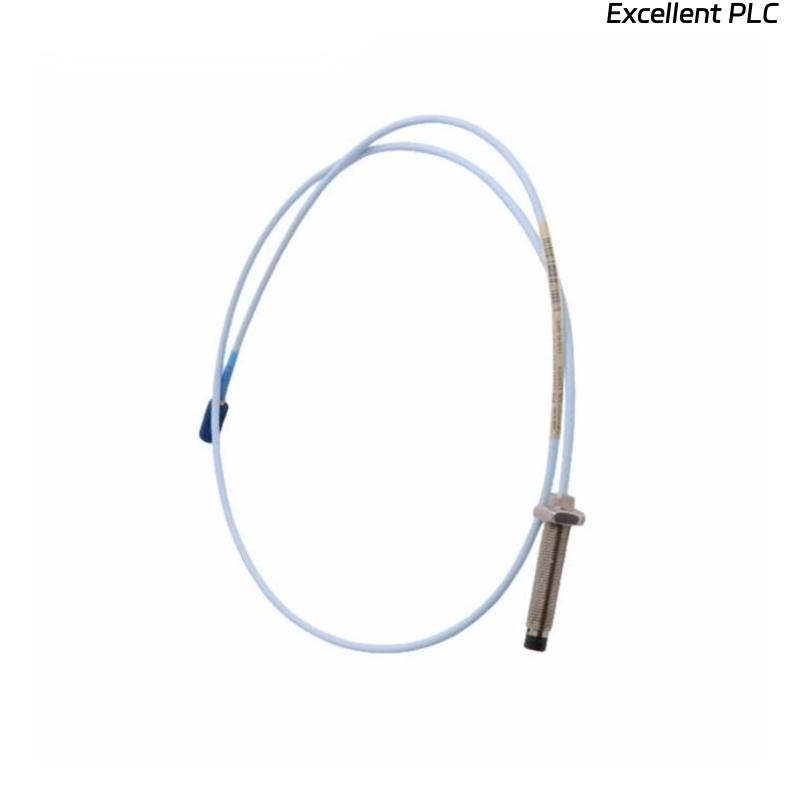

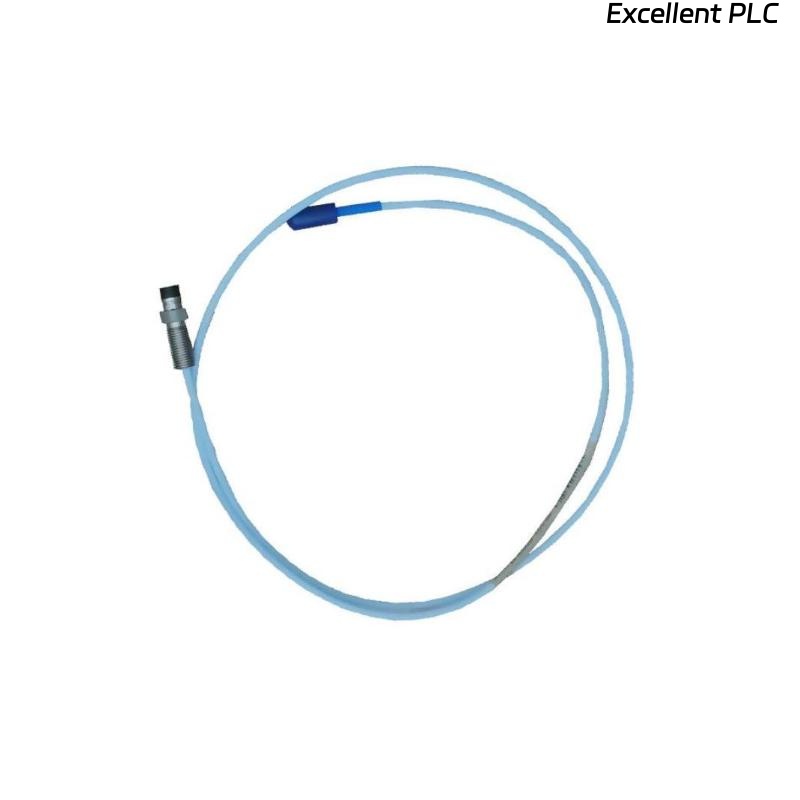

The Bently Nevada 330102-00-20-05-02-00 3300 XL 8 mm Proximity Probe is part of the world-renowned 3300 XL proximity transducer system, designed for precise non-contact vibration and displacement measurements in critical rotating machinery. This probe is engineered to deliver high reliability, exceptional accuracy, and long-term stability under demanding industrial environments.
The 3300 XL series is widely used in turbines, compressors, pumps, and other rotating assets where continuous condition monitoring is essential for predictive maintenance and avoiding unplanned downtime. The probe works seamlessly with extension cables and proximitor sensors to form a complete transducer system, ensuring accurate shaft vibration and position monitoring.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330102-00-20-05-02-00 |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Tip Diameter | 8 mm (0.315 in) |
| Thread Size | M10 × 1 or 3/8-24 UNF (depending on version) |
| Sensing Range | –2.0 mm to +2.0 mm (4 mm total range) |
| Linear Range | 2.0 mm (80 mils) typical |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Range | DC to 10 kHz |
| Operating Temperature | –35 °C to +177 °C (–31 °F to +350 °F) |
| Material (Probe Body) | Stainless Steel with hermetic sealing |
| Total Length | 0.5 m |
| Connector Type | Miniature coaxial connector |
| Weight | 0.162 kg |
| Compliance | CE Marked, ATEX/IECEx options available for hazardous areas |
Product Applications
The 3300 XL 8 mm Proximity Probe is used in a wide range of industrial applications where machinery protection and monitoring are crucial.
-
Turbomachinery: Steam turbines, gas turbines, and hydro turbines for shaft vibration monitoring.
-
Compressors: Used in centrifugal and reciprocating compressors to track displacement and axial thrust.
-
Pumps and Motors: Monitoring shaft behavior to detect misalignment, imbalance, or bearing wear.
-
Generators: Ensuring stability and preventing catastrophic failures by detecting early mechanical faults.
-
Industrial Fans and Gearboxes: For condition monitoring and predictive maintenance.
-
Critical Asset Protection Systems: Integrated with Bently Nevada monitoring systems such as 3500 Series and Orbit 60.
Product Advantages
-
High Reliability: Designed for continuous operation in harsh industrial conditions.
-
Accuracy and Stability: Provides precise vibration and displacement readings with minimal drift.
-
Wide Compatibility: Works seamlessly with proximitor sensors and monitoring systems.
-
Durable Construction: Stainless steel housing and hermetic sealing extend service life.
-
Temperature Tolerance: Can withstand extreme environments up to 177 °C.
-
Ease of Installation: Flexible probe lengths and connector options for quick deployment.
-
Trusted Industry Standard: Backed by Bently Nevada’s reputation in condition monitoring.
FAQ
Q1: What is the main purpose of the 330102-00-20-05-02-00 probe?
A1: It measures shaft vibration and position in rotating machinery to support condition monitoring and protection.
Q2: Can this probe operate in high-temperature environments?
A2: Yes, it is rated for continuous operation up to 177 °C.
Q3: What is the sensitivity of this probe?
A3: It provides a sensitivity of 200 mV/mil (7.87 V/mm).
Q4: Is it compatible with older Bently Nevada monitoring systems?
A4: Yes, it is backward-compatible with most 3300 and 3500 monitoring systems.
Q5: What industries typically use this probe?
A5: Power generation, oil & gas, petrochemicals, and heavy manufacturing industries.
Q6: What is the typical linear measurement range?
A6: The probe provides a linear range of approximately 2.0 mm.
Q7: Does the probe require calibration?
A7: Each probe is factory-calibrated, but system calibration with extension cables and proximitor is recommended.
Q8: How durable is the probe cable?
A8: The cable is designed with robust insulation to resist mechanical stress and chemical exposure.
Q9: What certifications are available?
A9: CE marking, ATEX, and IECEx certifications are available for hazardous environments.
Q10: How is the probe installed?
A10: It is threaded into a mounting bracket or probe holder, aligned with the shaft surface, and connected to the proximitor via coaxial cable.
Recommended Same-Series or Related Models
| Model Number | Description | Probe Tip Size | Cable Length | Sensitivity |
|---|---|---|---|---|
| 330102-00-16-10-02-05 | 3300 XL 8 mm Proximity Probe | 8 mm | 5 m | 200 mV/mil |
| 330102-00-08-10-01-00 | 3300 XL 8 mm Proximity Probe | 8 mm | 2 m | 200 mV/mil |
| 330103-00-05-10-02-05 | 3300 XL 11 mm Proximity Probe | 11 mm | 5 m | 200 mV/mil |
| 330104-00-10-10-02-05 | 3300 XL 25 mm Proximity Probe | 25 mm | 5 m | 200 mV/mil |
| 330130-040-00-00 | Extension Cable for 3300 XL Proximity System | – | 4 m | – |
| 330180-90-00 | Proximitor Sensor for 3300 XL Series | – | – | – |
Recommended Popular Models from the Same Brand
| Model Number | Description | Application | Voltage Supply | Dimensions |
|---|---|---|---|---|
| 3500/22M | Transient Data Interface Module | Vibration Monitoring | 18–32 VDC | 241 × 24 × 229 mm |
| 3500/42M | Proximitor/Seismic Monitor | Machinery Protection | 18–32 VDC | 241 × 24 × 229 mm |
| 3500/40M | Proximitor Monitor | Shaft Vibration Monitoring | 18–32 VDC | 241 × 24 × 229 mm |
| 3500/92 | Communication Gateway Module | System Integration | 18–32 VDC | 241 × 24 × 229 mm |
| 330103-00-05-10-02-05 | 3300 XL 11 mm Proximity Probe | Large Shaft Monitoring | – | 11 mm × 50 mm |
| 330104-00-10-10-02-05 | 3300 XL 25 mm Proximity Probe | Large Rotor Applications | – | 25 mm × 100 mm |
| 330180-51-00 | 3300 XL Proximitor Sensor | Probe Signal Conversion | 24 VDC | 80 × 35 × 30 mm |
| 330130-080-00-00 | Extension Cable for Proximity Probes | Probe Connectivity | – | 8 m Cable |
