Product Introduction

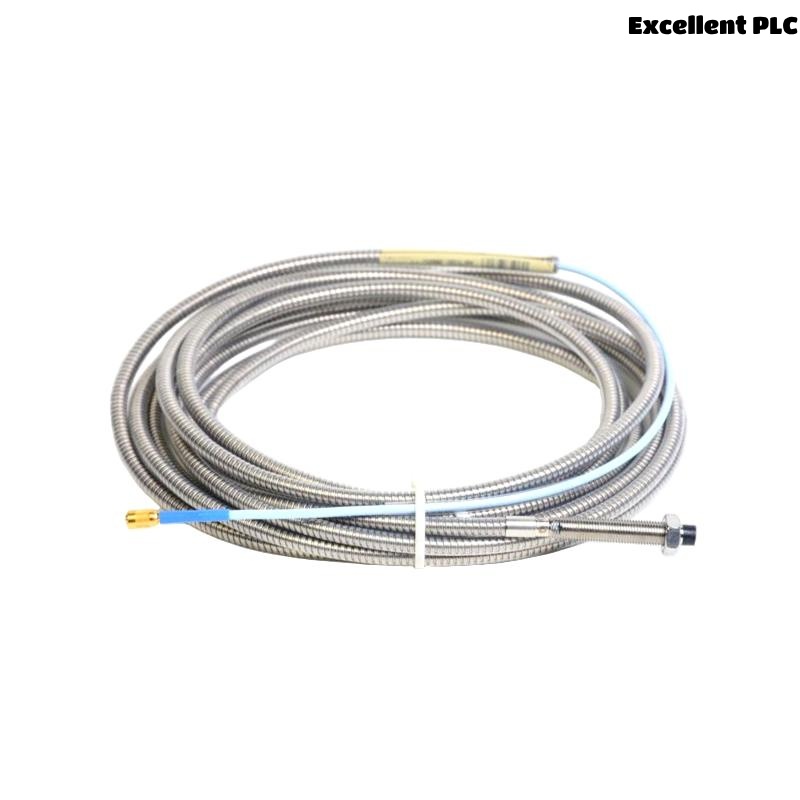

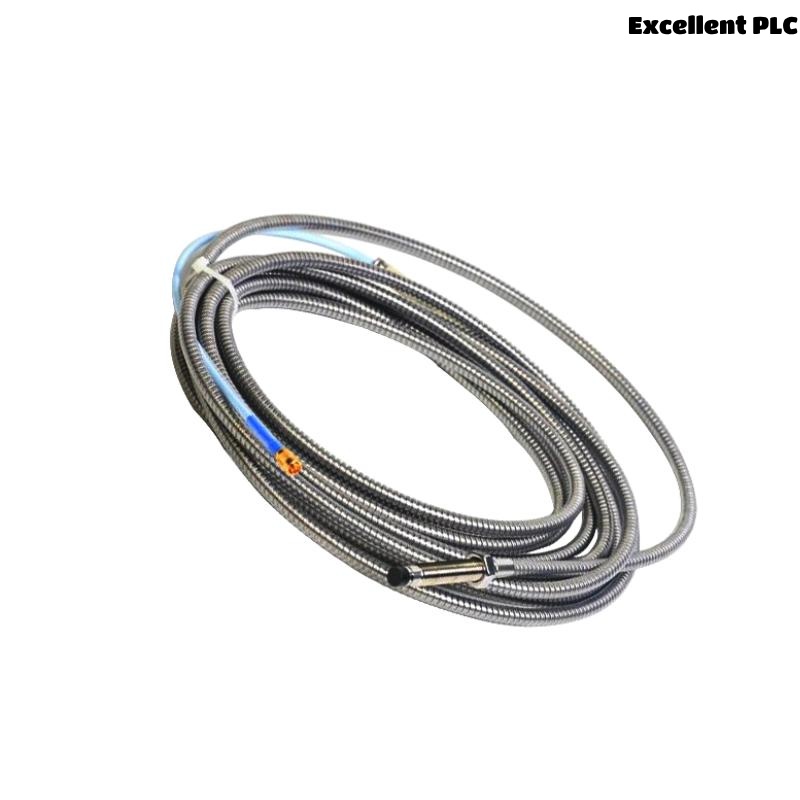

The Bently Nevada 330102-00-20-50-02-00 is an 8mm proximity probe specifically designed for use with the 3300 XL monitoring system. Known worldwide for its reliability and precision, this probe plays a vital role in monitoring the condition of rotating machinery by accurately measuring shaft displacement and vibration.
Built with high-quality materials and engineered to withstand harsh industrial environments, this probe ensures dependable performance in critical applications. Its robust stainless steel body and precise sensing capabilities enable early detection of machinery faults, helping to prevent costly downtime and extend equipment life.
Ideal for industries such as power generation, oil and gas, and heavy manufacturing, this probe integrates seamlessly with the 3300 XL system, delivering real-time data essential for predictive maintenance and operational safety.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330102-00-20-50-02-00 |
| Probe Tip Diameter | 8 mm |
| Total Length | 5.0 meters |
| Operating Temperature | -40°C to +120°C |
| Weight | 1.615 kg |
| Output Signal Type | AC Voltage output proportional to gap |
| Sensing Range | 2 to 8 mm |
| Connector Type | MIL-C-26482 / 4-pin connector |
| Compatible System | Bently Nevada 3300 XL |
| Material | Stainless steel probe tip and body |
| Cable Insulation | Teflon® |
| Compliance | CE, RoHS certified |
Product Applications
The 330102-00-20-50-02-00 proximity probe is widely employed across various industrial sectors to monitor the health of rotating machinery. Typical applications include:
-
Monitoring turbines, compressors, pumps, and generators in power plants.
-
Detecting shaft displacement and vibration in oil and gas facilities.
-
Measuring machinery conditions in heavy industry and manufacturing plants.
-
Supporting condition-based maintenance programs to avoid unexpected failures.
-
Enhancing safety and reliability in automated industrial systems.
-
Providing precise measurements for machinery diagnostics and troubleshooting.
This probe’s data is critical for asset management strategies that focus on reducing maintenance costs and improving equipment availability.
Product Advantages
-
Precision Measurement: Offers highly accurate shaft displacement readings, essential for effective condition monitoring.
-
Durability: Manufactured with corrosion-resistant stainless steel, it withstands mechanical wear and harsh environments.
-
Wide Temperature Range: Performs reliably from -40°C to +120°C, suitable for extreme industrial conditions.
-
Compact Design: The 8mm probe diameter facilitates installation in restricted spaces without compromising functionality.
-
Seamless Integration: Designed to work flawlessly with the Bently Nevada 3300 XL system.
-
Reliable Signal Output: Provides stable AC voltage output proportional to gap variations, ensuring clear and consistent monitoring signals.
-
Flexible Cabling: Standard cable length with customizable options to meet specific installation needs.
-
Ease of Installation: Equipped with standard connectors and mounting features for quick and secure setup.
-
Industry Proven: Trusted technology used globally for critical machinery protection.
-
Maintenance Friendly: Minimal upkeep required, with straightforward inspections and cleaning procedures.
Frequently Asked Questions (FAQ)
-
What is the measuring range of the probe?
The probe accurately measures shaft displacement within a 2 to 8 mm range. -
Can the probe be used with monitoring systems other than the 3300 XL?
While optimized for the 3300 XL, it may be compatible with other systems that accept similar AC voltage signals. -
What connector type does the probe use?
It utilizes a MIL-C-26482 4-pin connector, providing a secure and industry-standard connection. -
Is it possible to get a longer cable length?
Yes, custom cable lengths beyond the standard 5 meters can be requested to suit specific setups. -
What environmental conditions can the probe handle?
It is rated for operation between -40°C and +120°C and is built to resist corrosion and mechanical damage. -
How can I verify the probe’s functionality?
The 3300 XL system performs diagnostics that indicate probe health; consistent output signals also confirm proper operation. -
Is this probe suitable for outdoor installations?
Yes, provided it is installed in appropriate protective enclosures. -
What maintenance does this probe require?
Minimal maintenance is needed; periodic inspection and cleaning of the probe tip are recommended. -
How is the probe installed on equipment?
It mounts via threaded fittings close to the shaft, with the cable connecting to the monitoring system. -
Where should I purchase this probe to ensure authenticity?
Contact us.
Recommended Related Models
| Model Number | Description | Probe Diameter (mm) | Cable Length (m) | Notes |
|---|---|---|---|---|
| 330101-00-30-50-02-00 | 8mm Proximity Probe for 3300 XL | 8 | 3 | Standard variant |
| 330103-00-20-50-02-00 | 8mm Proximity Probe with enhanced durability | 8 | 3 | Heavy-duty version |
| 330101-00-30-50-10-00 | 8mm Proximity Probe with longer cable | 8 | 10 | Extended cable length |
| 330104-00-20-50-02-00 | 10mm Proximity Probe for 3300 XL | 10 | 3 | Larger diameter tip |
| 330101-00-20-50-05-00 | 6mm Proximity Probe for 3300 XL | 6 | 3 | Smaller diameter option |
| 330105-00-20-50-02-00 | 12mm Proximity Probe for 3300 XL | 12 | 3 | Maximum sensing diameter |
