Product Description

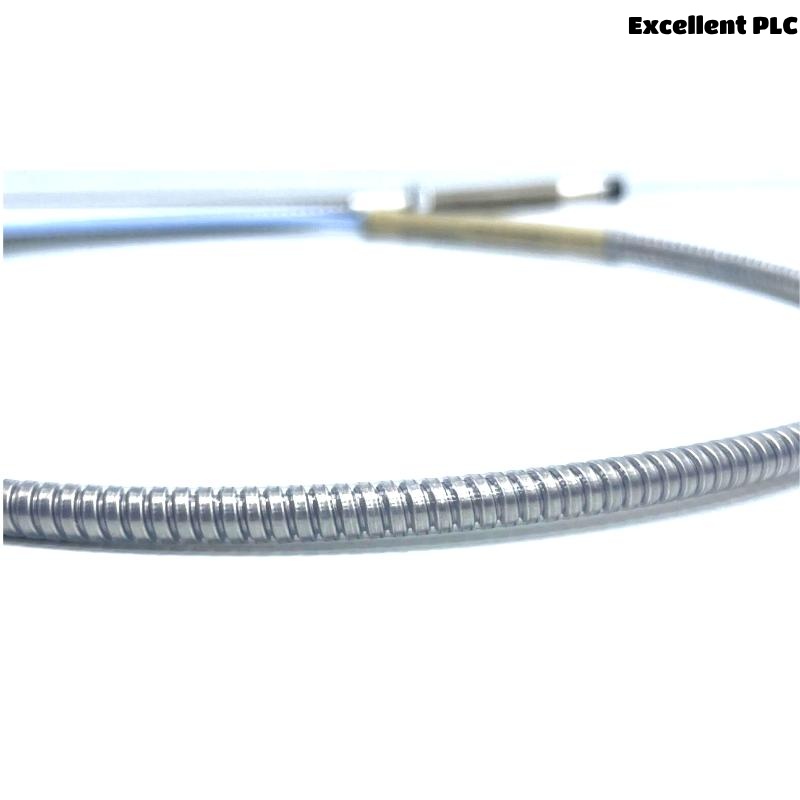

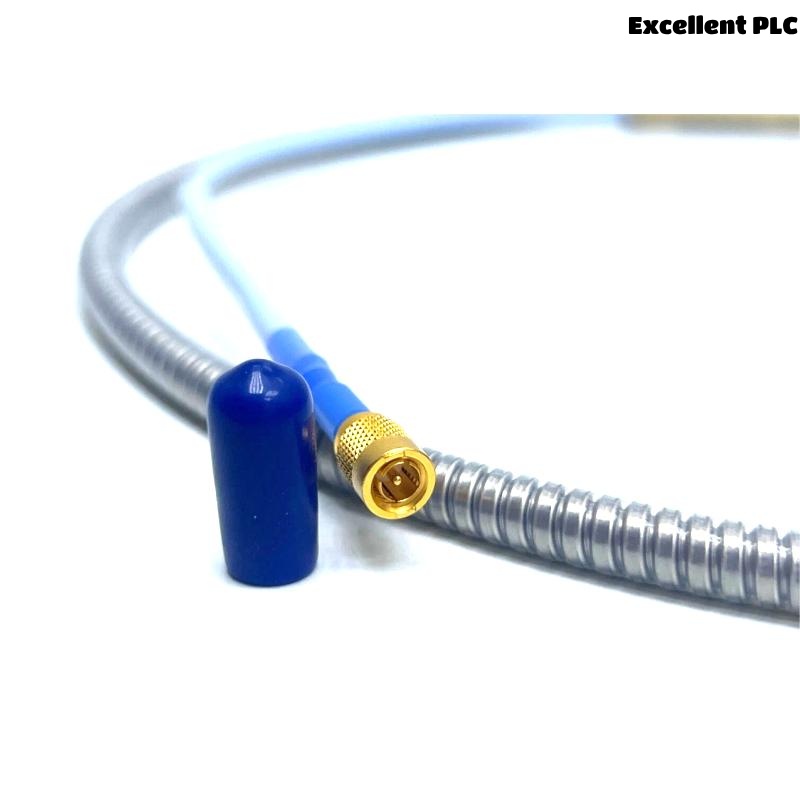

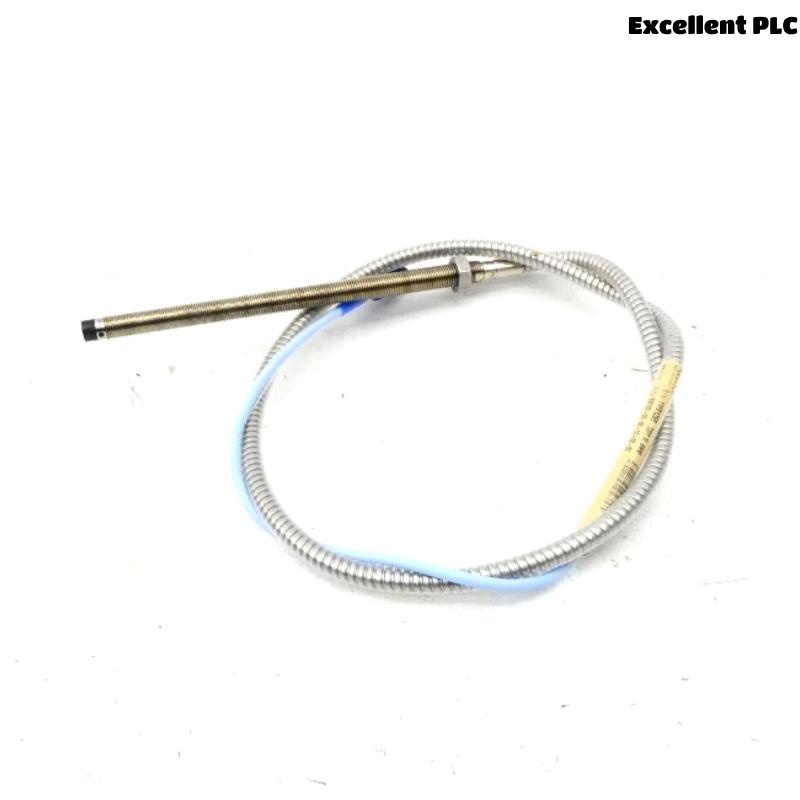

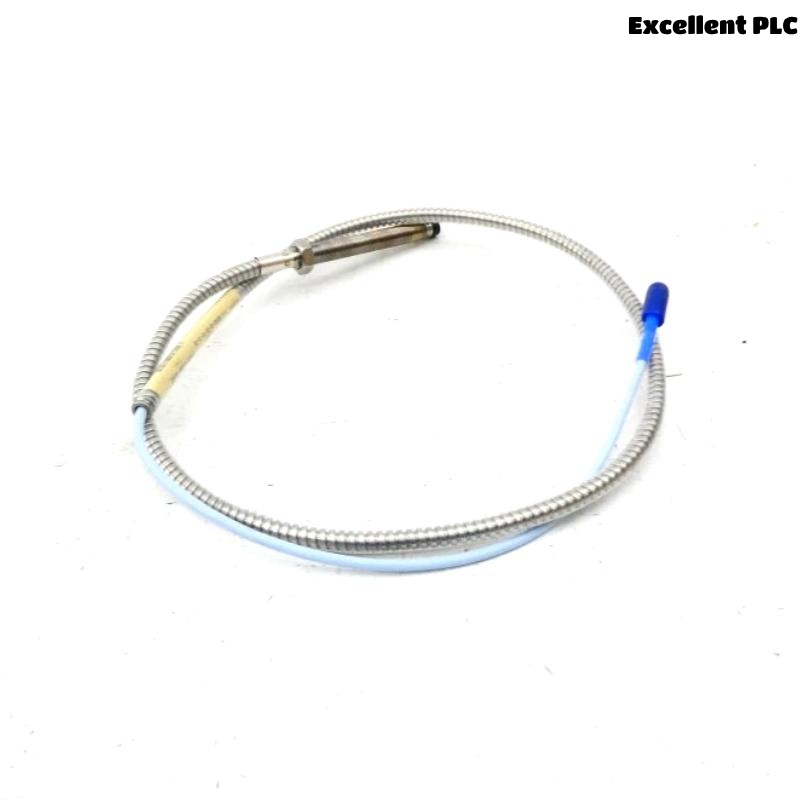

The Bently Nevada 330102-00-24-20-12-05 is a robust 3300 XL 8 mm armored proximity probe, designed for precise vibration and position monitoring in rotating machinery. It delivers a voltage output proportional to the distance from a conductive target, supporting static and dynamic measurements. With rugged armor and ClickLoc connectors, it ensures reliability in harsh industrial environments and is fully compliant with API 670 standards.
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Total Length | 2.0 meters (6.6 ft) |
| Weight | 0.646 kg |
| Cable Type | Armored with standard ClickLoc connector |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Linear Range | 0.25 to 2.3 mm |
| Operating Temperature | -52°C to +177°C |
| Extended Temperature (option) | Up to 218°C |
| Material | Stainless steel case, PPS tip |
| Mounting Torque (recommended) | 11.2 N·m |
| Minimum Bend Radius | 25.4 mm |
Applications
-
Vibration monitoring on fluid-film bearing machinery
-
Axial and radial position measurement
-
Keyphasor and overspeed reference detection
-
High-density installations requiring armored protection
Advantages
-
Complies fully with API 670 standards
-
Armored design resists mechanical damage and oil ingress
-
Interchangeable with non-XL 3300 series components
-
Rugged ClickLoc connectors prevent loosening
-
Supports extended temperature operation with ETR option
-
No bench calibration required when replacing components
FAQ
Q1: What is the standard output signal of the 330102 probe?
A1: It outputs a voltage proportional to the gap between the probe tip and the conductive target.
Q2: Can this probe operate at high temperatures?
A2: Yes, standard operation is rated to +177°C, and up to +218°C with ETR option.
Q3: Is the 330102 probe backward compatible?
A3: Yes, it is fully compatible with non-XL 3300 series 8 mm and 5 mm systems.
Q4: Does it require special tools for installation?
A4: No, the ClickLoc connectors are designed for finger-tight installation.
Q5: What is the recommended mounting torque?
A5: Recommended torque is 11.2 N·m for standard forward-mount probes.
Q6: Can it be used for overspeed detection?
A6: Yes, but consult the application note for considerations on overspeed protection.
Q7: What is the recommended gap setting?
A7: Approximately 1.27 mm (50 mils) at -9 VDC.
Q8: Is oil ingress a concern?
A8: No, the armored and optional FluidLoc designs prevent oil leakage.
Q9: How robust is the cable connection?
A9: The CableLoc design provides 330 N pull strength for secure attachment.
Q10: Does it support hazardous area certifications?
A10: Yes, with CSA, ATEX, IECEx approvals when ordered with option -05.
Related Models (Same Series / Related)
| Model | Description | Length | Weight |
|---|---|---|---|
| 330101-00-20-10-02-05 | 3300 XL 8mm Probe, unarmored | 2.0 m | 0.580 kg |
| 330103-00-20-10-02-05 | 3300 XL 8mm Probe, M10x1 thread | 2.0 m | 0.600 kg |
| 330104-00-20-10-02-05 | 3300 XL 8mm Probe, armored, M10x1 | 2.0 m | 0.646 kg |
| 330192-00-20-10-02-05 | 3300 XL ETR 8mm Probe, armored | 2.0 m | 0.670 kg |
| 330141-00-20-10-02-05 | 3300 XL Smooth Case 8mm Probe, armored | 2.0 m | 0.630 kg |
| 330105-02-12-05-02-05 | 3300 XL Reverse Mount 8mm Probe | 2.0 m | 0.650 kg |
