Product Description

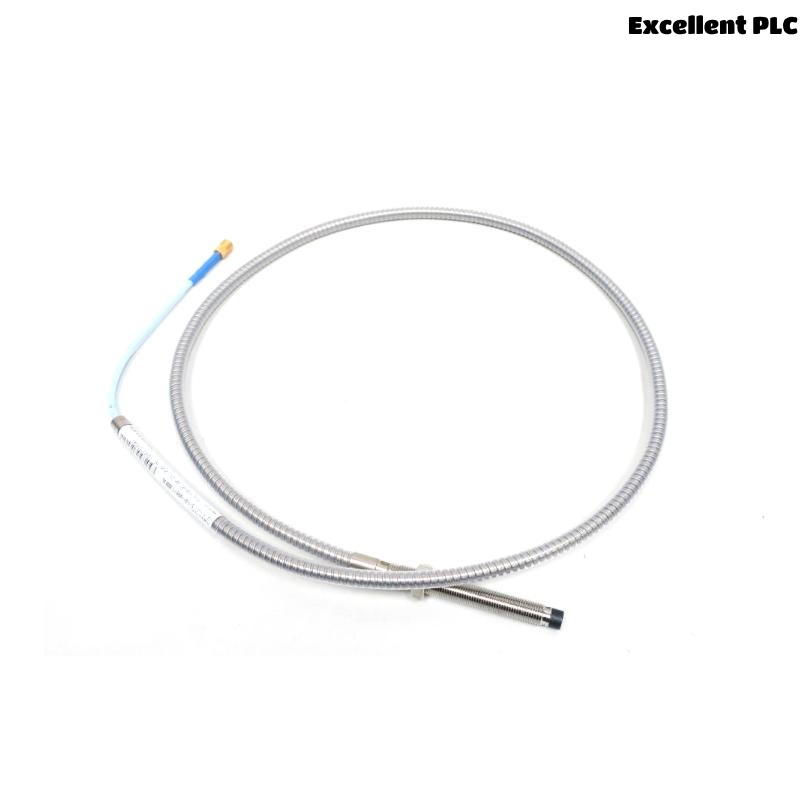

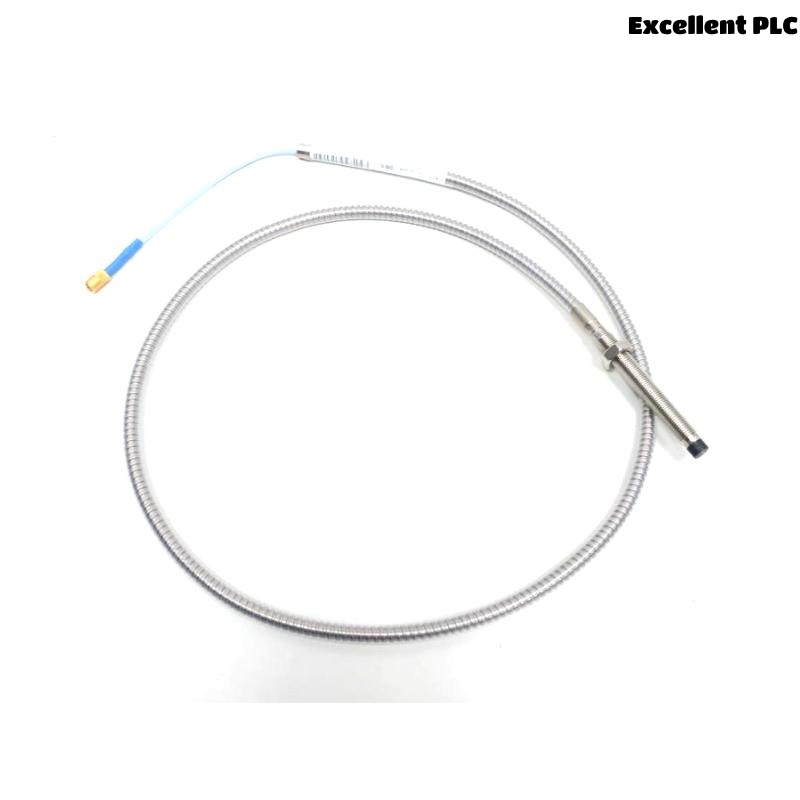

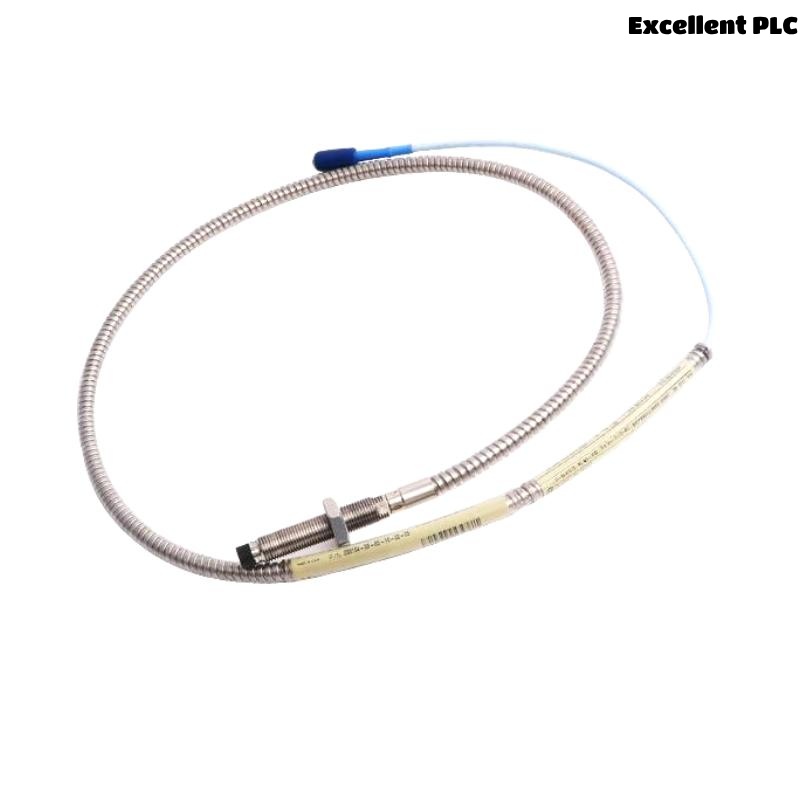

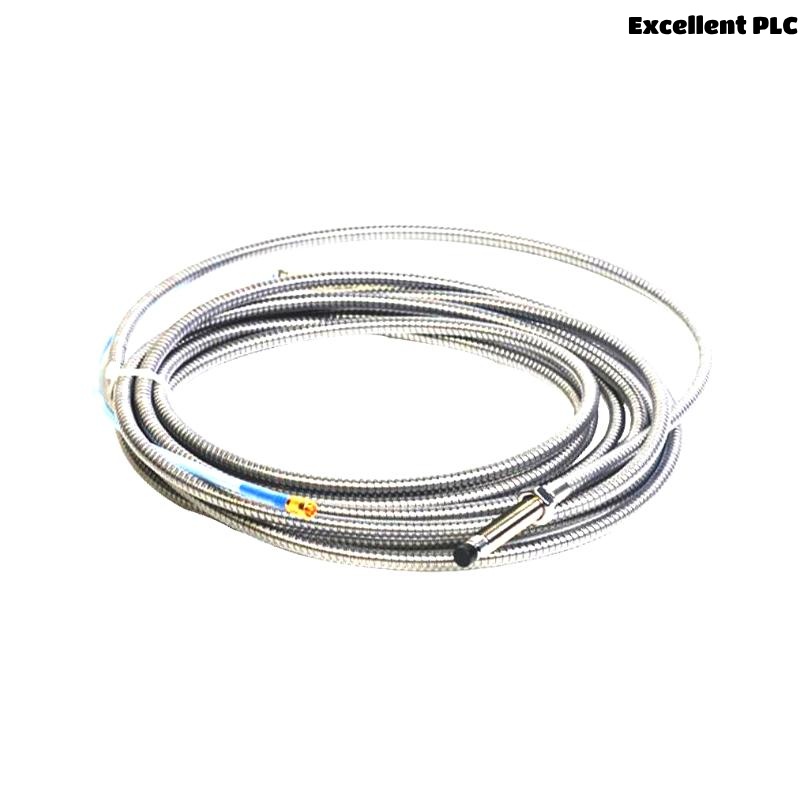

The Bently Nevada 330102-00-27-10-02-05 is a robust 8 mm proximity probe from the 3300 XL series, designed for precise static and dynamic measurements of position and vibration in fluid-film bearing machinery. It features armored construction for added durability in demanding environments, utilizing advanced eddy current sensing technology compliant with API 670 standards. The system allows full interchangeability with other 3300-series components.
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Tip Diameter | 8.0 mm |
| Thread | 3/8-24 UNF with armor |
| Cable Type | Standard coaxial with ClickLoc connector |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Linear Range | 2 mm (80 mils) |
| Operating Temperature | -52°C to +177°C |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Minimum Target Size | 15.2 mm diameter (flat target) |
| Recommended Shaft Diameter | ≥76.2 mm |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
Applications
-
Vibration and position monitoring in rotating machinery
-
Keyphasor reference and speed measurements
-
Turbomachinery in power plants, oil & gas, and process industries
-
High-density installations with challenging environmental conditions
Advantages
-
Complies with API 670 standard
-
Armored for enhanced mechanical protection
-
Fully interchangeable components, simplifying maintenance
-
High immunity to RFI/EMI for reliable performance
-
Rugged construction for extended service life
FAQs
Q1: What is the primary use of this probe?
A1: It is primarily used for vibration and position monitoring of fluid-film bearing machines.
Q2: Does it comply with API standards?
A2: Yes, it fully meets API 670 mechanical and performance requirements.
Q3: Is the probe interchangeable with other 3300-series components?
A3: Yes, it is backward compatible and interchangeable with 5 mm and 8 mm non-XL components.
Q4: What is the maximum operating temperature?
A4: The standard probe can operate up to +177°C.
Q5: How long is the probe cable?
A5: This specific model has a total length of 1.0 meter.
Q6: Does the probe require special installation tools?
A6: No, the ClickLoc connectors are designed for finger-tight installation without tools.
Q7: What is the recommended shaft diameter for optimal performance?
A7: At least 76.2 mm is recommended.
Q8: Can it be used in hazardous areas?
A8: Yes, it carries certifications like CSA, ATEX, and IECEx for hazardous locations.
Q9: What is the linear measurement range?
A9: The probe provides a linear range of 2 mm (80 mils).
Q10: What material is the probe case made of?
A10: It is made of corrosion-resistant stainless steel (AISI 303/304).
Recommended Related Models (Same Series)
| Model Number | Length | Weight | Notes |
|---|---|---|---|
| 330101-00-20-10-02-00 | 2.0 m | 0.410 kg | Standard, no armor |
| 330101-00-30-10-02-05 | 3.0 m | 0.460 kg | Standard, armored |
| 330102-00-50-10-02-05 | 5.0 m | 0.590 kg | Armored |
| 330102-00-90-10-02-05 | 9.0 m | 0.800 kg | Armored, extended length |
| 330103-00-20-10-02-05 | 2.0 m | 0.420 kg | Metric thread, armored |
| 330104-00-20-10-02-00 | 2.0 m | 0.410 kg | Metric thread, no armor |
