Product Introduction

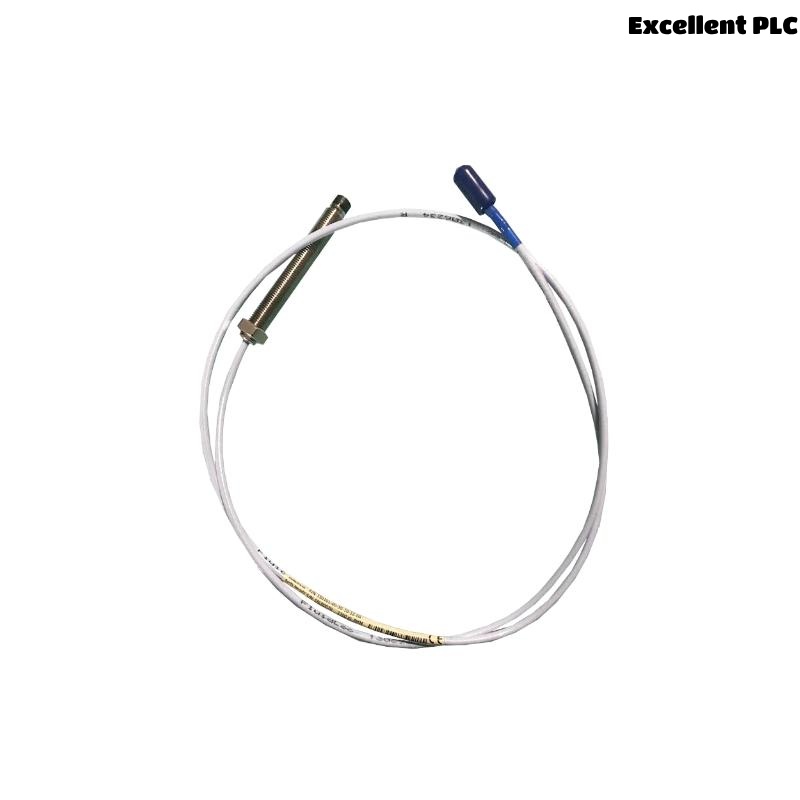

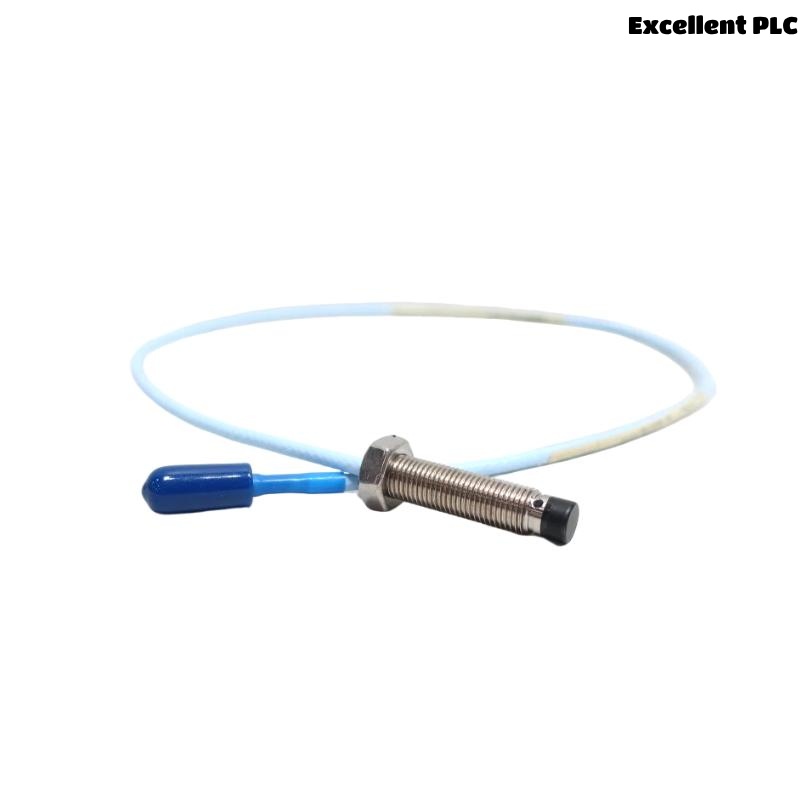

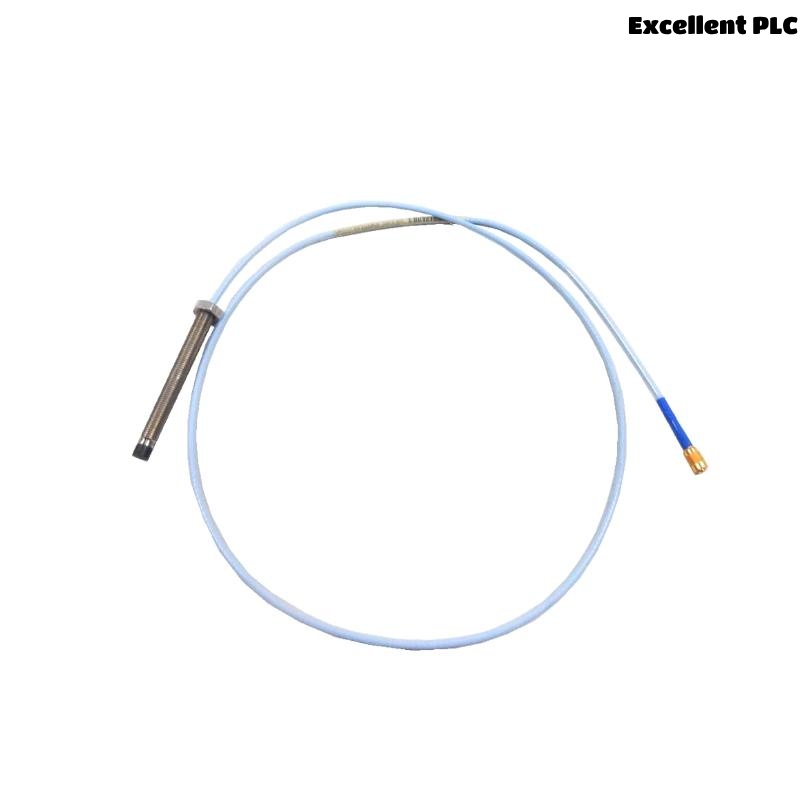

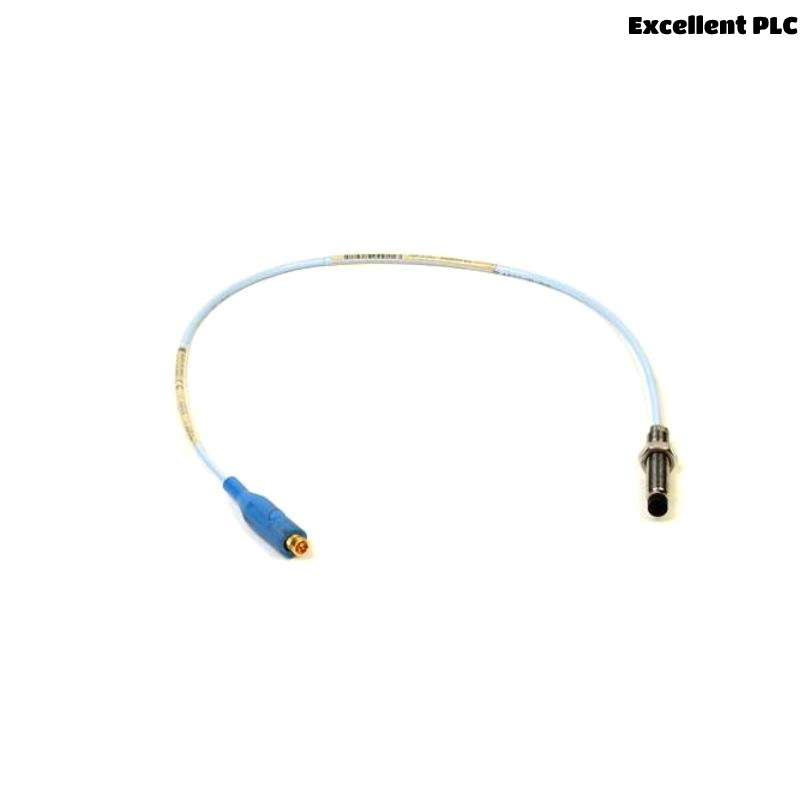

The Bently Nevada 330102-00-28-05-02-05 3300 XL 8mm Proximity Probe is a precision sensor widely recognized in the field of machinery condition monitoring. Engineered for high reliability and accuracy, this probe is designed to measure the position or vibration of rotating machinery shafts with exceptional precision.
The 3300 XL series by Bently Nevada has set the industry standard for proximity probe technology, offering enhanced performance in harsh industrial environments. Its rugged construction withstands high temperatures, shock, and contamination, ensuring long-term durability. With an 8mm sensing gap, this probe is ideal for applications demanding sensitive and precise shaft movement detection.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 330102-00-28-05-02-05 |
| Series | 3300 XL |
| Probe Type | Proximity Probe |
| Sensing Distance (Gap) | 8 mm |
| Probe Diameter | 12.7 mm (0.5 inches) |
| Total Length | 0.5 meter |
| Cable Type | Shielded coaxial cable |
| Operating Temperature Range | -40°C to +120°C |
| Weight | 0.161 kg |
| Housing Material | Stainless steel |
| Connector Type | Standard MIL-style connector |
| Vibration Resistance | Withstands high vibration and shock |
| Measurement Range | Up to 8 mm sensing range |
| Accuracy | High sensitivity, repeatability within microns |
Product Applications
The 3300 XL 8mm Proximity Probe is essential in industries where reliable shaft vibration and position monitoring are critical:
-
Turbines: Monitoring shaft displacement and vibration to predict and prevent failures.
-
Compressors: Ensuring shaft alignment and detecting imbalance or wear.
-
Motors and Generators: Continuous condition monitoring for maintenance planning.
-
Pumps: Vibration analysis to detect bearing wear and misalignment.
-
Industrial Machinery: General shaft position measurement for machinery health.
-
Aerospace and Power Generation: High-precision monitoring under extreme operating conditions.
Product Advantages
-
Industry-Leading Accuracy: Provides precise shaft position and vibration measurement to micrometer resolution.
-
Robust Construction: Stainless steel housing and rugged design ensure durability in harsh environments.
-
Wide Operating Temperature: Suitable for extreme industrial settings, from sub-zero to elevated temperatures.
-
High Resistance to Vibration and Shock: Designed to operate reliably in heavy machinery subject to intense mechanical stresses.
-
Reliable Connector System: MIL-style connectors ensure secure and stable connections.
-
Standardized Design: Compatible with the 3300 XL monitoring system and other Bently Nevada equipment.
-
Low Maintenance: Minimal calibration and long service life reduce operational costs.
-
Versatile Sensing Gap: 8mm sensing distance accommodates a variety of machinery configurations.
-
Trusted Brand: Bently Nevada is a pioneer in condition monitoring, trusted worldwide.
Frequently Asked Questions (FAQ)
-
Q: What is the sensing distance of the 3300 XL proximity probe?
A: The probe has an 8 mm sensing gap, ideal for precise measurement of shaft position. -
Q: What environments can the probe operate in?
A: It works reliably in temperatures from -40°C to +120°C and withstands heavy vibration. -
Q: Is the probe compatible with other Bently Nevada systems?
A: Yes, it is designed to integrate seamlessly with the 3300 XL monitoring system. -
Q: What is the typical cable length supplied with the probe?
A: Standard cable lengths vary but typically come with 200 mm or longer; custom lengths are available. -
Q: How is the probe connected to the monitoring equipment?
A: Using a standardized MIL-style connector, ensuring secure and reliable connections. -
Q: What kind of maintenance does the probe require?
A: Very little; its rugged design minimizes wear, and periodic inspections suffice. -
Q: Can the probe detect shaft vibration as well as position?
A: Yes, it accurately measures both shaft displacement and vibration. -
Q: How resistant is the probe to industrial contaminants?
A: The stainless steel housing provides strong protection against dust, moisture, and contaminants. -
Q: What is the accuracy level of the 3300 XL probe?
A: It offers micrometer-level accuracy and excellent repeatability for reliable monitoring. -
Q: Can this probe be used on different machinery types?
A: Yes, it is versatile and used across turbines, compressors, pumps, motors, and more.
Related Models from the Same Series or Related Bently Nevada Models
| Model Number | Sensing Distance | Probe Diameter | Cable Length (Standard) | Connector Type | Weight (kg) |
|---|---|---|---|---|---|
| 330102-00-28-05-02-04 | 4 mm | 12.7 mm | 200 mm | MIL-style | 0.15 |
| 330102-00-28-05-02-06 | 6 mm | 12.7 mm | 200 mm | MIL-style | 0.15 |
| 330102-00-28-05-02-08 | 8 mm | 12.7 mm | 300 mm | MIL-style | 0.16 |
| 330102-00-28-05-02-10 | 10 mm | 12.7 mm | 300 mm | MIL-style | 0.16 |
| 330102-00-28-05-02-12 | 12 mm | 12.7 mm | 400 mm | MIL-style | 0.17 |
| 330102-00-28-05-02-15 | 15 mm | 12.7 mm | 400 mm | MIL-style | 0.17 |
Popular Bently Nevada Models from the Same Brand
| Model Number | Description | Sensor Type | Application Area | Weight (kg) |
|---|---|---|---|---|
| 330103-00-28-05-02-05 | 3300 XL 12mm Proximity Probe | Proximity Probe | Rotating machinery | 0.18 |
| 330106-00-02-05-02-01 | 3300 XL Velomitor Probe | Velocity Probe | Vibration monitoring | 0.20 |
| 330302-00-28-05-02-01 | 3300 XL Probe Mounting Kit | Mounting Kit | Installation | N/A |
| 3500/25-00-00-00-00 | 3500 Monitor | Condition Monitor | Machinery protection | 2.0 |
| 3300 XL Proximitor | Signal Conditioning Unit | Signal Conditioner | Signal processing | 0.8 |
| 330102-00-28-05-02-02 | 3300 XL 5mm Proximity Probe | Proximity Probe | Shaft position sensing | 0.14 |
