Product Introduction

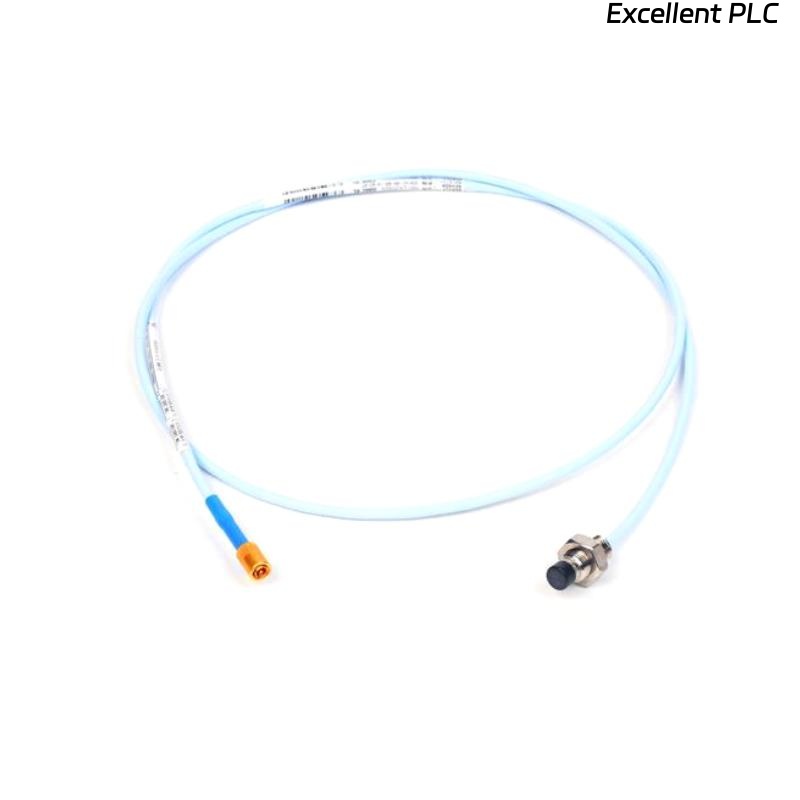

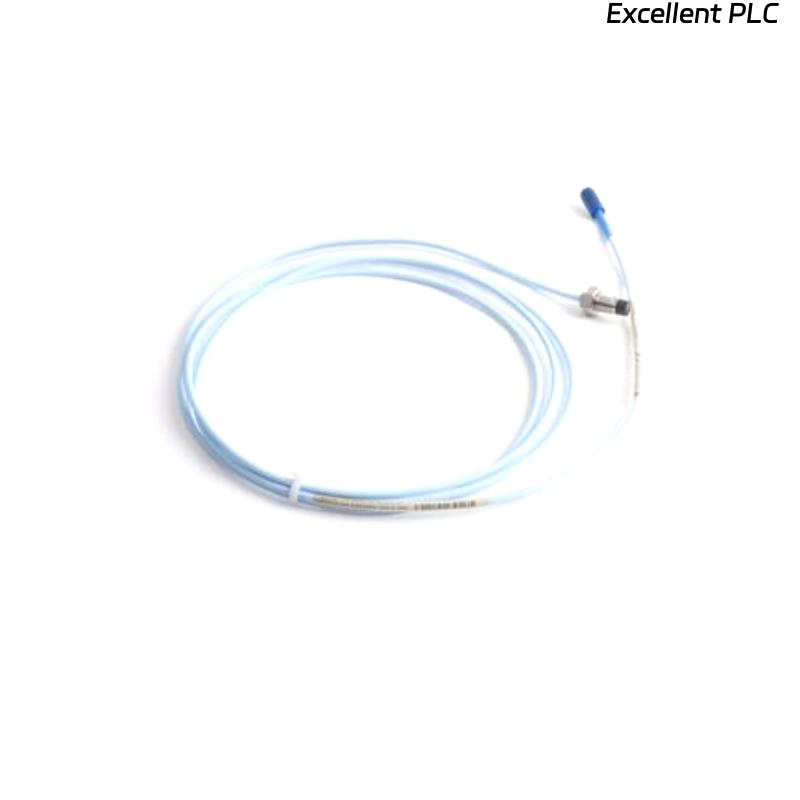

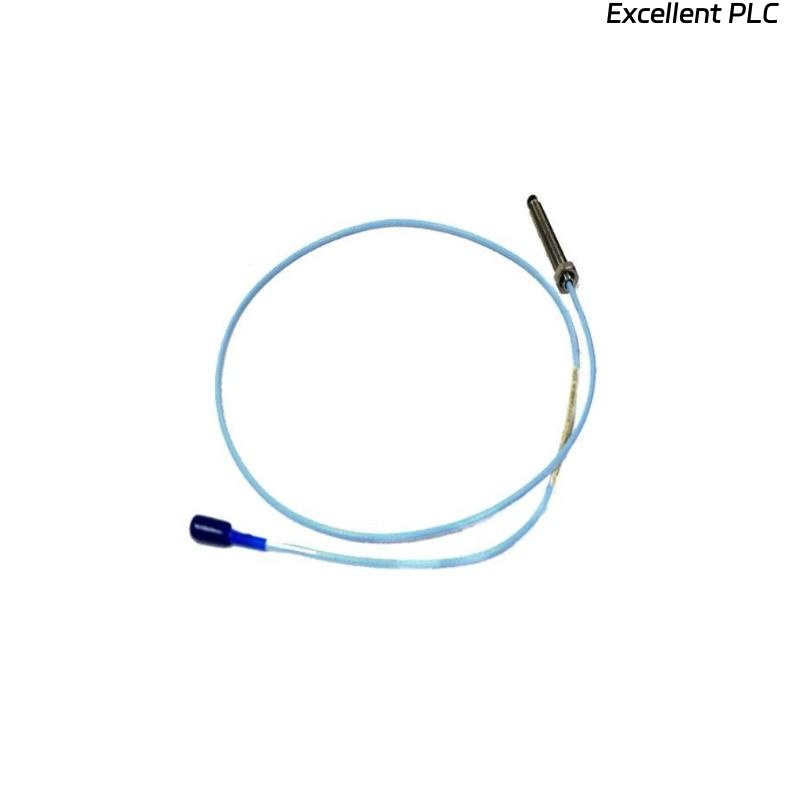

The Bently Nevada 330102-00-30-10-02-00 3300 XL 8 mm Proximity Probe is part of the well-known 3300 XL series designed for precision shaft vibration and position measurements. This probe is specifically engineered to ensure highly accurate displacement measurements of rotating machinery such as turbines, compressors, pumps, and motors. The 3300 XL family is recognized worldwide for its reliability, durability, and ability to withstand harsh industrial environments, making it a critical component in predictive maintenance and condition monitoring systems.
This probe model integrates seamlessly with Bently Nevada’s proximity transducer systems, offering a stable output and excellent linearity over its measurement range. It complies with API 670 standards, ensuring consistent performance in industrial monitoring applications.
Technical Parameters
| Parameter | Description |
|---|---|
| Model Number | 330102-00-30-10-02-00 |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Weight | 0.323 kg |
| Total Length | 1 m |
| Connector Type | Standard coaxial connector |
| Linear Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Power Supply | Works with 3300 XL Proximitor sensor |
| Operating Temperature | -35 °C to +177 °C |
| Standard Compliance | API 670 |
| Material | Stainless steel probe body with rugged cable insulation |
Product Applications
The Bently Nevada 3300 XL 8 mm Proximity Probe is widely applied across various industries where rotating machinery is critical. Common application areas include:
-
Steam and Gas Turbines – for shaft displacement, vibration monitoring, and rotor position tracking.
-
Compressors – ensuring protection against rotor-to-stator contact and vibration-related faults.
-
Motors and Generators – for monitoring shaft movement and detecting misalignment or imbalance.
-
Pumps – to safeguard against cavitation damage and excessive shaft vibrations.
-
Industrial Machinery – as part of condition monitoring systems in refineries, petrochemical plants, and power stations.
This probe is an essential component in predictive maintenance strategies, helping operators identify potential failures early and avoid costly downtime.
Product Advantages
-
High Accuracy and Stability – Designed to deliver consistent readings with minimal drift over time.
-
Robust Construction – Built to withstand high temperatures, vibration, and harsh process environments.
-
API 670 Compliance – Ensures adherence to international reliability and safety standards.
-
Extended Cable Options – Flexible configurations allow usage in various machinery setups.
-
Seamless Integration – Works reliably with Bently Nevada proximitor sensors and monitoring systems.
-
Proven Reliability – Trusted globally in critical industries for over four decades.
FAQ
Q1: What is the linear measurement range of this proximity probe?
A1: The probe provides a linear measurement range of 2.0 mm (80 mils), which is standard for shaft vibration and position monitoring.
Q2: Can this probe be used in high-temperature environments?
A2: Yes, it operates reliably in environments ranging from -35 °C to +177 °C, making it suitable for turbines and compressors.
Q3: What type of sensor does this probe connect to?
A3: It is designed to work with the 3300 XL Proximitor sensor, ensuring accurate signal processing and linearity.
Q4: How is electrical noise minimized in this probe?
A4: The probe features coaxial cable construction with shielding that minimizes interference and ensures signal integrity.
Q5: Does the probe comply with API 670 standards?
A5: Yes, it fully complies with API 670, ensuring compatibility with industry-standard monitoring practices.
Q6: What is the sensitivity of the 330102-00-30-10-02-00 probe?
A6: The sensitivity is 7.87 V/mm (200 mV/mil), which allows for precise measurement of shaft displacement.
Q7: Can this probe be installed in environments with strong vibration?
A7: Yes, it is built with rugged housing and cable insulation, ensuring durability even under strong vibration conditions.
Q8: What is the recommended proximitor module for this probe?
A8: The recommended proximitor is the 3300 XL Proximitor Sensor (model 3300 series), which is specifically designed to match the probe’s electrical characteristics.
Q9: How is the probe calibrated?
A9: Calibration is performed at the factory to ensure accuracy, and it does not typically require field calibration unless system-level verification is needed.
Q10: Can this probe be used for both vibration and position measurements?
A10: Yes, it is suitable for both shaft vibration and axial/rotor position measurements, depending on installation.
