Product Introduction

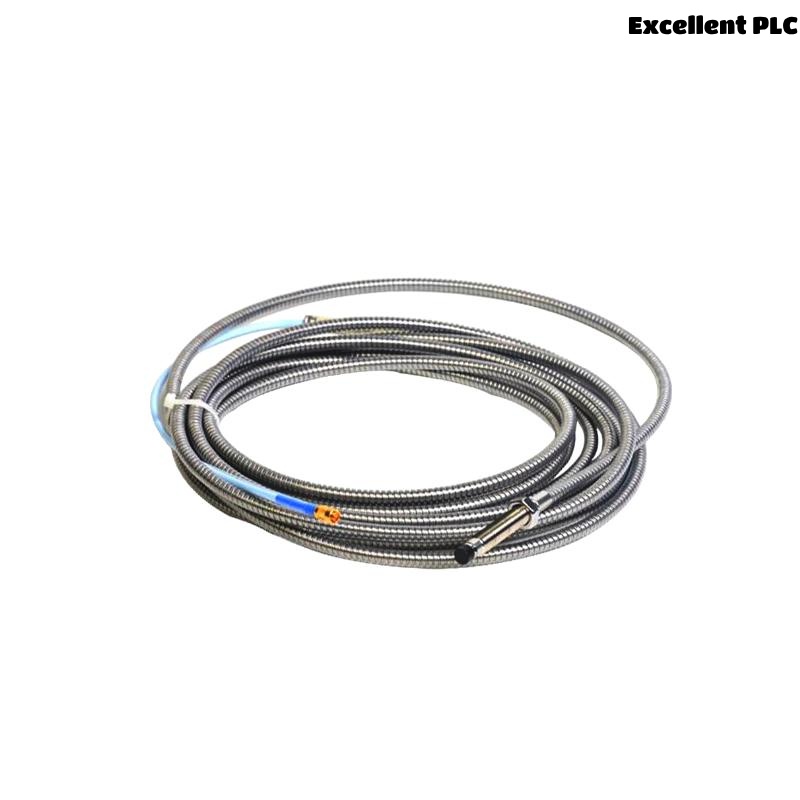

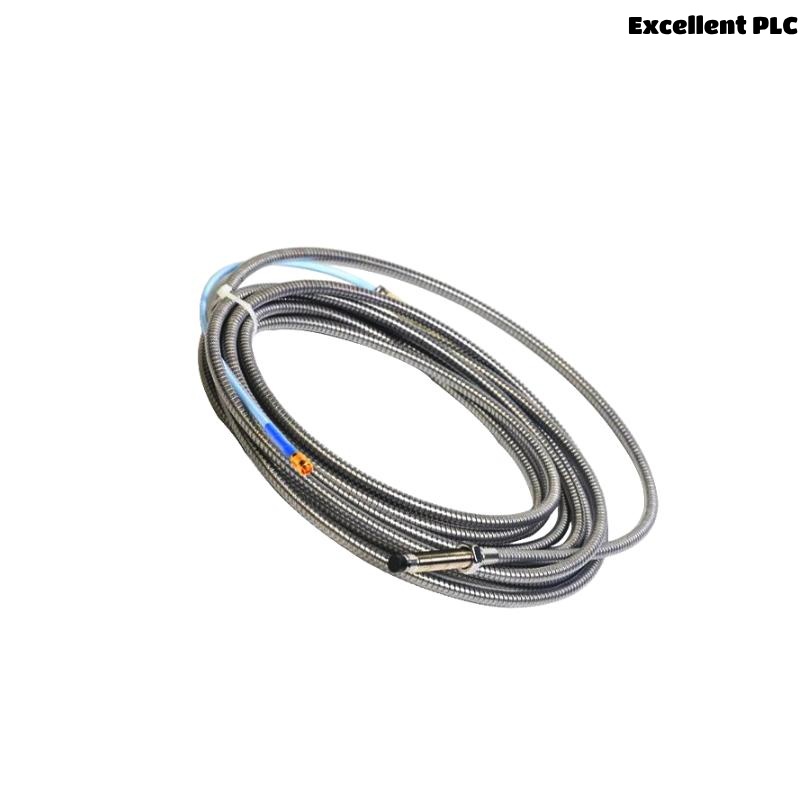

The Bently Nevada 330102-00-35-10-02-00 is part of the 3300 XL 8mm Proximity Probe system, engineered for high-reliability vibration and position monitoring of rotating machinery. This particular model is designed for use in industrial environments requiring robust, long-lasting, and highly accurate non-contact measurement capabilities. With its 8mm tip size and industry-standard -24 Vdc power supply, this proximity probe system offers exceptional durability, easy integration, and compatibility with a broad range of proximity transducers and extension cables. The product adheres to API 670 standards, making it ideal for use in critical turbomachinery applications where accurate shaft displacement or vibration data is essential.
The 330102-00-35-10-02-00 model comprises a proximity probe with a length of 3.5 meters, connector protector, and AISI 316 stainless steel probe construction, ensuring outstanding resistance to corrosive environments and mechanical damage. It is commonly paired with 3300 XL extension cables and Proximitor sensors to form a complete transducer system.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | 330102-00-35-10-02-00 |
| System Type | 3300 XL 8mm Proximity Probe |
| Tip Diameter | 8 mm |
| Total Length | 1.0 meter |
| Connector Type | Miniature coaxial, with connector protector (Option 02) |
| Thread Size | 3/8-24 UNF-2A |
| Thread Length | 0.5 in (12.7 mm) |
| Body Material | AISI 316L stainless steel |
| Cable Jacket Material | Polyethylene or PFA Teflon® (depending on options) |
| Operating Temperature | -51°C to +177°C (-60°F to +350°F) |
| Linear Range | 2 mm (80 mils) |
| Power Supply | -24 Vdc (via Proximitor sensor) |
| Output Signal | Voltage proportional to distance (7.87 mV/μm typical) |
| Frequency Response | DC to 10 kHz |
| Weight | 0.323 kg |
| Compliance | Meets API 670 requirements |
Product Applications
-
Steam and Gas Turbines: Continuous monitoring of shaft vibration and axial thrust.
-
Compressors: Detecting bearing wear and shaft misalignment in real-time.
-
Pumps: Early detection of imbalance or cavitation through shaft position measurement.
-
Motors and Generators: Monitoring mechanical condition for predictive maintenance.
-
Gearboxes: Ensuring vibration thresholds remain within acceptable levels to avoid failure.
-
Industrial Fans: Used to monitor unbalance and ensure system reliability.
Product Advantages
-
Industry Compliance: Fully compliant with API 670 standard, ensuring suitability for critical rotating machinery.
-
Robust Design: 316L stainless steel body offers excellent corrosion resistance for harsh environments.
-
High Accuracy: Consistent and precise readings with a typical scale factor of 7.87 mV/μm.
-
Wide Operating Temperature Range: Withstands extreme temperatures from -51°C to +177°C.
-
Flexible Configuration: Can be paired with various extension cables and Proximitor sensors.
-
Reduced Downtime: Enables early detection of mechanical issues, contributing to predictive maintenance and reduced machinery downtime.
-
Long-Term Stability: Engineered to resist signal drift over time, ensuring accuracy during prolonged operation.
-
Easy Installation: Threaded connection and miniature coaxial connector ensure simple setup and replacement.
-
Interchangeable Components: Compatible with other Bently Nevada 3300 XL system components.
-
Field-Proven: Used across thousands of installations worldwide, with decades of proven performance.
Frequently Asked Questions (FAQ)
-
What is the primary function of the 330102-00-35-10-02-00 proximity probe?
It measures the position or vibration of rotating machinery shafts using a non-contact Eddy current method. -
Is this probe compatible with all 3300 XL Proximitor sensors?
Yes, it’s fully compatible with 3300 XL extension cables and Proximitor sensor modules. -
Can it operate in high-temperature environments?
Absolutely. It can withstand temperatures up to +177°C, making it ideal for turbines and compressors. -
What is the output of the proximity probe?
The probe provides a voltage signal proportional to the distance between the probe tip and the observed shaft surface. -
Does the product meet API standards?
Yes, it complies with API 670 requirements for machinery protection systems. -
What materials are used in construction?
The body is made from AISI 316L stainless steel, and the cable is jacketed with high-durability materials like polyethylene. -
Can this probe be used in underwater or submerged applications?
It is not rated for submersion but offers high resistance to humidity and industrial contaminants. -
How is the probe connected to the monitoring system?
Via a miniature coaxial cable with a connector and protector, it links to the extension cable and Proximitor sensor. -
What shaft surface preparation is required?
A clean, flat, and polished surface is required for accurate measurement. -
What is the linear range of the probe?
The typical linear measurement range is up to 2 mm (80 mils).
Related Models from the Same Series
| Model Number | Description |
|---|---|
| 330103-00-05-10-02-00 | 3300 XL 8mm Probe, 0.5m length, connector protector |
| 330104-00-10-10-02-00 | 3300 XL 8mm Probe, 1.0m length, right-angle connector |
| 330130-040-00 | 3300 XL Extension Cable, 4.0m |
| 330180-91-05 | 3300 XL NSv Probe, 0.5m, narrow tip for tight spaces |
| 330106-05-30-10-02-00 | 3300 XL 8mm Probe, 3.0m length, high-temp |
| 330171-XX-XX | Proximitor Sensor, 3300 XL Series |
