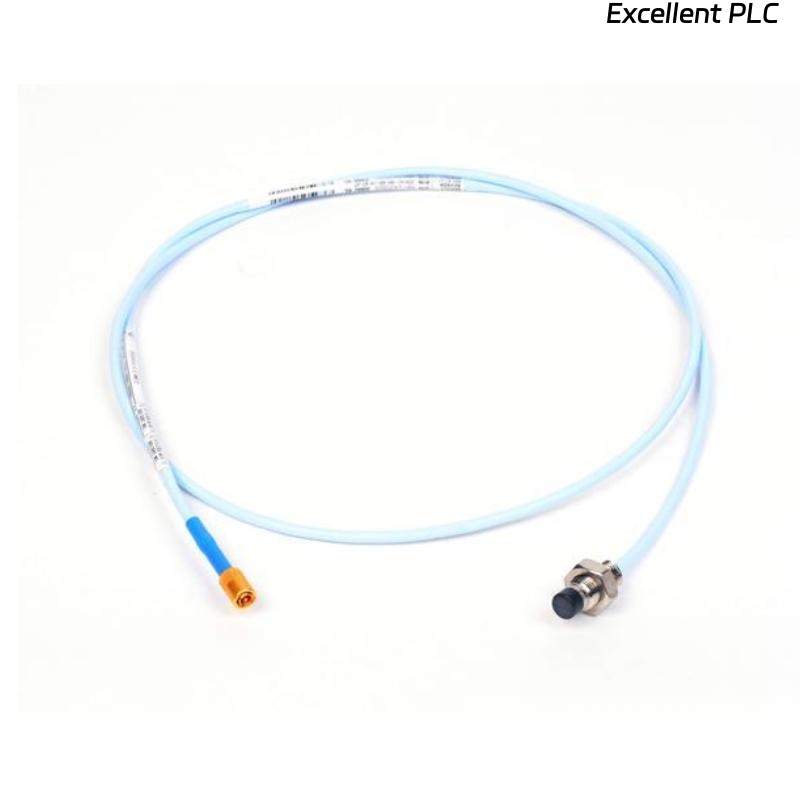

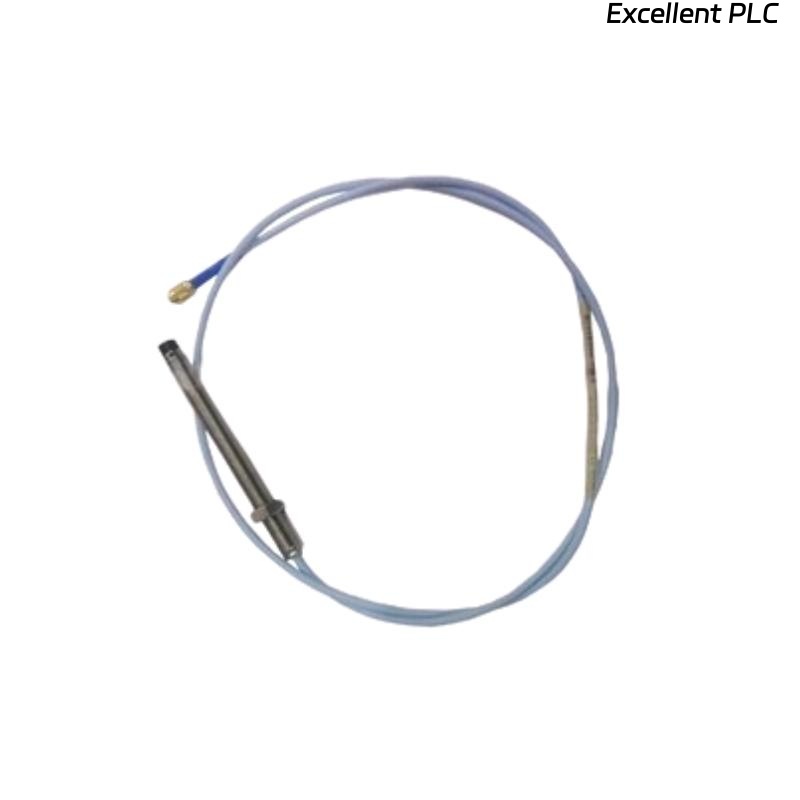

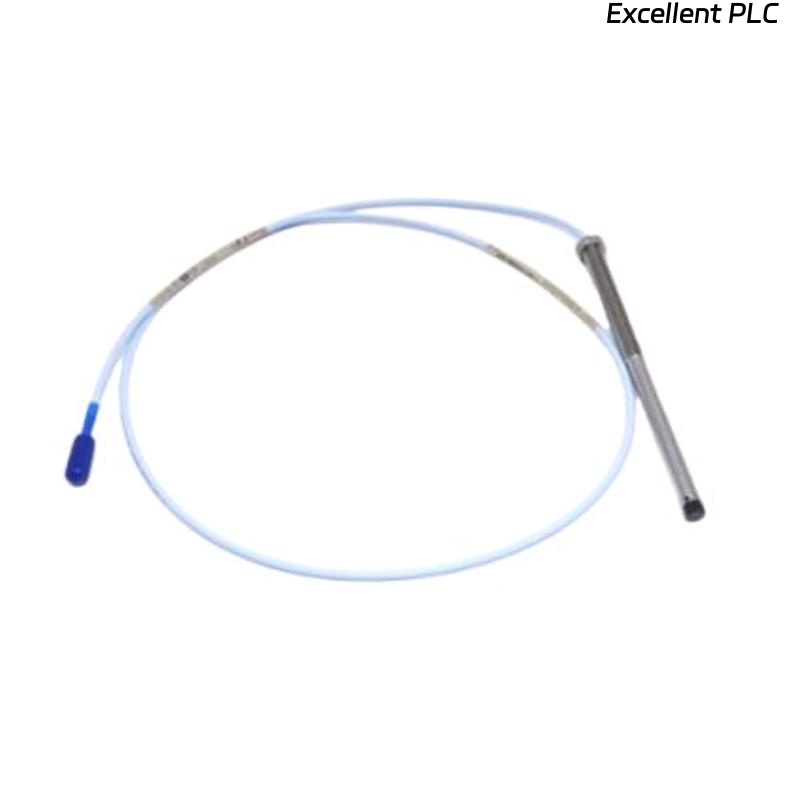

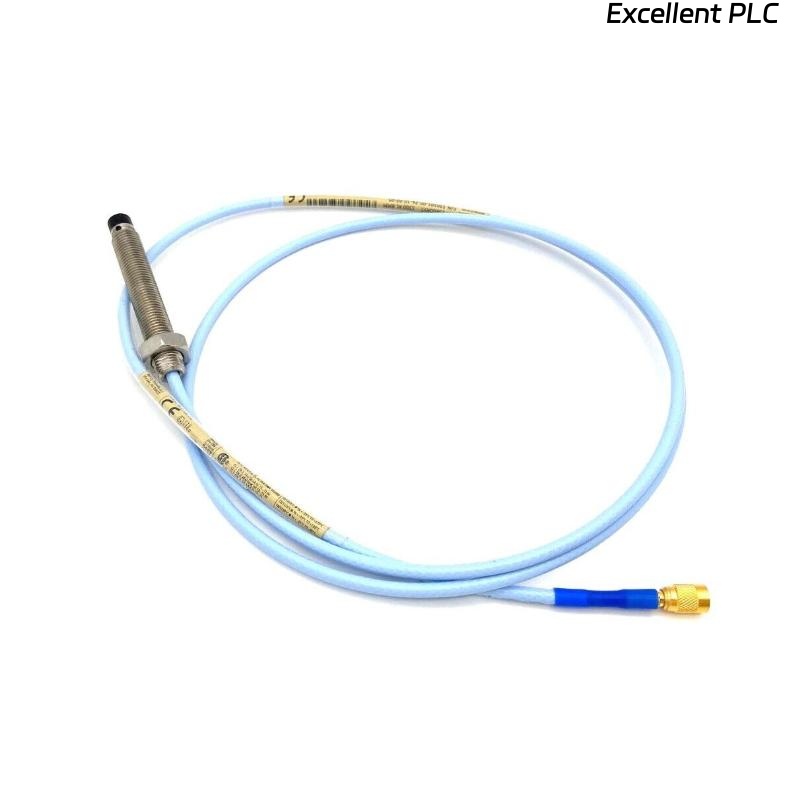

The Bently Nevada 330102-00-36-05-02-05, 3300 XL 8 mm Proximity Probe is a highly reliable non-contact sensor designed for precise vibration and displacement measurements in rotating machinery. It is part of the 3300 XL Proximity Transducer System, which is widely used in industrial condition monitoring and protection systems. This probe uses eddy-current technology to detect the distance between the probe tip and a conductive target, typically the shaft of a machine. With robust design and advanced performance, it ensures accurate monitoring even in harsh industrial environments.
The 3300 XL system provides seamless compatibility with proximity transducers, extension cables, and monitors, making it one of the most dependable solutions for machinery protection.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330102-00-36-05-02-05 |
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Sensing Principle | Eddy-current non-contact displacement measurement |
| Linear Range | 2 mm (80 mils) typical |
| Tip Diameter | 8 mm |
| Total Length | 0.5 m |
| Thread Size | M10 x 1 or 3/8-24 UNF |
| Operating Temperature | -35 °C to +180 °C |
| Storage Temperature | -40 °C to +200 °C |
| Humidity | 95% non-condensing |
| Insulation Resistance | > 10 MΩ |
| Weight | 0.162 kg |
| Material | Stainless steel probe housing with PTFE cable jacket |
| Mounting | Threaded tip with locknut |
| Compatibility | 3300 XL extension cables and proximitor sensors |
Product Applications
The 330102-00-36-05-02-05 is primarily used in machinery monitoring and protection systems across industries such as power generation, oil and gas, petrochemical, and heavy manufacturing. Its main applications include:
-
Shaft vibration monitoring for turbines, compressors, and motors.
-
Axial displacement measurement for thrust bearings.
-
Shaft position measurement for rotor dynamics analysis.
-
Condition monitoring to prevent machinery failure and reduce downtime.
-
Integration with Bently Nevada 3300 XL systems for complete vibration protection.
Product Advantages
The 3300 XL 8 mm Proximity Probe offers several advantages:
-
High Accuracy: Provides consistent displacement and vibration measurements with excellent linearity.
-
Rugged Design: Withstands harsh industrial environments, including high temperatures and humidity.
-
Reliable Compatibility: Fully compatible with 3300 XL proximity transducers, extension cables, and proximitor monitors.
-
Long-Term Stability: Designed for long service life with minimal signal drift.
-
Flexible Mounting Options: Threaded housing allows secure installation in multiple machine configurations.
-
Proven Reliability: Widely adopted in critical rotating machinery applications worldwide.
FAQ
Q1: What is the linear range of the 3300 XL 8 mm probe?
A1: The linear range is typically 2 mm (80 mils), providing accurate displacement measurements within this range.
Q2: Which proximitor sensors are compatible with this probe?
A2: It is compatible with Bently Nevada 3300 XL proximitor sensors, ensuring matched system calibration.
Q3: How does the probe handle electrical noise in industrial environments?
A3: The probe uses shielded cabling and grounding features to minimize electromagnetic interference.
Q4: Can this probe be used for both radial and axial shaft measurements?
A4: Yes, it is suitable for both radial vibration and axial displacement monitoring applications.
Q5: What materials are compatible as target surfaces?
A5: The probe is designed to measure conductive metallic targets, primarily steel shafts.
Q6: How is the calibration performed for accurate measurement?
A6: Calibration is done with the matching proximitor sensor and extension cable as a complete system.
Q7: What is the effect of temperature variations on probe accuracy?
A7: The probe is temperature compensated to ensure minimal drift across its operating range.
Q8: Can this probe detect shaft rubs or contact events?
A8: Yes, abnormal displacement signals can indicate rubs, misalignment, or contact events.
Q9: What type of output does the probe system provide?
A9: The probe, when connected to a proximitor, provides a DC voltage proportional to shaft displacement.
Q10: Is it possible to extend the probe cable length?
A10: Yes, but only with Bently Nevada 3300 XL extension cables to maintain system accuracy.
