Product Introduction

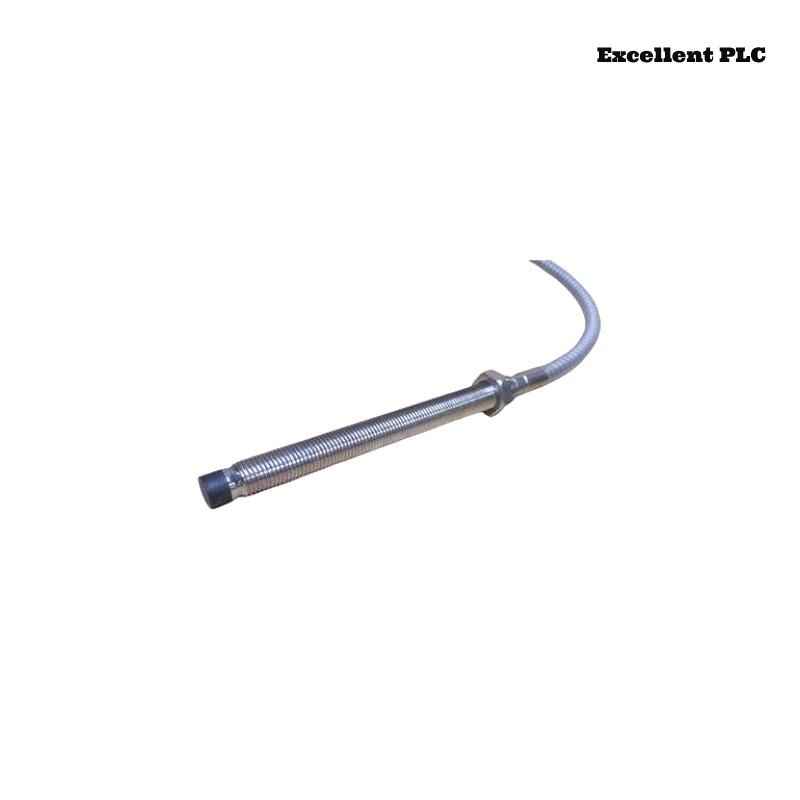

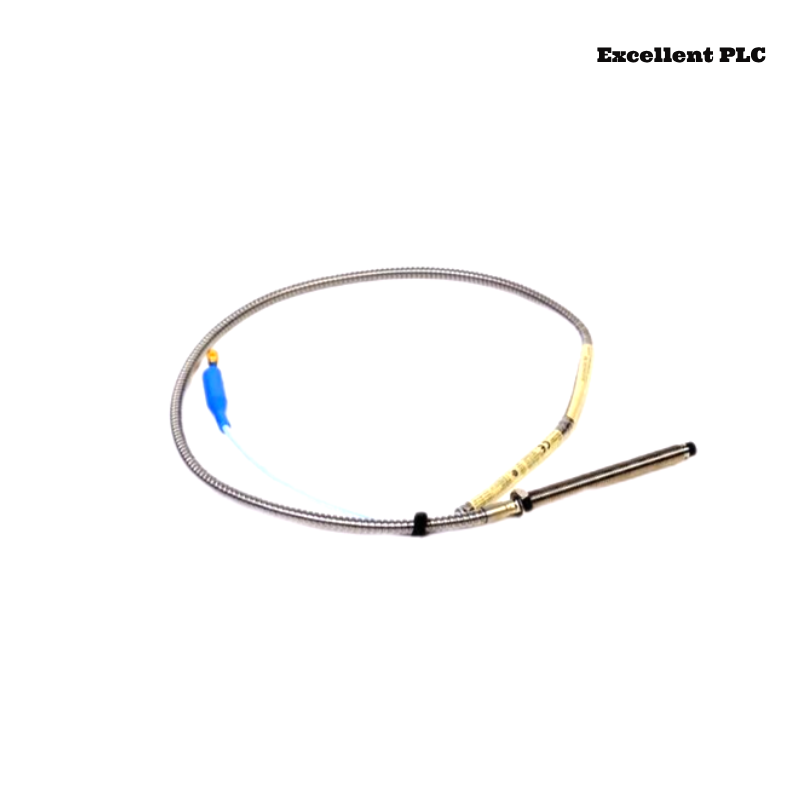

The Bently Nevada 330102-00-40-10-02-00 is part of the 3300 XL 8 mm Proximity Probe Series, designed for accurate, non-contact measurement of shaft displacement and vibration in rotating machinery. This high-performance probe is an essential component in condition monitoring systems, ensuring the reliability and safety of critical industrial equipment.
With advanced signal stability, superior environmental resistance, and robust construction, this probe is ideal for various industrial applications, including power generation, oil and gas, and manufacturing. The probe operates with a 3300 XL Proximitor Sensor, forming a complete transducer system that delivers precise and reliable measurements.
Product Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Model Number | 330102-00-40-10-02-00 |
| Sensing Principle | Eddy Current |
| Shaft Measurement Range | 0 to 2.0 mm (80 mils) |
| Linear Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Output Voltage | -2 VDC to -18 VDC |
| Power Supply | -24 VDC Nominal |
| Operating Temperature | -51°C to +177°C (-60°F to +350°F) |
| Environmental Protection | IP67 (Dust & Water Resistant) |
| Cable Length | 1 meters |

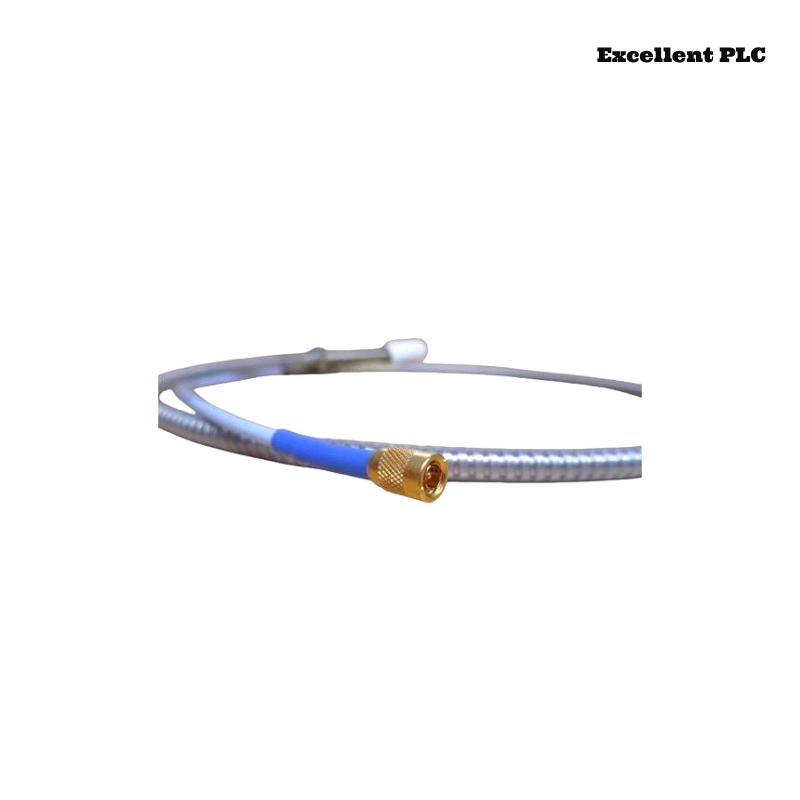

| Connector Type | ClickLoc™ Connector |
| Probe Tip Diameter | 8 mm |
| Thread Size | M10x1 |
| Probe Body Material | Stainless Steel |
| Weight | 0.323 kg |
| Certification | ATEX, CSA, IECEx for Hazardous Locations |
Applications
The Bently Nevada 330102-00-40-10-02-00 is widely used in industrial environments where precision monitoring of rotating machinery is required. Key application areas include:
-
Gas & Steam Turbines – Ensures optimal operation by detecting vibration and displacement anomalies.
-
Compressors – Monitors bearing conditions and helps prevent failures.
-
Pumps & Motors – Provides early detection of misalignment and wear.
-
Generators – Aids in maintaining power system reliability.
-
Gearboxes – Identifies issues such as gear misalignment or wear before catastrophic failure.
-
Industrial Fans & Blowers – Reduces unplanned downtime by detecting mechanical issues early.
Advantages of the 330102-00-40-10-02-00
-
High Accuracy – Delivers precise measurements with minimal signal drift.
-
Robust Construction – Designed to withstand harsh industrial environments.
-
Extended Temperature Range – Can operate in extreme conditions from -51°C to +177°C.
-
Industry-Leading Reliability – Provides stable signal output with low noise interference.
-
Easy Installation – Threaded design allows for secure mounting.
-
ClickLoc™ Connector – Ensures secure and vibration-resistant cable connections.
-
Backward Compatibility – Works with existing Bently Nevada 3300 monitoring systems.
-
ATEX & CSA Certified – Safe for use in hazardous environments.
Latest Industry News on 3300 XL Proximity Probes
-
Bently Nevada Expands Condition Monitoring Portfolio with Enhanced Proximity Probe Systems
-
Reliability in Power Generation: How 3300 XL Proximity Probes Improve Predictive Maintenance
-
Advancements in Non-Contact Vibration Monitoring for Rotating Equipment
-
Oil & Gas Industry Adopts Bently Nevada Proximity Probes for Enhanced Safety
-
Bently Nevada Releases Next-Gen Signal Processing Technology for Condition Monitoring
Frequently Asked Questions (FAQ)
-
What is the main function of the Bently Nevada 330102-00-40-10-02-00?
It is used for non-contact measurement of shaft vibration and position in rotating machinery. -
Can this probe be used in hazardous environments?
Yes, it is certified for ATEX, CSA, and IECEx hazardous locations. -
What is the maximum operating temperature for this probe?
It can operate in temperatures ranging from -51°C to +177°C (-60°F to +350°F). -
How is this probe mounted?
It is typically mounted using a threaded sleeve or bracket for secure positioning. -
What type of output does the probe provide?
It provides a voltage output proportional to the measured displacement. -
Is this probe compatible with older Bently Nevada monitoring systems?
Yes, it is fully compatible with the 3300 XL Proximitor Sensor and other legacy Bently Nevada systems. -
Does the probe require calibration?
While factory-calibrated, periodic verification is recommended to maintain accuracy. -
What materials are used in the probe construction?
It features a stainless steel body for durability and resistance to harsh conditions. -
Can the cable length be customized?
Yes, Bently Nevada offers different cable lengths to suit various application needs. -
How does this probe compare to the 3300 XL 5 mm series?
The 8 mm version provides a larger linear measurement range compared to the 5 mm variant.
