Product Description

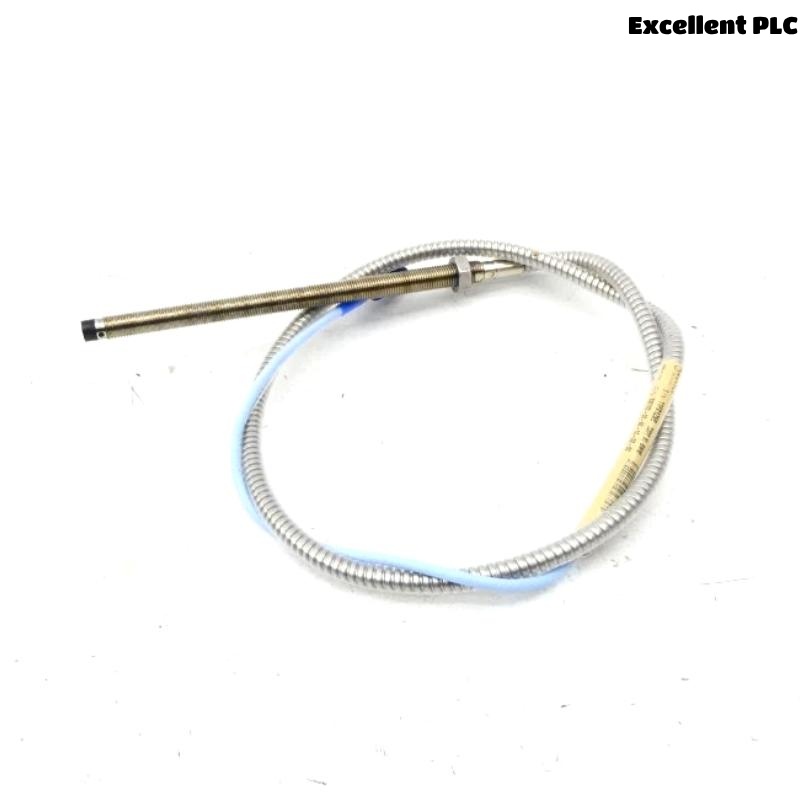

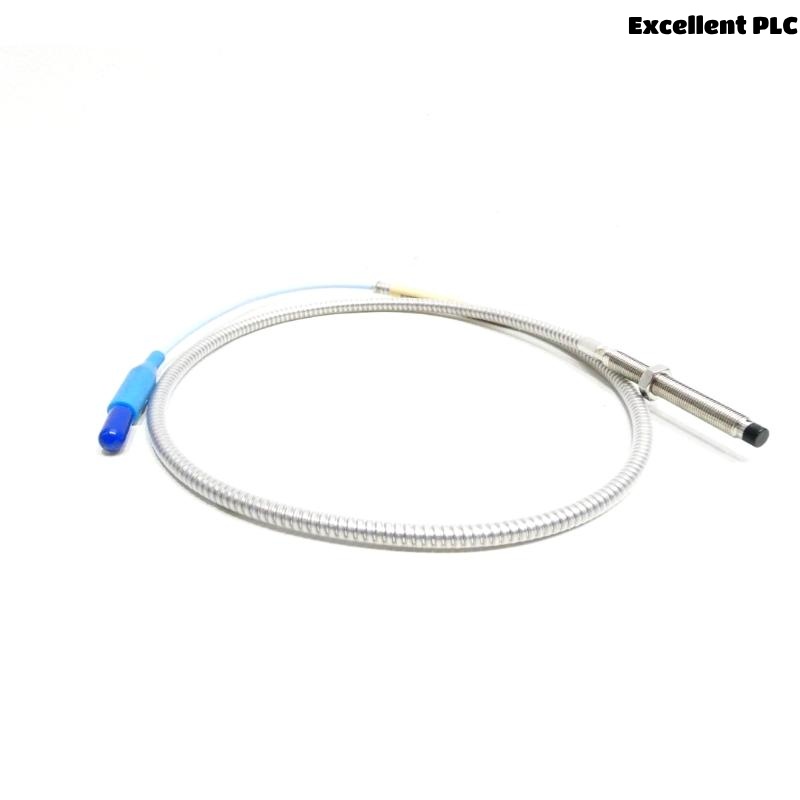

The Bently Nevada 330102-00-40-10-02-05 is a robust 8 mm proximity probe designed for vibration and position measurement in fluid-film bearing machines. Featuring an armored cable and ClickLoc connectors, it delivers reliable static and dynamic measurements, compliant with API 670 standards. Its modular design ensures full interchangeability of system components without recalibration.
Product Applications
-
Vibration monitoring of rotating machinery
-
Shaft position and displacement measurement
-
Keyphasor reference signal generation
-
Overspeed and speed detection in turbines and compressors
Product Advantages
-
Fully API 670 compliant
-
Rugged armored construction for harsh environments
-
Interchangeable with other 3300 XL and 3300 8 mm/5 mm systems
-
High immunity to RFI/EMI for reliable performance
-
Easy installation with SpringLoc and ClickLoc technology
-
Optional FluidLoc cables prevent oil leakage
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330102-00-40-10-02-05 |
| Probe Diameter | 8 mm |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Cable Type | Armored, standard cable |

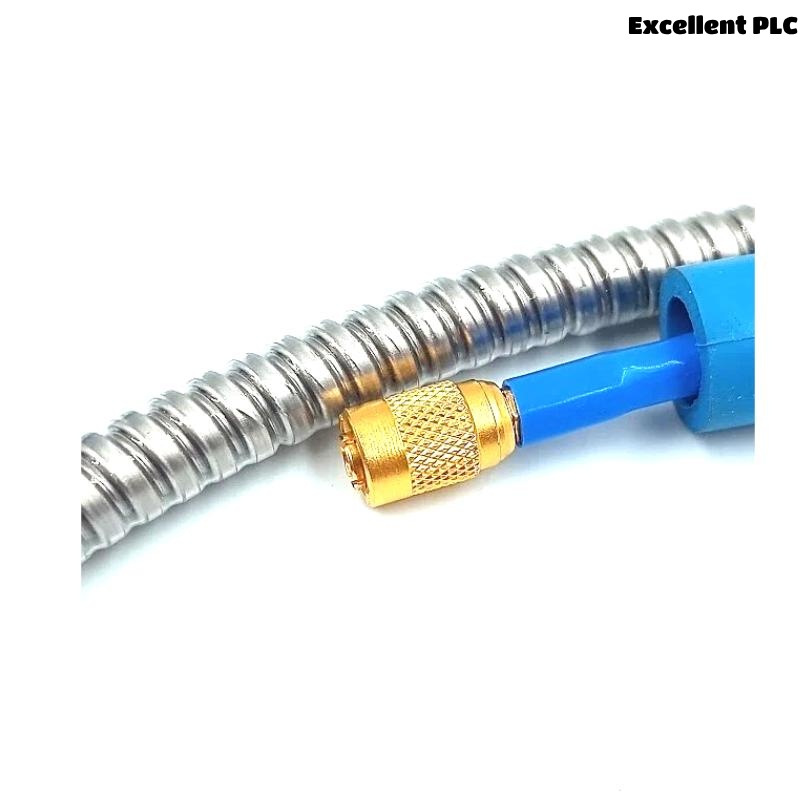

| Connector | Miniature coaxial ClickLoc |
| Operating Temperature Range | -52°C to +177°C |
| Material | Stainless steel case, PPS tip |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Recommended Gap | 1.27 mm (50 mils) |
FAQ
Q1: Is this probe compatible with older 3300 series components?
A1: Yes, it is electrically and mechanically compatible with non-XL 3300 8 mm and 5 mm components.
Q2: What is the main application of this probe?
A2: It is used for measuring vibration and position on fluid-film bearing machines.
Q3: Does it meet API 670 requirements?
A3: Yes, it fully complies with API 670 standards for linearity, accuracy, and mechanical configuration.
Q4: How does the ClickLoc connector help?
A4: The ClickLoc connector ensures secure connection without tools, with a tactile “click” on proper engagement.
Q5: Can it be used in high-RFI environments?
A5: Yes, it has enhanced RFI/EMI immunity, even in fiberglass housings.
Q6: What is the recommended shaft size for installation?
A6: The minimum recommended shaft diameter is 76.2 mm (3 inches) for optimal performance.
Q7: What is the benefit of the armored cable?
A7: The armor protects the cable against mechanical damage and harsh environments.
Q8: Is calibration required for individual components?
A8: No, components are interchangeable and do not require bench calibration.
Q9: What is the linear measuring range?
A9: The linear range is approximately 0.25 mm to 2.3 mm (10–90 mils).
Q10: Can it operate at high temperatures?
A10: Yes, it operates up to +177°C with standard components and up to +218°C with ETR versions.
Related Models (Same Series)
| Model | Description | Length | Weight |
|---|---|---|---|
| 330101-00-08-10-02-05 | 8 mm Probe, unarmored, standard cable | 1.0 m | 0.28 kg |
| 330103-00-05-10-02-00 | 8 mm Probe, metric thread, unarmored | 1.0 m | 0.28 kg |
| 330104-00-06-10-02-00 | 8 mm Probe, metric thread, armored | 1.0 m | 0.32 kg |
| 330105-02-12-10-02-05 | 8 mm Reverse Mount, armored, FluidLoc cable | 1.0 m | 0.34 kg |
| 330140-00-10-10-02-00 | 8 mm Smooth Case, unarmored | 1.0 m | 0.28 kg |
| 330192-00-20-10-02-05 | 8 mm ETR Probe, armored | 1.0 m | 0.32 kg |
