Description

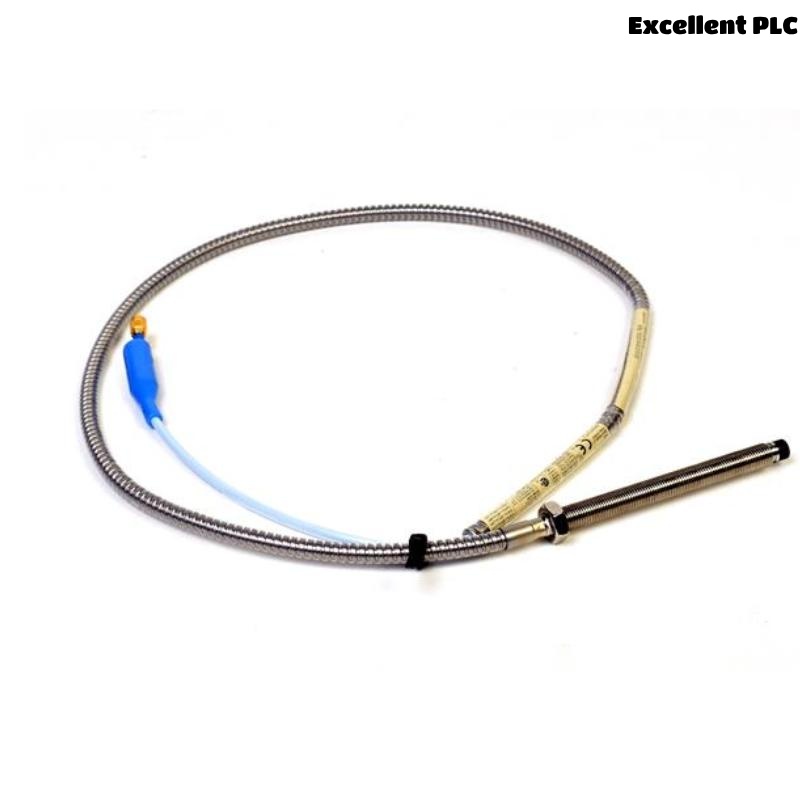

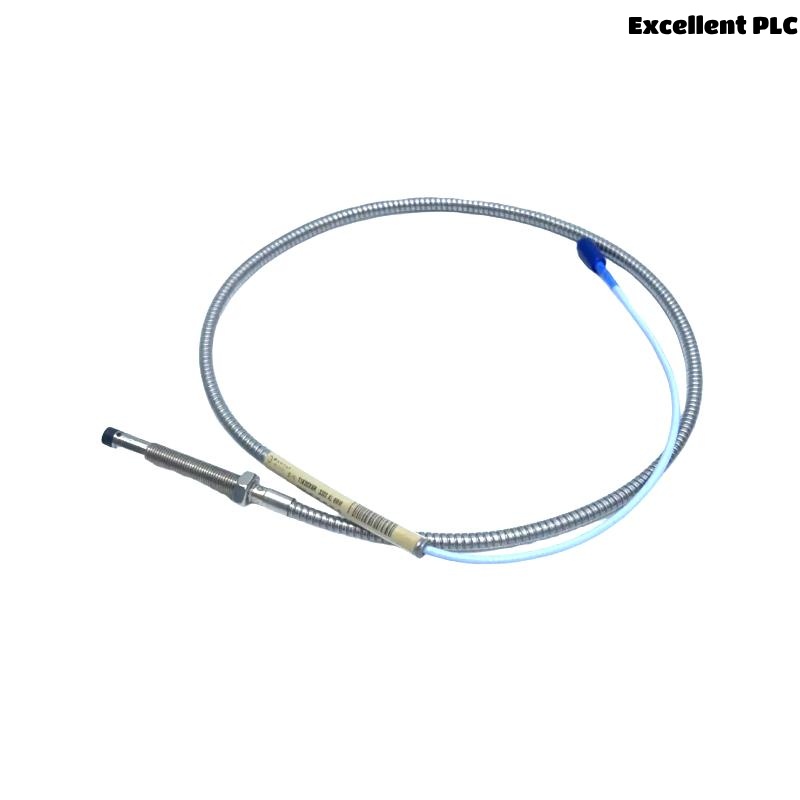

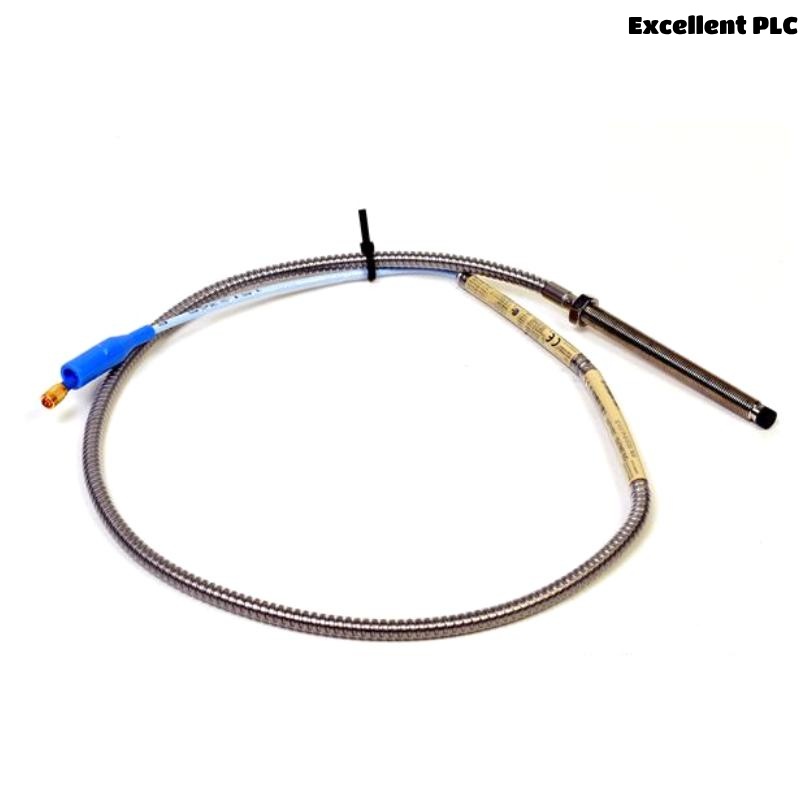

The Bently Nevada 330102-00-72-10-01-05 is a rugged 8 mm proximity probe with armored cable, designed as part of the 3300 XL series. It provides accurate non-contact measurement of shaft position and vibration in fluid-film bearing machines. This model is fully compliant with API 670 and backward compatible with non-XL 3300 series components.
Applications
-
Shaft vibration monitoring
-
Position measurements in turbines, compressors, and pumps
-
Keyphasor reference and speed detection
-
Harsh industrial environments requiring armored cabling
Advantages
-
Fully API 670 compliant for critical machinery monitoring
-
Robust armored construction for enhanced durability
-
Backward compatibility with earlier systems
-
Superior immunity to RFI/EMI for reliable signal integrity
-
Finger-tight ClickLoc connectors simplify installation and reduce maintenance
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Case Thread | 3/8-24 UNF |
| Cable Type | Armored |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Operating Temp Range | -52°C to +177°C |
| Extended Temp Range (ETR) | Up to +218°C (probe tip) |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Minimum Shaft Diameter | 50.8 mm (recommended ≥76.2 mm) |
FAQ
Q1: What is the primary use of this proximity probe?
A1: It is used for non-contact measurement of vibration and position in rotating machinery.
Q2: Is the probe compliant with API 670?
A2: Yes, it fully complies with API 670 mechanical configuration and performance standards.
Q3: What type of environments is the armored version suitable for?
A3: The armored version is ideal for harsh environments where the cable is exposed to physical damage or oil ingress.
Q4: Can I mix this probe with non-XL 3300 series components?
A4: Yes, it is backward compatible but system accuracy will match the lowest-rated component.
Q5: What is the recommended minimum shaft diameter for optimal performance?
A5: At least 76.2 mm (3 inches) is recommended for best accuracy and minimal cross-talk.
Q6: How is the probe installed?
A6: It is threaded into a mounting hole using the specified torque, with finger-tight ClickLoc connectors for wiring.
Q7: Does this probe require calibration for different target materials?
A7: By default, it is calibrated to AISI 4140 steel. Custom calibration is available upon request.
Q8: What is the linear measurement range of this probe?
A8: The probe offers a linear range of 2 mm (80 mils), starting from about 0.25 mm (10 mils) gap.
Q9: What is the weight of the probe?
A9: The total weight of the 1-meter armored probe is approximately 0.323 kg.
Q10: Can this probe withstand high-frequency interference?
A10: Yes, it has improved RFI/EMI immunity and meets CE mark requirements without special shielding.
