Product Introduction

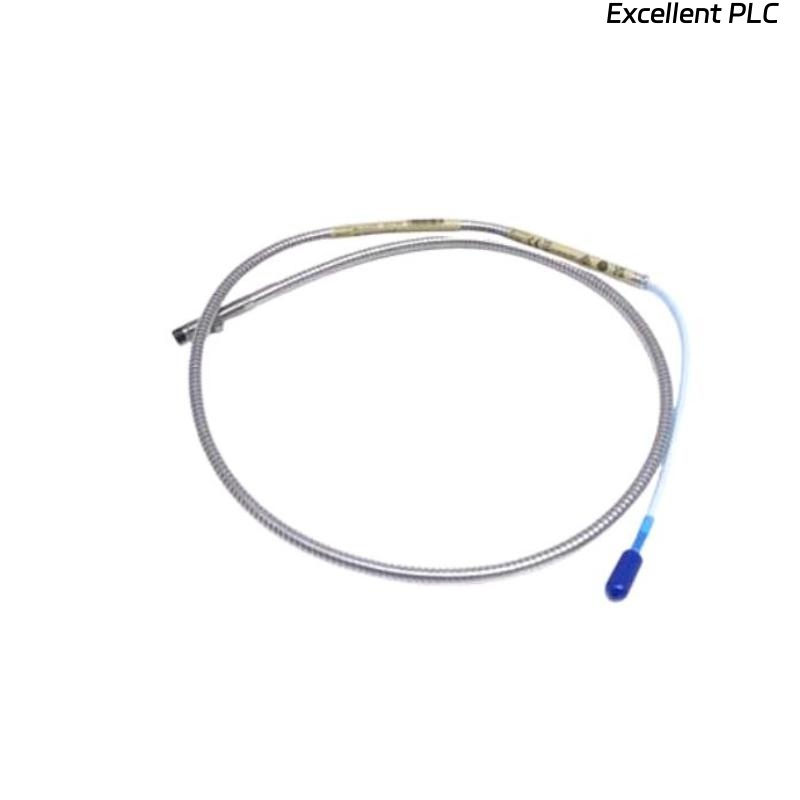

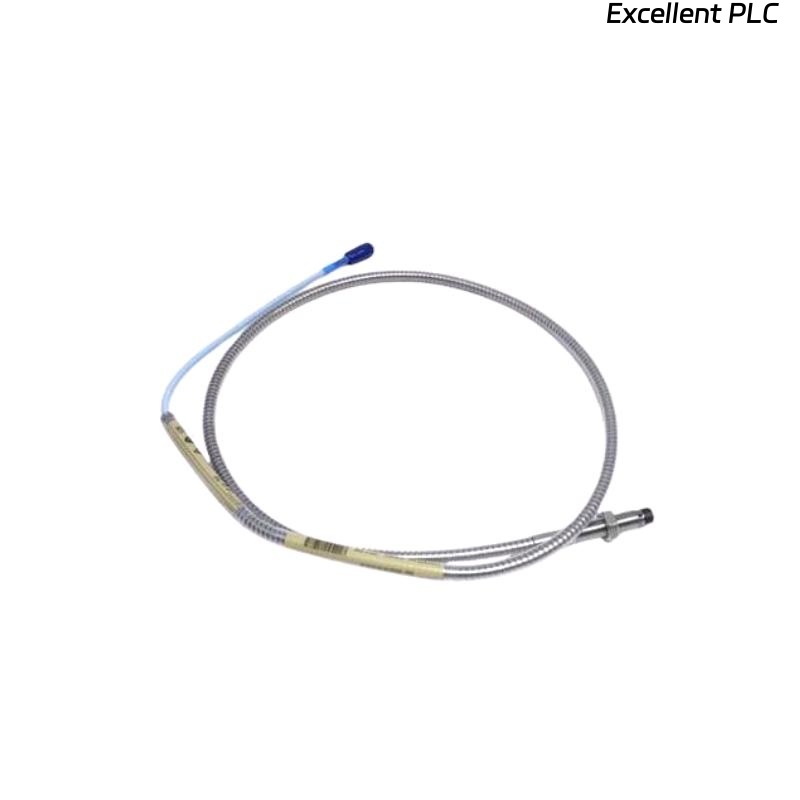

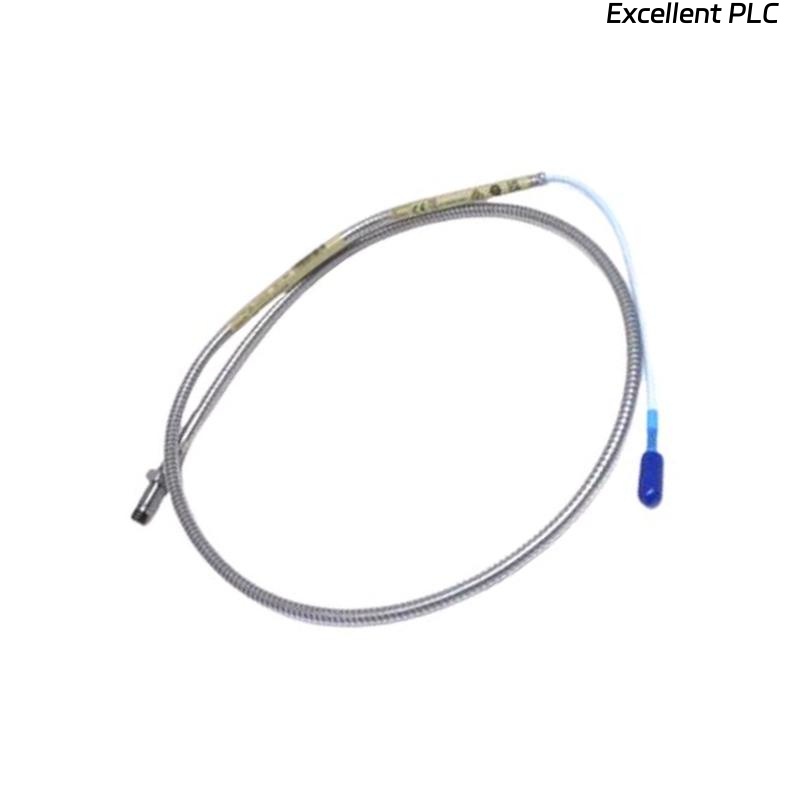

The Bently Nevada 330102-00-79-10-02-05 3300 XL 8 mm Proximity Probe is a precision vibration monitoring sensor designed for industrial rotating machinery. This probe is part of the 3300 XL series, known for its reliability in high-speed, high-temperature, and harsh industrial environments. It provides accurate measurement of shaft displacement, velocity, and vibration amplitude, essential for predictive maintenance and early fault detection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330102-00-79-10-02-05 |
| Series | 3300 XL |
| Probe Type | 8 mm Proximity Probe |
| Sensing Range | 0–0.254 mm (0–10 mils) |
| Tip Style | Flat, Rugged Stainless Steel |
| Connector | Microdot, MIL-style |
| Operating Temperature | -40°C to +120°C |
| Electrical Output | AC/DC proportional to displacement |
| Housing Material | Stainless Steel |
| Response Frequency | 0–25 kHz |
| Total Length | 1 m |
| Weight | 0.323 kg |
Applications
-
Turbomachinery monitoring (turbines, compressors, pumps)
-
Generator shaft vibration analysis
-
Condition monitoring of motors and high-speed machinery
-
Predictive maintenance in power plants and industrial plants
-
Protection of critical rotating equipment in oil & gas, chemical, and energy industries
Product Advantages
-
High accuracy and sensitivity to shaft displacement
-
Rugged construction suitable for harsh environments
-
Wide operating temperature range ensures stable performance
-
Easy integration with 3300 XL monitoring systems
-
Reliable measurement for predictive maintenance and machine protection
-
Minimal electrical noise due to shielded cable design
FAQ
Q1: What is the maximum operating temperature for this probe?
A1: The probe operates reliably in temperatures ranging from -40°C to +120°C.
Q2: Can this probe measure high-speed machinery vibrations accurately?
A2: Yes, it is designed for high-speed rotating machinery and provides precise displacement measurements up to 25 kHz.
Q3: Is the probe compatible with other Bently Nevada 3300 XL series sensors?
A3: Yes, it is fully compatible with other 3300 XL series modules and sensors.
Q4: How does the cable shielding affect signal accuracy?
A4: The shielded cable minimizes electromagnetic interference, ensuring accurate vibration readings.
Q5: Can the probe operate continuously under high vibration conditions?
A5: Yes, it is rated for continuous vibration tolerance up to 50 g.
Q6: What type of connector does the probe use?
A6: It uses a microdot MIL-style connector compatible with 3300 XL monitoring systems.
Q7: Is the probe suitable for oil & gas applications?
A7: Yes, it is designed to withstand harsh industrial environments, including oil & gas facilities.
Q8: Does the probe provide AC or DC output?
A8: The probe outputs a signal proportional to displacement, which can be AC or DC depending on the monitoring system configuration.
Q9: How precise is the tip measurement?
A9: The probe provides high-resolution measurement with a typical sensing range of 0–0.254 mm (0–10 mils).
Q10: Can it be used in predictive maintenance systems?
A10: Yes, it is widely used in predictive maintenance systems for early detection of shaft misalignment, imbalance, and other mechanical faults.
Related 3300 XL Series or Similar Models
| Model Number | Description | Tip Size |
|---|---|---|
| 330102-00-16-90-02-05 | 3300 XL Proximity Probe | 8 mm |
| 330102-03-25-10-02-05 | 3300 XL Proximity Probe | 8 mm |
| 330102-00-88-10-02-05 | 3300 XL Proximity Probe | 8 mm |
| 330102-00-79-10-02-05 | 3300 XL Proximity Probe | 8 mm |
| 330103-05-25-10-12-05 | 3300 XL Proximity Probe | 8 mm |
| 330103-17-22-10-12-05 | 3300 XL Proximity Probe | 8 mm |
