Product Introduction

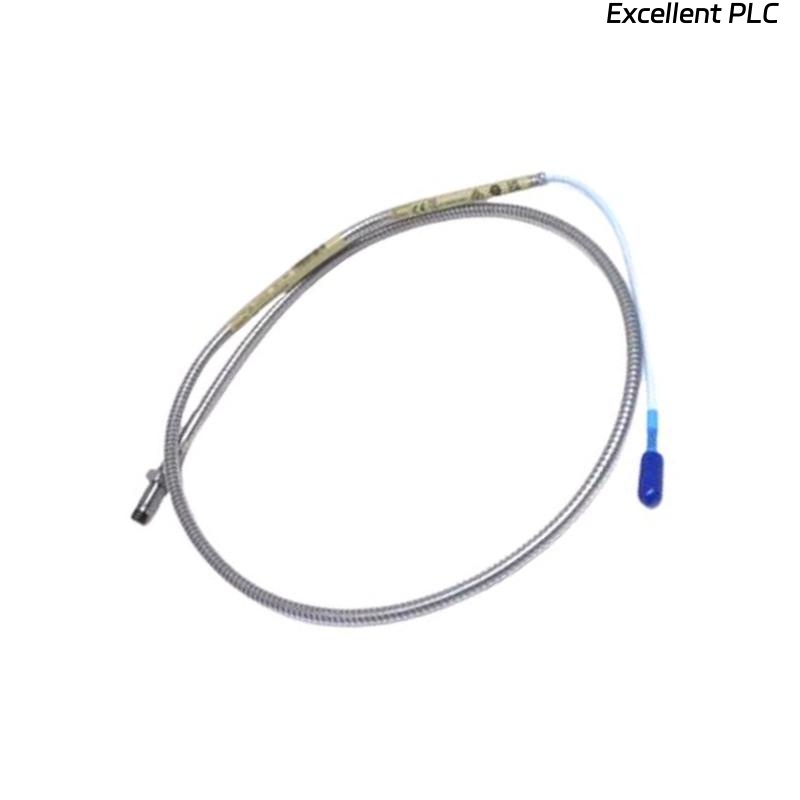

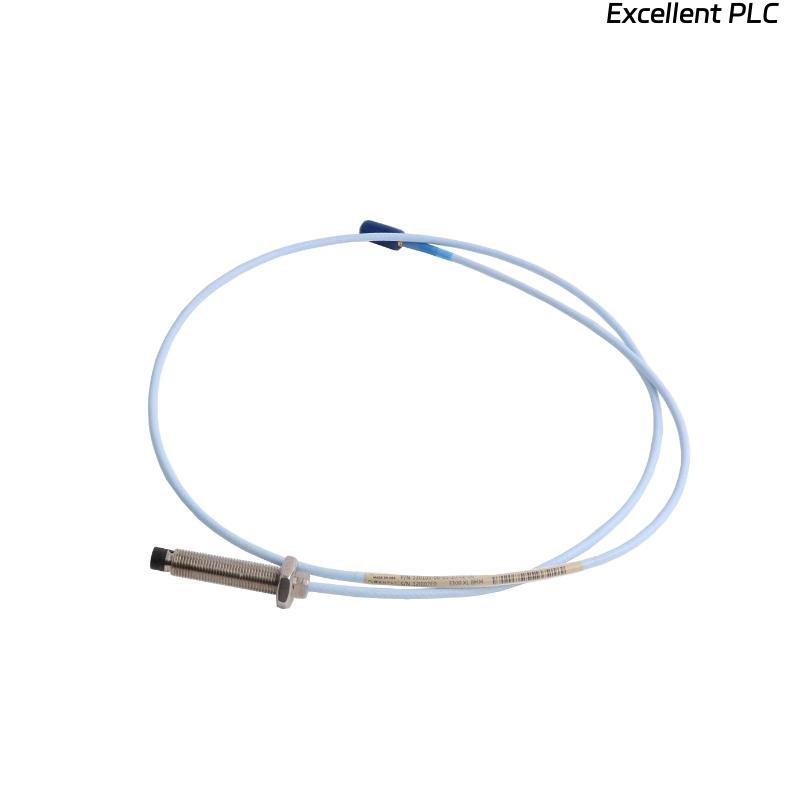

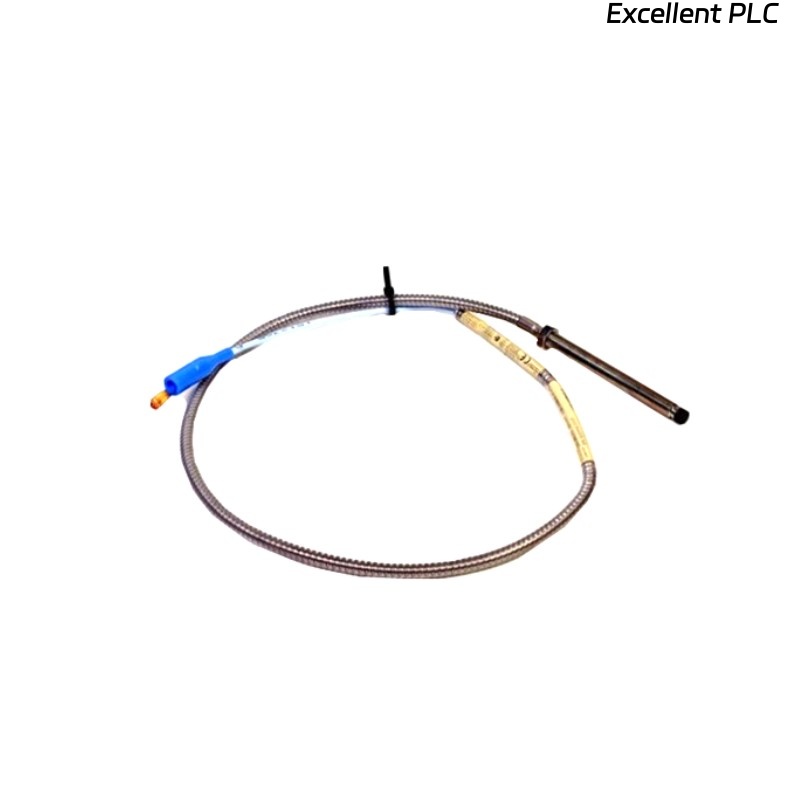

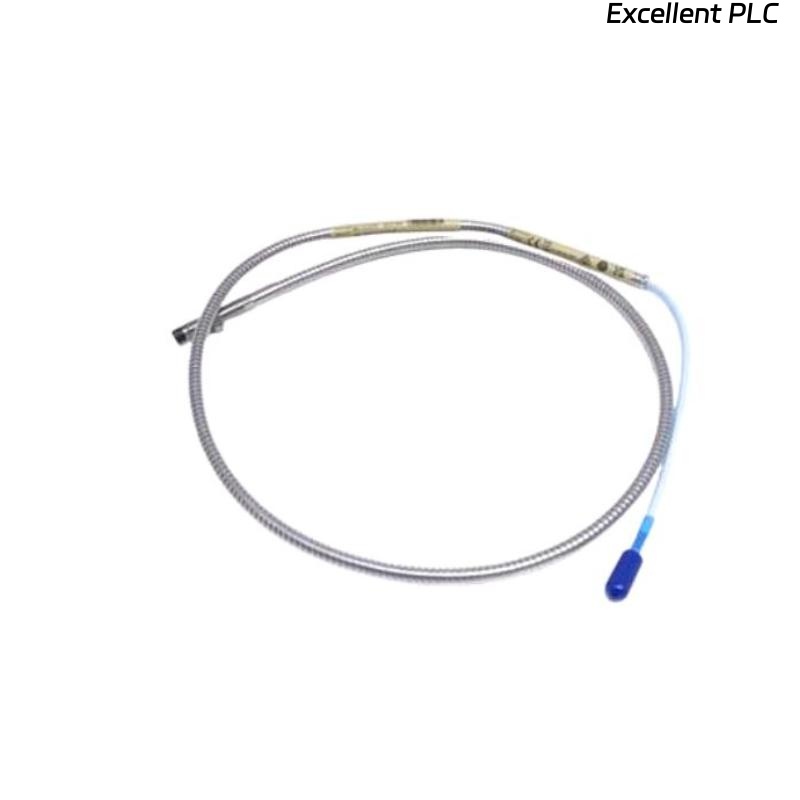

The Bently Nevada 330102-00-80-10-01-00 3300 XL 8 mm Proximity Probe is a high-precision industrial sensor designed for monitoring vibration and shaft displacement in rotating machinery. Part of the 3300 XL series, it offers robust performance in demanding conditions and is widely used in power generation, oil and gas, and heavy industrial applications. The probe ensures reliable measurement of shaft movement, enabling predictive maintenance and reducing unplanned downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 8 mm Proximity Probe |
| Measurement Principle | Eddy-Current |
| Maximum Gap | 8 mm |
| Probe Tip Material | Stainless Steel |
| Operating Temperature | -40°C to 120°C |
| Sensitivity | 40-50 mV/mil (typical) |
| Excitation Voltage | 5-10 V DC |
| Output Type | AC Voltage Signal |
| Total Length | 1 m |
| Weight | 0.323 kg |
| Connector Type | M12 or customer-specific |
Product Applications
-
Monitoring shaft vibration and displacement in turbines, compressors, and pumps.
-
Detecting misalignment, imbalance, or mechanical looseness in rotating machinery.
-
Predictive maintenance programs for critical industrial equipment.
-
Integration with Bently Nevada 3300 XL Monitoring Systems.
-
Condition-based monitoring in petrochemical, power generation, and heavy industry.
Product Advantages
-
High Accuracy: Provides precise measurement of shaft displacement with minimal noise interference.
-
Rugged Design: Resistant to harsh industrial environments, including high temperature and vibration.
-
Easy Integration: Compatible with Bently Nevada 3300 XL monitoring systems.
-
Maintenance Support: Enables predictive maintenance, reducing unplanned downtime.
-
Reliable Signal: Stable output ensures accurate long-term monitoring.
-
Flexible Installation: Available with various cable lengths and connector options.
FAQ
Q1: What type of signal does this proximity probe provide?
A1: The probe provides an AC voltage signal proportional to the shaft displacement.
Q2: Can this probe operate in high-temperature environments?
A2: Yes, it operates reliably between -40°C and 120°C.
Q3: What is the maximum measurement gap?
A3: The maximum gap is 8 mm.
Q4: Is the probe compatible with non-Bently monitoring systems?
A4: It can be integrated with systems that accept 8 mm eddy-current probes, though calibration may be required.
Q5: How is the probe mounted on machinery?
A5: Typically mounted using a probe bracket with adjustable positioning to maintain the desired gap.
Q6: What is the expected output sensitivity?
A6: Typical sensitivity ranges from 40 to 50 mV per mil.
Q7: Can the cable length be customized?
A7: Yes, standard length is 1 m, but custom lengths are available.
Q8: What materials are used for the probe tip?
A8: The probe tip is made of stainless steel for durability and corrosion resistance.
Q9: Does the probe require calibration before use?
A9: Calibration is recommended upon installation to ensure accurate readings.
Q10: Can this probe detect both radial and axial vibrations?
A10: Primarily radial displacement is measured, but axial vibrations can be inferred with proper system configuration.
