Product Introduction

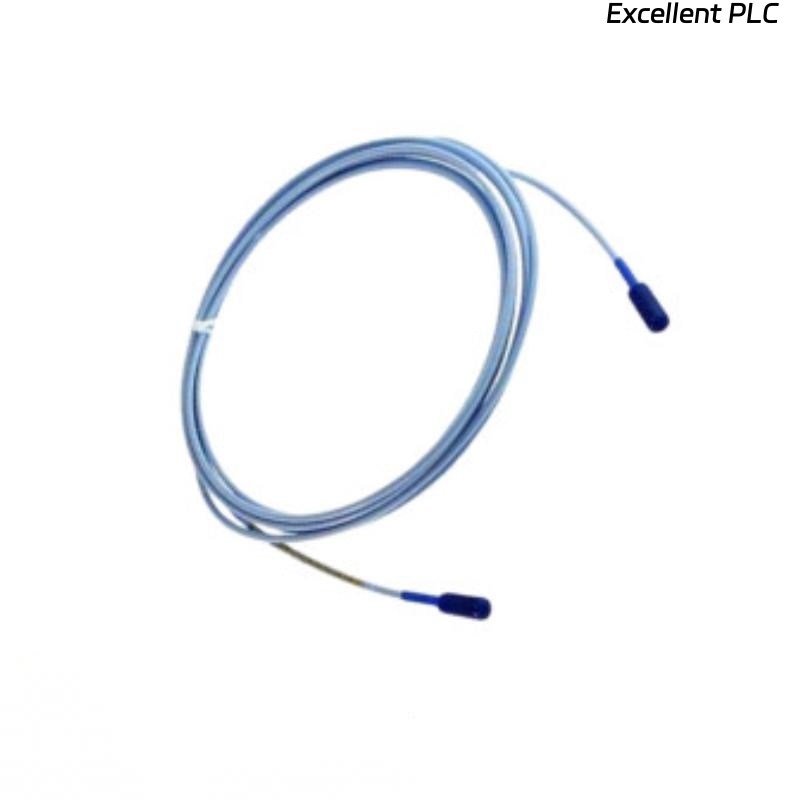

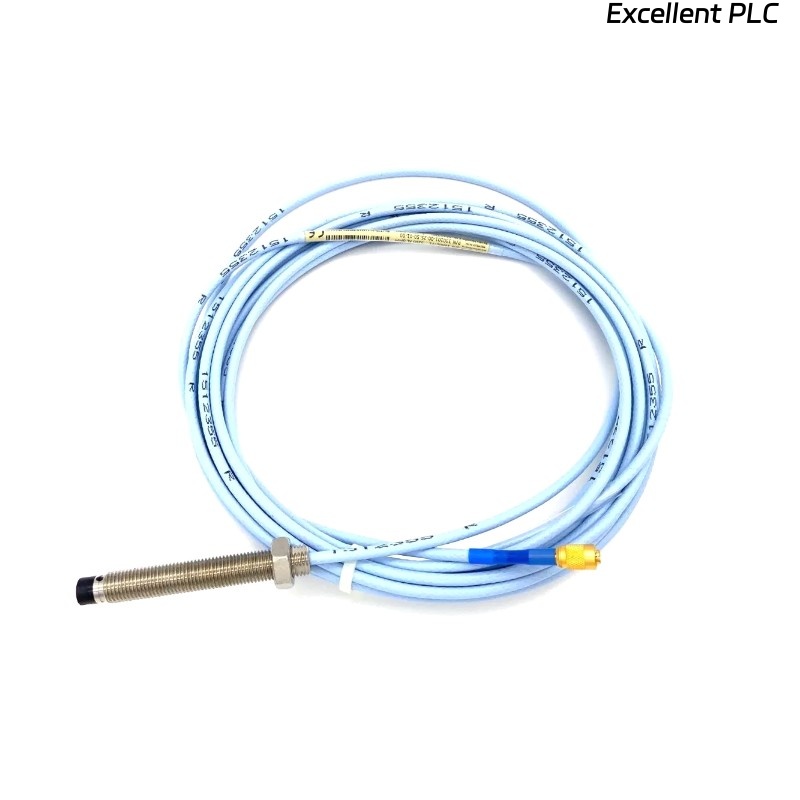

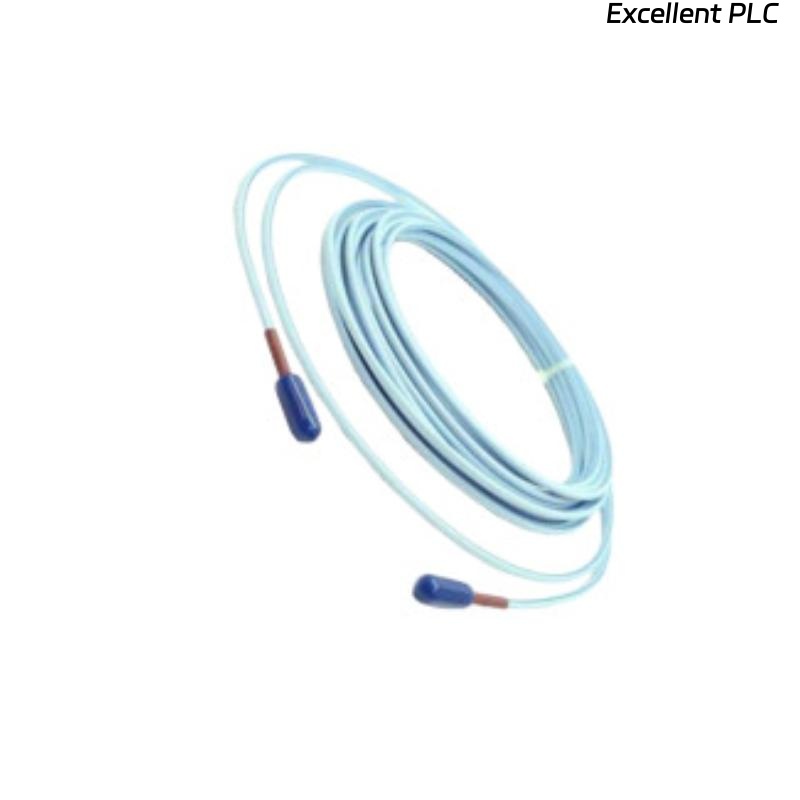

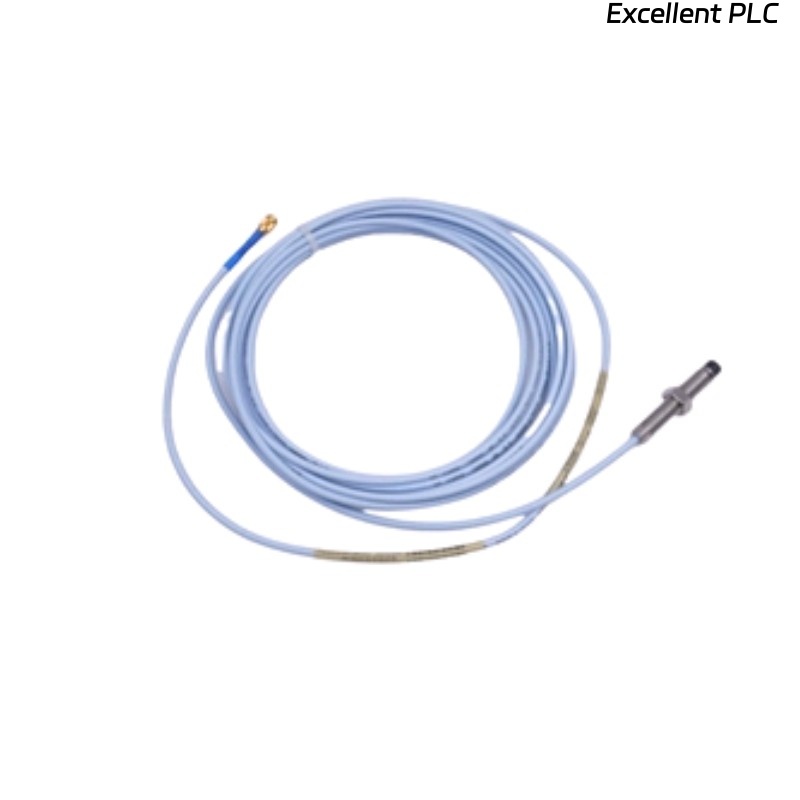

The Bently Nevada 330102-04-24-50-02-00 3300 XL 8 mm Proximity Probe is a precision sensor designed for monitoring shaft displacement and vibration in critical rotating machinery. Part of the 3300 XL series, it provides accurate, reliable, and repeatable measurements under extreme industrial conditions. This probe is widely used in turbines, compressors, pumps, and other high-speed rotating equipment to enhance operational safety and reduce unplanned downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330102-04-24-50-02-00 |
| Series | 3300 XL |
| Probe Type | 8 mm Proximity Probe |
| Measurement Range | ±0.05 to ±0.25 in (1.27 to 6.35 mm) |
| Tip Material | Non-ferrous alloy |
| Housing Material | Stainless steel |
| Output Impedance | 100 Ω |
| Cable Length | 10 ft standard, customizable |
| Operating Temperature | -40°C to 120°C (-40°F to 248°F) |
| Frequency Response | DC to 10 kHz |
| Total Length | 5 m |
| Weight | 1.615 kg |
| Mounting Type | Threaded |
Applications
-
Shaft vibration monitoring in turbines, compressors, and pumps
-
Detection of shaft displacement and rotor position in generators
-
Condition monitoring in critical machinery for predictive maintenance
-
Industrial plants, including power generation, petrochemical, and manufacturing
-
Integration with Bently Nevada 3300 XL monitoring systems for continuous machine health assessment
Advantages
-
High Accuracy: Provides precise displacement measurements under extreme conditions.
-
Robust Design: Stainless steel housing and high-quality tip materials ensure durability.
-
Wide Operating Range: Can function across a broad temperature and vibration spectrum.
-
Compatibility: Fully compatible with 3300 XL monitoring systems and retrofits.
-
Shock and Vibration Resistant: Withstands harsh industrial environments without performance loss.
-
Reliable Data: Offers repeatable and consistent output, reducing false alarms and maintenance errors.
FAQ
Q1: What is the frequency response of the 330102-04-24-50-02-00 probe?
A1: The frequency response is DC to 10 kHz, suitable for high-speed shaft vibration monitoring.
Q2: Can this probe operate in extreme temperatures?
A2: Yes, it operates from -40°C to 120°C (-40°F to 248°F).
Q3: What type of output does the probe provide?
A3: It provides a variable voltage output through a coaxial cable, compatible with 3300 XL monitoring systems.
Q4: Is the probe resistant to mechanical shock?
A4: Yes, it can withstand shocks up to 1000 g for 1 ms.
Q5: What is the tip material, and why is it important?
A5: The tip is made of non-ferrous alloy to prevent magnetic interference and ensure accurate readings.
Q6: Can the cable length be customized?
A6: Yes, while the standard cable length is 10 ft, custom lengths are available on request.
Q7: Is the probe compatible with other Bently Nevada 3300 XL series modules?
A7: Yes, it is fully compatible with all 3300 XL monitoring modules.
Q8: How does the probe handle high vibration environments?
A8: It has a vibration resistance of 20 g over 10–2000 Hz, ensuring stable measurements.
Q9: What is the mounting method for this probe?
A9: It is threaded for secure installation into standard probe holders.
Q10: Can it be used for continuous monitoring in power plants?
A10: Yes, it is designed for continuous, real-time monitoring in industrial environments.
Related Models
| Model Number | Probe Type | Cable Length | Frequency Response |
|---|---|---|---|
| 330102-05-25-10-01-05 | 8 mm | 10 ft | DC to 10 kHz |
| 330102-03-25-10-02-05 | 8 mm | 10 ft | DC to 10 kHz |
| 330102-00-16-90-02-05 | 8 mm | 10 ft | DC to 10 kHz |
| 330102-00-79-10-02-05 | 8 mm | 10 ft | DC to 10 kHz |
| 330102-00-80-10-01-00 | 8 mm | 10 ft | DC to 10 kHz |
| 330102-00-88-10-02-05 | 8 mm | 10 ft | DC to 10 kHz |
Popular Models
| Model Number | Probe Type | Measurement Range | Frequency Response |
|---|---|---|---|
| 330101-00-01-10-05-05 | 5 mm | ±0.05 to ±0.2 in | DC to 10 kHz |
| 330101-00-02-10-05-05 | 5 mm | ±0.05 to ±0.25 in | DC to 10 kHz |
| 330102-00-16-90-02-05 | 8 mm | ±0.05 to ±0.25 in | DC to 10 kHz |
| 330102-00-79-10-02-05 | 8 mm | ±0.05 to ±0.25 in | DC to 10 kHz |
| 330102-05-25-10-01-05 | 8 mm | ±0.05 to ±0.25 in | DC to 10 kHz |
| 330102-04-24-50-02-00 | 8 mm | ±0.05 to ±0.25 in | DC to 10 kHz |
