Product Introduction

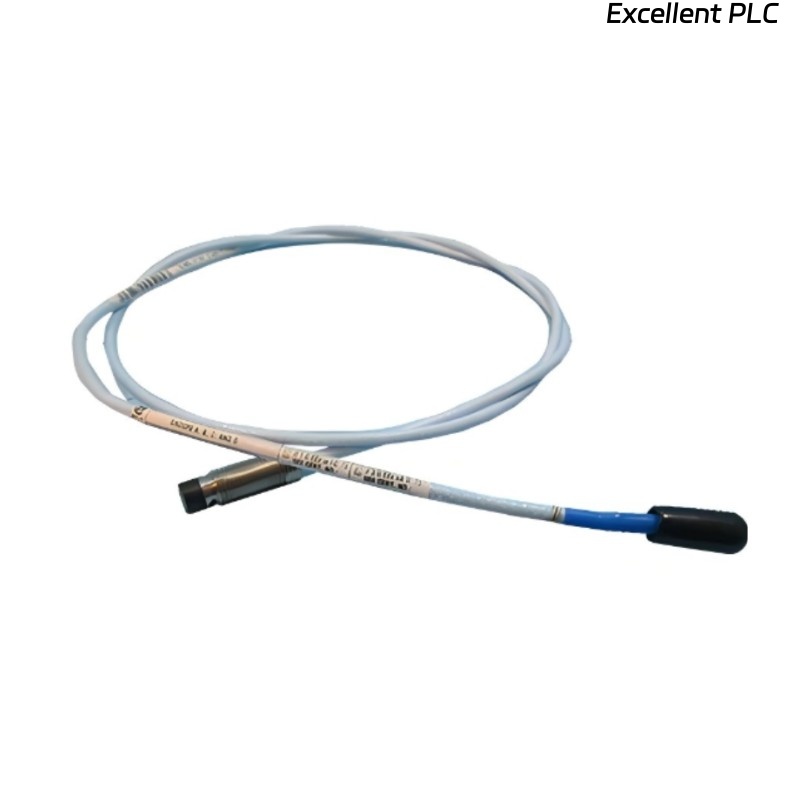

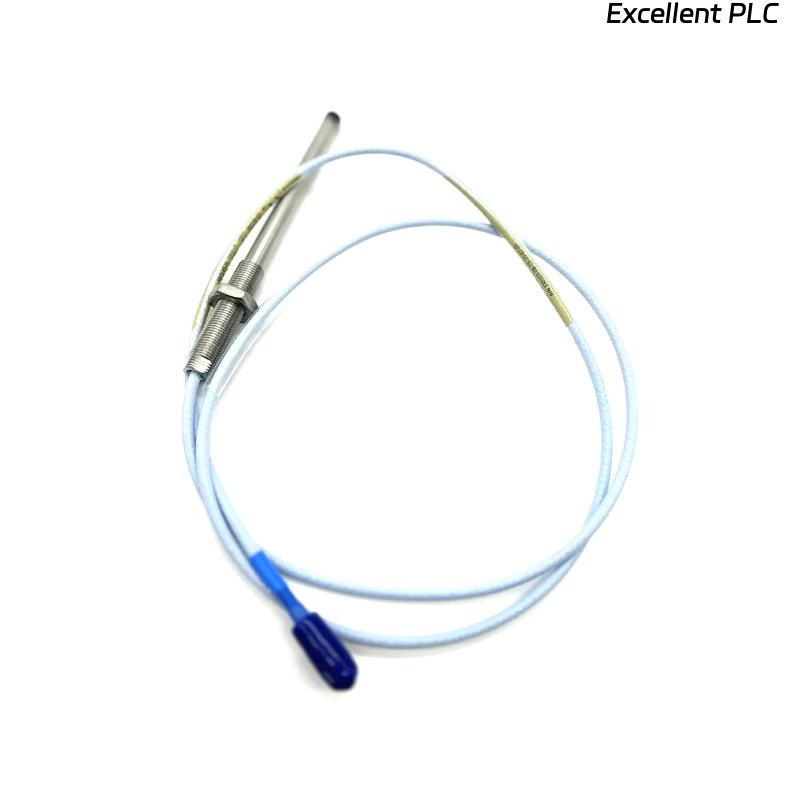

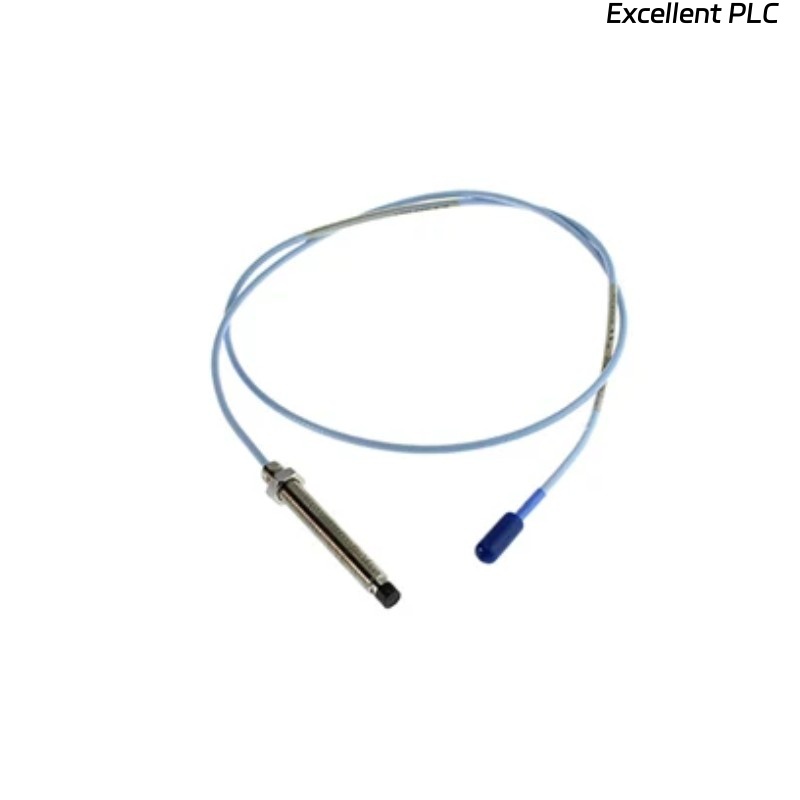

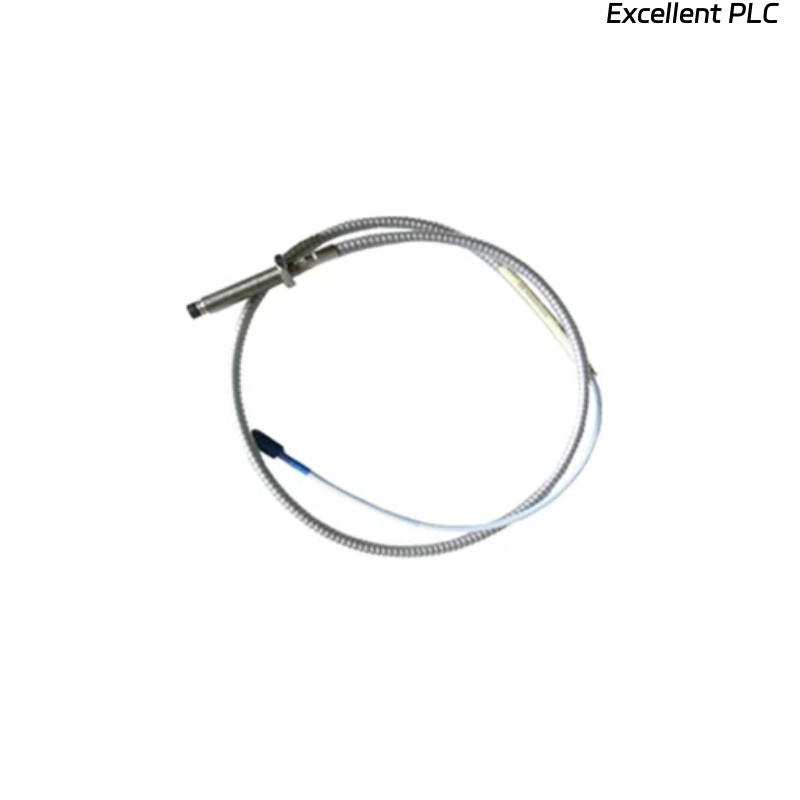

The Bently Nevada 330102-04-40-10-02-05 is a high-precision 3300 XL 8 mm Proximity Probe, widely used in industrial machinery monitoring. Designed for rotor vibration measurement, it delivers reliable and accurate data for predictive maintenance and protection systems. This probe is part of the 3300 XL family, which is known for robust performance in demanding environments, including high-speed turbines, compressors, and generators.
Product Advantages
-
High Accuracy: Provides precise displacement measurements for rotor monitoring.
-
Rugged Design: Resistant to harsh industrial conditions, including vibration, temperature extremes, and contaminants.
-
Long Cable Options: Flexible installation with extended cable lengths for challenging plant layouts.
-
Compatibility: Seamlessly integrates with Bently Nevada 3300 XL series monitoring systems.
-
Fast Response: Supports real-time monitoring and early detection of machinery faults.
-
Low Noise Output: Ensures minimal interference with signal processing for reliable diagnostics.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Probe Tip Material | Stainless Steel |
| Cable Type | Coaxial |
| Operating Temperature | -40°C to +125°C |
| Connector Type | MS3102, others on request |
| Linearity | ±1% of full scale |
| Electrical Termination | Coaxial output |
| Total Length | 1 m |
| Weight | 0.323 kg |
| Response Frequency | DC to 50 kHz |
| Mounting Style | Threaded or bracket mounting |
Product Applications
-
Vibration monitoring of turbines, compressors, and generators.
-
Machinery protection systems in power plants and industrial facilities.
-
Condition-based maintenance programs for high-speed rotating equipment.
-
Early detection of shaft misalignment, imbalance, and bearing wear.
-
Critical asset monitoring in petrochemical, oil & gas, and energy industries.
FAQ
Q1: What is the standard cable length for this probe?
A1: The standard cable lengths are 3 m, 5 m, 10 m, and 20 m, depending on installation requirements.
Q2: Can this probe be used in high-temperature environments?
A2: Yes, it operates reliably within a temperature range of -40°C to +125°C.
Q3: What type of output signal does the probe provide?
A3: It provides a coaxial electrical output compatible with Bently Nevada 3300 XL monitoring systems.
Q4: Is the probe compatible with non-Bently monitoring systems?
A4: While it is optimized for 3300 XL systems, it can be adapted for other systems with proper signal conditioning.
Q5: What is the frequency response of the probe?
A5: The probe supports DC to 50 kHz frequency response, suitable for high-speed machinery monitoring.
Q6: How is the probe mounted?
A6: It can be mounted using threaded or bracket-style mounting, based on the application.
Q7: What material is used for the probe tip?
A7: The probe tip is made from durable stainless steel for corrosion resistance.
Q8: Can the probe handle electrical noise in industrial environments?
A8: Yes, the probe is designed for low noise output, minimizing interference with signal processing.
Q9: How precise is the measurement?
A9: The probe provides linear measurements with ±1% of full-scale accuracy.
Q10: Are there extended cable options for remote monitoring?
A10: Yes, cables up to 20 meters are available for flexible installation.
Recommended Same-Series or Related Models
| Model Number | Measurement Range | Cable Length Options | Notes |
|---|---|---|---|
| 330102-04-25-10-02-05 | 0.25–8 mm | 3 m, 5 m, 10 m | Standard XL probe |
| 330102-05-25-10-01-05 | 0.25–8 mm | 3 m, 5 m, 10 m | High-temp option |
| 330102-03-25-10-02-05 | 0.25–8 mm | 3 m, 5 m, 10 m | General-purpose XL |
| 330102-00-16-90-02-05 | 0.25–8 mm | 3 m, 5 m | Short-range XL |
| 330102-00-88-10-02-05 | 0.25–8 mm | 5 m, 10 m | Industrial-grade |
| 330102-04-24-50-02-00 | 0.25–8 mm | 3 m, 5 m | Low-noise version |
