Product Introduction

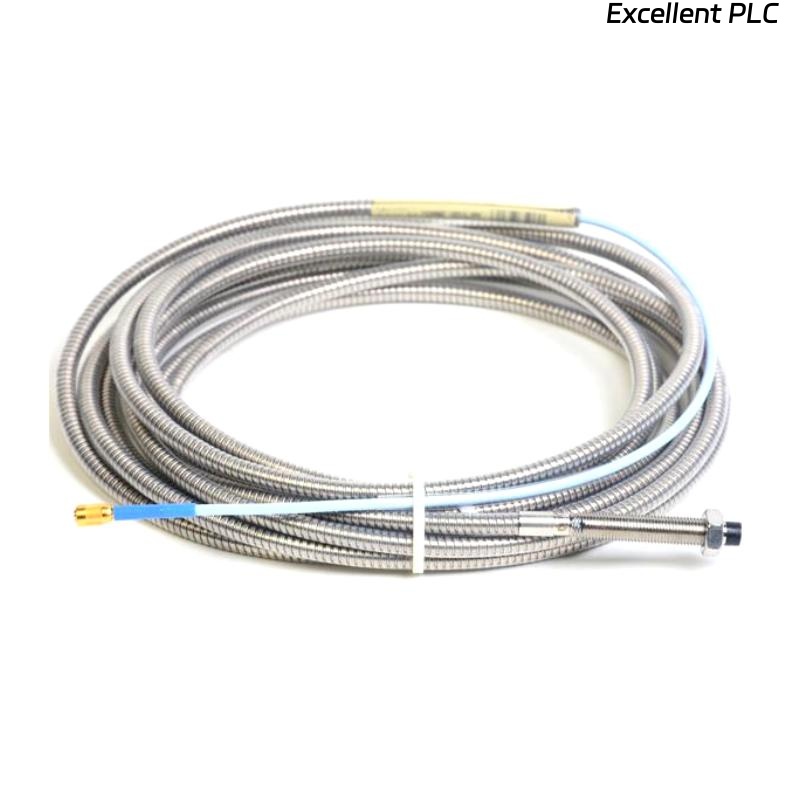

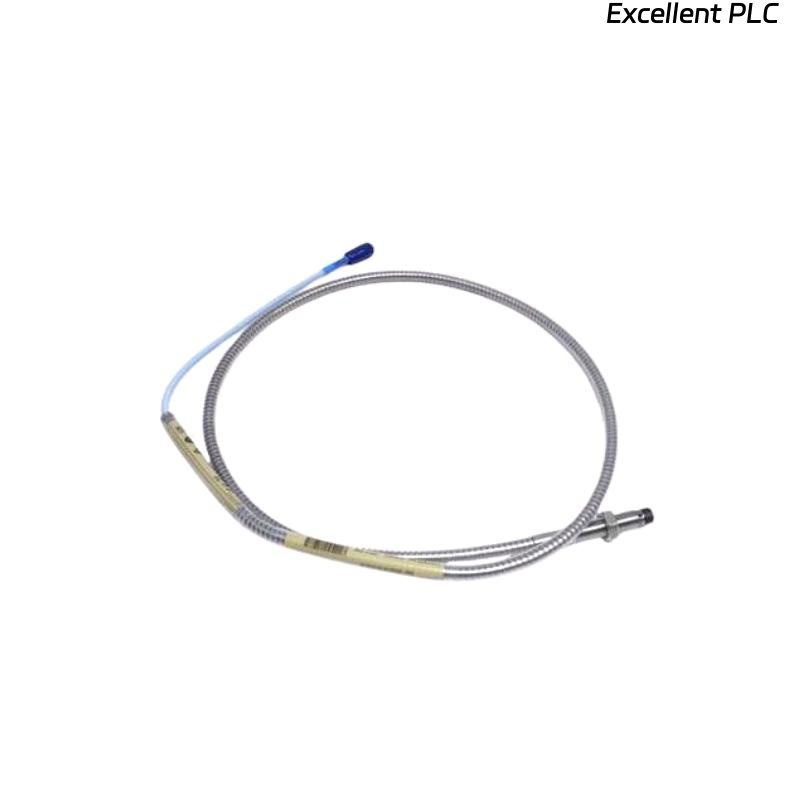

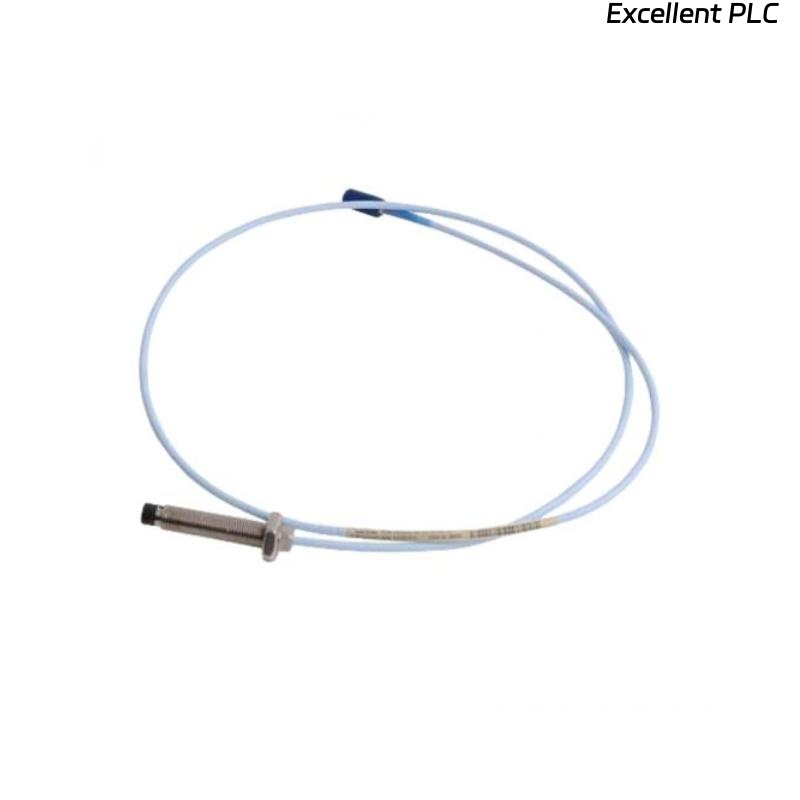

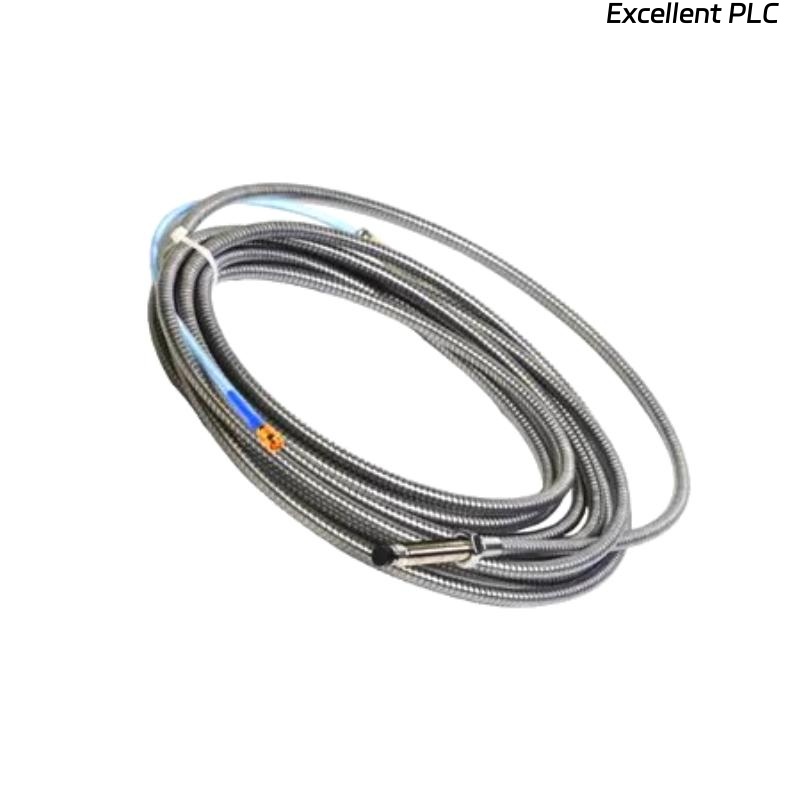

The Bently Nevada 330102-05-50-10-01-05 3300 XL 8 mm Proximity Probe is designed for use in industrial applications, particularly for monitoring machinery like motors and generators. It is part of the 3300 XL series, known for its high reliability and robust performance in critical environments. This proximity probe provides accurate and real-time data on the position of rotating shafts, helping to ensure smooth operation and prevent damage to machinery.
This model offers advanced diagnostics and monitoring capabilities, ensuring that early warnings of mechanical issues are detected. With high-quality construction and precision measurement, the 3300 XL 8 mm Proximity Probe is a valuable tool for industries requiring high precision, such as power generation, oil & gas, and manufacturing.
Product Parameters
| Parameter | Value |
|---|---|
| Model | 3300 XL 8 mm Proximity Probe |
| Sensing Technology | Eddy Current |
| Measurement Range | 0 to 100 mils (0 to 2.5 mm) |
| Probe Type | 8 mm, Standard |
| Output Signal | 4-20 mA |
| Voltage | 24 VDC |
| Weight | 0.323 kg |
| Total Length | 1 m |
| Operating Temperature | -40°C to 85°C |
| Accuracy | ±0.01 mm |
Product Applications
The 3300 XL 8 mm Proximity Probe is widely used for applications requiring precise displacement or vibration monitoring. Some of its main uses include:
-
Rotating Equipment Monitoring: Provides accurate shaft position measurements in turbines, motors, and pumps.
-
Condition Monitoring: Used to detect early signs of mechanical failures such as misalignment, imbalance, and bearing defects.
-
Process Control: Vital in industries like oil & gas, power generation, and manufacturing for equipment health monitoring.
Product Advantages
-
High Precision: The proximity probe ensures excellent measurement accuracy, even in challenging industrial environments.
-
Durability: Designed to withstand extreme temperatures and harsh conditions, ensuring long-lasting performance.
-
Versatility: It can be used with various machines, making it suitable for different industrial applications.
-
Reliability: The 3300 XL series is renowned for its stable and dependable performance in critical applications.
-
Easy Integration: The probe is compatible with existing monitoring systems and can be easily integrated with the Bently Nevada 3500 Monitoring System for enhanced functionality.
FAQ
Q1: What is the measurement range of the 3300 XL 8 mm Proximity Probe?
The measurement range is from 0 to 100 mils (0 to 2.5 mm), providing accurate displacement measurements for rotating shafts.
Q2: What type of output signal does the proximity probe provide?
It provides a 4-20 mA output signal, making it compatible with most industrial monitoring systems.
Q3: What is the probe’s operating temperature range?
The probe can operate in temperatures ranging from -40°C to 85°C, making it suitable for a wide range of industrial environments.
Q4: Can the 3300 XL 8 mm Proximity Probe be used in hazardous environments?
Yes, the 3300 XL series is designed to withstand harsh environments, including high vibration, dust, and moisture.
Q5: How accurate is the proximity probe?
The probe offers an accuracy of ±0.01 mm, ensuring highly precise measurements in critical applications.
Q6: What materials is the probe made of?
The probe is constructed with high-quality materials for durability, including stainless steel for the probe casing.
Q7: How does the proximity probe detect shaft position?
The proximity probe uses eddy current sensing technology to detect changes in the gap between the probe and the shaft.
Q8: Is the 3300 XL Proximity Probe compatible with other Bently Nevada systems?
Yes, it is compatible with Bently Nevada’s 3500 Monitoring System and other similar equipment for integrated condition monitoring.
Q9: Can the probe be used in both horizontal and vertical applications?
Yes, the probe is versatile and can be used in both horizontal and vertical installations, offering flexibility for different machines.
Q10: What is the typical lifespan of the 3300 XL 8 mm Proximity Probe?
While the exact lifespan depends on usage and environmental conditions, the probe is designed for long-term durability and reliability in industrial settings.
Related Models
| Model | Measurement Range | Output Signal | Size | Weight |
|---|---|---|---|---|
| 330102-05-50-10-01-06 | 0 to 200 mils (0 to 5 mm) | 4-20 mA | 160 mm (length) x 30 mm (diameter) | 0.5 kg |
| 330102-05-50-10-01-04 | 0 to 150 mils (0 to 3.8 mm) | 4-20 mA | 160 mm (length) x 30 mm (diameter) | 0.45 kg |
| 330102-05-50-10-01-02 | 0 to 50 mils (0 to 1.25 mm) | 4-20 mA | 160 mm (length) x 30 mm (diameter) | 0.3 kg |
| 330102-05-50-10-01-01 | 0 to 80 mils (0 to 2 mm) | 4-20 mA | 160 mm (length) x 30 mm (diameter) | 0.35 kg |
| 330102-05-50-10-01-07 | 0 to 100 mils (0 to 2.5 mm) | 4-20 mA | 160 mm (length) x 30 mm (diameter) | 0.4 kg |
| 330102-05-50-10-01-03 | 0 to 60 mils (0 to 1.5 mm) | 4-20 mA | 160 mm (length) x 30 mm (diameter) | 0.38 kg |
