Product Description

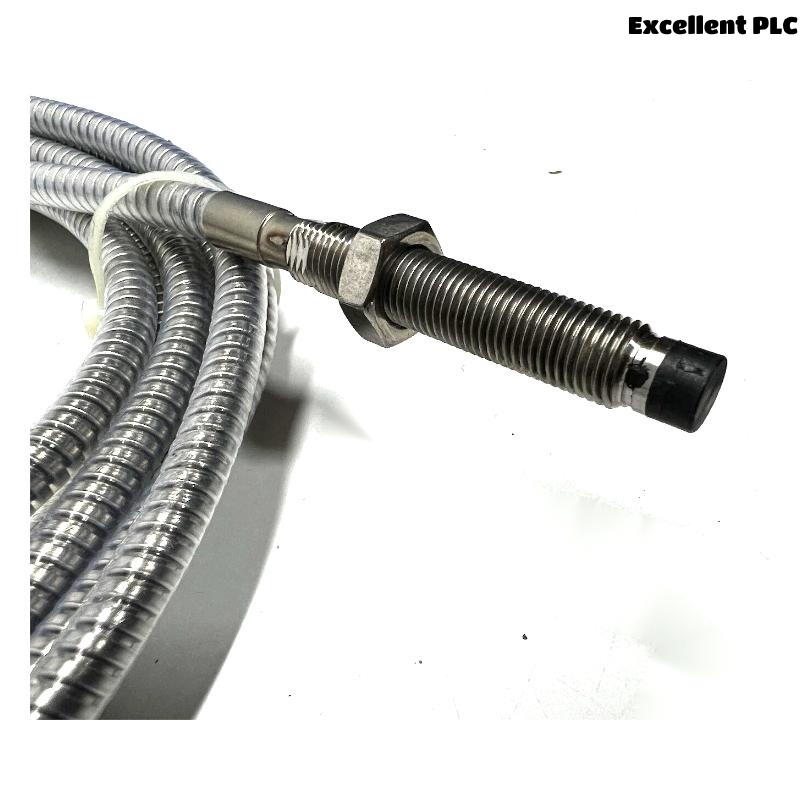

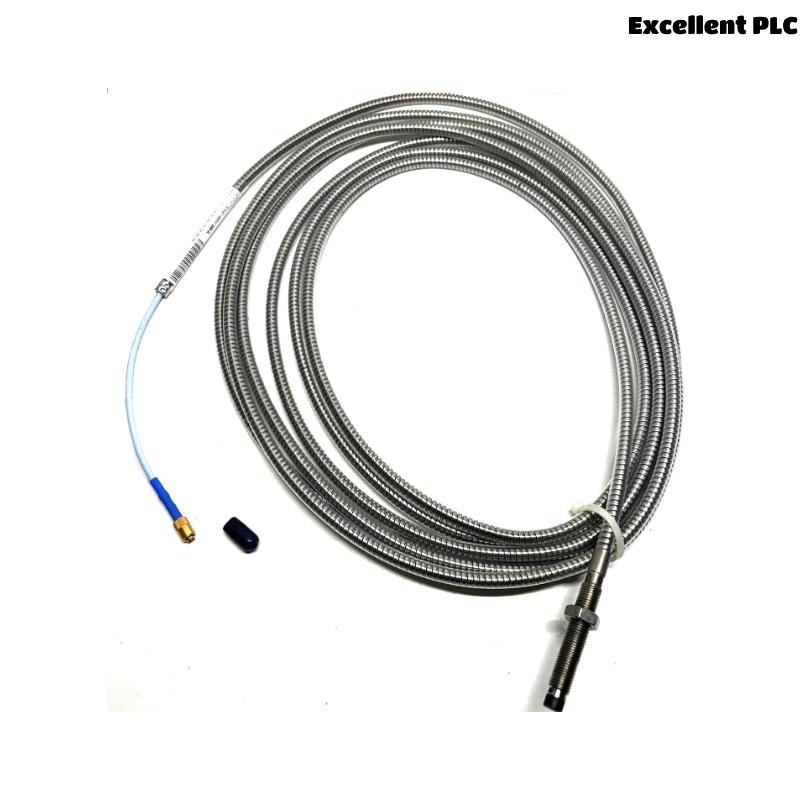

The Bently Nevada 330102-08-96-10-02-00 is part of the 3300 XL 8 mm Proximity Transducer System, designed for vibration and position measurement of rotating machinery. It delivers linear, accurate readings with robust performance, meeting API 670 standards. Featuring armored cable construction and ClickLoc connectors, it ensures reliable operation even in harsh industrial environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Diameter | 8 mm |
| Total Length | 0.5 meter |
| Weight | 0.162 kg |

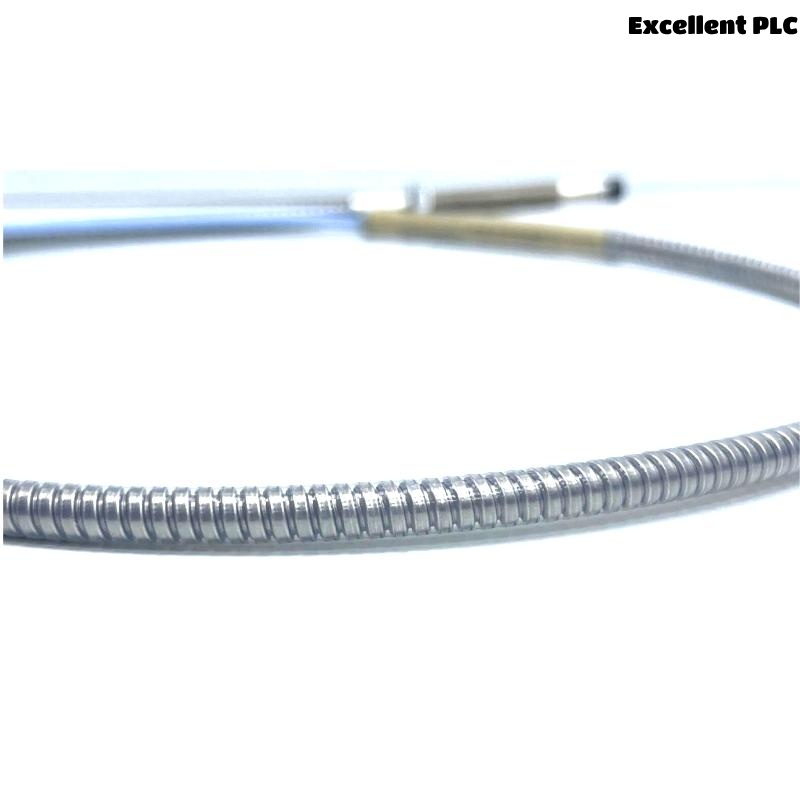

| Cable Type | Armored, standard |

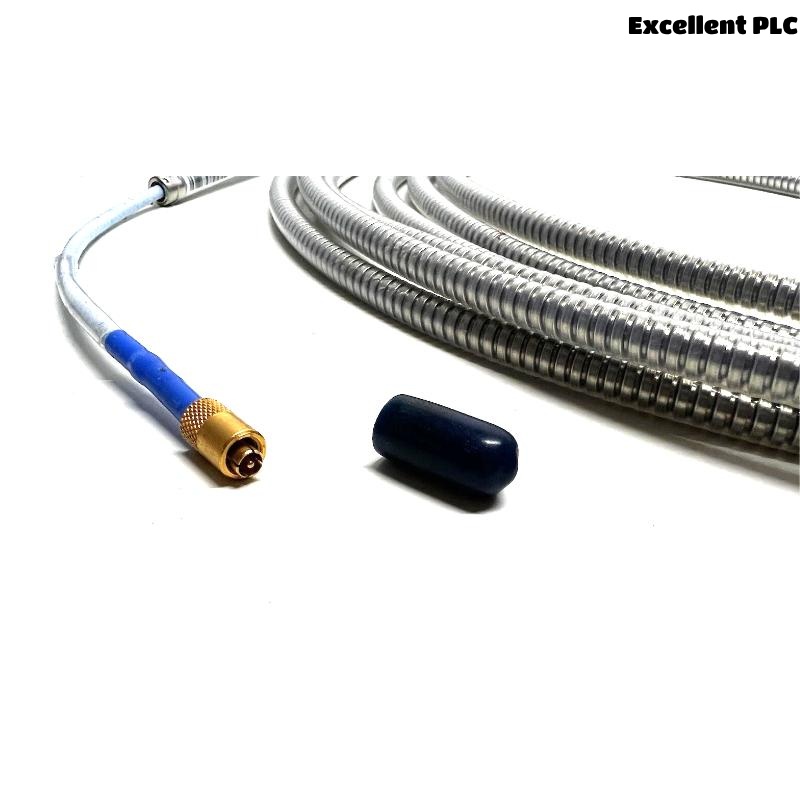

| Connector | Miniature coaxial ClickLoc |
| Tip Material | PPS (Polyphenylene Sulfide) |
| Case Material | Stainless Steel |
| Operating Temperature Range | -52°C to +177°C |
| Linear Range | 2 mm (80 mils) |
| Output Sensitivity | 200 mV/mil (7.87 V/mm) |
Applications
-
Monitoring vibration and shaft position in fluid-film bearing machines
-
Keyphasor and speed reference measurement
-
Suitable for environments with high RFI/EMI interference
-
Compliant with API 670 for critical machinery protection
Advantages
-
Fully interchangeable system components without recalibration
-
High immunity to RFI/EMI, no special shielding required
-
Rugged design with armored cable for enhanced durability
-
SpringLoc terminals and ClickLoc connectors for secure, tool-free installation
-
Optional extended temperature range components available
FAQs
Q1: What is the standard measurement range of this probe?
A1: The linear measurement range is 2 mm (80 mils).
Q2: Is the probe compliant with API 670?
A2: Yes, it meets API 670 standards for linearity and temperature stability.
Q3: Can this probe operate in high-temperature environments?
A3: Yes, standard operation up to +177°C, with extended temperature range options available.
Q4: Are the components interchangeable with older 3300 series?
A4: Yes, they are backward compatible with non-XL 3300 series components.
Q5: What type of connector does it use?
A5: It uses a gold-plated miniature coaxial ClickLoc connector.
Q6: Is recalibration needed when replacing components?
A6: No, components are factory calibrated for interchangeability.
Q7: Does it provide environmental protection?
A7: Yes, with armored cable and optional connector protectors for increased protection.
Q8: Can it be used for both vibration and position monitoring?
A8: Yes, it measures both static position and dynamic vibration.
Q9: What is the recommended gap voltage?
A9: The recommended gap setting for radial vibration is approximately -9 Vdc.
Q10: Does it require special installation tools?
A10: No, installation is tool-free thanks to SpringLoc and ClickLoc technology.
Related Models (Same Series or Compatible)
| Model | Description | Total Length | Weight |
|---|---|---|---|
| 330101 | 8 mm Probe, unarmored | 0.5 m | 0.14 kg |
| 330103 | 8 mm Probe, M10x1, unarmored | 0.5 m | 0.14 kg |
| 330104 | 8 mm Probe, M10x1, armored | 0.5 m | 0.16 kg |
| 330105 | 8 mm Reverse Mount Probe, unarmored | 0.5 m | 0.14 kg |
| 330191 | 8 mm Extended Temp Probe, unarmored | 0.5 m | 0.14 kg |
| 330192 | 8 mm Extended Temp Probe, armored | 0.5 m | 0.16 kg |
