Product Introduction

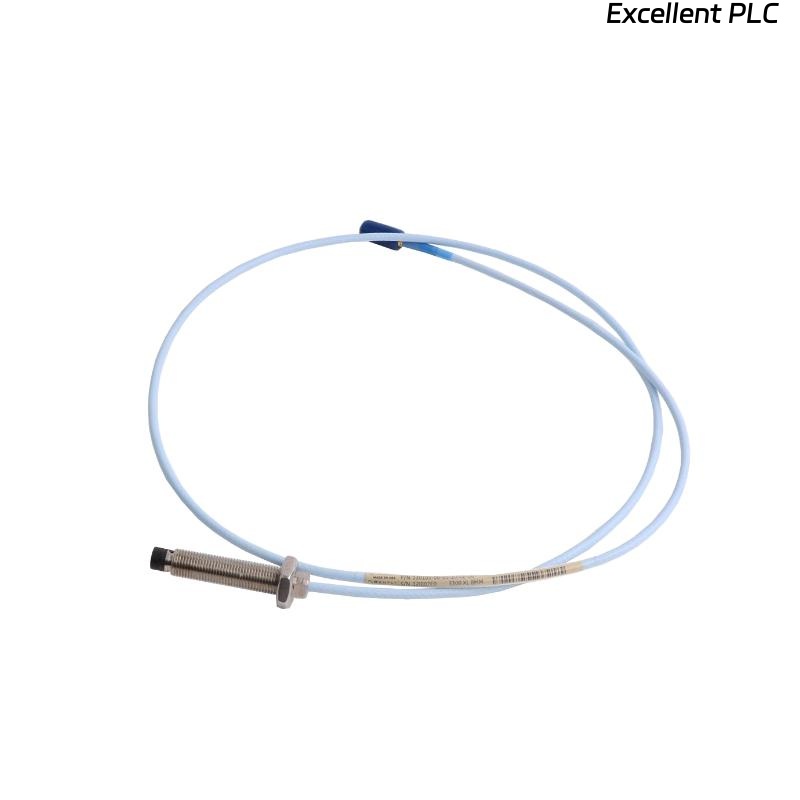

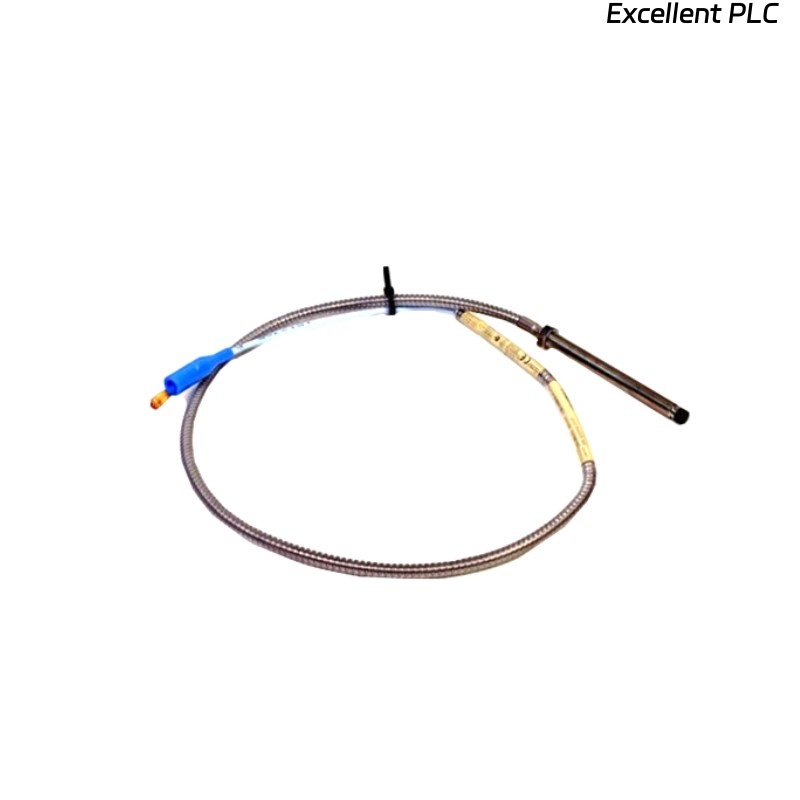

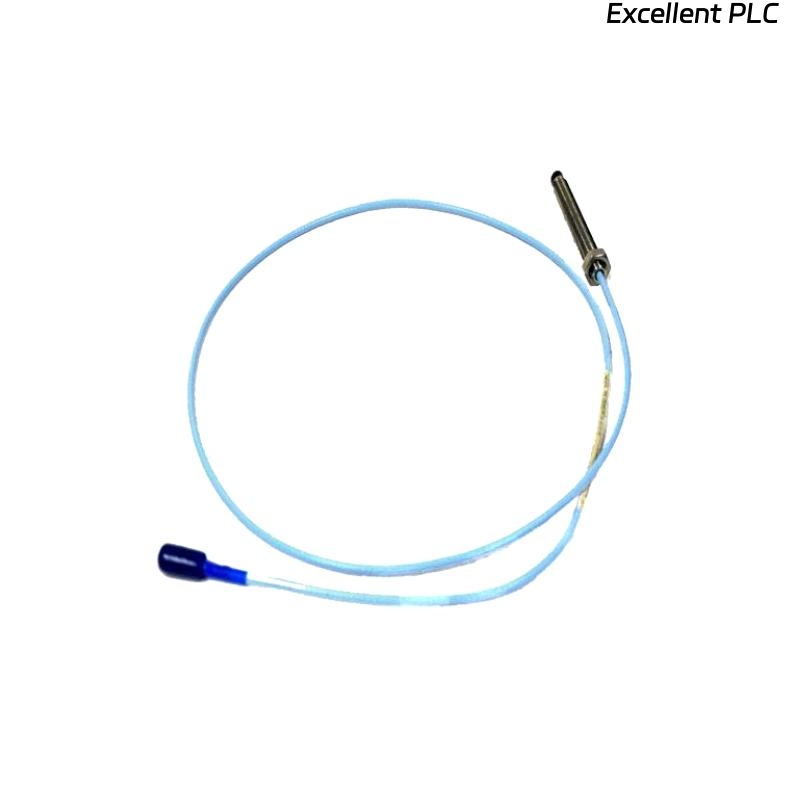

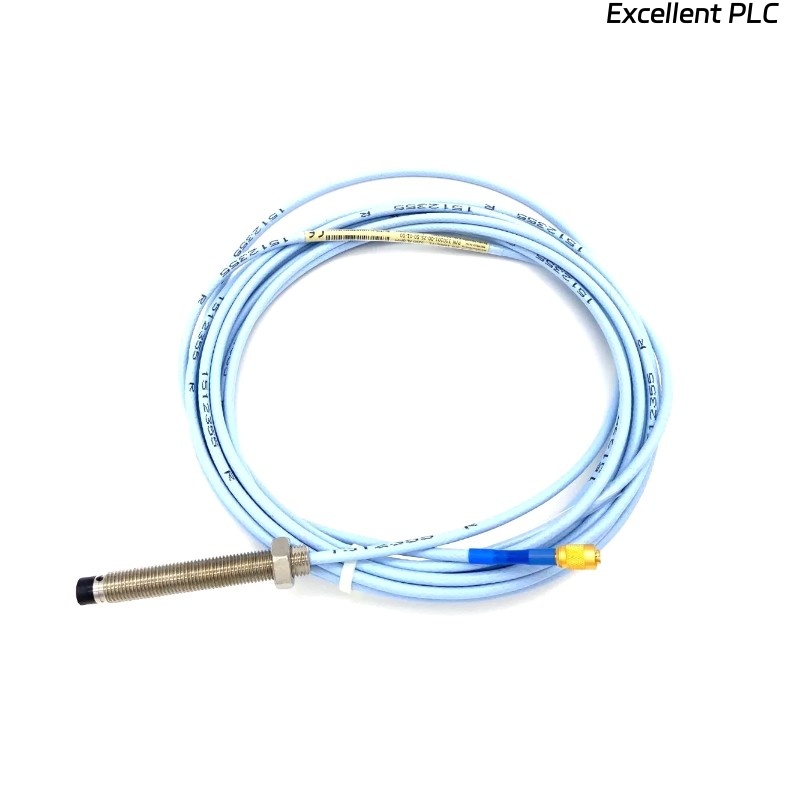

The Bently Nevada 330102-10-45-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision sensor designed for monitoring the position of rotating machinery components. This probe is essential for vibration monitoring, ensuring the health and efficiency of machinery in various industries, including power generation, oil and gas, and manufacturing. The 3300 XL series probes are known for their robustness, durability, and accuracy, offering real-time data for predictive maintenance.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 330102-10-45-10-02-05 |
| Type | 3300 XL 8 mm Proximity Probe |
| Operating Range | 8 mm (0.31 in) |
| Output Signal | Linear voltage or current |
| Housing Material | Stainless Steel |
| Weight | 0.323kg |
| Total Length | 1 m |
| Temperature Range | -40°C to +120°C (-40°F to +248°F) |
| Mounting Style | Threaded with a ¼-inch NPT |
Product Applications
-
Gas turbines
-
Steam turbines
-
Compressors
-
Pumps
-
Motors
-
Fans and blowers
Product Advantages
-
High Precision: The 8 mm measurement range provides precise data for machinery monitoring.
-
Durable Design: Built to withstand harsh environments, including high temperatures and vibrations.
-
Wide Application Range: Ideal for a variety of rotating machinery in different industries.
-
Easy Installation: Simple mounting using the threaded NPT connection.
-
Low Maintenance: Designed for long-term use with minimal maintenance requirements.
FAQ
Q1: What is the maximum vibration the 3300 XL probe can withstand?
A1: The 3300 XL probe can withstand a maximum vibration of 250 m/s² (25 g).
Q2: Can the 3300 XL 8 mm probe be used in high-temperature environments?
A2: Yes, it can operate in temperatures ranging from -40°C to +85°C, making it suitable for most industrial applications.
Q3: What is the output type of the 3300 XL probe?
A3: The output type is linear voltage, which allows for precise and easy data interpretation.
Q4: Is the 3300 XL probe compatible with Bently Nevada’s monitoring systems?
A4: Yes, it is fully compatible and integrates seamlessly with Bently Nevada’s condition monitoring systems.
Q5: What is the length of the cable supplied with the probe?
A5: The probe comes with a 10-meter cable, suitable for most industrial setups.
Q6: How does the probe measure displacement?
A6: The probe uses high-precision technology to measure the displacement of rotating machinery components, providing real-time data for monitoring.
Q7: What materials are used in the construction of the 3300 XL probe?
A7: The probe is constructed with stainless steel, ensuring durability and resistance to environmental stress.
Q8: Can the 3300 XL probe be used in offshore or marine applications?
A8: Yes, due to its robust design and resistance to environmental conditions, it is suitable for offshore and marine applications.
Q9: Is the 3300 XL probe easy to install?
A9: Yes, the probe is designed for simple installation with integral mounting, making it user-friendly for technicians.
Q10: What type of maintenance is required for the 3300 XL probe?
A10: The probe requires minimal maintenance, primarily ensuring the cable and connections are intact and free from debris.
Recommended Related Models
| Model | Description |
|---|---|
| 330102-10-45-10-02-00 | 3300 XL 8 mm Proximity Probe (Standard version) |
| 330102-10-45-10-02-06 | 3300 XL 8 mm Proximity Probe (with extended cable) |
| 330102-10-45-10-02-03 | 3300 XL 8 mm Proximity Probe (with enhanced signal output) |
| 330103-00-02-05-01 | 3300 XL 5 mm Proximity Probe (for smaller machines) |
| 330103-00-02-05-02 | 3300 XL 10 mm Proximity Probe (for larger machinery) |
| 330102-10-45-10-02-04 | 3300 XL 8 mm Proximity Probe (with mounting bracket) |
Recommended Popular Models from Bently Nevada
| Model | Description | Specifications |
|---|---|---|
| 3300 XL 5 mm Proximity Probe | For smaller machines | 5 mm range, linear voltage output |
| 3300 XL 8 mm Proximity Probe | Standard model | 8 mm range, stainless steel housing |
| 3300 XL 10 mm Proximity Probe | For larger machines | 10 mm range, high-temperature capability |
| 3300 XL Proximity Probe Kit | Complete kit with accessories | Includes probes, cables, and mounting parts |
| 330103-00-02-05-04 | 3300 XL 8 mm Proximity Probe (with extended cable) | For machines with distant monitoring points |
| 3305-01-02 | Vibration Sensor Module | Used in combination with proximity probes |
