Product Introduction

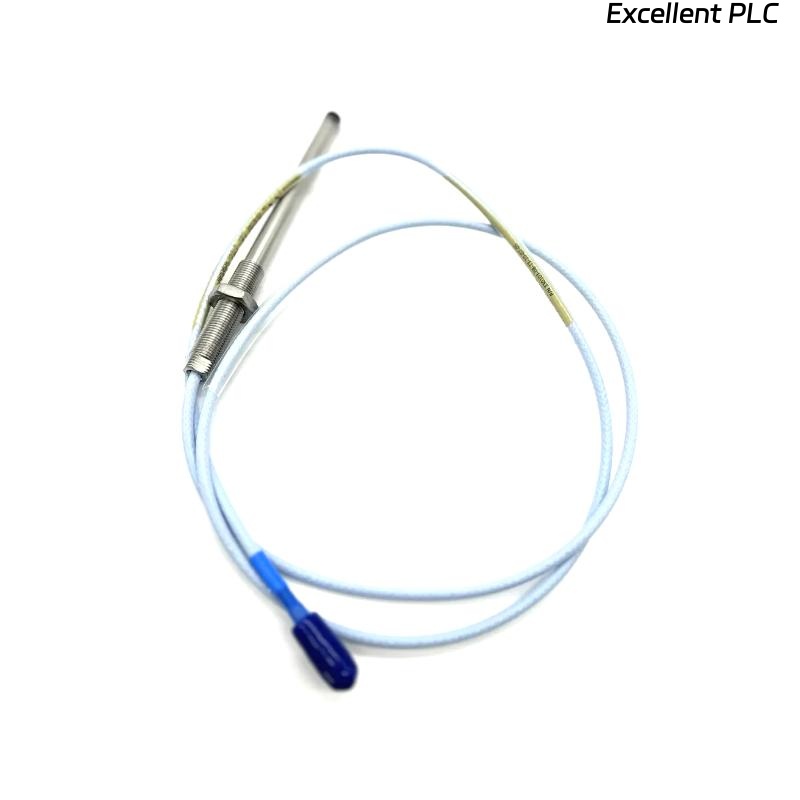

The Bently Nevada 330102-20-47-10-02-00 3300 XL 8 mm Proximity Probe is designed to offer precise, reliable vibration and position monitoring in industrial machinery. This product is part of the renowned 3300 XL series, which is known for its high accuracy and durability. The proximity probe is ideal for measuring the radial displacement of rotating machinery, and it is commonly used in sectors such as power generation, petrochemical, and mining.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | 330102-20-47-10-02-00 |
| Type | 8 mm Proximity Probe |
| Measurement Range | 0 to 8 mm |
| Output Type | Analog, 4-20 mA |
| Housing Material | Stainless Steel |
| Total Length | 1 m |
| Weight | 0.323 kg |
| Connector Type | Lemo-style |
| Operating Temperature | -40°C to +100°C |
| Mounting | Axial or radial |
Applications
-
Vibration Analysis: For high-precision measurement of machine displacement.
-
Position Monitoring: Especially for turbines, compressors, and other critical machinery.
-
Condition Monitoring Systems: Can be integrated into condition monitoring systems for real-time diagnostics.
This proximity probe is widely used in sectors such as:
-
Power Generation
-
Oil and Gas
-
Mining
-
Chemical Processing
Advantages
-
High Accuracy: Offers high measurement precision with an extended measurement range.
-
Durability: Made with high-quality stainless steel housing to resist wear and tear in industrial environments.
-
Reliability: Excellent performance in extreme conditions, including high temperatures and harsh environments.
-
Versatility: Compatible with a variety of monitoring systems.
-
Long-Term Performance: Designed for minimal maintenance and long operational life.
FAQ
Q1: How does the Bently Nevada 3300 XL proximity probe work?
A1: The proximity probe measures the distance between the probe tip and a target object, typically a rotating shaft, using inductive technology. It provides a high-resolution output to the condition monitoring system.
Q2: What is the output type of the Bently Nevada 3300 XL 8 mm proximity probe?
A2: The probe outputs an analog signal, typically 4-20 mA, which corresponds to the displacement of the monitored object.
Q3: Can the Bently Nevada 3300 XL proximity probe be used in hazardous environments?
A3: Yes, the probe is designed for use in hazardous environments such as those found in oil, gas, and chemical industries, as long as it is installed in compliance with safety standards.
Q4: What is the measurement range of the Bently Nevada 3300 XL 8 mm proximity probe?
A4: The measurement range of this proximity probe is 0 to 8 mm.
Q5: What types of machinery is the Bently Nevada 3300 XL probe suitable for?
A5: The probe is ideal for monitoring critical rotating machinery such as turbines, compressors, and motors in power generation, oil and gas, and industrial applications.
Q6: Is the Bently Nevada 3300 XL probe easy to install?
A6: Yes, it is designed for easy installation with standard mounting configurations, making it suitable for a wide variety of machinery setups.
Q7: What is the maximum operating temperature for this proximity probe?
A7: The Bently Nevada 3300 XL 8 mm proximity probe can operate in temperatures ranging from -40°C to +100°C.
Q8: Can this probe be integrated with other condition monitoring systems?
A8: Yes, the 3300 XL proximity probe is compatible with various condition monitoring systems, allowing for easy integration into existing setups.
Q9: What is the material of the probe’s housing?
A9: The probe is housed in stainless steel, providing durability and resistance to harsh environmental conditions.
Q10: How is the probe calibrated?
A10: The Bently Nevada 3300 XL proximity probe is factory calibrated. However, periodic calibration may be required depending on operational conditions.
Recommended Models
| Model | Measurement Range | Output Type | Mounting | Weight |
|---|---|---|---|---|
| 330102-20-47-10-01-00 | 0 to 8 mm | Analog, 4-20 mA | Axial | 0.4 kg |
| 330102-20-47-10-03-00 | 0 to 8 mm | Analog, 4-20 mA | Radial | 0.6 kg |
| 330102-20-47-10-04-00 | 0 to 10 mm | Analog, 4-20 mA | Axial | 0.5 kg |
| 330102-20-47-10-02-01 | 0 to 5 mm | Analog, 4-20 mA | Radial | 0.3 kg |
| 330102-20-47-10-02-02 | 0 to 6 mm | Analog, 4-20 mA | Axial | 0.4 kg |
| 330102-20-47-10-01-02 | 0 to 7 mm | Analog, 4-20 mA | Radial | 0.5 kg |
Popular Models from the Same Brand
| Model | Measurement Range | Output Type | Mounting | Weight |
|---|---|---|---|---|
| 330102-05-50-10-02-05 | 0 to 8 mm | Analog, 4-20 mA | Radial | 0.4 kg |
| 330103-03-11-00-00 | 0 to 8 mm | Analog, 4-20 mA | Axial | 0.5 kg |
| 330104-20-30-10-00 | 0 to 8 mm | Analog, 4-20 mA | Radial | 0.4 kg |
| 330104-03-01-00-00 | 0 to 8 mm | Analog, 4-20 mA | Axial | 0.3 kg |
| 330102-10-45-10-01-00 | 0 to 8 mm | Analog, 4-20 mA | Radial | 0.5 kg |
| 330104-10-50-20-00 | 0 to 8 mm | Analog, 4-20 mA | Axial | 0.6 kg |
