Product Description

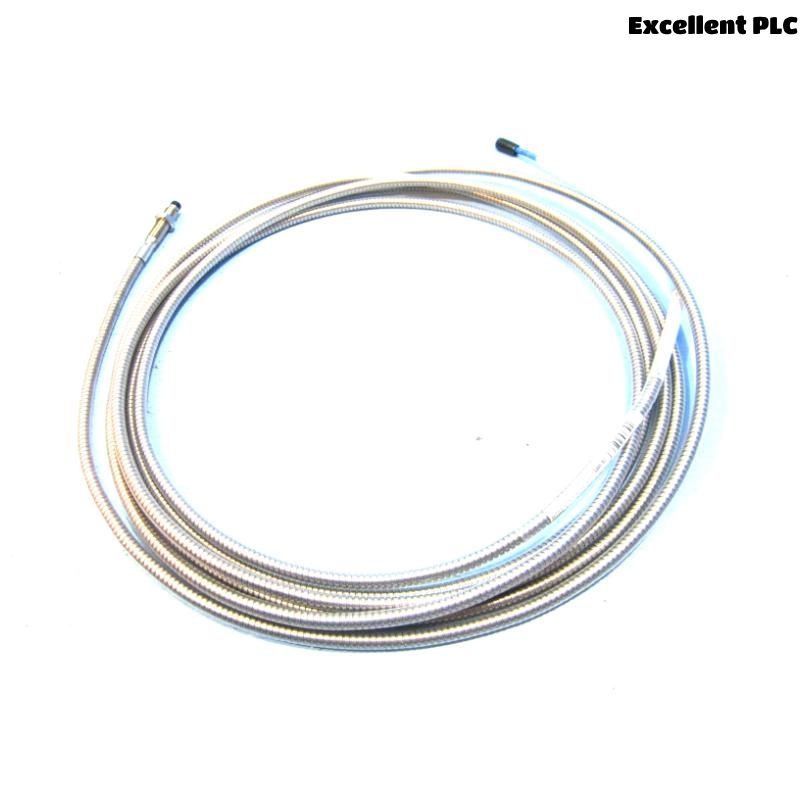

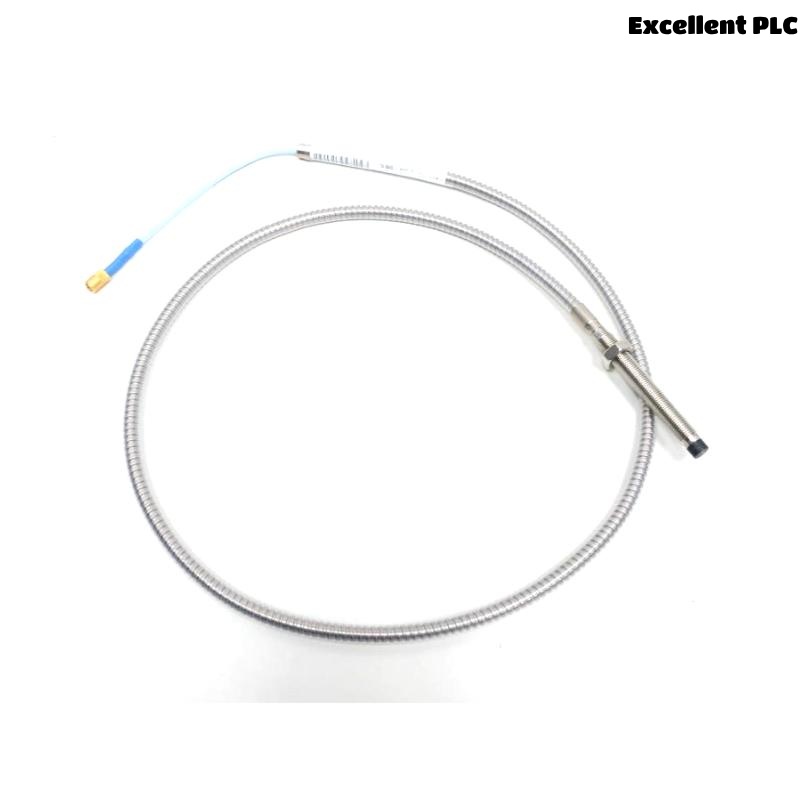

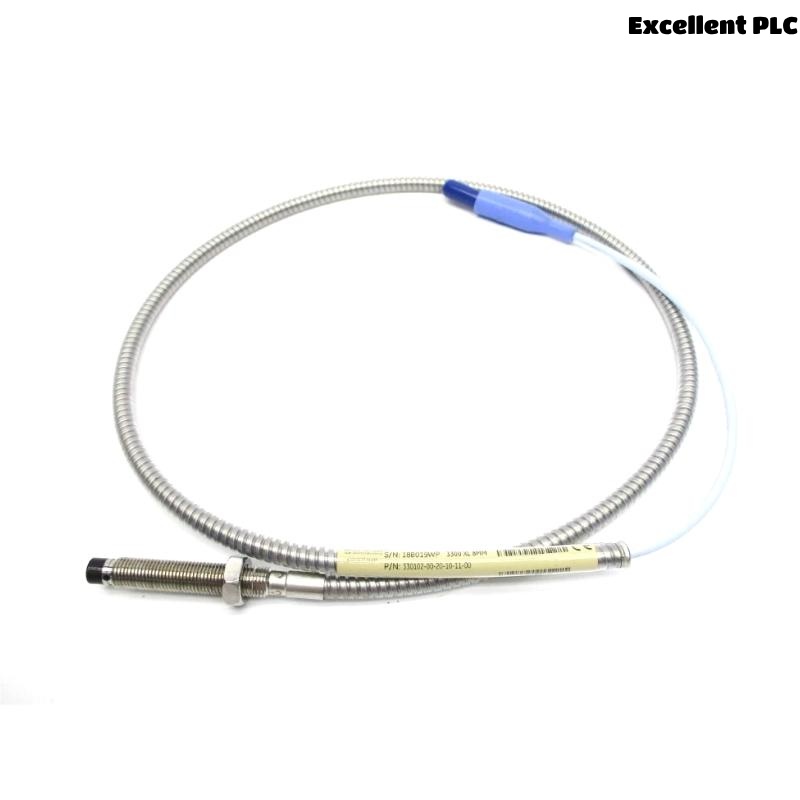

The Bently Nevada 330102-20-96-10-02-05 is a high-precision 3300 XL 8 mm Proximity Probe designed for reliable vibration and position monitoring in industrial rotating machinery. It ensures accurate displacement measurements in demanding environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330102-20-96-10-02-05 |
| Series | 3300 XL 8 mm |
| Sensing Tip Diameter | 8 mm |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Sensing Range | 0 to 2 mm (nominal) |
| Frequency Response | Up to 10 kHz |
| Mounting Thread | 3/8-24 UNF |
| Connector Type | Miniature coaxial |
| Operating Temperature | -35°C to +120°C |
| Storage Temperature | -40°C to +177°C |
Applications
-
Turbine and compressor vibration monitoring
-
Shaft position detection in pumps and motors
-
Critical machinery protection systems
-
Monitoring journal bearings
-
Detecting thermal growth and misalignment
Advantages
-
High accuracy and repeatability
-
Rugged construction for harsh environments
-
Wide temperature tolerance
-
Easy installation with standard mounting
-
Compatible with 3300 XL series systems
FAQ
Q1: What is the sensing diameter of this probe?
A1: The sensing tip diameter is 8 mm.
Q2: What is the total length of this probe?
A2: The total length is 1.0 meter.
Q3: What is the weight of the probe?
A3: The probe weighs 0.323 kg.
Q4: Is it compatible with 3300 XL monitors?
A4: Yes, it is fully compatible with Bently Nevada 3300 XL monitoring systems.
Q5: What is the mounting thread type?
A5: The probe uses a 3/8-24 UNF mounting thread.
Q6: What is the maximum operating temperature?
A6: The maximum operating temperature is +120°C.
Q7: Can it measure shaft vibration and position?
A7: Yes, it is designed for both vibration and position monitoring.
Q8: What is the frequency response?
A8: The probe supports up to 10 kHz frequency response.
Q9: Is it suitable for outdoor use?
A9: Yes, the rugged design makes it suitable for harsh outdoor environments.
Q10: Does it come with a connector?
A10: Yes, it features a miniature coaxial connector.
Recommended Related Models
| Model | Description |
|---|---|
| 330102-00-05-10-02-00 | 8 mm, 0.5 m cable, standard tip |
| 330102-00-15-10-02-00 | 8 mm, 1.5 m cable, standard tip |
| 330104-00-06-10-11-00 | 8 mm, 6 m cable, reverse mount |
| 330104-00-10-10-11-00 | 8 mm, 10 m cable, reverse mount |
| 330180-91-CN | 3300 XL Proximitor Sensor, China ver |
| 330101-00-40-10-02-00 | 8 mm, 4 m cable, standard tip |
