Product Introduction

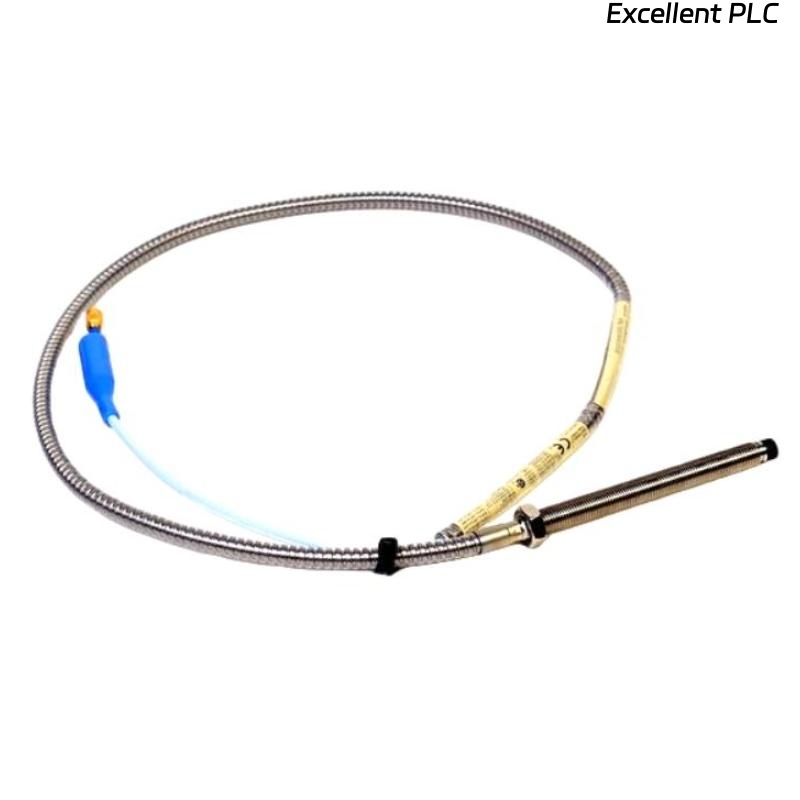

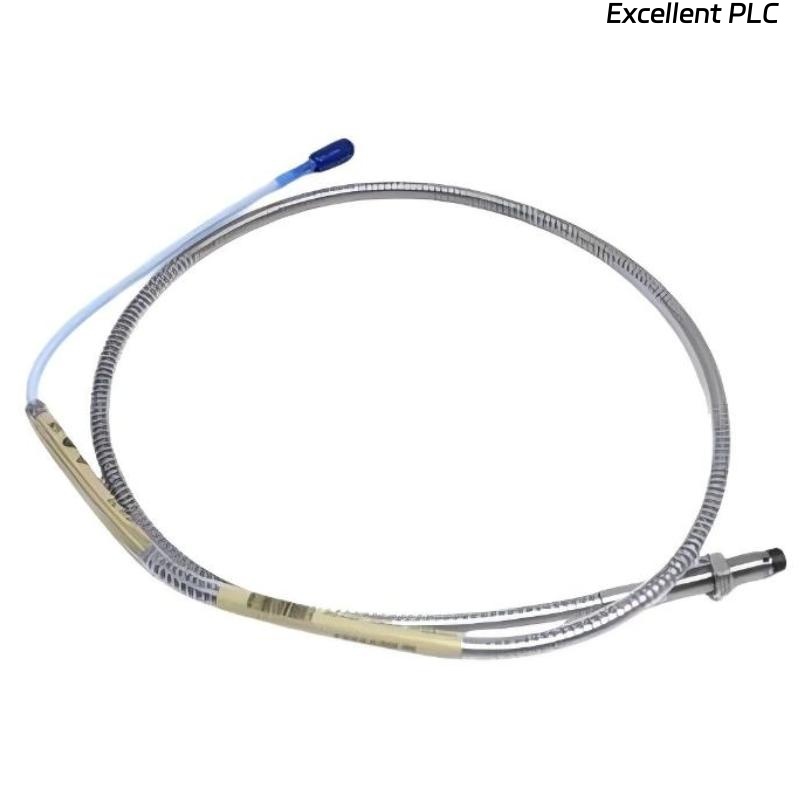

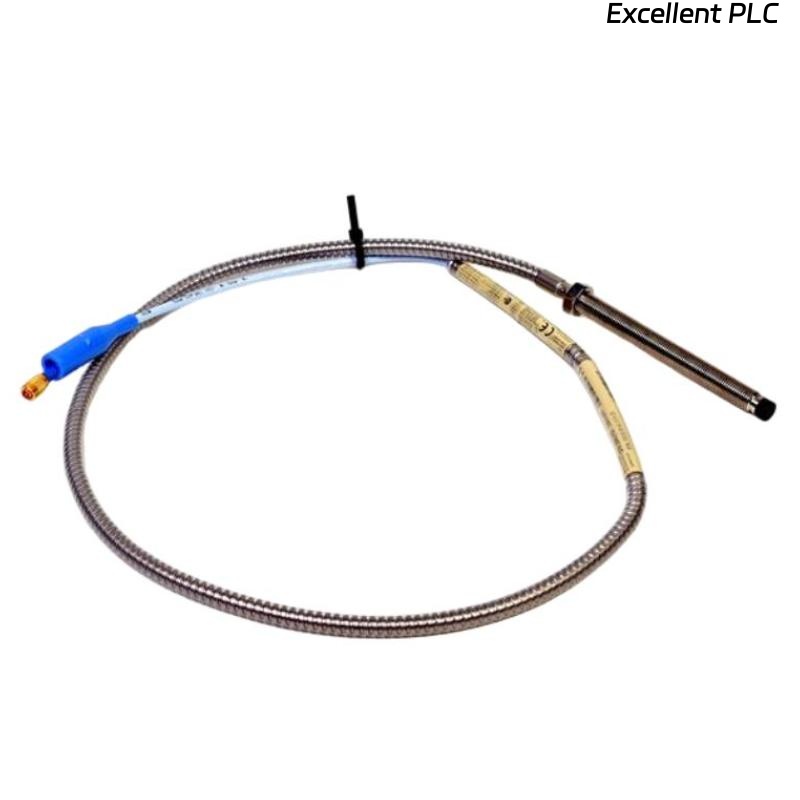

The Bently Nevada 330102-25-40-10-02-05 3300 XL 8 mm Proximity Probe is a compact and high-precision eddy current sensor designed for non-contact measurement of shaft vibration and displacement in rotating machinery. As part of the 3300 XL family, it delivers stable and repeatable performance in continuous industrial operation.
With a total length of 1.0 meter, this probe configuration is particularly suitable for installations where the monitoring system is located close to the measurement point. The shorter cable length reduces signal attenuation and simplifies routing, making it ideal for compact equipment layouts.
The probe operates using eddy current technology, allowing accurate measurement without physical contact with the shaft surface. This eliminates wear and ensures long-term reliability. It is typically used together with extension cables and proximitor sensors to form a complete monitoring loop for turbines, compressors, motors, and pumps.
Product Specifications
| Parameter | Value |
|---|---|
| Product Name | 3300 XL 8 mm Proximity Probe |
| Manufacturer | Bently Nevada |
| Part Number | 330102-25-40-10-02-05 |
| Sensor Type | Eddy Current Proximity Probe |
| Probe Diameter | 8 mm |
| Measurement Principle | Non-contact eddy current |
| Measurement Type | Shaft vibration, displacement, position |
| Total Length | 1.0 meter |
| System Components | Probe + cable + proximitor |
| Output Signal | Analog signal via proximitor |
| Mounting Method | Threaded installation |
| Environmental Resistance | Oil, vibration, industrial conditions |
| Application Field | Rotating machinery monitoring |
| Weight | 0.323 kg |
Applications
● Compact Machinery Systems
Ideal for installations where space is limited and short cable routing is required.
● Motors and Small Turbines
Used to monitor shaft vibration and displacement in smaller rotating equipment.
● Pump and Compressor Units
Detects mechanical faults such as imbalance and misalignment.
● Industrial Automation Equipment
Provides reliable feedback for condition monitoring in automated systems.
● Close-Coupled Monitoring Systems
Suitable where the monitoring module is positioned near the sensor, ensuring signal stability.
Advantages
● Short Cable Efficiency
The 1.0-meter length reduces signal loss and improves measurement accuracy in compact setups.
● High Measurement Stability
Delivers consistent and repeatable results in continuous operation.
● Non-Contact Sensing
Eliminates mechanical wear, ensuring long-term reliability.
● Easy Installation
Simplifies wiring and installation in confined spaces, reducing setup time and complexity.
● Industrial Durability
Resistant to oil, vibration, and environmental factors, ensuring reliable performance.
● System Compatibility
Fully compatible with Bently Nevada 3300 XL systems for seamless integration.
