Product Introduction

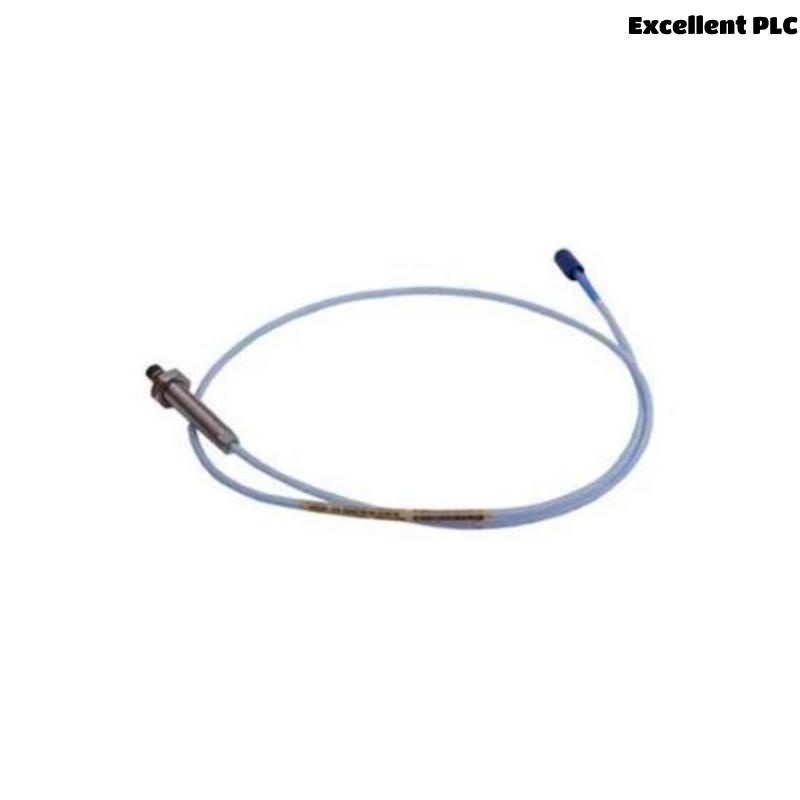

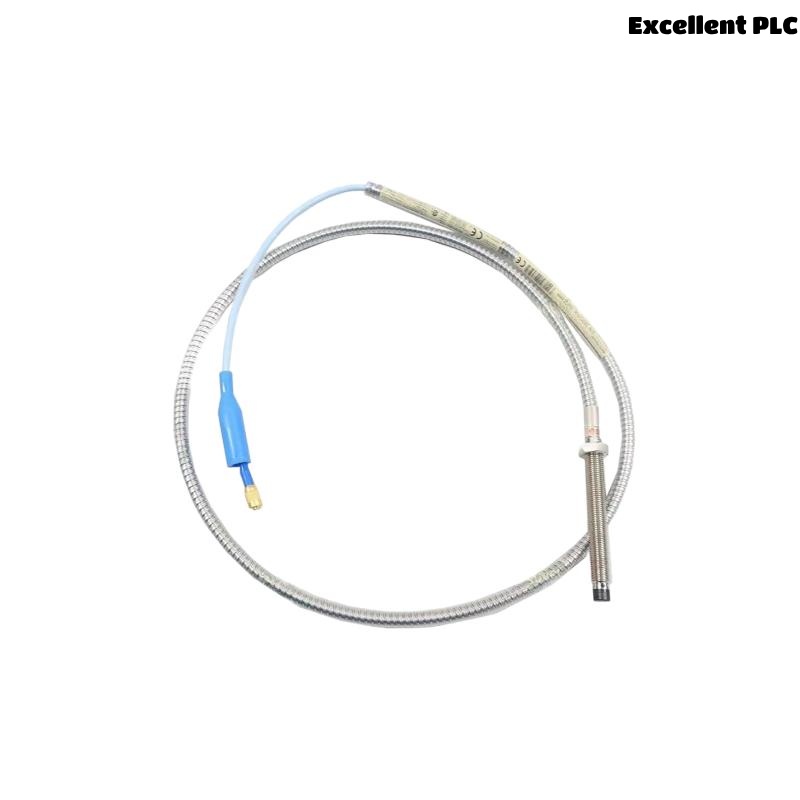

The Bently Nevada 330102-35-62-05-11 is an advanced 8mm proximity probe from the 3300 XL Series. It is designed for precise and reliable vibration and displacement measurements in machinery condition monitoring systems. This probe is widely used in critical applications like turbine monitoring, motor performance tracking, and other high-precision industries that require accurate measurements to prevent downtime and optimize the lifespan of equipment.
Engineered to operate in tough industrial conditions, the 330102-35-62-05-11 probe provides highly accurate measurements of machine displacement and vibration. With a total length of 0.5 meters and a weight of 0.161 kg, this compact probe offers high performance without sacrificing durability or reliability. Its 8mm diameter and high tolerance make it an ideal solution for precise machine health monitoring, detecting issues like misalignment, imbalance, and bearing failures before they result in catastrophic damage.
Product Specifications
| Parameter | Details |
|---|---|
| Model | 330102-35-62-05-11 |
| Series | 3300 XL Series |
| Probe Diameter | 8 mm |
| Total Length | 0.5 meters |
| Weight | 0.161 kg |
| Mount Type | Standard Mount |
| Temperature Range | -40°C to +121°C |
| Frequency Range | 2 Hz to 10 kHz |
| Signal Output | AC or DC |
| Cable Length | 0.5 meters |
| Material | Stainless Steel |
| Environmental Protection | IP65 (dustproof and waterproof) |
Applications
The Bently Nevada 330102-35-62-05-11 3300 XL 8mm Proximity Probe is widely used for continuous monitoring of machinery to detect early signs of faults and wear. Common applications include:
-
Turbine Monitoring: The probe is used in steam, gas, and water turbines to measure axial displacement, detecting signs of misalignment or imbalance that could affect turbine performance.
-
Motor Vibration Monitoring: Installed on electric motors to monitor vibration levels and identify issues such as misalignment or bearing wear.
-
Pump Monitoring: Used in centrifugal pumps, the probe detects imbalance and other issues that can lead to failure or decreased efficiency.
-
Compressor Monitoring: It is crucial in monitoring compressors for signs of malfunction or deterioration in performance due to vibrations or wear.
-
Generator Condition Monitoring: The probe helps monitor generators, ensuring that they operate efficiently and minimizing the risk of failure through early fault detection.
-
Machine Health Monitoring in General: It is used in general condition monitoring of rotating machinery, providing early warnings about potential issues and preventing unplanned downtime.
Product Advantages
-
High Precision: The 3300 XL 8mm proximity probe provides highly accurate displacement and vibration measurements, which are crucial for early fault detection and predictive maintenance.
-
Compact Design: With a total length of 0.5 meters and a weight of 0.161 kg, the probe is lightweight and easy to integrate into existing machinery, ensuring flexibility in installation.
-
Durability: Built with stainless steel, the probe is resistant to wear and corrosion, offering long-lasting durability even in harsh industrial environments.
-
Wide Temperature Range: Operating in environments ranging from -40°C to +121°C, this probe can handle a wide variety of industrial conditions, from extreme cold to high heat.
-
Versatility: Its 8mm diameter makes it suitable for a broad range of applications, including turbines, motors, pumps, and compressors.
-
Improved System Reliability: By detecting mechanical issues like imbalance, misalignment, and bearing wear early, the probe helps avoid equipment failure and reduces unplanned downtime.
-
IP65 Rating: The probe is dustproof and waterproof, ensuring that it performs well in both clean and harsh environments.
Frequently Asked Questions (FAQs)
Q1: What is the frequency range of the Bently Nevada 330102-35-62-05-11 probe?
A1: The probe operates within a frequency range of 2 Hz to 10 kHz, which allows it to detect a wide spectrum of vibration and displacement frequencies in rotating machinery.
Q2: What is the output signal type of the Bently Nevada 330102-35-62-05-11 probe?
A2: The probe outputs an AC or DC signal, depending on the system configuration and measurement requirements.
Q3: What is the total length of this probe?
A3: The total length of the probe is 0.5 meters, making it a compact solution that can be easily integrated into various monitoring systems.
Q4: How much does the Bently Nevada 330102-35-62-05-11 probe weigh?
A4: The probe has a weight of 0.161 kg, which makes it lightweight and easy to handle during installation.
Q5: What is the operating temperature range for this probe?
A5: The probe is designed to operate in environments with temperatures ranging from -40°C to +121°C, making it suitable for a variety of industrial applications.
Q6: Can this probe be used in hazardous environments?
A6: The Bently Nevada 330102-35-62-05-11 probe has an IP65 rating, meaning it is dustproof and waterproof, making it ideal for use in harsh environments where water and dust may be present.
Q7: What types of equipment can this probe be installed on?
A7: The probe is commonly used on turbines, motors, pumps, compressors, and other rotating machinery to monitor vibration and displacement.
Q8: How does the probe help with predictive maintenance?
A8: By continuously measuring vibration and displacement, the probe provides early warning signs of mechanical issues such as imbalance, misalignment, or bearing wear, allowing for timely maintenance and preventing unplanned downtime.
Q9: What material is the Bently Nevada 330102-35-62-05-11 probe made of?
A9: The probe is made of stainless steel, which provides excellent durability and resistance to wear and corrosion in demanding industrial environments.
Q10: Is the probe easy to install?
A10: Yes, the 8mm diameter and standard mount design of the probe make it easy to install and integrate into existing machinery and monitoring systems.
Related Models
| Model | Description | Frequency Range | Total Length (m) | Weight (kg) |
|---|---|---|---|---|
| 330102-35-62-05-12 | 3300 XL 8mm Reverse Mount Probe | 2 Hz to 10 kHz | 0.5 | 0.160 |
| 330102-35-62-05-13 | 3300 XL 8mm Extended Cable Probe | 2 Hz to 10 kHz | 1.0 | 0.180 |
| 330102-35-62-05-14 | 3300 XL 8mm High Sensitivity Probe | 2 Hz to 10 kHz | 0.5 | 0.170 |
| 330102-35-62-05-15 | 3300 XL 5mm Proximity Probe | 2 Hz to 10 kHz | 0.5 | 0.150 |
| 330102-35-62-05-16 | 3300 XL 10mm Proximity Probe | 2 Hz to 10 kHz | 0.5 | 0.190 |
| 330102-35-62-05-17 | 3300 XL 12mm Proximity Probe | 2 Hz to 10 kHz | 0.5 | 0.200 |
