Product Introduction

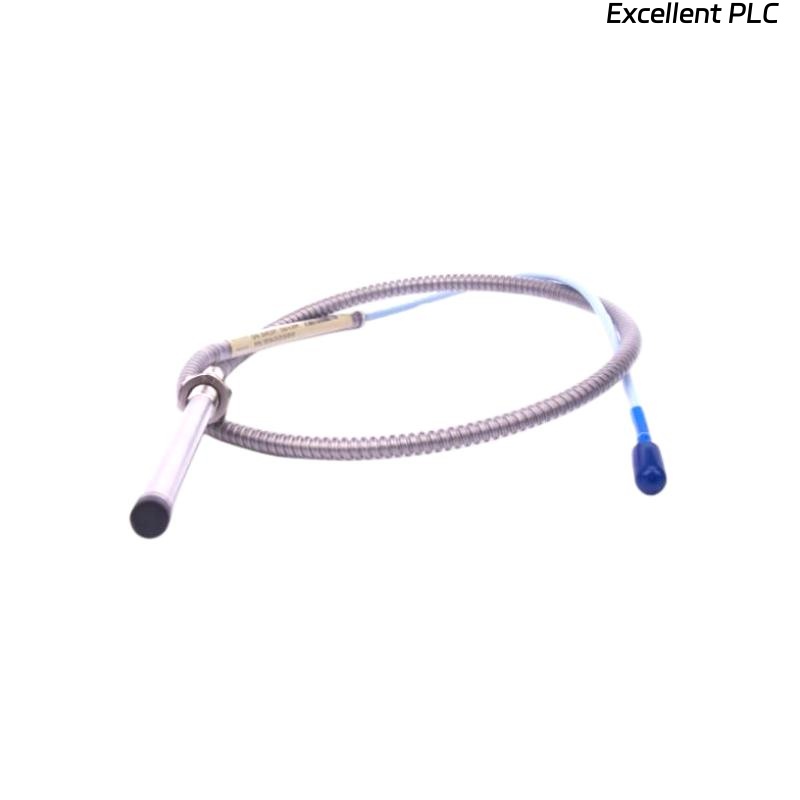

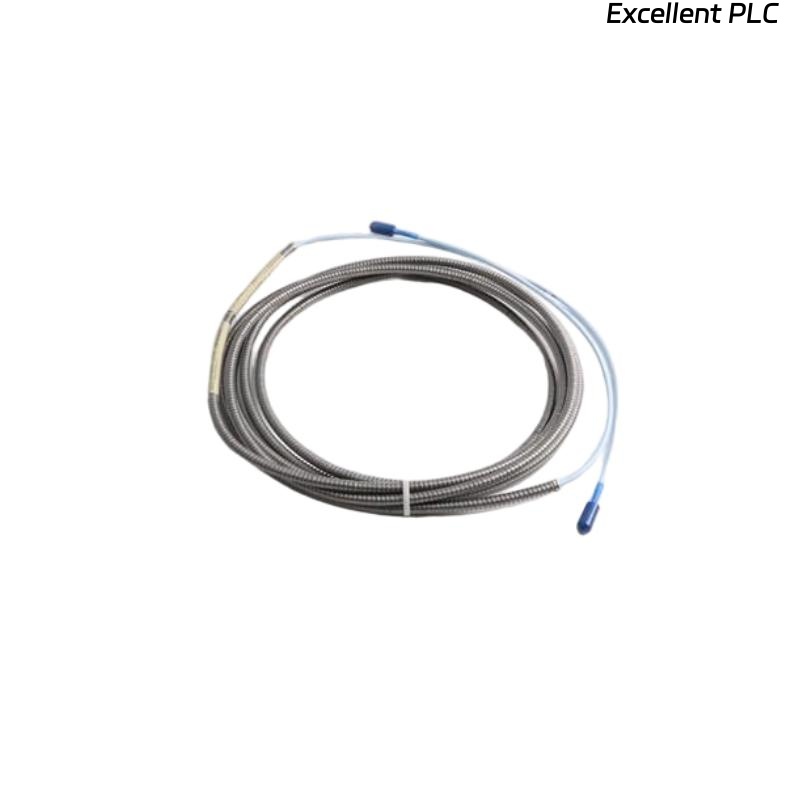

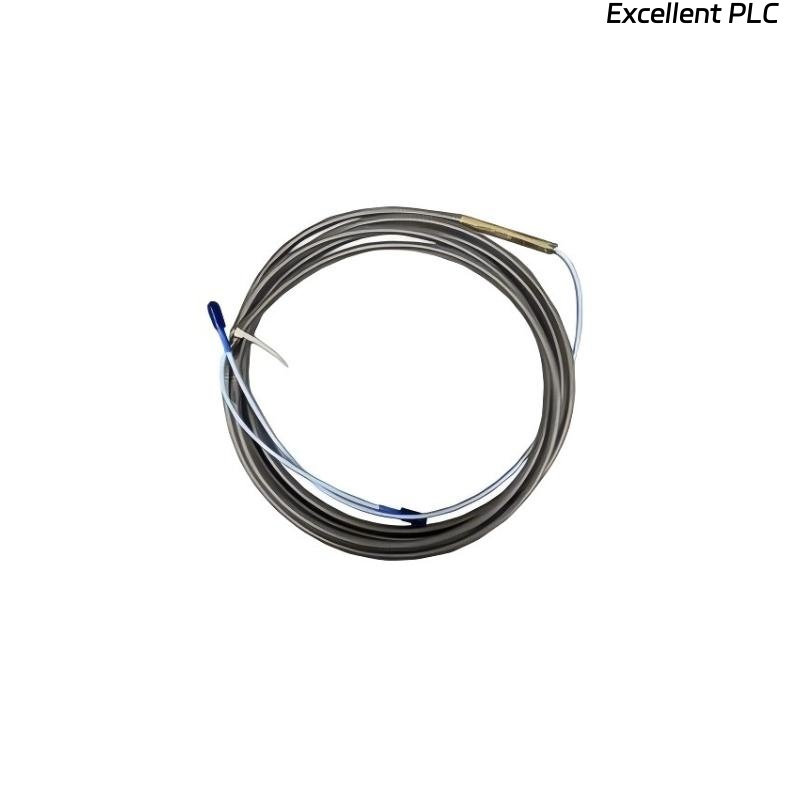

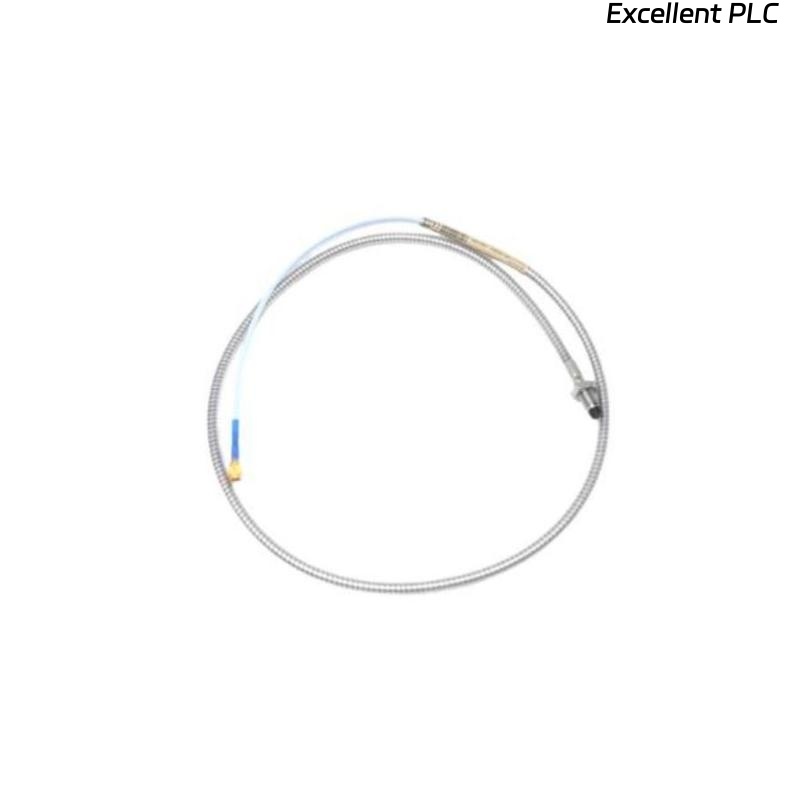

The Bently Nevada 330102-36-80-10-02-05 is an advanced 8 mm proximity probe in the 3300 XL series that is designed for high-accuracy displacement measurement in challenging industrial environments. This proximity probe uses eddy current technology, allowing for non-contact measurement of machinery vibration and displacement. Its robust design makes it ideal for use in demanding applications, where precision and reliability are crucial.
The 3300 XL proximity probe is part of Bently Nevada’s industry-leading condition monitoring system, offering real-time data for predictive maintenance and vibration analysis. It is commonly employed in monitoring large rotating machinery such as turbines, compressors, pumps, and generators in industries like power generation, oil & gas, and heavy manufacturing.
By providing early detection of mechanical issues such as misalignment, imbalance, and wear, the 3300 XL probe helps companies reduce downtime, extend the lifespan of their machinery, and avoid costly repairs.
Parameters
| Parameter | Description |
|---|---|
| Probe Type | 3300 XL Proximity Probe |
| Sensing Diameter | 8 mm |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Output Type | Linear DC voltage (proportional to displacement) |
| Sensing Technology | Eddy Current |
| Temperature Range | -40°C to +120°C |
| Connector Type | Standard industrial connectors |
| Mounting Type | Standard configuration |
| Max Displacement | Up to 3 mm |
Applications
The 3300 XL 8 mm proximity probe is used in a variety of industrial applications:
-
Vibration and Displacement Monitoring: The probe is used to measure the displacement and vibration of rotating machinery. It helps monitor the health of critical machinery, including turbines, compressors, and pumps, ensuring early detection of issues like misalignment or imbalance.
-
Predictive Maintenance: With high precision, the probe supports predictive maintenance by detecting issues before they cause failure. This leads to proactive maintenance scheduling, reducing downtime and improving operational efficiency.
-
Power Generation: The 3300 XL proximity probe plays a critical role in power plants, providing real-time monitoring of generators and turbines. It helps operators detect problems early, preventing failures and optimizing the performance of these machines.
-
Oil & Gas Industry: The probe is used in the oil and gas industry for monitoring critical assets such as pumps, compressors, and motors. It is built to withstand the harsh conditions typically found in these environments.
-
Heavy Manufacturing: In heavy manufacturing, the 3300 XL proximity probe ensures continuous monitoring of large machinery, improving reliability and reducing the risk of sudden failures in manufacturing plants.
Advantages
-
High Precision: The 3300 XL 8 mm proximity probe provides accurate, real-time measurements of displacement in high-speed and high-vibration machinery, ensuring the detection of subtle changes that could indicate potential problems.
-
Eddy Current Sensing Technology: Using eddy current technology, the probe measures displacement without physical contact with the machinery. This non-contact feature makes it highly reliable in environments with contamination such as dust, oil, or moisture.
-
Durability and Reliability: The 3300 XL proximity probe is built for use in demanding environments, with a wide temperature range of -40°C to +120°C and a rugged design to handle high vibration and harsh conditions.
-
Real-Time Data for Predictive Maintenance: The continuous data provided by the probe helps operators monitor the health of machinery in real time, enabling predictive maintenance and reducing unplanned downtime.
-
Seamless Integration: The 3300 XL proximity probe integrates smoothly with Bently Nevada’s 3300 XL system, allowing users to expand their condition monitoring capabilities without compatibility issues.
-
Cost-Effective: By enabling early fault detection, the 3300 XL probe helps reduce repair costs and extend the lifespan of machinery, providing significant cost savings over time.
FAQ
1. How does the 3300 XL proximity probe measure displacement?
The 3300 XL proximity probe uses eddy current technology to measure displacement in rotating machinery. The sensor generates an electromagnetic field that interacts with the target material, and the probe’s response is proportional to the displacement.
2. Can the 3300 XL probe be used in high-temperature environments?
Yes, the 3300 XL 8 mm proximity probe can operate in temperatures ranging from -40°C to +120°C, making it suitable for use in both extreme cold and hot conditions.
3. How is the 3300 XL proximity probe installed?
The 3300 XL proximity probe is installed using standard mounting configurations, typically on the machine’s casing or housing. It is designed to be easy to integrate into existing monitoring systems.
4. What kind of output does the 3300 XL probe provide?
The probe provides a linear DC voltage output that is proportional to the displacement of the machinery being monitored. This output can be directly used for analysis or fed into a monitoring system.
5. Can the probe be used for both vibration and displacement monitoring?
Yes, the 3300 XL proximity probe can measure both displacement and vibration, making it versatile for various applications in condition monitoring and predictive maintenance.
6. Is the 3300 XL 8 mm probe resistant to contaminants?
Yes, the eddy current technology used by the 3300 XL probe allows for non-contact measurements, which makes it resistant to contamination from dust, dirt, oil, and moisture.
7. What kind of machines can the 3300 XL probe monitor?
The 3300 XL 8 mm proximity probe is suitable for monitoring a wide range of rotating machinery, including turbines, pumps, compressors, generators, and motors.
8. How does the probe help with predictive maintenance?
The 3300 XL probe continuously measures displacement and vibration, enabling operators to detect early signs of misalignment, imbalance, and wear, thus preventing failures and allowing for proactive maintenance.
9. Can the 3300 XL probe be used for real-time monitoring?
Yes, the 3300 XL proximity probe provides real-time displacement and vibration data, allowing for continuous monitoring of machinery health and instant alerts in case of abnormalities.
10. How does the 3300 XL probe improve machine reliability?
By providing continuous, accurate data on machinery displacement and vibration, the 3300 XL probe helps detect potential issues early, enabling timely maintenance and reducing the risk of unexpected breakdowns.
