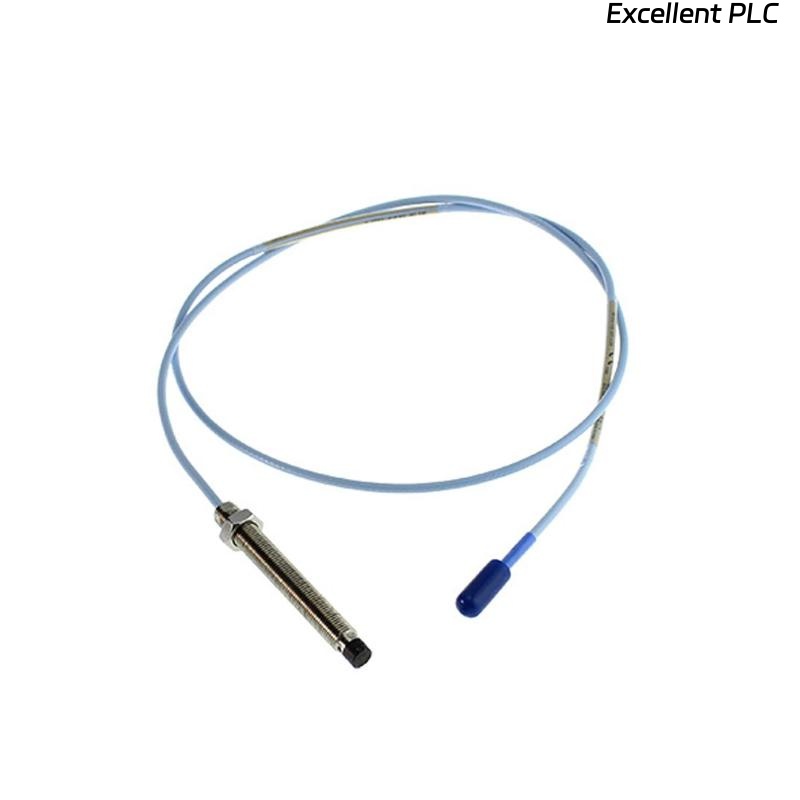

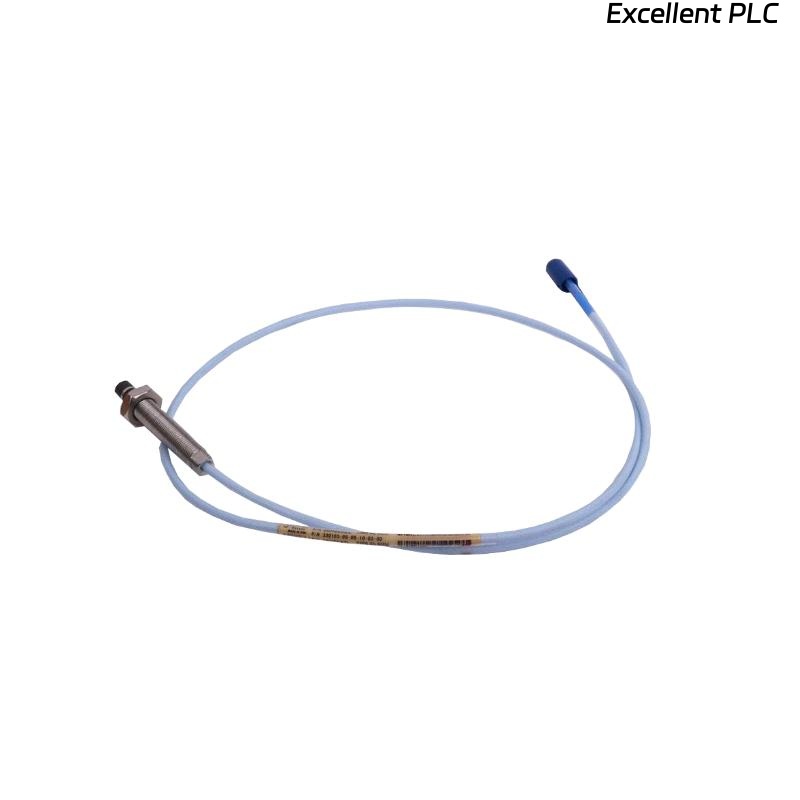

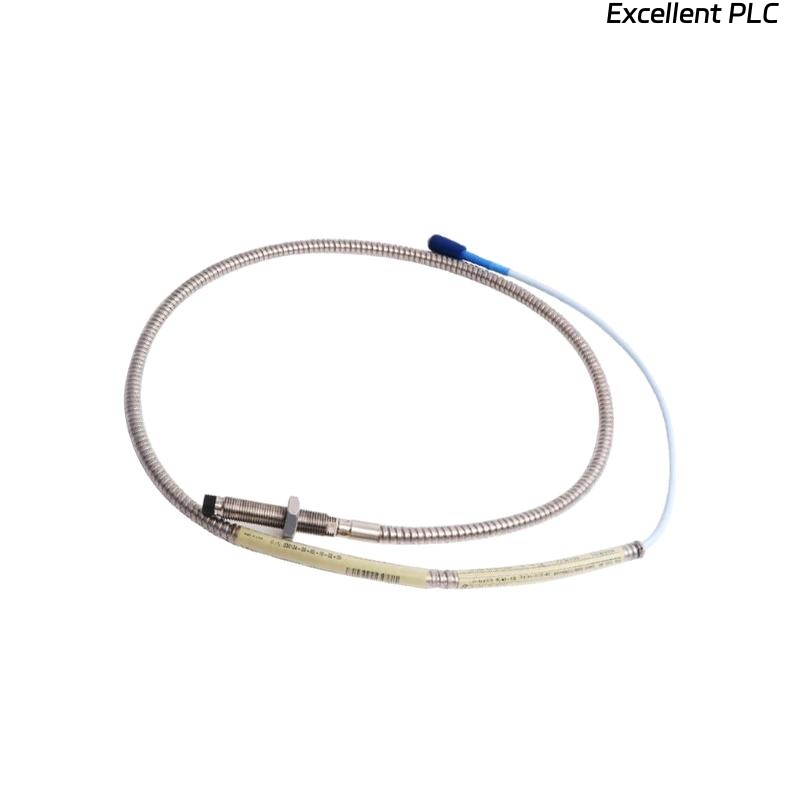

Bently Nevada 330102-4-12-90-02-05 3300 XL 8mm Proximity Probes

Product Introduction

The Bently Nevada 330102-4-12-90-02-05 3300 XL 8mm Proximity Probe is a precision-engineered component designed to provide highly reliable, accurate, and stable non-contact vibration and displacement measurements in rotating machinery. As part of the widely recognized 3300 XL series, this probe combines robust mechanical construction with advanced sensing technology, ensuring dependable performance even in the harshest industrial conditions.

This proximity probe is specifically engineered to measure shaft vibration, axial position, and rotor dynamics in real-time, making it a critical component for machinery protection and condition monitoring systems. With its long cable length of 9 meters, the probe offers flexibility for complex installation environments and is optimized for use with Bently Nevada’s proximity transducer systems.

The probe’s rugged design ensures resistance to temperature fluctuations, electromagnetic interference, and mechanical stress, making it suitable for demanding environments such as turbines, compressors, pumps, and gearboxes.

Product Parameters

Product Applications

The 330102-4-12-90-02-05 Proximity Probe is used across multiple industries where rotating equipment health monitoring is critical. Applications include:

• Steam and Gas Turbines: Shaft vibration and thrust position monitoring to prevent catastrophic failure.

• Compressors: Continuous monitoring of dynamic shaft behavior for optimized operation.

• Pumps: Ensuring stable shaft alignment and preventing bearing or seal damage.

• Gearboxes: Detecting gear mesh anomalies through vibration patterns.

• Motors and Generators: Monitoring shaft displacement and rotor dynamics for reliability.

• Critical Process Machinery: Providing real-time input to protection systems to initiate shutdown during unsafe conditions.

Product Advantages

• High Accuracy: Maintains reliable sensitivity across the full range, ensuring precise vibration measurements.

• Long Cable Flexibility: With 9 meters of total length, it allows installation in challenging layouts without signal loss.

• Robust Design: Built to withstand harsh conditions such as temperature extremes, oil contamination, and EMI.

• Wide Compatibility: Fully integrates with Bently Nevada’s Proximitor® sensors and monitoring systems.

• API 670 Compliance: Meets global standards for machinery protection, enhancing trust and reliability.

• Stable Performance: Provides long-term measurement stability, minimizing drift and recalibration needs.

• Condition Monitoring Integration: Works seamlessly within predictive maintenance strategies to reduce downtime.

FAQ

1. How does the probe maintain signal accuracy over a 9-meter cable length?
   The probe uses high-quality coaxial shielding and impedance-matched cabling to minimize signal attenuation and interference, ensuring accurate transmission even at extended lengths.

2. What is the primary sensitivity calibration of this probe?
   It is calibrated to 7.87 V/mm (200 mV/mil) with tight tolerances, enabling repeatable measurements under various operating conditions.

3. How does the probe handle electromagnetic interference in industrial environments?
   The probe features advanced shielding in both the probe and cable assembly, which significantly reduces susceptibility to EMI and ensures clean signals.

4. Is the probe compatible with all 3300 XL Proximitor® sensors?
   Yes, it is fully compatible with standard Bently Nevada Proximitor® sensors, ensuring consistent performance across system installations.

5. What kind of frequency response does this model support?
   It provides a wide frequency response range of 0 to 10 kHz within ±3 dB, which is suitable for most machinery vibration applications.

6. How is linearity maintained across the measurement range?
   The probe is designed with strict tolerance control, ensuring linearity within ±1% of full-scale output, reducing measurement distortion.

7. What environmental protection features are included in this probe?
   It is built with rugged materials, high-temperature resistance, and sealing features that protect against oil, dust, and vibration-induced wear.

8. Can this probe detect both static and dynamic shaft movements?
   Yes, it measures both static displacement (such as shaft position) and dynamic vibration, enabling comprehensive monitoring.

9. How is calibration ensured in field installations?
   Each probe is factory-calibrated and traceable to standards, requiring no further adjustment when paired with the correct Proximitor® sensor.

10. What is the compliance significance with API 670?
    Compliance ensures that the probe meets industry-standard requirements for machinery protection systems, enhancing system reliability and safety.
