Product Introduction

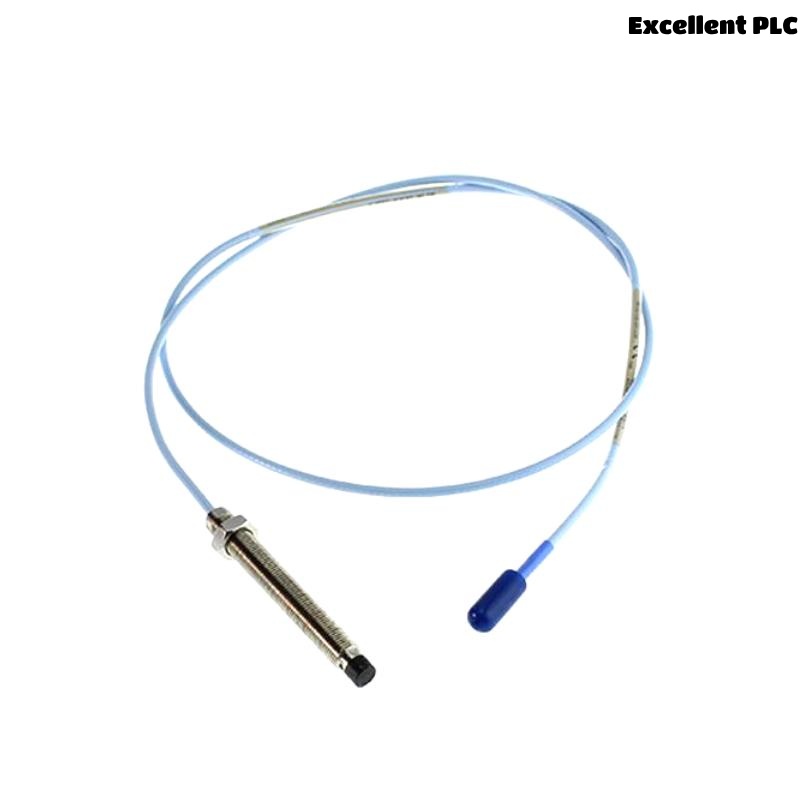

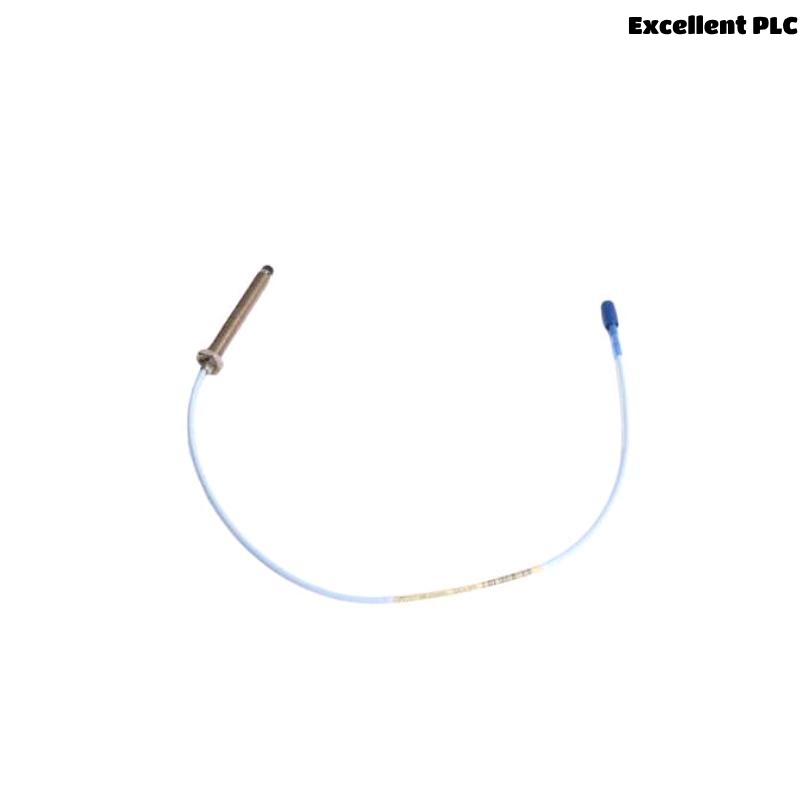

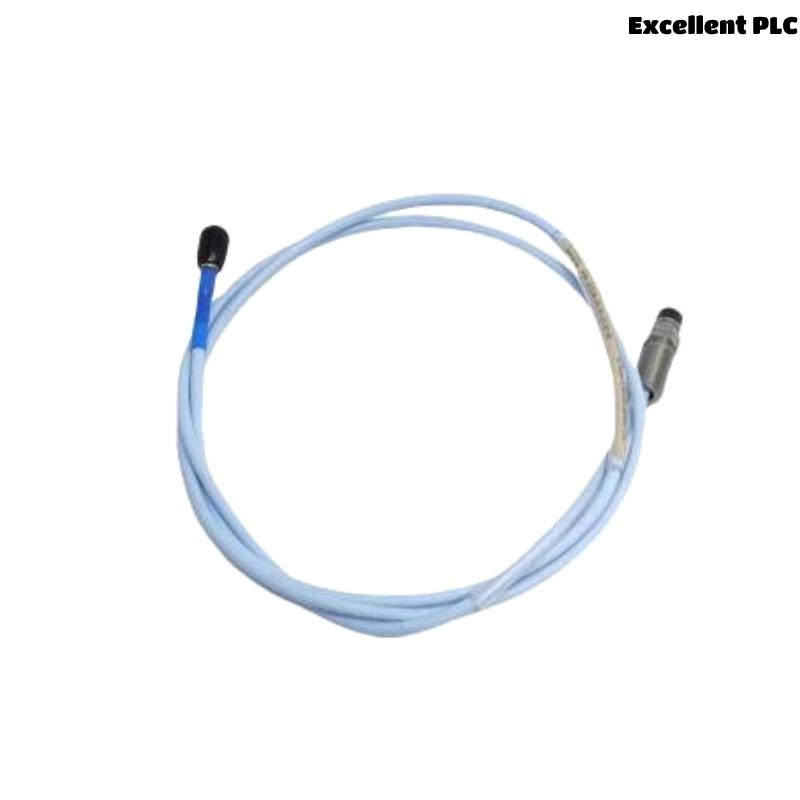

The Bently Nevada 330103-00-03-50-02-05 is a proximity probe component of the 3300 XL 8mm Proximity Transducer System, which is one of the most trusted and widely used systems in machinery condition monitoring and protection. Manufactured by Bently Nevada, a General Electric (GE) brand known for precision and reliability, this probe is designed to monitor the relative position and vibration of rotating shafts and critical machine components.
The 3300 XL 8mm system meets or exceeds the requirements of American Petroleum Institute (API) 670 and delivers outstanding performance even in harsh environments. The 330103-00-03-50-02-05 version is equipped with a 3-meter probe cable, 5-meter extension cable, and a Proximitor sensor, making it ideal for standard industrial setups.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 330103-00-03-50-02-05 |
| Series | 3300 XL 8mm Proximity Probe System |
| Manufacturer | Bently Nevada (GE Measurement & Control) |
| System Components | Proximity Probe, Extension Cable, Proximitor Sensor |
| Probe Tip Diameter | 8 mm (standard XL configuration) |
| Probe Case Material | AISI 304 Stainless Steel |
| Total Length | 5.0 meters |
| Connector Type | Miniature coaxial connector with connector protector |
| Operating Temperature Range | -35°C to +177°C |
| Frequency Response | 0 to 10 kHz (within ±0.5 dB) |
| Linear Range | 2 mm (80 mils) |
| System Power Supply | -24 VDC nominal |
| Weight | 1.615 kg |
| Ingress Protection (IP) Rating | IP65 (when properly installed with connector protectors) |
| Compliance | Meets API 670 requirements |
Applications
The 330103-00-03-50-02-05 proximity probe is commonly used in various industrial and process sectors for:
-
Monitoring shaft vibration in turbines, compressors, and pumps.
-
Measuring shaft axial position and radial displacement.
-
Providing real-time input to condition monitoring and protection systems.
-
Integration into Bently Nevada’s System 1 condition monitoring platform.
-
High-speed rotating machinery including steam turbines, gas turbines, and motors.
-
Refineries, petrochemical plants, and power generation stations.
-
OEM and retrofit systems in rotating equipment skids.
Product Advantages
-
High Accuracy and Reliability: Ensures precise measurements under dynamic conditions, even at high speeds and harsh environments.
-
Durable Construction: The rugged stainless-steel housing resists mechanical and environmental damage.
-
Standardized Components: Fully compatible with other 3300 XL 8mm system parts, ensuring flexibility and easier maintenance.
-
API 670 Compliance: Meets industry standards for safety and reliability in machinery protection.
-
Easy Installation and Maintenance: Modular components with flexible cabling options.
-
Extended Cable Options: Allows sensor placement in remote or difficult-to-access locations.
-
Wide Temperature Range: Operates reliably in extreme industrial environments.
-
Proven Field Performance: Thousands of units deployed globally in critical rotating machinery monitoring.
Frequently Asked Questions (FAQ)
-
What does the model number 330103-00-03-50-02-05 indicate?
It specifies the configuration of the probe, including cable lengths, connector options, and physical design per Bently Nevada’s part numbering system. -
Is this proximity probe compatible with other Bently Nevada systems?
Yes, it’s compatible with the 3300 XL Proximitor and related systems, especially the 3300 and 3500 monitoring series. -
Can this probe be used in hazardous environments?
With appropriate installation and certifications (ATEX, CSA), it can be deployed in hazardous locations. -
What is the typical lifespan of this proximity probe?
When installed properly, it can last for many years—up to 10+ years depending on environmental factors. -
Does it support condition monitoring or just protection?
It supports both. It provides real-time data for condition monitoring and integrates with machinery protection systems. -
How is the probe calibrated?
Calibration is typically performed using a static calibrator or within the monitoring system configuration, referencing known standards. -
Is the 330103-00-03-50-02-05 field-repairable?
No, probes are sealed units. If damaged, they must be replaced. -
What kind of shaft materials are compatible for accurate reading?
Standard targets are made from AISI 4140 steel or similar ferromagnetic materials. -
How is the extension cable terminated?
It uses coaxial connectors with a protective boot and keying to prevent misconnection. -
Can this probe system operate underwater?
It is not rated for submerged use but is resistant to industrial moisture and splashing when properly sealed.
Related Models from the Same Series
| Model | Description | Cable Length | Tip Size | System Length |
|---|---|---|---|---|
| 330103-00-05-10-02-00 | Standard 8mm probe with 5m cable, 1m extension | 5m | 8mm | 6m |
| 330103-00-12-10-02-00 | Extended version for large machinery | 12m | 8mm | 13m |
| 330103-00-08-05-02-00 | Medium length probe, shielded connector | 8m | 8mm | 9m |
| 330104-00-05-10-02-05 | Reverse mount probe for axial measurement | 5m | 8mm | 6m |
| 330106-05-30-10-02-00 | Heavy-duty armored version | 5m | 8mm | 35m |
| 330103-00-03-10-02-00 | Same series, shorter cable version | 3m | 8mm | 4m |
