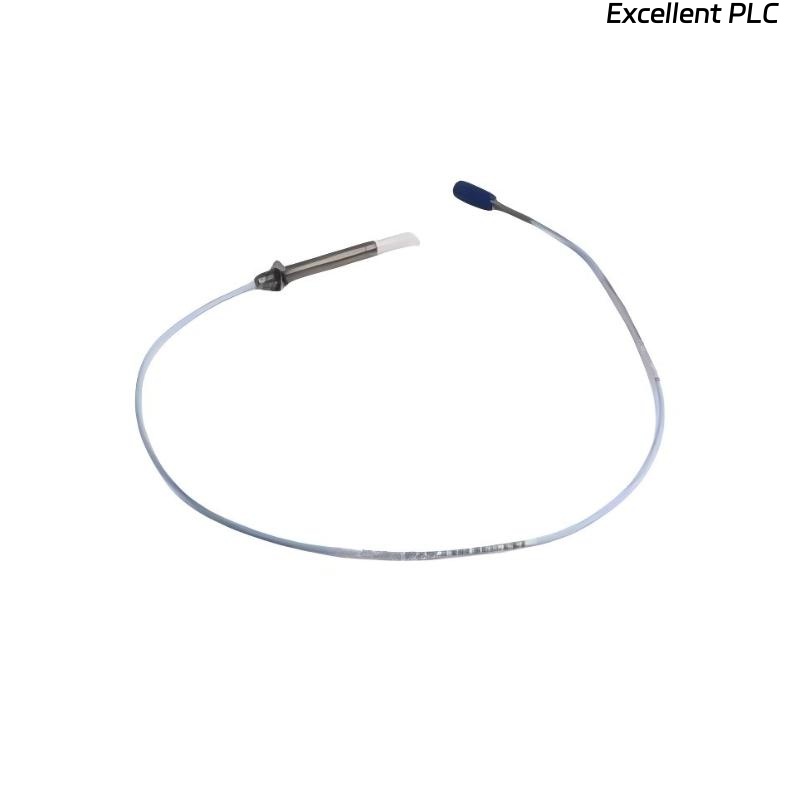

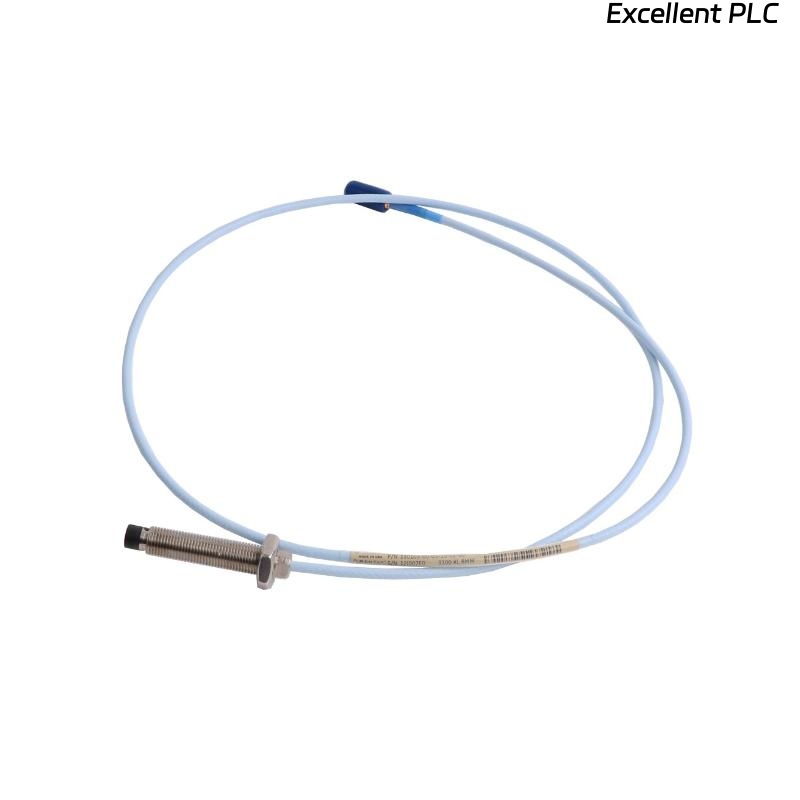

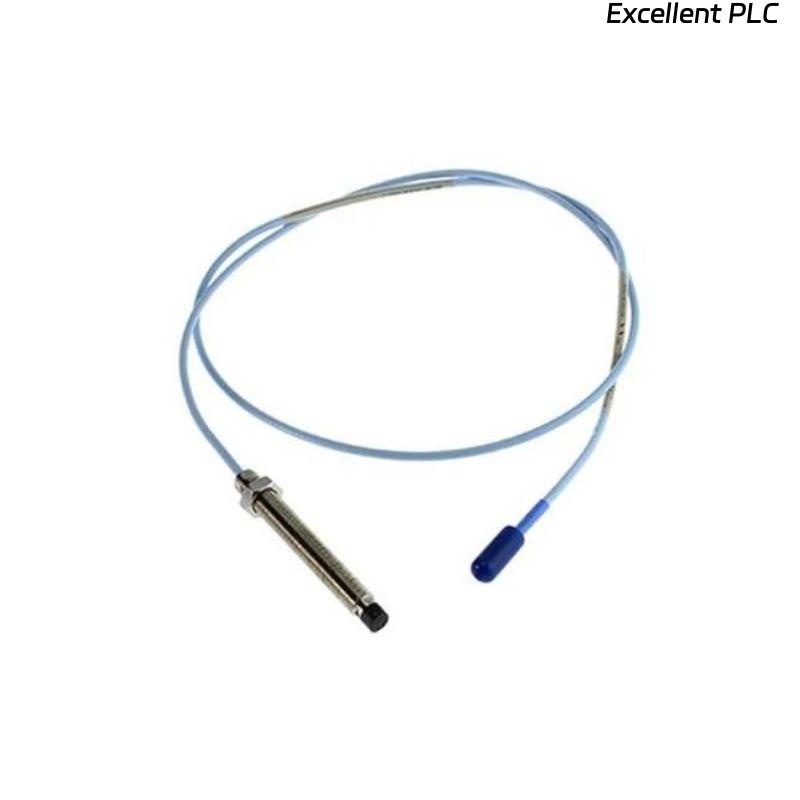

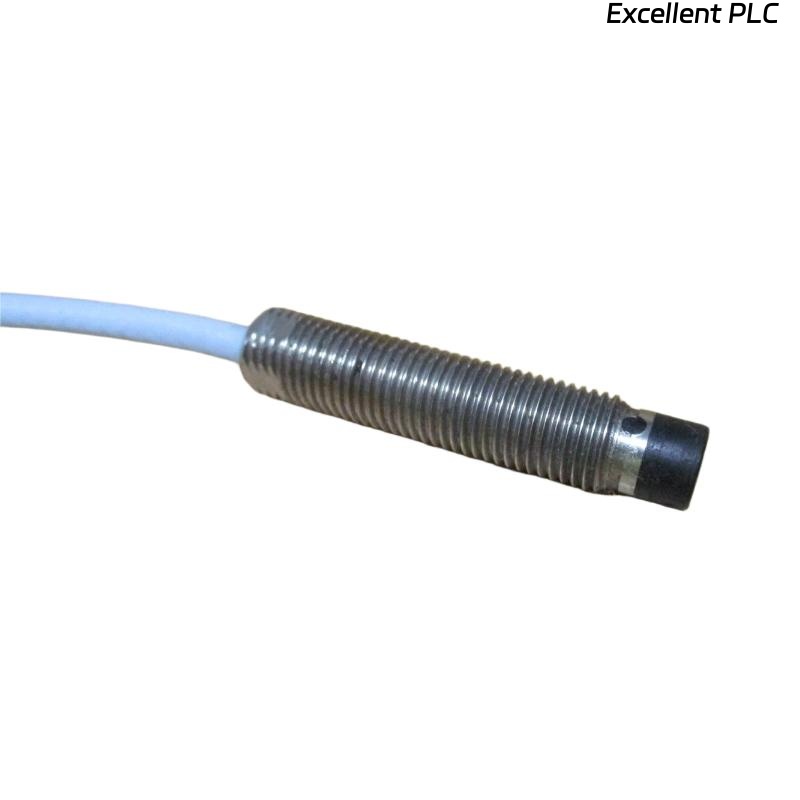

Bently Nevada 330103-00-03-50-11-00 3300 XL 8 mm Proximity Probe

Product Introduction

The Bently Nevada 330103-00-03-50-11-00 is an 8 mm proximity probe from the 3300 XL series, designed for non-contact measurement of shaft vibration and displacement in industrial machinery. This model features a 5-meter cable and is equipped with a miniature coaxial ClickLoc™ connector, facilitating easy installation and reliable signal transmission. The probe is constructed with a polyphenylene sulfide (PPS) tip and stainless steel housing, ensuring durability and resistance to harsh industrial environments.

---

Technical Specifications

---

Applications

• Vibration Monitoring: Continuous monitoring of shaft vibrations to detect early signs of mechanical issues.

• Position Measurement: Accurate measurement of shaft displacement for alignment and balancing purposes.

• Keyphasor® Pulse Generation: Provides timing signals for control systems to synchronize operations.

• Harsh Environment Suitability: Designed to operate reliably in high-temperature, humid, and contaminated industrial settings.

---

Product Advantages

• High Accuracy: Delivers precise non-contact measurements of shaft position and vibration.

• Durability: Constructed with materials resistant to wear and environmental factors, ensuring long-term reliability.

• Easy Integration: Compatible with Bently Nevada 3300 XL monitoring systems, facilitating seamless integration.

• Standard Compliance: Meets the requirements of API 670 4th Edition, ensuring industry-standard performance.

• Flexible Installation: The 5-meter cable length allows for versatile installation options in various machine configurations.

---

FAQ

Q1: How do I adjust the probe gap?
A1: The recommended gap between the probe tip and the shaft is maintained using standard gap gauges to ensure accurate spacing.

Q2: What materials can the probe be calibrated to?
A2: The standard calibration is to AISI 4140 steel. Calibration to other materials can be performed if required.

Q3: Can the probe be used for overspeed protection applications?
A3: Yes, the 3300 XL system is suitable for tachometer and overspeed protection applications.

Q4: Is the probe compatible with non-XL 3300 series components?
A4: Yes, the 3300 XL 8 mm components are electrically and physically interchangeable with non-XL 3300 series components.

Q5: What is the recommended mounting orientation?
A5: The probe should be mounted perpendicular to the shaft to ensure accurate measurements.

Q6: How do I verify the probe’s functionality?
A6: Use the Keyphasor® pulse output and vibration signal to verify the probe’s operation.

Q7: Can the probe operate in humid environments?
A7: Yes, the probe is designed for humid conditions; however, it should not be exposed to direct water immersion.

Q8: What is the maximum cable length supported?
A8: Cable lengths up to 9 meters are supported, depending on application requirements.

Q9: How do I prevent signal interference during installation?
A9: Ensure proper grounding and shielding of the cable, and avoid routing the cable near high-voltage lines or sources of electromagnetic interference.

Q10: Is recalibration required when replacing the probe?
A10: No, the 3300 XL probes are interchangeable without the need for recalibration.

---
