Product Overview

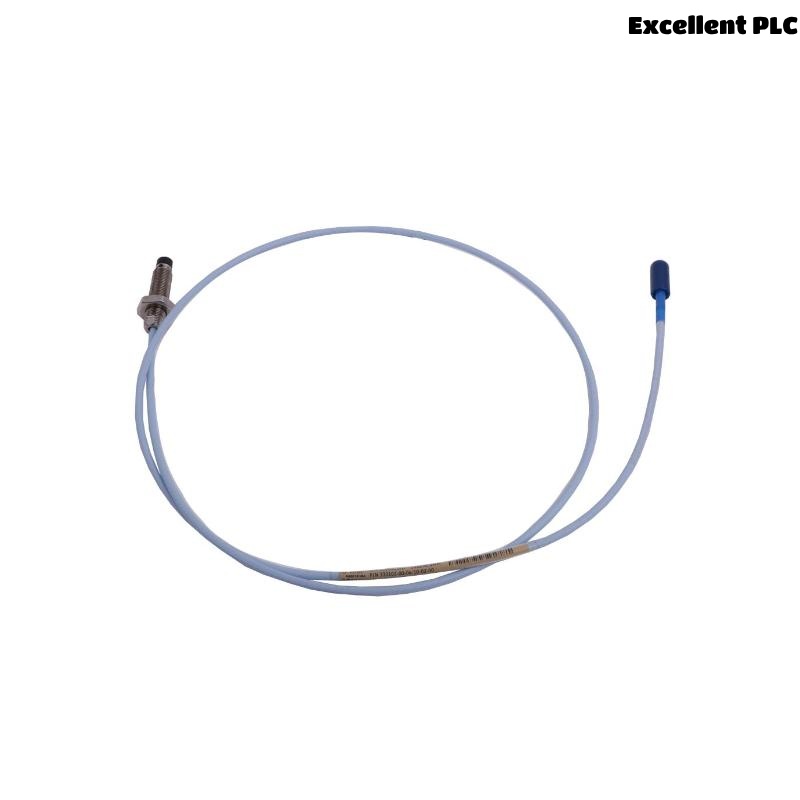

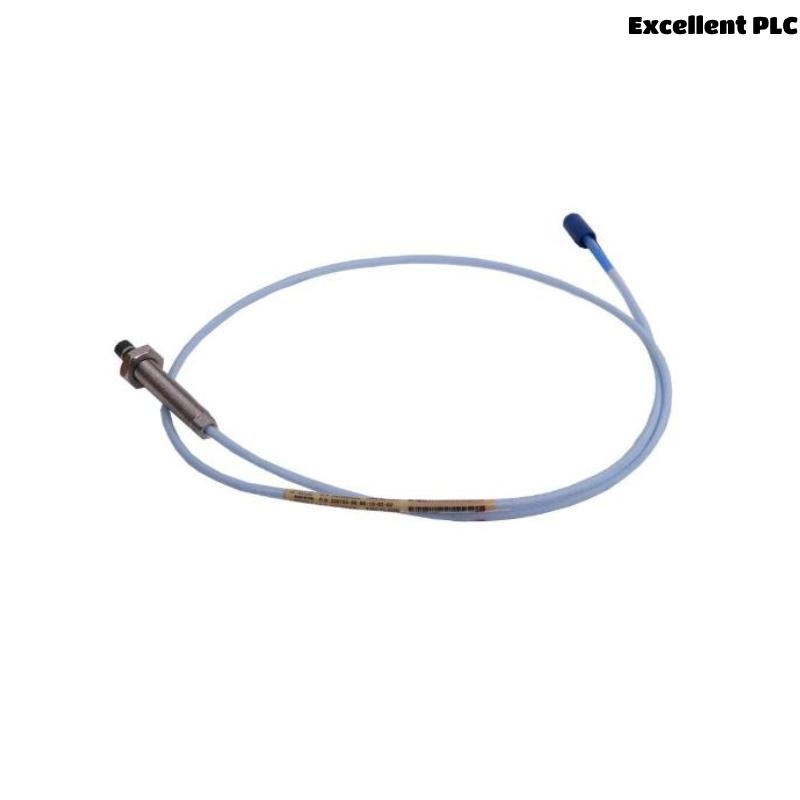

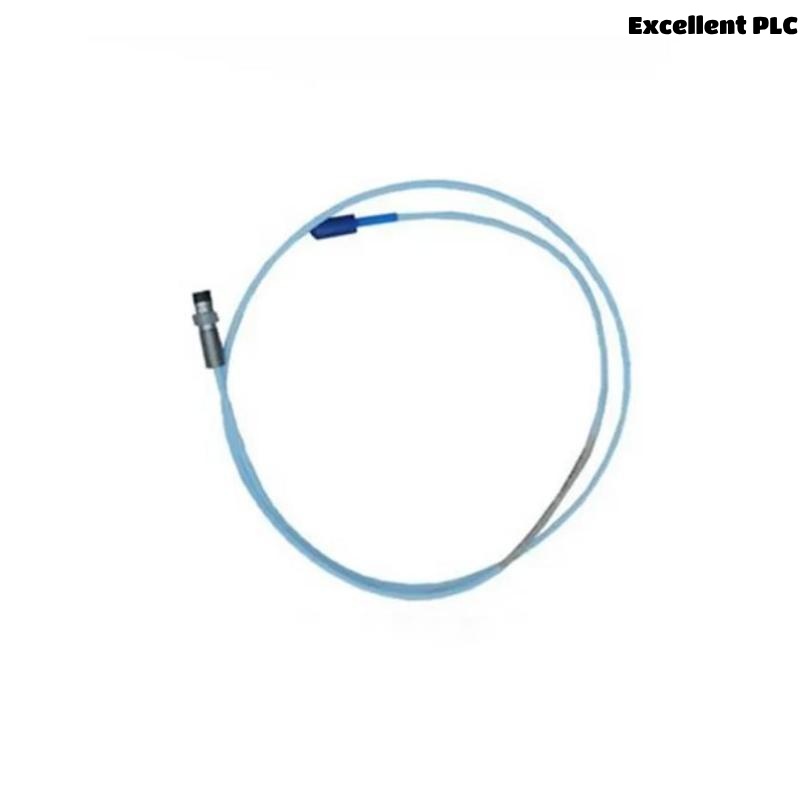

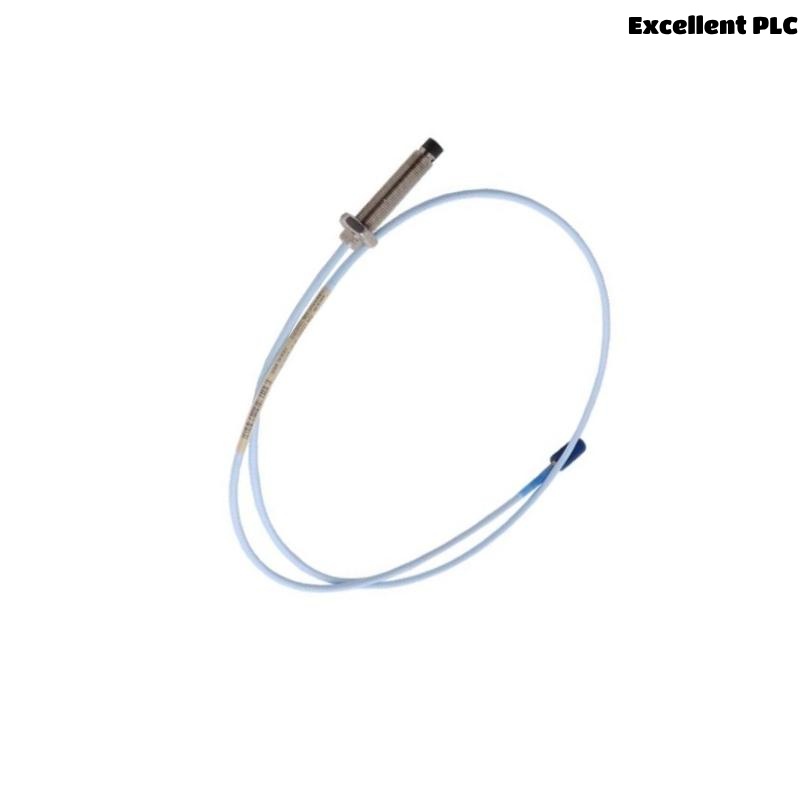

The Bently Nevada 330103-00-04-05-02-05 is a precision-engineered 8 mm Proximity Probe from the trusted 3300 XL series, designed for continuous machinery condition monitoring. This probe measures shaft displacement and vibration signals critical for early fault detection in rotating equipment, thus enabling predictive maintenance and enhancing operational reliability.
Featuring a rugged stainless steel housing and shielded coaxial cable, the probe withstands harsh environments such as high temperature, mechanical shock, and corrosive atmospheres. It integrates seamlessly with Bently Nevada’s 3300 XL monitoring systems, ensuring accurate and reliable performance in industrial applications.
Key Features
-
8 mm diameter probe tip optimized for accurate proximity sensing
-
Compatible with Bently Nevada 3300 XL monitoring systems
-
Eddy current sensing technology with high sensitivity and wide frequency response
-
Durable stainless steel construction with ruggedized cable assembly
-
Rated for operation in extreme temperature and harsh industrial environments
-
Resistant to mechanical shock and vibration (100 g shock tolerance)
-
Provides real-time continuous monitoring of shaft position and vibration
-
Industry-standard connectors and flexible mounting options
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 330103-00-04-05-02-05 |
| Product Line | 3300 XL |
| Probe Diameter | 8 mm |
| Sensing Method | Eddy current proximity sensing |
| Measurement Range | 0 to 127 mils (0 to 3.2 mm) typical |
| Frequency Response | DC to 20 kHz |
| Operating Temperature | -40°C to +121°C |
| Cable Length | Standard and custom lengths available |
| Connector Type | MIL-C-5015 or equivalent industrial connector |
| Cable Type | Shielded coaxial cable |
| Probe Material | Stainless steel probe tip with ruggedized cable |
| Vibration Resistance | Up to 30 g (10–2000 Hz) |
| Shock Resistance | 100 g, 11 ms half sine pulse |
| Weight | 0.161 kg |
| Dimensions | Total Length: 0.5 meter |
| Mounting Options | Threaded or welded mounting |
Industry Applications
The Bently Nevada 3300 XL 8 mm Proximity Probe is widely used in:
-
Power Generation – turbine shaft and generator vibration monitoring
-
Oil & Gas – compressors, pumps, and rotating equipment monitoring
-
Mining & Metals – critical rotating machinery vibration sensing
-
Chemical Processing – reactor and agitator shaft monitoring
-
Pulp & Paper – machinery vibration and shaft position monitoring
-
Marine and Offshore – propulsion shaft and auxiliary machinery condition monitoring
Product Advantages
-
Provides high accuracy and reliability in shaft displacement measurements
-
Rugged construction for long-lasting performance under extreme conditions
-
Enables early fault detection for predictive maintenance and reduced downtime
-
Compatible with the Bently Nevada 3300 XL series monitoring platform
-
Designed for continuous, real-time condition monitoring
-
Simple installation with standard connectors and mounting options
-
Resistant to mechanical shock and vibration for harsh industrial environments
Frequently Asked Questions (FAQ)
1. What type of output signal does this probe provide?
It outputs an analog voltage proportional to shaft proximity.
2. Is the probe compatible with all Bently Nevada monitors?
It is designed specifically for the 3300 XL series monitoring systems.
3. What cable lengths are available?
Standard and custom cable lengths are offered.
4. What is the maximum operating temperature?
The probe is rated up to 121°C (250°F).
5. How is the probe mounted?
Supports both threaded and welded mounting options.
6. Is the probe designed for harsh environments?
Yes, it features stainless steel construction and ruggedized cables.
7. Can the probe measure shaft speed?
Yes, indirectly through signal frequency analysis.
8. What is the diameter of the probe tip?
The diameter is 8 mm.
9. How resistant is the probe to shock and vibration?
It withstands up to 30 g vibration and 100 g shock.
10. What is the typical lifespan of the probe?
Designed to provide many years of reliable operation in industrial settings.
