Product Overview

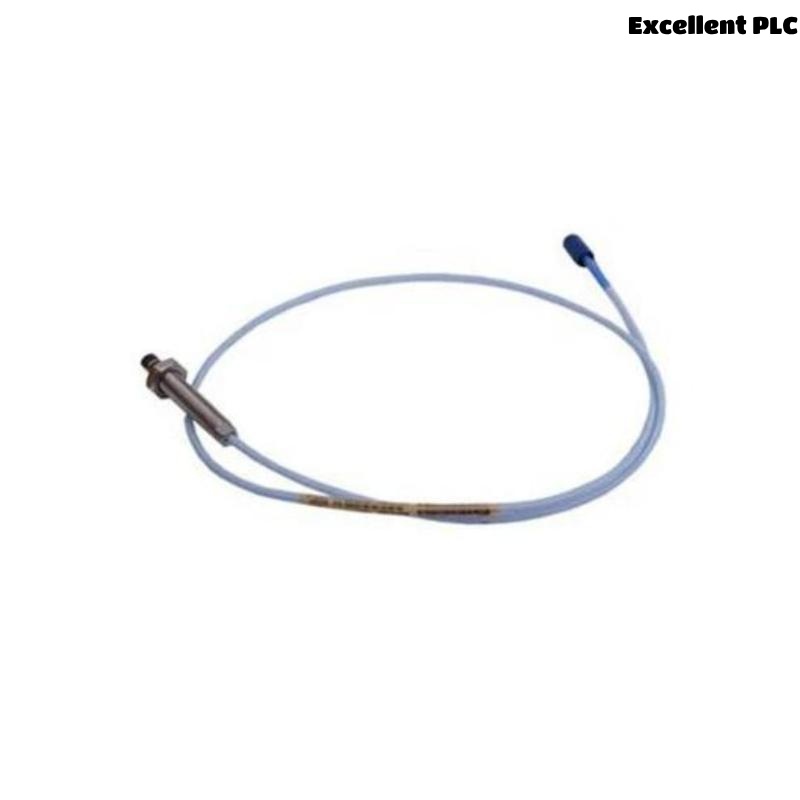

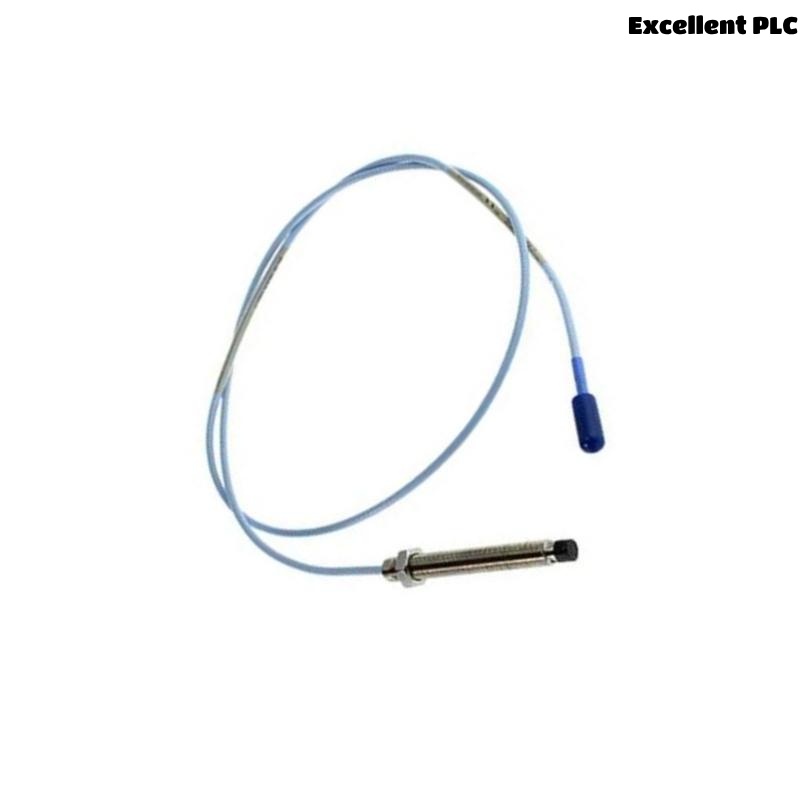

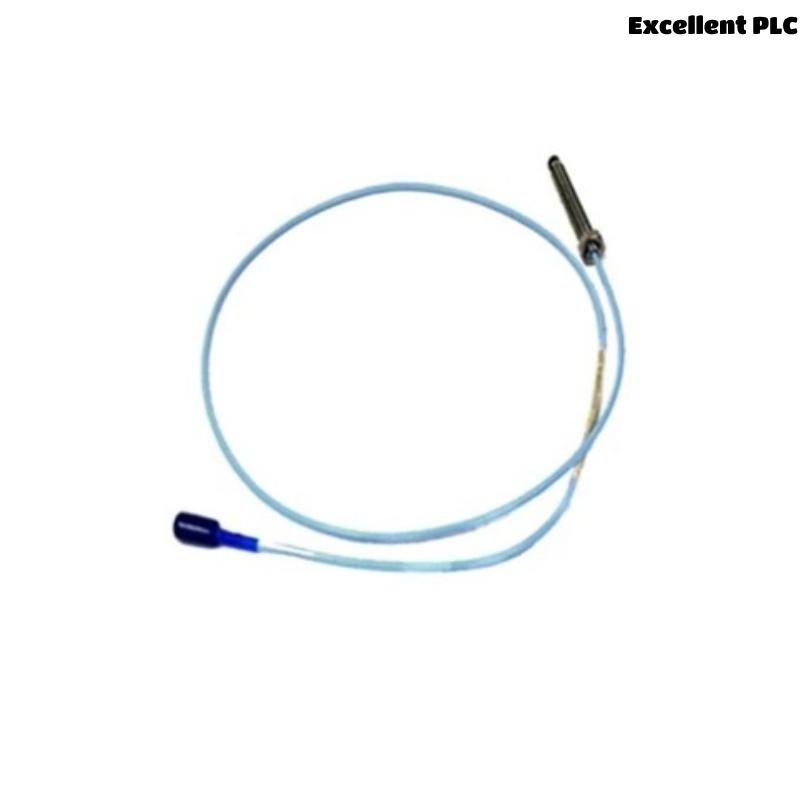

The Bently Nevada 330103-00-04-05-02-CN is a robust and precise 8 mm Proximity Probe from the well-established 3300 XL series designed for condition monitoring of rotating machinery. This probe provides accurate shaft position and vibration data, enabling early detection of mechanical issues and minimizing unexpected downtime.
Constructed with a durable stainless steel probe tip and rugged coaxial cable, it withstands harsh industrial conditions including wide temperature ranges, mechanical shocks, and exposure to contaminants. Designed to integrate seamlessly with the Bently Nevada 3300 XL monitoring system, it ensures reliable and continuous machine health monitoring.
Key Features
-
8 mm diameter probe tip optimized for accurate proximity sensing
-
Compatible with Bently Nevada 3300 XL series monitoring systems
-
Eddy current sensing technology providing precise displacement and vibration measurement
-
Rugged stainless steel construction and shielded coaxial cable
-
Operating temperature range suitable for extreme industrial environments
-
High resistance to mechanical shock and vibration
-
Continuous, real-time condition monitoring capability
-
Industry-standard connectors and flexible mounting options
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 330103-00-04-05-02-CN |
| Product Line | 3300 XL |
| Probe Diameter | 8 mm |
| Sensing Method | Eddy current proximity sensing |
| Measurement Range | 0 to 127 mils (0 to 3.2 mm) typical |
| Frequency Response | DC to 20 kHz |
| Operating Temperature | -40°C to +121°C |
| Cable Length | Standard and custom lengths available |
| Connector Type | MIL-C-5015 or equivalent industrial connector |
| Cable Type | Shielded coaxial cable |
| Probe Material | Stainless steel probe tip with ruggedized cable |
| Vibration Resistance | Up to 30 g (10–2000 Hz) |
| Shock Resistance | 100 g, 11 ms half sine pulse |
| Weight | 0.161 kg |
| Dimensions | Total Length: 0.5 meter |
| Mounting Options | Threaded or welded mounting |
Industry Applications
This probe is widely employed for monitoring critical rotating equipment in industries such as:
-
Power Generation – Turbine shaft and generator vibration monitoring
-
Oil & Gas – Compressors, pumps, and rotating equipment monitoring
-
Metals & Mining – Vibration monitoring of heavy machinery
-
Chemical Processing – Reactor and agitator shaft condition monitoring
-
Pulp & Paper – Rotating machinery vibration and shaft position sensing
-
Marine and Offshore – Propulsion shaft and auxiliary machinery condition monitoring
Product Advantages
-
Ensures high accuracy and reliability for shaft displacement and vibration measurements
-
Robust construction designed for extreme industrial environments
-
Facilitates early fault detection, helping reduce downtime and maintenance costs
-
Fully compatible with the Bently Nevada 3300 XL series condition monitoring platform
-
Supports continuous, real-time monitoring of critical machinery parameters
-
Easy installation with standard connectors and mounting options
-
Designed to withstand mechanical shock and vibration in harsh environments
Frequently Asked Questions (FAQ)
1. What kind of output signal does the probe produce?
The probe outputs an analog voltage proportional to shaft proximity.
2. Is this probe compatible with all Bently Nevada monitoring systems?
It is specifically designed for the 3300 XL series monitoring systems.
3. What cable lengths are available?
Both standard and custom cable lengths can be supplied.
4. What is the maximum operating temperature?
The probe operates reliably up to 121°C (250°F).
5. How is the probe mounted?
Threaded or welded mounting options are available.
6. Is the probe suitable for harsh industrial environments?
Yes, it features stainless steel construction and ruggedized cable assemblies for durability.
7. Can it indirectly measure shaft speed?
Yes, through frequency analysis of the vibration signal.
8. What is the probe’s diameter?
The diameter is 8 mm.
9. How resistant is it to shock and vibration?
It withstands up to 30 g vibration and 100 g shock.
10. What is the expected service life?
Designed for years of reliable performance in industrial conditions.
Related Bently Nevada 3300 XL Proximity Probes
| Model Number | Description |
|---|---|
| 330103-00-03-10-01-00 | 8 mm Proximity Probe standard version |
| 330103-00-05-05-01-05 | 8 mm Proximity Probe high temperature |
| 330103-00-05-10-02-05 | 8 mm Proximity Probe extended range |
| 330103-00-10-10-01-00 | 8 mm Proximity Probe ruggedized version |
| 330103-00-12-05-01-05 | 8 mm Proximity Probe stainless steel |
| 330103-00-16-10-02-05 | 8 mm Proximity Probe with special cable |
