Product Overview

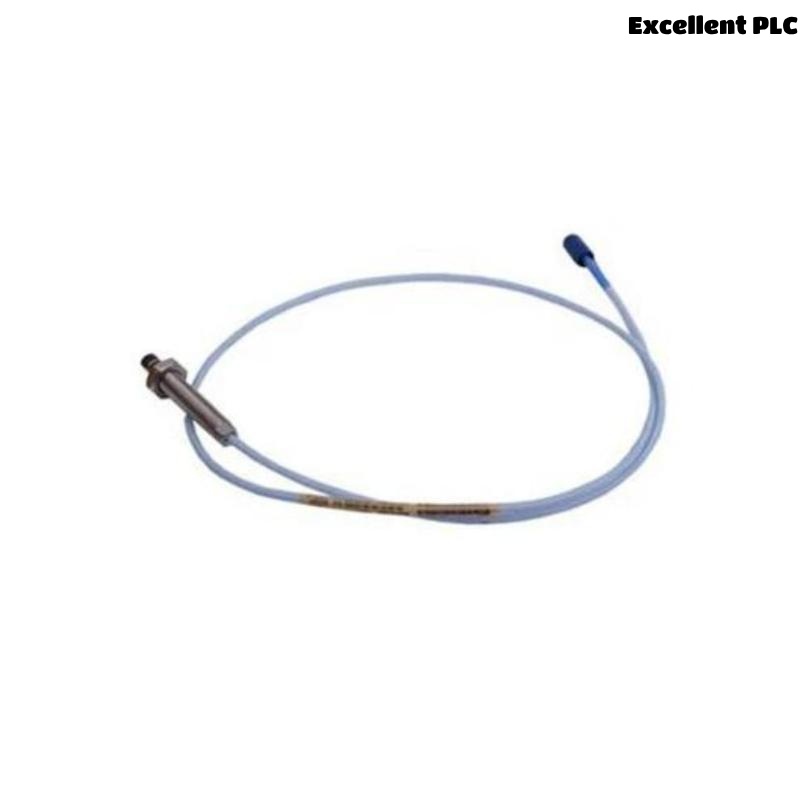

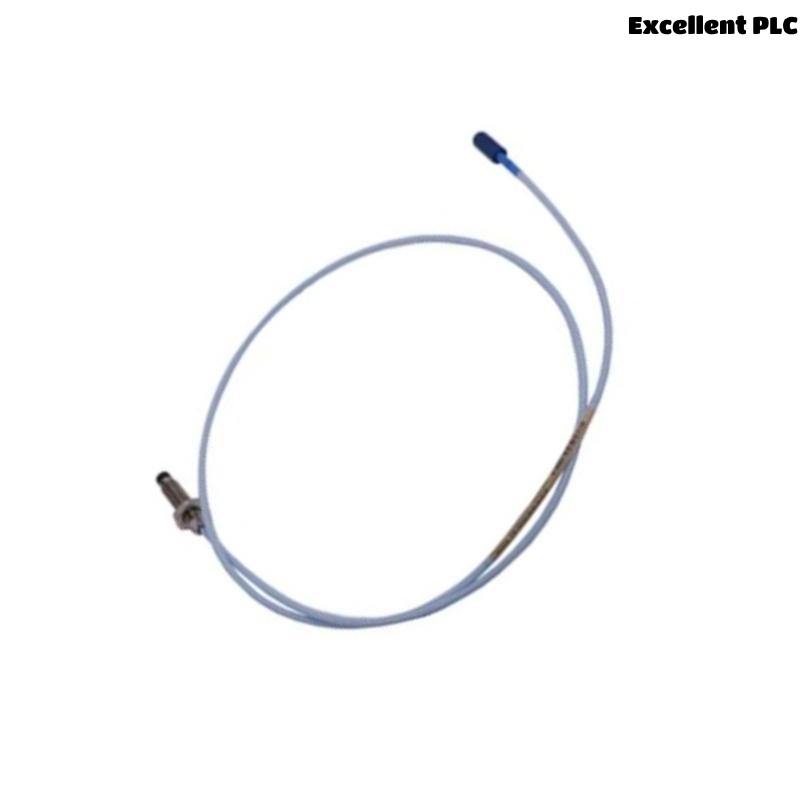

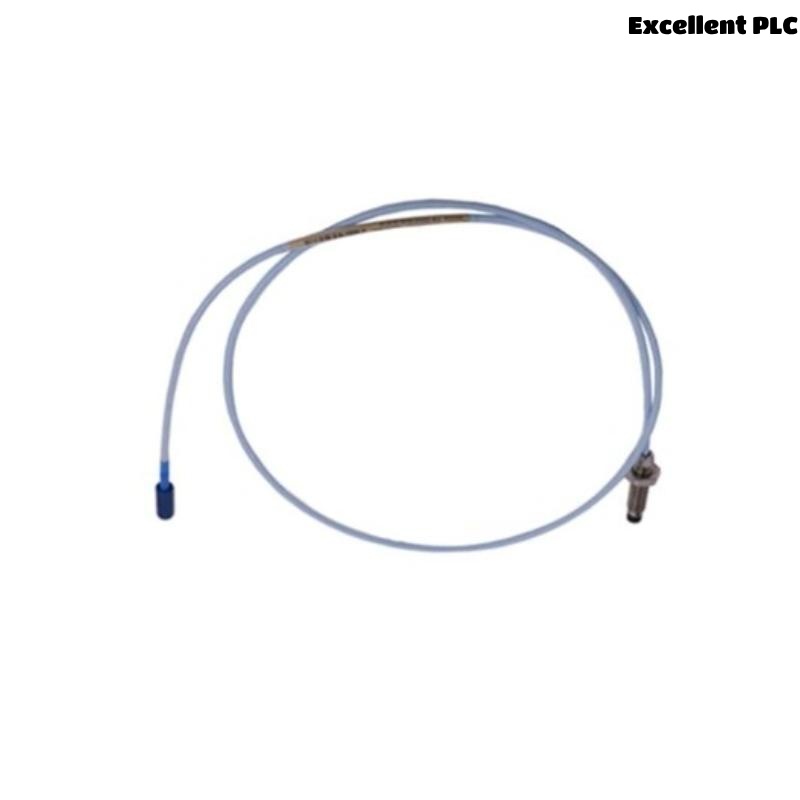

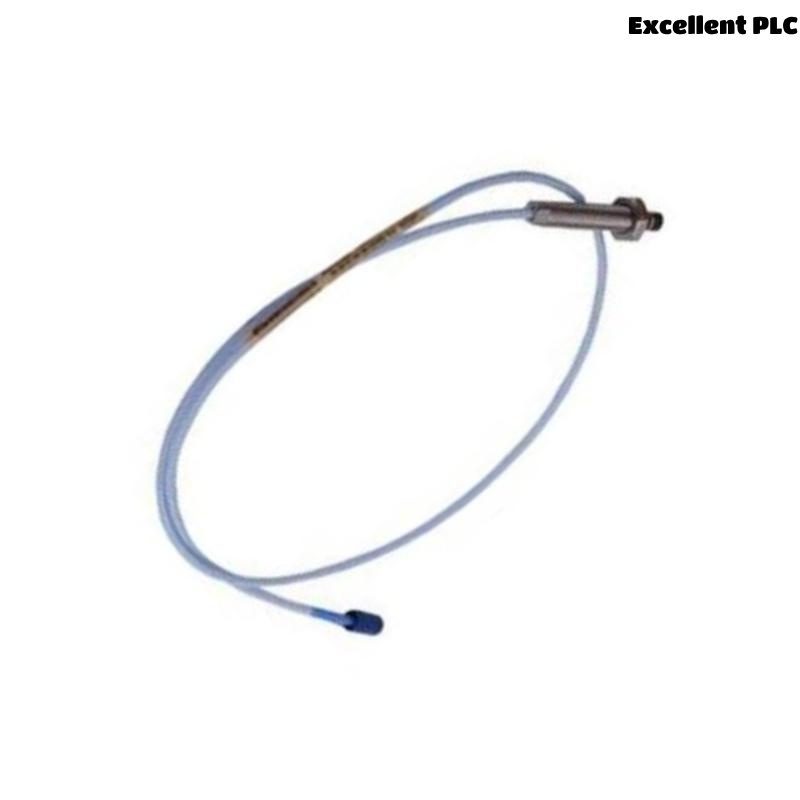

The Bently Nevada 330103-00-04-10-12-CN is a high-performance 8 mm proximity probe from the 3300 XL series, designed to provide precise, reliable, and long-term monitoring of shaft vibration and displacement in rotating machinery. Specifically engineered for industrial environments, the “CN” designation typically denotes configuration or regional adaptation (e.g., China-specific standards or manufacturing).
As part of the trusted 3300 XL product line, this probe works seamlessly with Bently Nevada’s monitoring systems, offering excellent linearity, robust EMI shielding, and durable stainless steel construction. It’s ideally suited for critical applications in power generation, oil and gas, petrochemical, and other heavy industries.
Key Features
-
8 mm diameter sensing tip for standard proximity measurements
-
“CN” suffix may indicate regional compliance or connector specification
-
Compatible with 3300 XL monitoring and transducer systems
-
Shielded coaxial cable for superior signal integrity
-
Stainless steel body for harsh environments
-
IP67-rated for dust and water ingress protection
-
Type “12” connector shell for secure system integration
-
Operates reliably in –40°C to +120°C temperature range
-
Designed for long-term stability and minimal maintenance
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model Number | 330103-00-04-10-12-CN |
| Series | 3300 XL Series |
| Probe Type | Eddy Current Proximity Probe |
| Tip Diameter | 8 mm (0.315 inch) |
| Sensing Range | 0.15 mm to 5.00 mm (typical) |
| Cable Length | 10 meters (fixed) |
| Connector Shell Type | Type “12” |
| Regional Configuration | CN (typically China-specific or localized) |
| Probe Material | Stainless Steel |
| Frequency Response | Up to 40 kHz |
| Operating Temperature | –40°C to +120°C (–40°F to +248°F) |
| Environmental Rating | IP67 |
| Mounting Thread | 1/4-28 UNF or M8 × 1.0 (varies by configuration) |
| Dimensions | Total Length : 1.0 meter |
| Weight | 0.323 kg |
| Application | Shaft vibration and position monitoring in rotating machinery |
Industry Applications
-
Power Generation – Shaft vibration monitoring in gas and steam turbines
-
Oil & Gas – Displacement monitoring in compressors and pumps
-
Petrochemical Plants – Critical rotating equipment condition monitoring
-
Mining & Minerals – Equipment uptime assurance in harsh environments
-
Marine & Shipbuilding – Monitoring propulsion systems and auxiliary motors
-
General Manufacturing – For use in motors, gearboxes, and spindles
Product Advantages
-
Precision Monitoring – Accurate data on shaft position and vibration
-
Durable Construction – Withstands vibration, moisture, and contaminants
-
Reliable Signal – Shielded coaxial cable ensures EMI-free data transmission
-
Global Compatibility – Works with 3300 XL monitors and transducers
-
Versatile Installation – Mounting thread options suit different configurations
-
Extended Temperature Range – Reliable in both arctic and tropical conditions
-
Minimal Maintenance – Long life cycle with little upkeep
-
Standardized Connectivity – Type 12 connector ensures quick system integration
Frequently Asked Questions (FAQ)
-
Q: What does the ‘CN’ suffix indicate in this model?
A: It typically refers to a China-localized version, possibly related to connector spec, regional certification, or manufacturing origin. -
Q: Is this probe compatible with non-Bently monitoring systems?
A: While technically possible, optimal performance and accuracy require Bently Nevada’s 3300 XL series systems. -
Q: What is the default cable length?
A: 10 meters. -
Q: What temperature range can this probe tolerate?
A: From –40°C to +120°C. -
Q: What connector does this probe use?
A: It features a Type 12 connector shell. -
Q: Can it be used in hazardous outdoor locations?
A: Yes, it is IP67-rated for protection against dust and water. -
Q: What is the mounting thread size?
A: Common options include 1/4-28 UNF or M8 × 1.0. -
Q: What is the linear range of the probe?
A: Approximately 0.15 to 5.00 mm. -
Q: Is the cable shielded against EMI?
A: Yes, the coaxial cable is fully shielded for electromagnetic noise immunity. -
Q: Does this model require calibration?
A: It is factory-calibrated; periodic system checks are recommended as part of preventive maintenance.
Related Models
| Model Number | Description |
|---|---|
| 330103-00-04-10-12-00 | 3300 XL 8 mm Probe with Type 12 connector, global model |
| 330103-00-04-10-02-01 | 3300 XL 8 mm Probe with alternate shell configuration |
| 330103-00-04-10-01-05 | 3300 XL 8 mm Probe with 10 m cable and shell 01 |
| 330103-00-20-05-01-05 | 3300 XL 8 mm Probe with extended 20 m cable |
| 330104-01-08-50-01-CN | 3300 XL 8 mm Probe with armor cable (CN config) |
| 330130-045-01-05 | 3300 XL Standard Extension Cable (4.5 m) |
