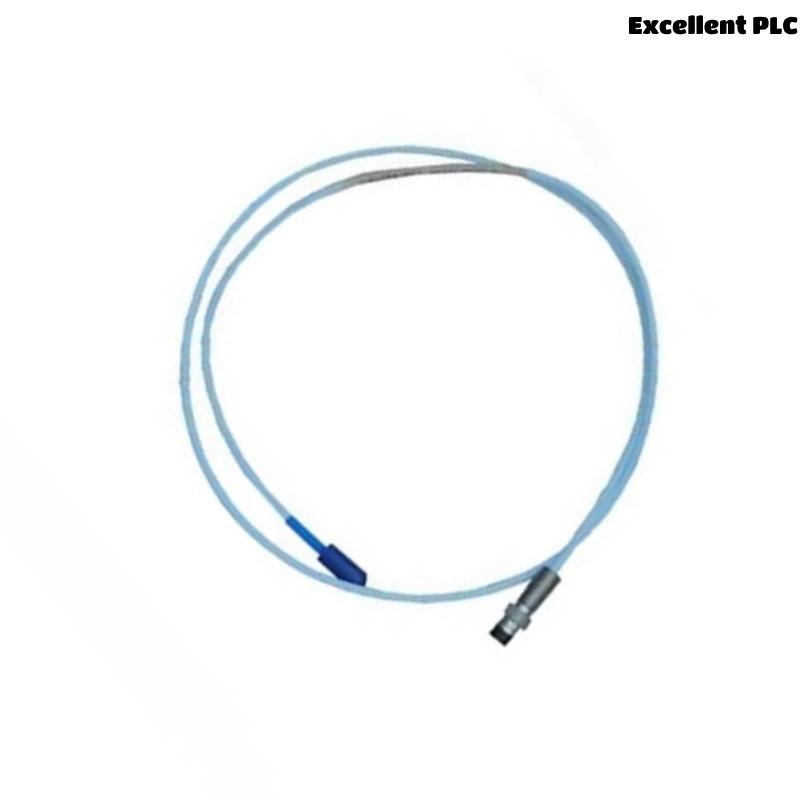

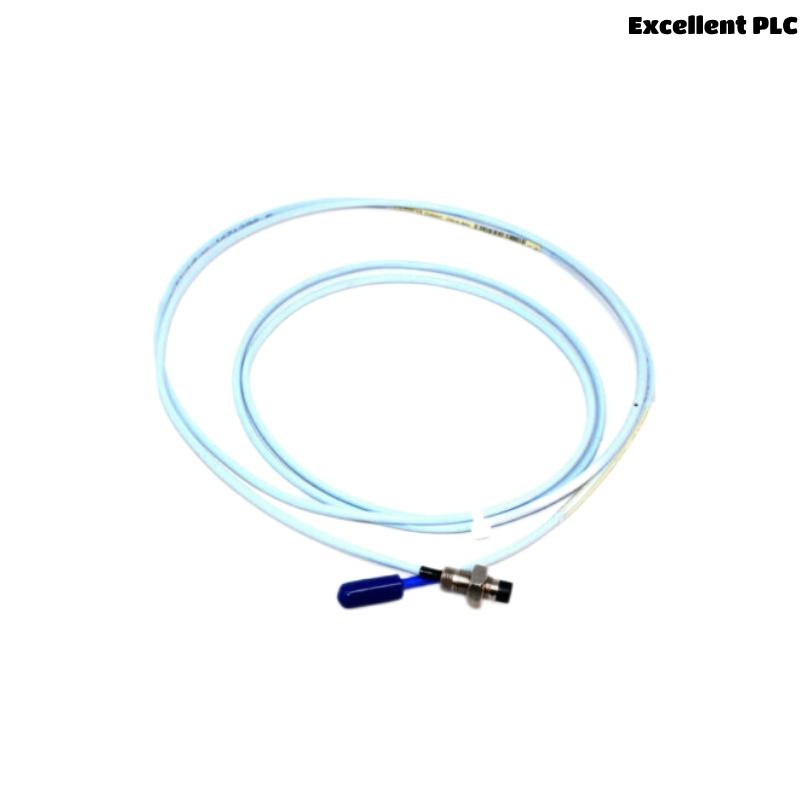

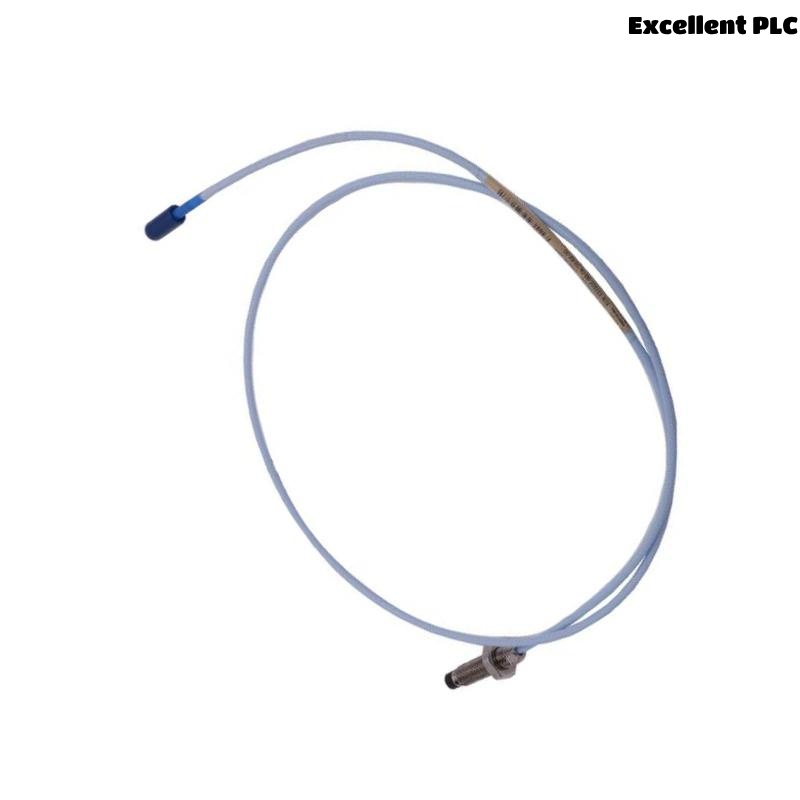

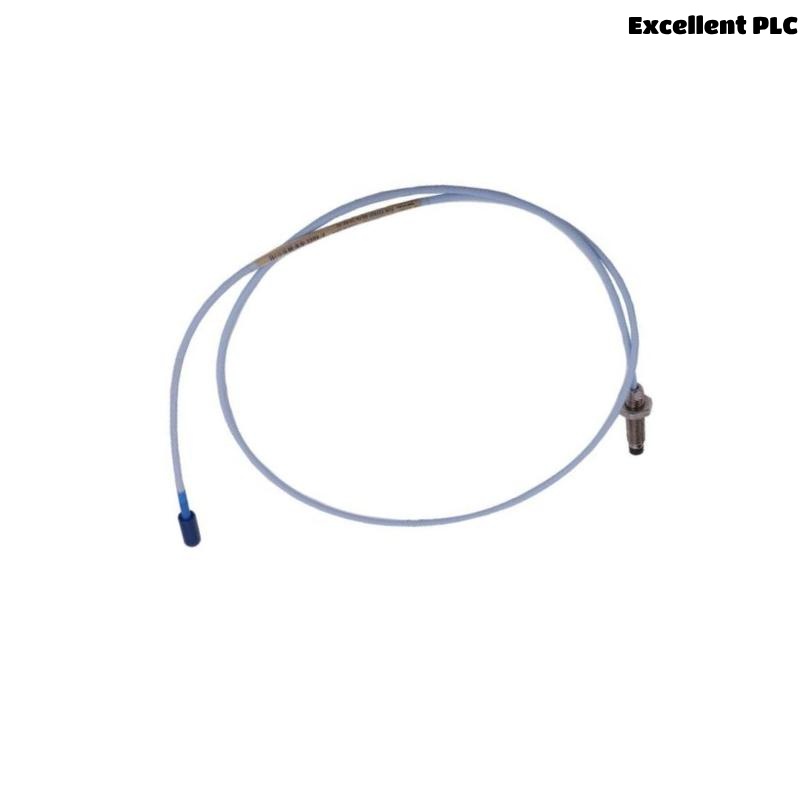

Bently Nevada 330103-00-04-20-02-05 3300 XL 8 mm Proximity Probe

Product Overview

The Bently Nevada 330103-00-04-20-02-05 3300 XL 8 mm Proximity Probe is a precision-engineered sensor designed for machinery condition monitoring and vibration analysis. It belongs to the 3300 XL series, widely recognized in the industry for its reliability and accuracy in measuring shaft displacement and vibration in rotating equipment. This proximity probe features an 8 mm diameter sensing tip that allows for precise clearance measurements, enabling early detection of mechanical faults such as imbalance, misalignment, and bearing wear. Built to withstand harsh industrial environments, the probe offers exceptional durability and consistent performance in applications like turbines, compressors, pumps, and generators.

Key Features

• 8 mm diameter rugged probe tip for accurate proximity measurement

• Compatible with Bently Nevada 3300 XL monitoring systems

• High sensitivity with low noise for precise vibration and displacement readings

• Robust construction with corrosion-resistant stainless steel body

• Wide operating temperature range suitable for demanding industrial conditions

• Threaded mounting for secure installation and alignment

• Long cable options available for flexible installation distances

• Industry-standard connector for easy integration

Technical Specifications

Typical Applications

• Condition monitoring of turbines in power generation

• Vibration analysis of compressors and pumps

• Monitoring rotating machinery in oil and gas facilities

• Bearings clearance measurement in heavy industrial equipment

• Continuous monitoring in aerospace and automotive test rigs

• Preventive maintenance in manufacturing plants

• Performance diagnostics in paper mills and steel mills

Advantages

• Precision: Offers highly accurate proximity and vibration measurements critical for early fault detection.

• Reliability: Built to withstand harsh environments including extreme temperatures, moisture, and vibration.

• Compatibility: Fully compatible with Bently Nevada 3300 XL system components for seamless integration.

• Durability: Stainless steel construction resists corrosion and mechanical wear.

• Ease of Installation: Standardized mounting and connectors simplify setup and maintenance.

• Long Service Life: Designed for continuous operation in demanding industrial conditions.

• Improved Safety: Helps prevent catastrophic failures by enabling timely maintenance interventions.

Frequently Asked Questions (FAQ)

1. What does the 8 mm in the probe name refer to?
   It indicates the diameter of the probe’s sensing tip.

2. What is the typical measurement range of this probe?
   Approximately 0.25 mm to 2.54 mm (0.01″ to 0.1″) clearance measurement.

3. Is the probe compatible with all Bently Nevada monitoring systems?
   It is designed primarily for use with the 3300 XL system but may be compatible with others; confirm with system specifications.

4. Can the cable length be customized?
   Yes, standard cable length is 10 meters, but custom lengths can be ordered.

5. What connector type does this probe use?
   It uses a 10-pin Bendix connector.

6. What environments can the probe operate in?
   Suitable for industrial environments with temperature range from -40 °C to +120 °C and resistant to vibration and moisture.

7. How is the probe mounted?
   It uses an M16 x 1.5 mm threaded mount for secure attachment.

8. What type of signal output does the probe provide?
   It outputs an AC voltage signal proportional to the gap distance.

9. Can this probe be used in explosive atmospheres?
   Use only if properly certified and compliant with relevant safety standards for hazardous locations.

10. What maintenance is required?
    Periodic inspection for cable integrity and physical damage; cleaning as needed to ensure sensor accuracy.
