Product Introduction

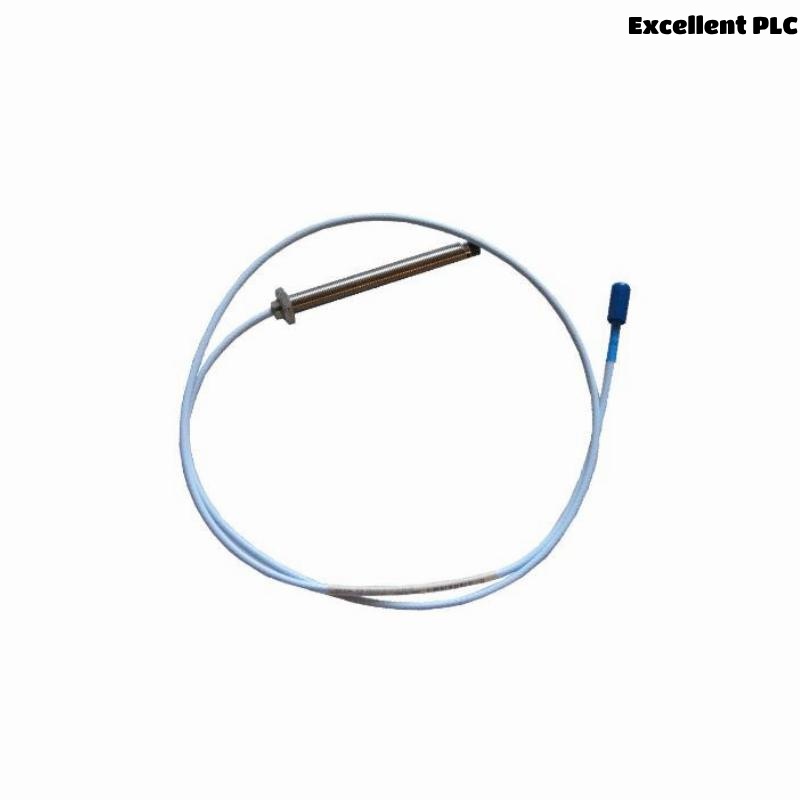

The Bently Nevada 330103-00-04-50-02-00 3300 XL 8mm Proximity Probe is a precision measurement device designed for continuous monitoring of machinery. It is part of the 3300 XL series from Bently Nevada, renowned for its high accuracy and reliability in industrial environments. The 3300 XL probe is specifically engineered to measure shaft vibration and axial position in rotating equipment, such as motors, pumps, compressors, and turbines. It provides critical data for predictive maintenance and condition monitoring, ensuring optimal machinery performance and preventing costly downtimes.
The 3300 XL series is a significant advancement over traditional proximity probes due to its improved resistance to harsh environmental conditions and superior data transmission capabilities. This model is specifically built for machines that operate under extreme conditions, offering high performance in industries like oil & gas, power generation, and manufacturing.
Product Specifications
| Specification | Details |
|---|---|
| Probe Type | 3300 XL 8mm Proximity Probe |
| Measuring Range | ±10mm (total travel) |
| Operating Temperature | -40°C to +120°C |
| Output Type | Linear Voltage (4-20mA) |
| Probe Diameter | 8mm (0.315 inches) |
| Total Length | 5.0 meters |
| Material | Stainless Steel |
| Mounting Type | Flush Mount |
| Weight | 1.615 kg |
| Resistance | High resistance to shock and vibration |
| Cable Length | Customizable (typically 3m to 15m) |
| Sensitivity | High Sensitivity |
| Input Voltage | 18-30 VDC |
| Certifications | CE, UL, Ex (ATEX) |
Product Applications
The Bently Nevada 3300 XL 8mm Proximity Probe is primarily used in machinery condition monitoring and vibration analysis. It is suitable for a variety of rotating equipment, providing real-time monitoring of machinery health. Some key applications include:
-
Power Generation: Used in monitoring turbines, generators, and other critical rotating equipment to ensure operational stability and predict failures before they occur.
-
Oil & Gas Industry: Ideal for use in pumps, compressors, and motors where high accuracy and reliability are paramount in avoiding downtime and reducing maintenance costs.
-
Chemical and Petrochemical Plants: The probe helps in monitoring critical rotating machinery such as compressors and mixers, ensuring that process conditions remain optimal.
-
Manufacturing: Employed for machinery like fans, motors, and pumps in industrial manufacturing settings to detect imbalance, misalignment, and other issues.
-
Mining: Used to ensure the reliability of machinery in harsh environments like crushers and conveyors, which are subject to extreme operating conditions.
Product Advantages
-
High Accuracy and Precision: The 3300 XL proximity probe provides highly accurate measurements of machine vibration, ensuring precise condition monitoring and effective predictive maintenance strategies.
-
Wide Operating Temperature Range: With an operating temperature range from -40°C to +120°C, the probe is designed to function reliably in extreme environmental conditions, making it suitable for a variety of industrial settings.
-
Rugged Durability: Built to endure high shock and vibration environments, this probe is resistant to harsh industrial conditions, offering prolonged service life even in demanding applications.
-
Easy Integration: The probe’s simple flush-mount design makes it easy to integrate with most machines without complicated installation processes, saving time and labor costs during setup.
-
Versatile Mounting Options: It supports a range of customizable cable lengths, making it adaptable to different machine layouts and configurations.
-
Improved Safety: With certifications like ATEX for hazardous environments, the 3300 XL probe ensures safe operation in explosive and sensitive areas.
Frequently Asked Questions (FAQ)
-
What is the operating temperature range of the Bently Nevada 3300 XL 8mm Proximity Probe?
-
The operating temperature range is from -40°C to +120°C, ensuring reliable performance in extreme conditions.
-
-
Can the Bently Nevada 3300 XL probe be used for both axial and radial measurements?
-
Yes, the probe can measure axial displacement as well as radial vibration in rotating machinery.
-
-
What industries benefit from using the 3300 XL proximity probe?
-
Industries such as power generation, oil & gas, petrochemical, mining, and manufacturing can benefit from the accuracy and durability of this probe.
-
-
How does the probe transmit data?
-
The probe uses a linear voltage (4-20mA) output to transmit vibration and displacement data.
-
-
Is the Bently Nevada 3300 XL proximity probe easy to install?
-
Yes, the probe features a flush-mount design for easy integration with most rotating equipment.
-
-
What type of equipment can be monitored with this probe?
-
The probe is suitable for monitoring turbines, compressors, motors, pumps, fans, and other rotating equipment.
-
-
What certifications does the 3300 XL probe have?
-
The probe is CE certified, UL listed, and has Ex (ATEX) certification for use in hazardous environments.
-
-
What is the weight of the 3300 XL proximity probe?
-
The probe weighs 1.615 kg.
-
-
Can the 3300 XL probe be used in hazardous areas?
-
Yes, with its Ex (ATEX) certification, the probe is safe to use in hazardous areas where explosive atmospheres may be present.
-
-
What is the maximum measuring range of the probe?
-
The maximum measuring range is ±10mm total travel, suitable for a wide range of industrial applications.
-
Recommended Models from the Same Series/Brand
| Model | Description | Weight | Dimensions | Application |
|---|---|---|---|---|

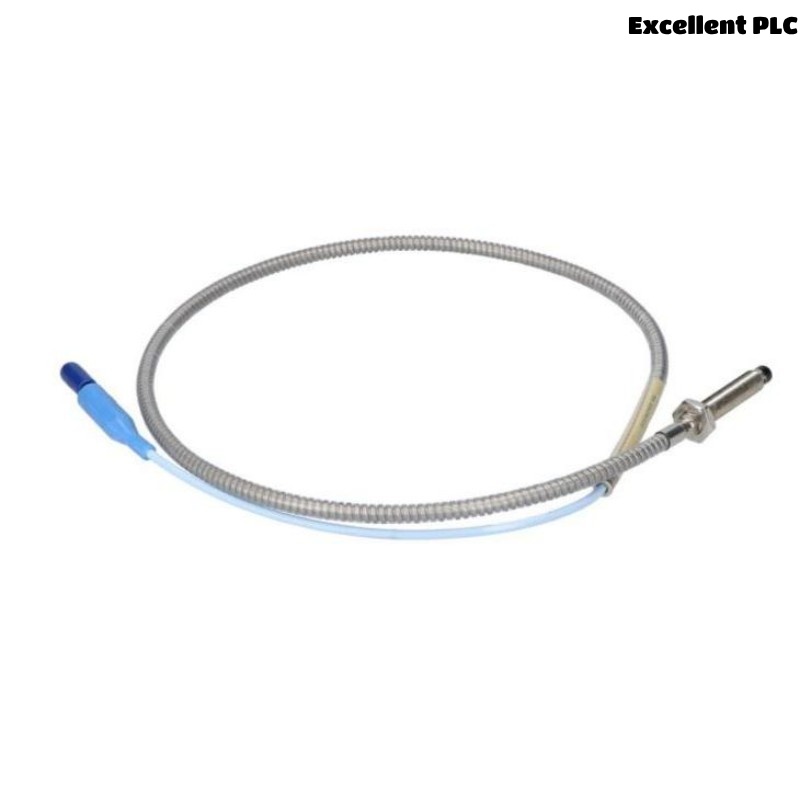

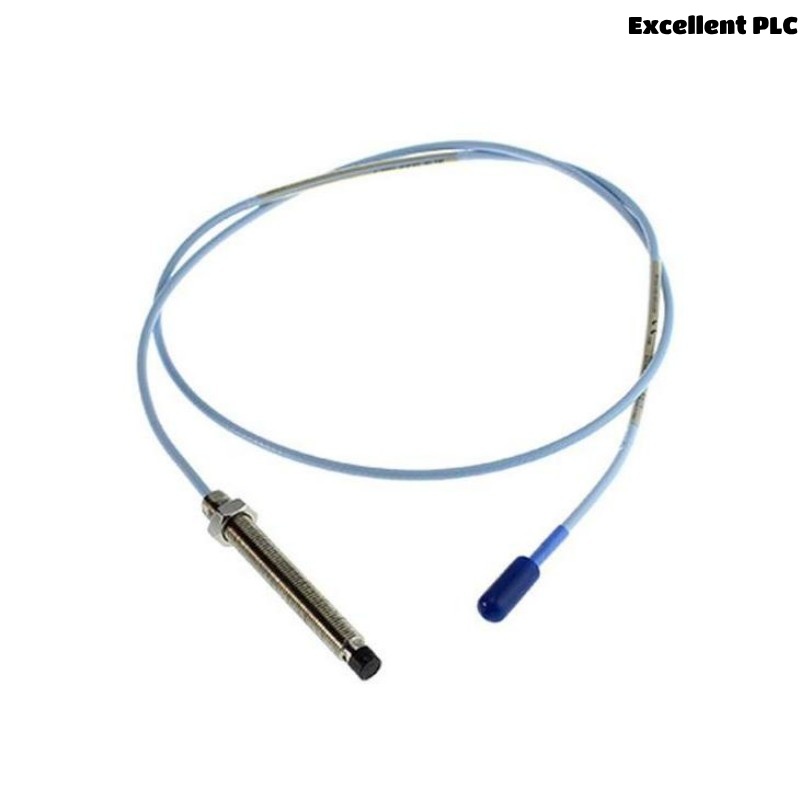

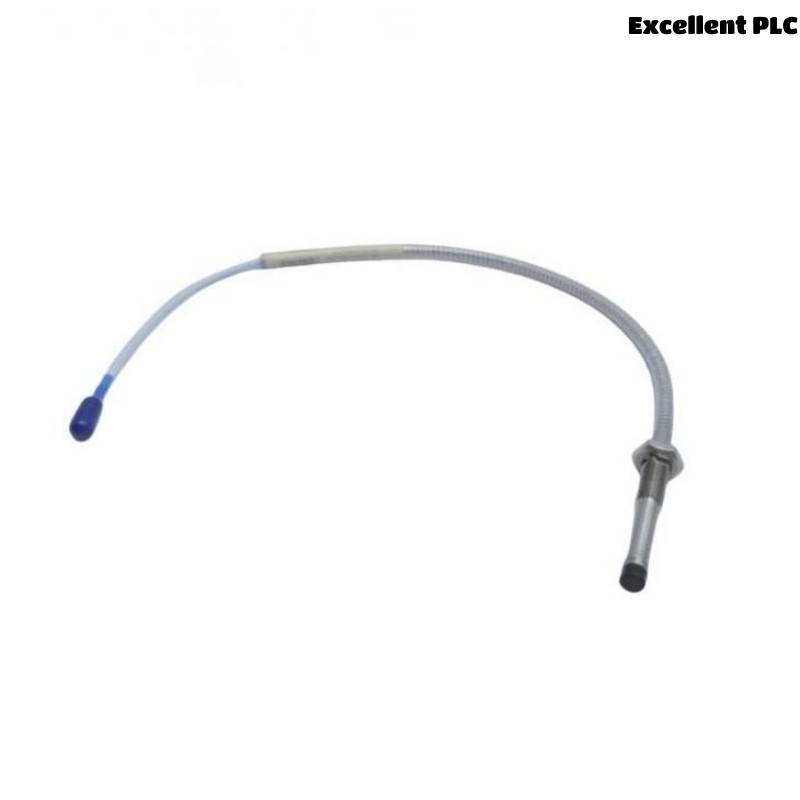

| 330104-00-04-50-02-00 | 3300 XL 4mm Proximity Probe | 180g | 2.0 x 0.4 inches | Small motors and pumps, compact machines |
| 3300 XL 11mm Proximity Probe | Larger 11mm probe with higher displacement | 250g | 3.0 x 0.6 inches | Large turbines and heavy machinery |
| 3300 XL 8mm Proximity Probe (Cabled) | 3300 XL probe with extended cable options | 220g | 2.5 x 0.5 inches | Machinery with remote monitoring needs |
| 3300 XL 8mm Proximity Probe (Flush) | Designed for flush-mount installations in tight spaces | 200g | 2.5 x 0.5 inches | Applications in confined spaces |
| 3300 XL 8mm Proximity Probe (High-Vibration) | High-performance probe for high-shock environments | 210g | 2.5 x 0.5 inches | High-vibration and rugged industrial setups |
| 3300 XL 8mm Proximity Probe (Extended Range) | Probe with extended measuring range for large machinery | 230g | 2.5 x 0.5 inches | Large rotating machinery, industrial setups |
Popular Models from the Bently Nevada Brand
| Model | Description | Weight | Dimensions | Application |
|---|---|---|---|---|
| 3300/15 Proximity Probe | High-performance proximity probe for general machinery monitoring | 180g | 2.0 x 0.4 inches | Vibration monitoring of medium-sized machines |
| 3300/12 Proximity Probe | Standard 5mm proximity probe, for general applications | 175g | 2.1 x 0.4 inches | General-purpose machinery monitoring |
| 3300/20 Proximity Probe | High-sensitivity version for critical machinery | 200g | 2.2 x 0.5 inches | Used in turbines, motors, and compressors |
| 3300/06 Proximity Probe | Compact 4mm probe for small rotating equipment | 160g | 2.0 x 0.4 inches | Used in smaller industrial machinery |
| 3500/42 Proximity Probe | Integrated with 3500 Series for advanced machinery protection | 250g | 3.0 x 0.5 inches | Advanced condition monitoring systems |
| 3500/22 Vibration Monitor | Multi-channel vibration monitoring system | 1.5kg | 6.0 x 6.0 x 2.0 inches | Vibration monitoring for large machines |
