Product Overview

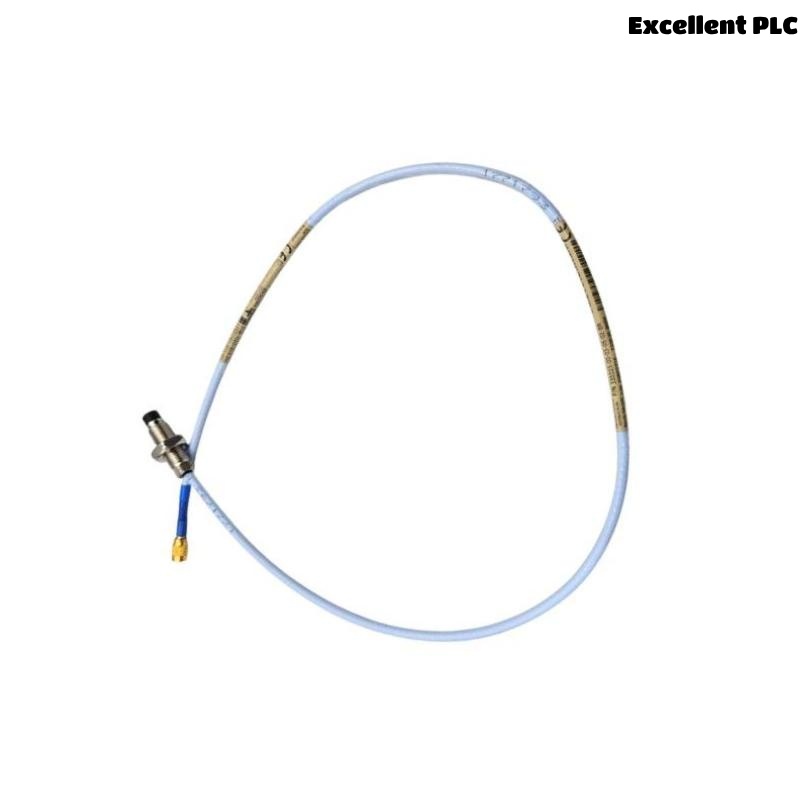

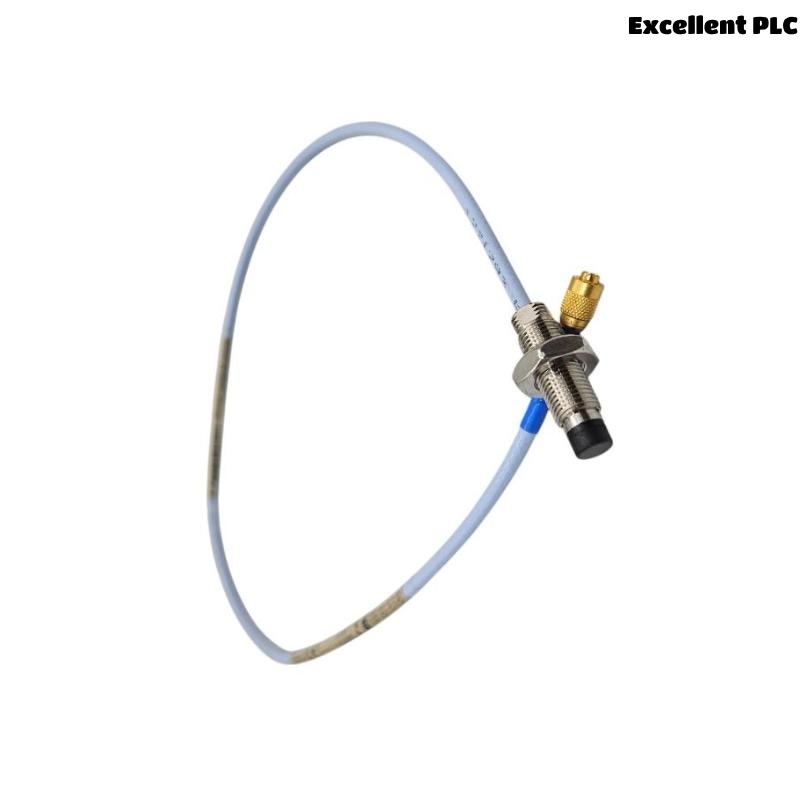

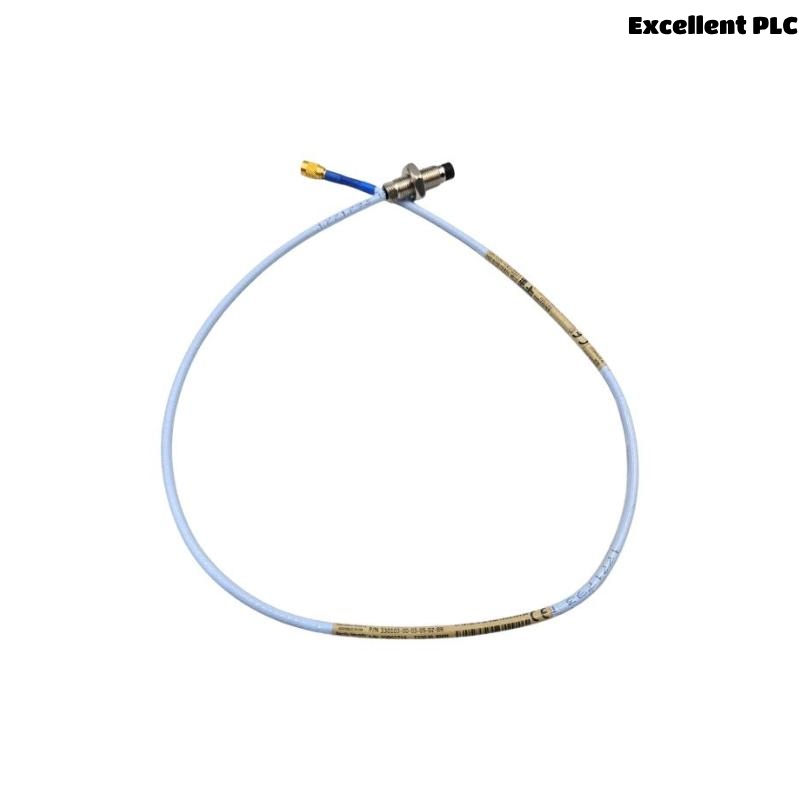

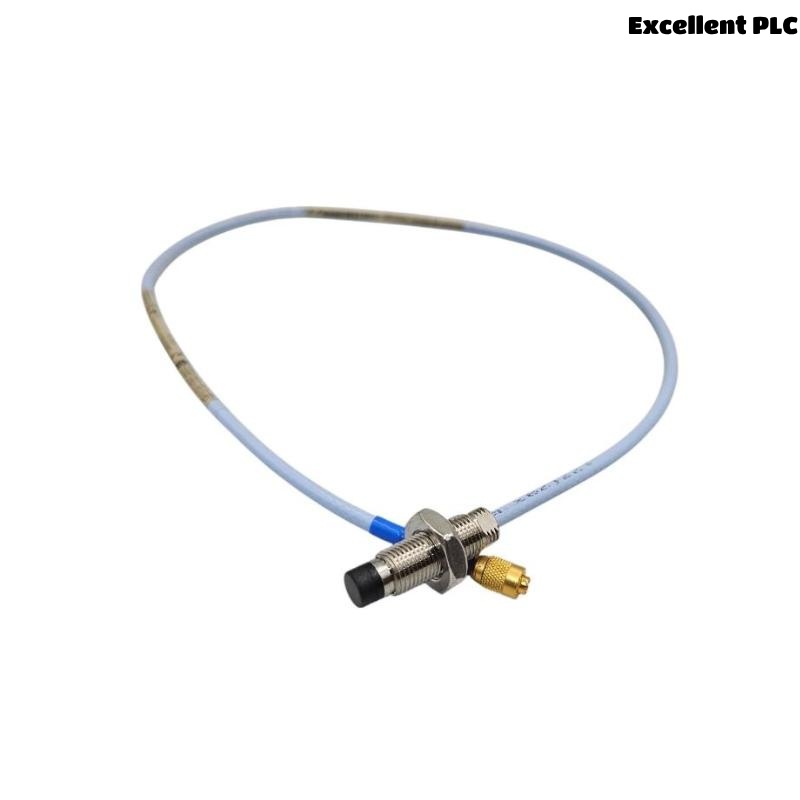

The Bently Nevada 330103-00-05-05-01-00 is a high-precision 8 mm Proximity Probe from the reputable 3300 XL series. Designed to measure shaft displacement and vibration, it plays a vital role in the early detection of mechanical faults in rotating machinery, enabling predictive maintenance and preventing costly downtime.
This probe features a rugged stainless steel construction and a shielded coaxial cable, ensuring reliable performance even under harsh industrial conditions such as extreme temperatures, high vibration, and mechanical shocks. It is engineered for seamless compatibility with the Bently Nevada 3300 XL monitoring systems to provide accurate, real-time data.
Key Features
-
8 mm diameter probe tip optimized for precise proximity sensing
-
Compatible with Bently Nevada 3300 XL series monitoring systems
-
Eddy current sensing technology offering high sensitivity and wide frequency response
-
Durable stainless steel probe tip with ruggedized cable assembly
-
Designed for operation in harsh environments, including high temperature and vibration
-
Resistant to mechanical shocks up to 100 g
-
Provides continuous real-time monitoring of shaft position and vibration
-
Standard industry connectors and flexible mounting options for easy installation
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 330103-00-05-05-01-00 |
| Product Line | 3300 XL |
| Probe Diameter | 8 mm |
| Sensing Method | Eddy current proximity sensing |
| Measurement Range | 0 to 127 mils (0 to 3.2 mm) typical |
| Frequency Response | DC to 20 kHz |
| Operating Temperature | -40°C to +121°C |
| Cable Length | Standard and custom lengths available |
| Connector Type | MIL-C-5015 or equivalent industrial connector |
| Cable Type | Shielded coaxial cable |
| Probe Material | Stainless steel probe tip with ruggedized cable |
| Vibration Resistance | Up to 30 g (10–2000 Hz) |
| Shock Resistance | 100 g, 11 ms half sine pulse |
| Weight | 0.161 kg |
| Dimensions | Total Length: 0.5 meter |
| Mounting Options | Threaded or welded mounting |
Industry Applications
The 330103-00-05-05-01-00 8 mm Proximity Probe is widely utilized for monitoring critical rotating equipment in:
-
Power Generation – Turbine and generator shaft condition monitoring
-
Oil & Gas – Compressor and pump shaft vibration sensing
-
Mining & Metals – Heavy machinery vibration monitoring
-
Chemical Processing – Reactor and agitator shaft position monitoring
-
Pulp & Paper – Rotating equipment condition monitoring
-
Marine and Offshore – Propulsion shaft and auxiliary machinery monitoring
Product Advantages
-
Delivers high accuracy and dependable shaft displacement measurement
-
Rugged design for reliable operation in extreme industrial environments
-
Supports early detection of machinery faults to minimize unplanned downtime
-
Fully compatible with Bently Nevada 3300 XL condition monitoring systems
-
Facilitates continuous, real-time condition monitoring
-
Easy to install with standard connectors and mounting options
-
Engineered to withstand significant mechanical shock and vibration
Frequently Asked Questions (FAQ)
1. What type of output signal does this probe produce?
It provides an analog voltage signal proportional to shaft proximity.
2. Is this probe compatible with all Bently Nevada monitors?
It is designed specifically for the 3300 XL series monitoring systems.
3. What cable lengths are available?
Standard and custom cable lengths can be supplied.
4. What is the maximum operating temperature?
Rated for up to 121°C (250°F).
5. How is the probe mounted?
Supports threaded and welded mounting configurations.
6. Can the probe withstand harsh industrial environments?
Yes, with stainless steel construction and rugged cables.
7. Can this probe measure shaft speed?
Indirectly, by analyzing vibration frequency.
8. What is the diameter of the probe tip?
The diameter is 8 mm.
9. What vibration and shock levels can it tolerate?
Up to 30 g vibration and 100 g shock.
10. What is the expected lifespan?
Designed for many years of reliable operation in industrial settings.
