Product Overview

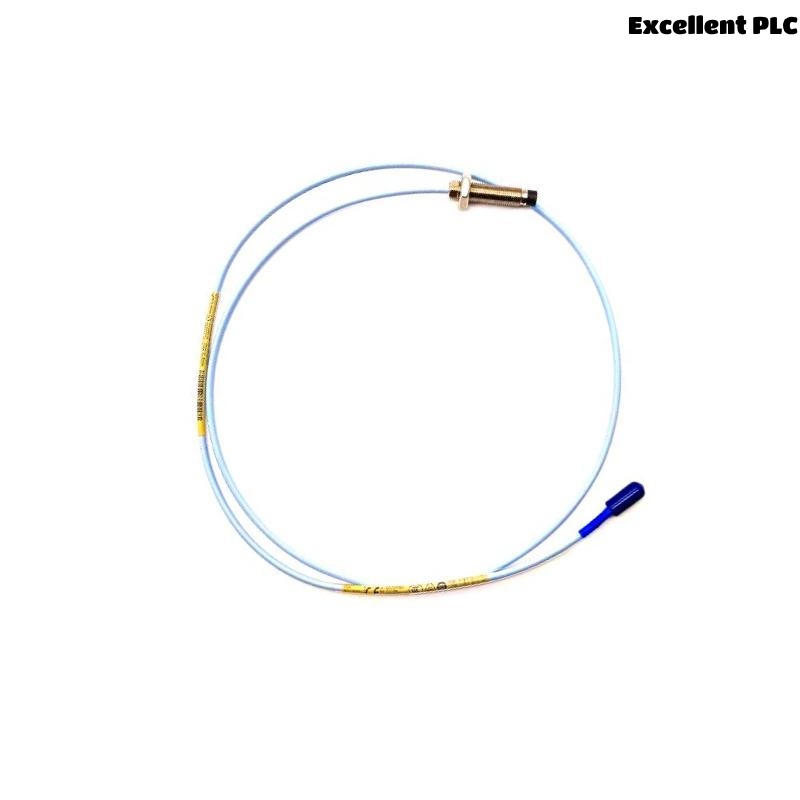

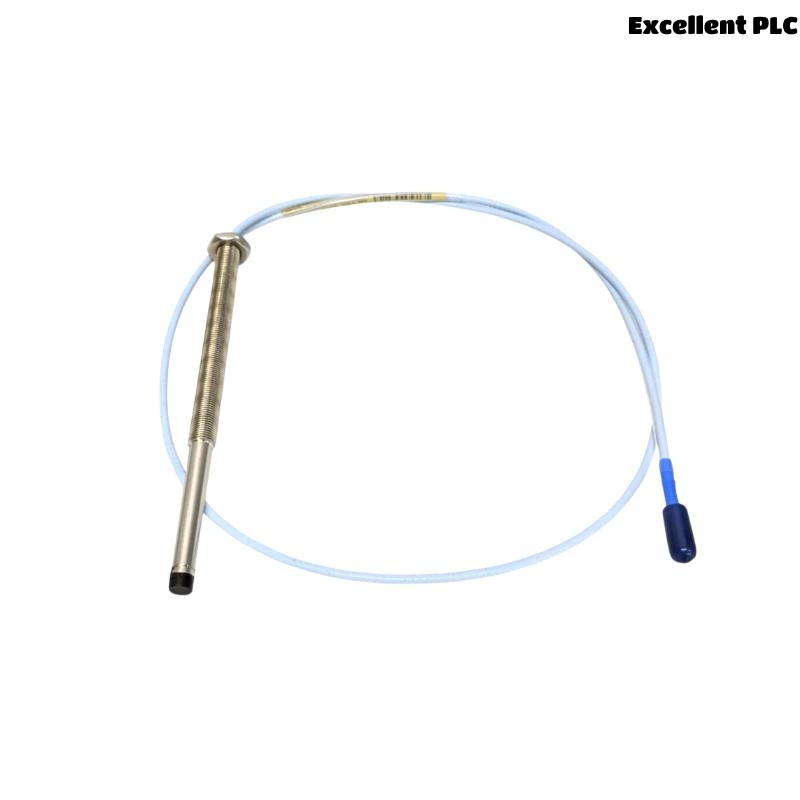

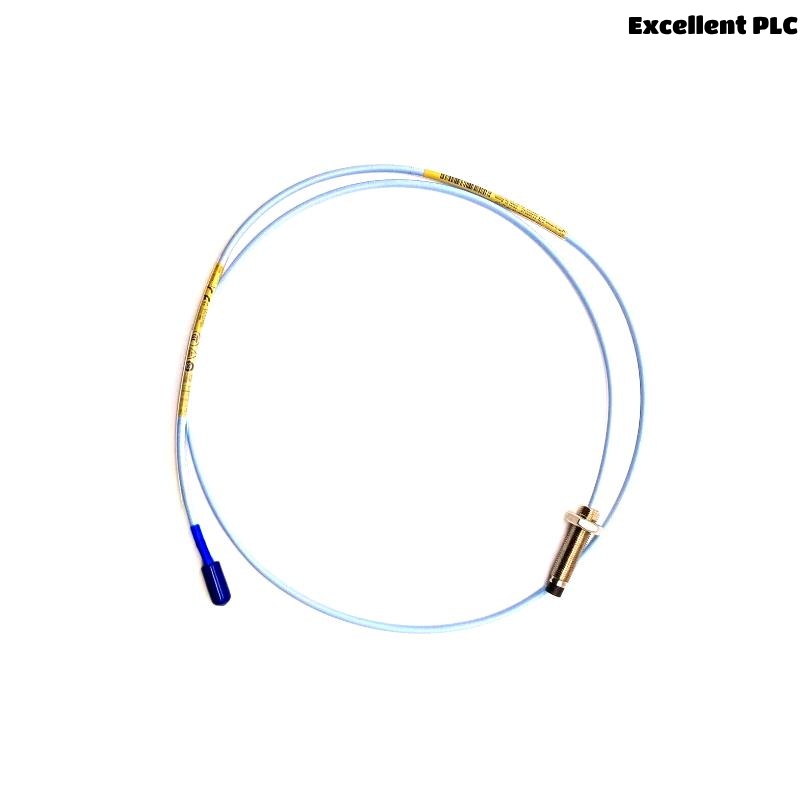

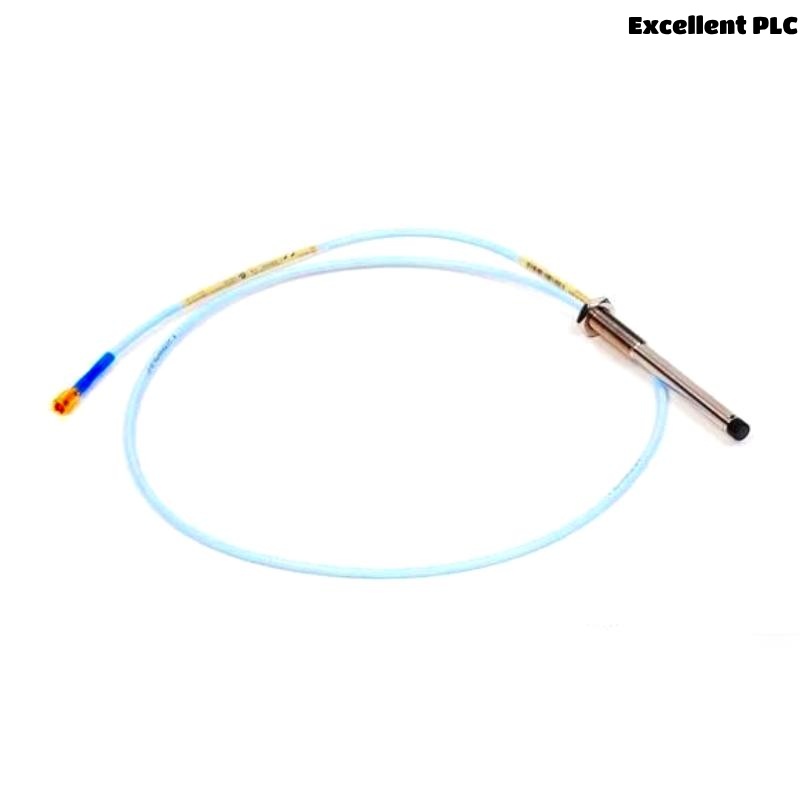

The Bently Nevada 330103-00-05-05-02-05 is a high-performance 8 mm Proximity Probe from the trusted 3300 XL series, engineered to deliver precise shaft displacement and vibration measurements. It is a critical component in machinery condition monitoring systems, enabling early detection of faults to prevent costly downtime and extend equipment life.
Built with a durable stainless steel probe tip and shielded coaxial cable, this probe is suited for demanding industrial environments where temperature extremes, mechanical shocks, and vibration are common. The probe is fully compatible with Bently Nevada 3300 XL monitoring systems, providing continuous and reliable data acquisition for rotating equipment.
Key Features
-
8 mm diameter probe tip optimized for accurate proximity sensing
-
Compatible with Bently Nevada 3300 XL series monitoring systems
-
Eddy current sensing technology offering high sensitivity and broad frequency response
-
Robust stainless steel construction and ruggedized coaxial cable
-
Designed for operation in harsh environments including extreme temperature and vibration
-
Resistant to mechanical shock up to 100 g
-
Enables continuous, real-time shaft position and vibration monitoring
-
Industry-standard connectors and flexible mounting options
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 330103-00-05-05-02-05 |
| Product Line | 3300 XL |
| Probe Diameter | 8 mm |
| Sensing Method | Eddy current proximity sensing |
| Measurement Range | 0 to 127 mils (0 to 3.2 mm) typical |
| Frequency Response | DC to 20 kHz |
| Operating Temperature | -40°C to +121°C |
| Cable Length | Standard and custom lengths available |
| Connector Type | MIL-C-5015 or equivalent industrial connector |
| Cable Type | Shielded coaxial cable |
| Probe Material | Stainless steel probe tip with ruggedized cable |
| Vibration Resistance | Up to 30 g (10–2000 Hz) |
| Shock Resistance | 100 g, 11 ms half sine pulse |
| Weight | 0.161 kg |
| Dimensions | Total Length: 0.5 meter |
| Mounting Options | Threaded or welded mounting |
Industry Applications
This probe is widely applied in various industries for critical rotating machinery condition monitoring, including:
-
Power Generation – Turbine and generator shaft monitoring
-
Oil & Gas – Compressor and pump vibration monitoring
-
Mining & Metals – Heavy equipment shaft vibration sensing
-
Chemical Processing – Shaft position and vibration measurement in reactors and agitators
-
Pulp & Paper – Rotating machinery condition monitoring
-
Marine and Offshore – Propulsion shaft and auxiliary equipment monitoring
Product Advantages
-
High precision shaft displacement and vibration measurement capability
-
Rugged design for reliable operation in harsh industrial environments
-
Facilitates early fault detection to reduce unplanned downtime and maintenance costs
-
Fully compatible with Bently Nevada 3300 XL condition monitoring systems
-
Supports continuous, real-time machinery condition monitoring
-
Easy installation with standard connectors and flexible mounting options
-
Resistant to mechanical shock and vibration in extreme conditions
Frequently Asked Questions (FAQ)
1. What is the output signal type of this probe?
The probe provides an analog voltage signal proportional to shaft displacement.
2. Is this probe compatible with other Bently Nevada monitoring systems?
It is designed specifically for the 3300 XL series monitoring platform.
3. Are different cable lengths available?
Yes, standard and custom cable lengths can be provided.
4. What is the operating temperature range?
The probe operates reliably between -40°C and +121°C.
5. How can this probe be mounted?
Threaded and welded mounting options are supported.
6. Is it suitable for harsh industrial environments?
Yes, its stainless steel construction and rugged cable make it highly durable.
7. Can the probe detect shaft speed?
Indirect shaft speed measurement is possible through vibration frequency analysis.
8. What is the probe tip diameter?
The diameter is 8 mm.
9. What shock and vibration levels can the probe tolerate?
It withstands up to 30 g vibration and 100 g mechanical shock.
10. What is the expected service life?
Designed for long-term reliability in industrial environments.
