Product Introduction

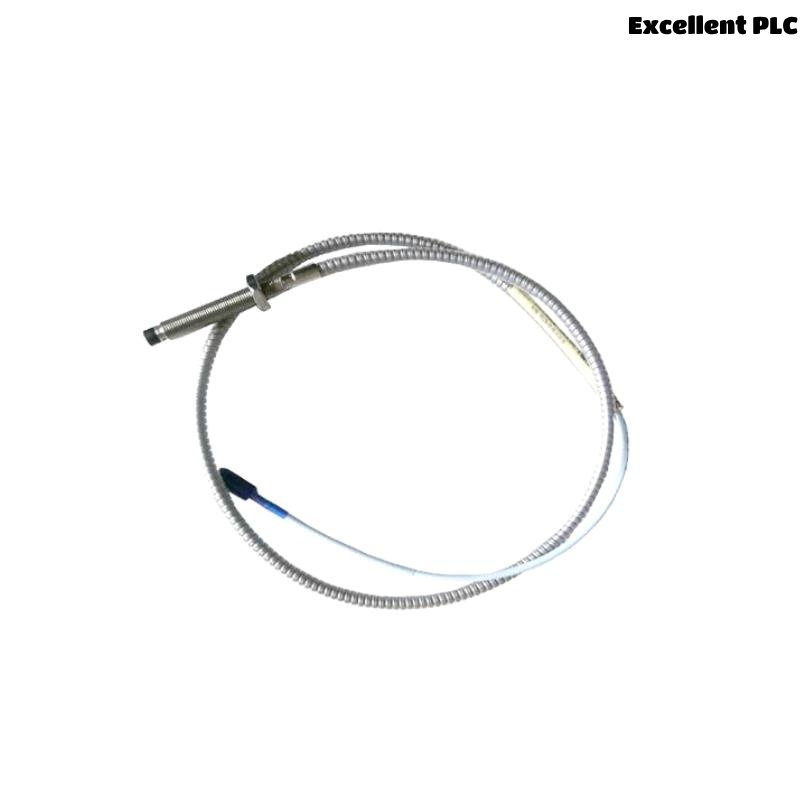

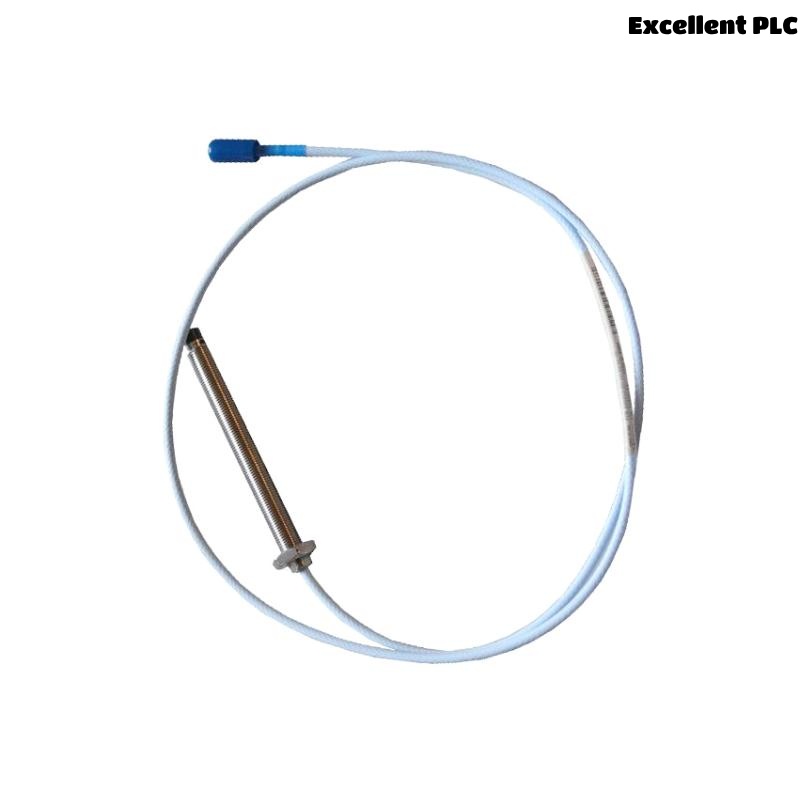

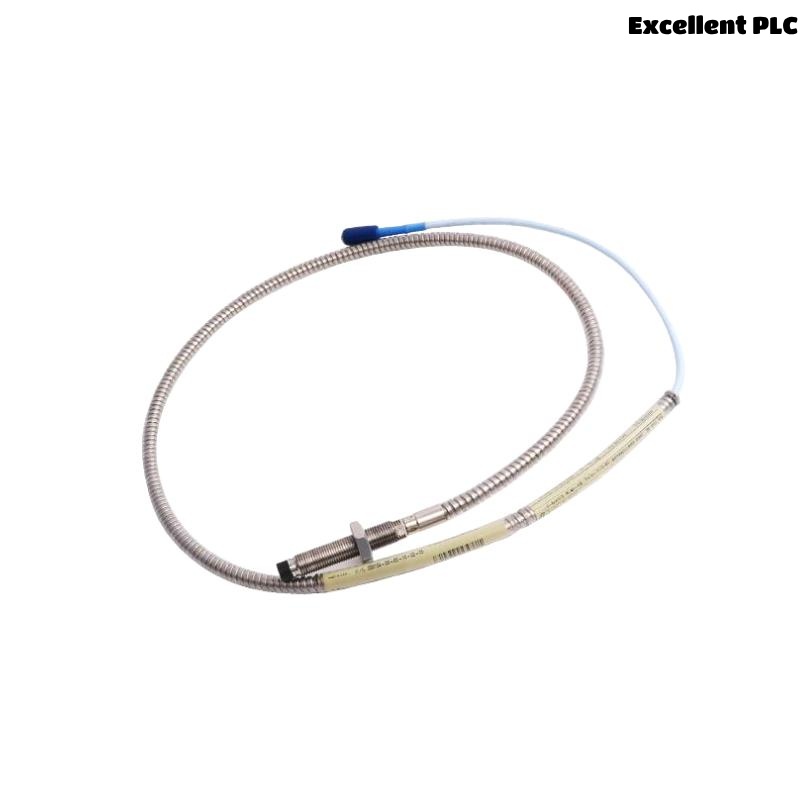

The Bently Nevada 330103-00-05-10-01-05 is a highly reliable 3300 XL 8mm Proximity Probe, purpose-built for machinery condition monitoring in critical industrial applications. Part of the proven 3300 XL series, this probe ensures long-term stability and precision in detecting shaft displacement and vibration in rotating machinery.
This particular model features a Bently Nevada-standard 8mm sensing tip and is paired with a durable 1.0 meter coaxial extension cable, enabling seamless installation in demanding operational environments. It is optimized for use with Bently Nevada’s Proximitor® sensor and monitoring systems, making it a vital component in predictive maintenance strategies in sectors such as oil & gas, power generation, chemical processing, and heavy industries.
Robust mechanical construction, superior signal fidelity, and ease of integration highlight this probe’s significance in modern asset health monitoring programs.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330103-00-05-10-01-05 |
| Series | 3300 XL |
| Probe Type | Proximity Probe |
| Sensing Tip Diameter | 8 mm |
| Total Probe Length | 95.3 mm (3.75 inches) |
| Sensing Range | 0.25 mm to 2.00 mm (linear range) |
| Mounting Thread | 1/2-20 UNF |
| Tip Material | Stainless Steel with PEEK insulation |
| Total Length | 1.0 meter |
| Connector Type | MIL-C-5015 style, 95-degree boot connector |
| Output Signal | AC voltage, proportional to distance |
| Operating Temperature | -35°C to +120°C |
| Shock Resistance | Up to 100 g |
| Environmental Rating | IP65 (sealed against dust and water jets) |
| Weight | 0.323 kg |
| Compatible System | 3300 XL Proximitor® Sensor and Monitoring Systems |
| Calibration | Factory-calibrated per ISO standards |
Applications
The 330103-00-05-10-01-05 proximity probe is engineered for high-performance in a range of critical rotating machinery applications:
-
Gas and Steam Turbines: Shaft vibration and thrust position monitoring
-
Compressors: Monitoring radial vibration and axial displacement
-
Pumps and Motors: Continuous monitoring of shaft dynamics
-
Generators: Rotor shaft behavior and condition analysis
-
Industrial Fans and Blowers: Detecting imbalance or misalignment
-
Nuclear and Thermal Power Plants: Ensuring safe turbine operation
This probe is widely implemented across oil & gas, petrochemical, power generation, and mining sectors, often in combination with vibration protection systems and advanced condition monitoring platforms.
Product Advantages
-
Field-Proven Durability: The 3300 XL probe series is engineered to survive harsh industrial conditions including high vibration, dust, oil, and moisture exposure.
-
Stable Long-Term Performance: Exceptional thermal stability and mechanical integrity ensure consistent readings over extended operating cycles.
-
Precision Engineered Tip: The 8mm sensing tip delivers accurate non-contact measurements for vibration and position diagnostics.
-
Flexible Cable Integration: Supplied with a rugged 1.0 meter cable that supports flexible routing during installation.
-
IP65 Environmental Protection: Excellent resistance to dust ingress and water spray, ensuring performance in outdoor or process area environments.
-
Universal Thread Design: Mounts easily with industry-standard threads, reducing installation time and increasing compatibility with housings and brackets.
-
Compatibility with 3300 XL Proximitor® Modules: Seamless signal conditioning and monitoring, optimized for Bently Nevada systems.
-
Reliable in Extreme Temperatures: Withstands significant temperature variation from -35°C to +120°C.
-
Quick Swap Design: Modular design allows for quick maintenance or replacement without disrupting adjacent machinery.
-
Trusted by Industry Leaders: Thousands of installations across the globe make this a proven solution for critical asset monitoring.
Frequently Asked Questions (FAQ)
-
What is the primary use of the 330103-00-05-10-01-05 probe?
It is used to measure shaft vibration and displacement in rotating machines. -
How does this model differ from others in the 3300 XL series?
This version has an 8mm tip and a 1.0 meter cable with a specific connector type (01-05), optimized for certain configurations. -
What are the temperature limits for safe operation?
The probe operates reliably between -35°C and +120°C. -
Is this probe compatible with non-Bently monitoring systems?
While designed for Bently Nevada systems, it can interface with others if voltage-output signal conditioning is compatible. -
What connector does this model use?
It features a MIL-C-5015 style booted connector with a 95° angle, common in tight enclosures. -
What type of material is used for the sensing tip?
The tip is stainless steel with a PEEK (polyether ether ketone) sleeve for electrical insulation. -
Can the cable be extended or shortened?
Yes, Bently offers custom lengths and extension solutions. Field modifications should be avoided to prevent signal degradation. -
What environmental protection does this probe have?
It is rated IP65, meaning it is dust-tight and protected against water jets. -
How is the probe calibrated?
It is factory-calibrated and traceable to international measurement standards, ensuring precision across installations. -
What monitoring modules can this probe connect to?
It connects directly with the 3300 XL Proximitor® Sensor and the 3300 monitoring platform.
Related Models – Same Series or Functional Equivalents
| Model Number | Description | Cable Length | Tip Size | Thread |
|---|---|---|---|---|
| 330103-00-05-10-01-00 | 3300 XL Proximity Probe, 8mm tip | 10 m | 8 mm | 1/2-20 UNF |
| 330103-00-05-05-01-05 | Proximity Probe, short cable version | 5 m | 8 mm | 1/2-20 UNF |
| 330104-00-05-10-01-00 | 3300 XL Proximity Probe, 5mm tip | 10 m | 5 mm | 10-32 UNF |
| 330105-00-05-10-01-00 | 3300 XL Proximity Probe, 11 mm tip | 10 m | 11 mm | 3/8-24 UNF |
| 330130-040-00-00 | 3300 XL Extension Cable, 40 ft | 12.2 m | — | — |
| 330180-91-05 | 3300 XL NSv Probe for narrow gaps | 5 m | 5 mm | 1/4-28 UNF |
