Product Overview

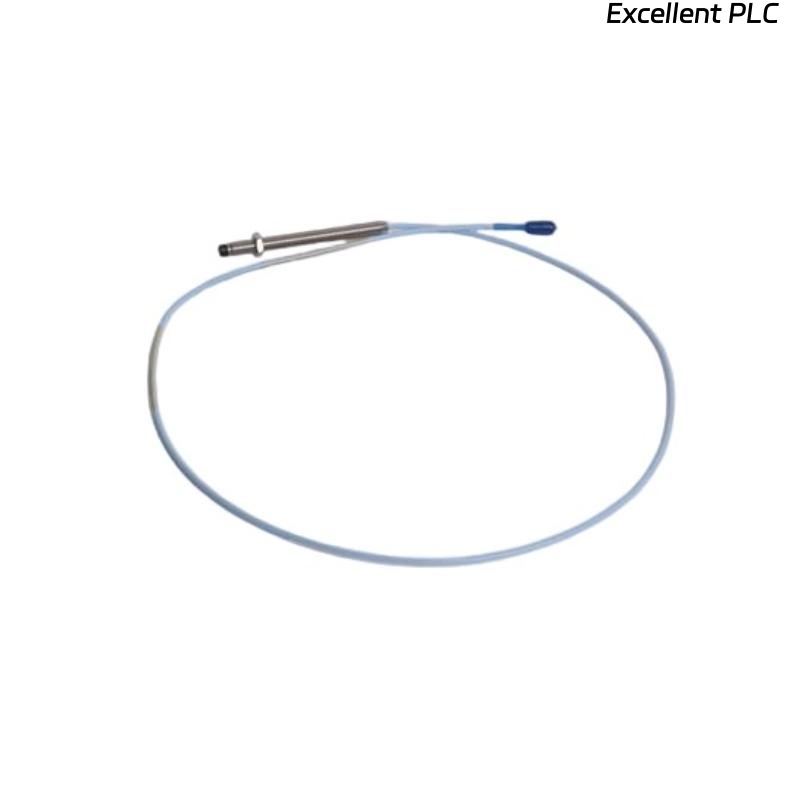

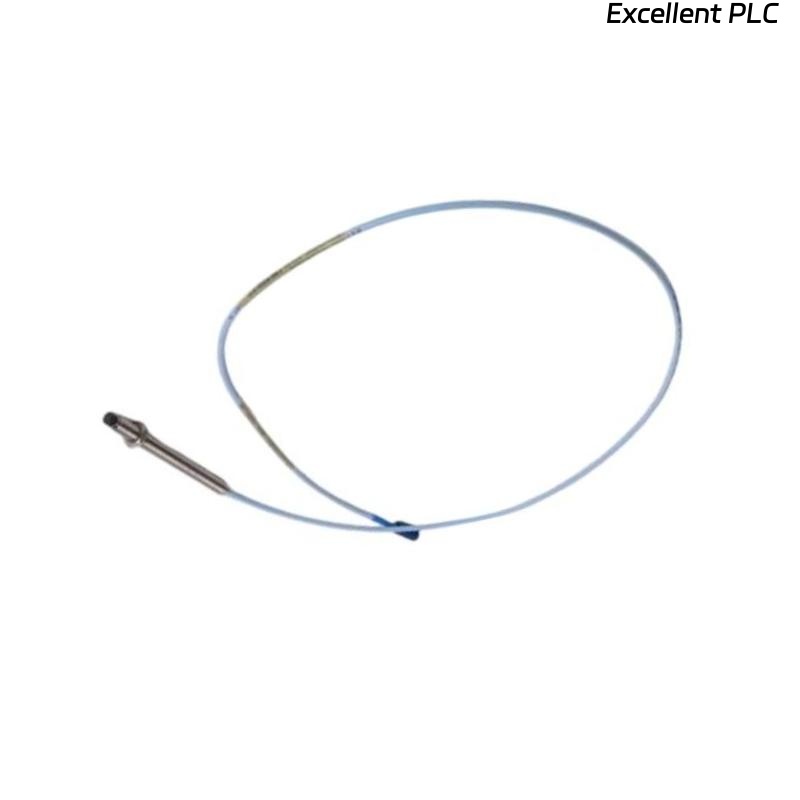

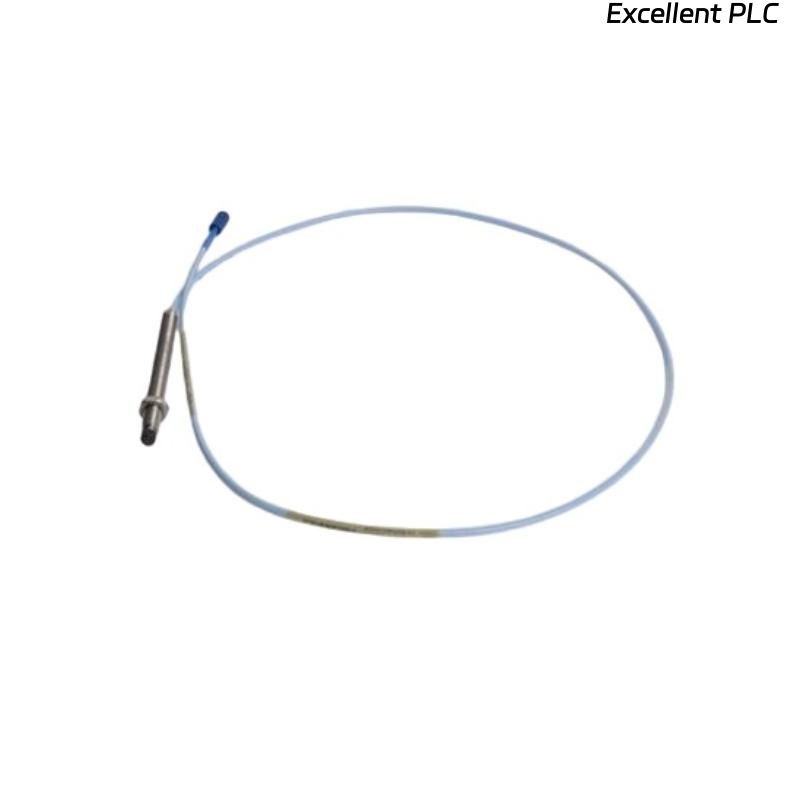

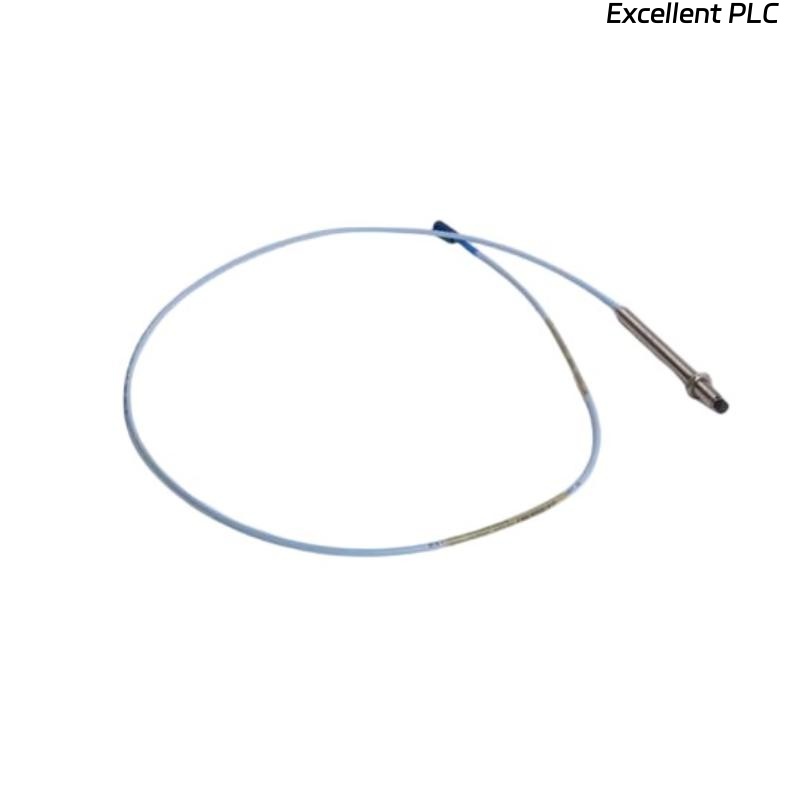

The Bently Nevada 330103-00-05-20-02-05 3300 XL 8 mm Proximity Probe is a precision-engineered sensor designed for reliable shaft vibration and displacement measurements in critical rotating machinery. As part of the 3300 XL series, this probe offers outstanding performance, API 670 compliance, and durability, making it a trusted choice for machine protection and condition monitoring applications.
Key Features
-
8 mm probe tip diameter for versatile machinery monitoring
-
Part of the 3300 XL system for full compatibility and interchangeability
-
API 670 compliant for machinery protection standards
-
Non-contact measurement for shaft vibration and displacement
-
Threaded design for secure mounting and reliable operation
-
Rugged construction suitable for demanding industrial applications
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 330103-00-05-20-02-05 |
| Series | 3300 XL |
| Probe Type | Proximity Probe |
| Tip Diameter | 8 mm |
| System Compatibility | Bently Nevada 3300 XL systems |
| Application | Shaft vibration and displacement monitoring |
| Dimensions | Total Length : 2.0 meters |
| Compliance | API 670 |
| Operating Temperature | -35 °C to +180 °C (probe only) |
| Weight | 0.646 kg |
| Connector Type | Coaxial connector |
| Mounting | Threaded mounting |
Industry Applications
-
Power Generation – Turbine and generator monitoring
-
Oil & Gas – Pumps, compressors, and rotating machinery
-
Petrochemical – Continuous process machinery protection
-
Manufacturing – Gearboxes, motors, and industrial drives
-
Water Treatment – Critical pump and motor monitoring
Advantages
-
Provides accurate and reliable vibration data
-
Ensures long-term measurement stability
-
Reduces unexpected equipment failures
-
Complies with API 670 international standards
-
Supports predictive maintenance strategies
Frequently Asked Questions (FAQ)
Q1: What is the main function of the 330103-00-05-20-02-05 proximity probe?
It measures shaft vibration and displacement for machinery protection.
Q2: What is the tip diameter of this probe?
The probe has an 8 mm tip diameter.
Q3: Is this probe compatible with all Bently Nevada systems?
It is designed for 3300 XL systems.
Q4: What is the weight of this probe?
The probe weighs approximately 0.646 kg.
Q5: Does this probe meet API standards?
Yes, it complies with API 670.
Q6: What is the operating temperature range?
It operates from -35 °C to +180 °C.
Q7: How is the probe mounted?
It uses a threaded mounting design for secure installation.
Q8: Can this probe be used in oil & gas applications?
Yes, it is widely used for compressors, turbines, and pumps.
Q9: What accessories are required with this probe?
It requires extension cables and proximitor sensors from the 3300 XL series.
Q10: Which industries commonly use this probe?
Industries include power generation, petrochemical, oil & gas, and manufacturing.
