Product Description

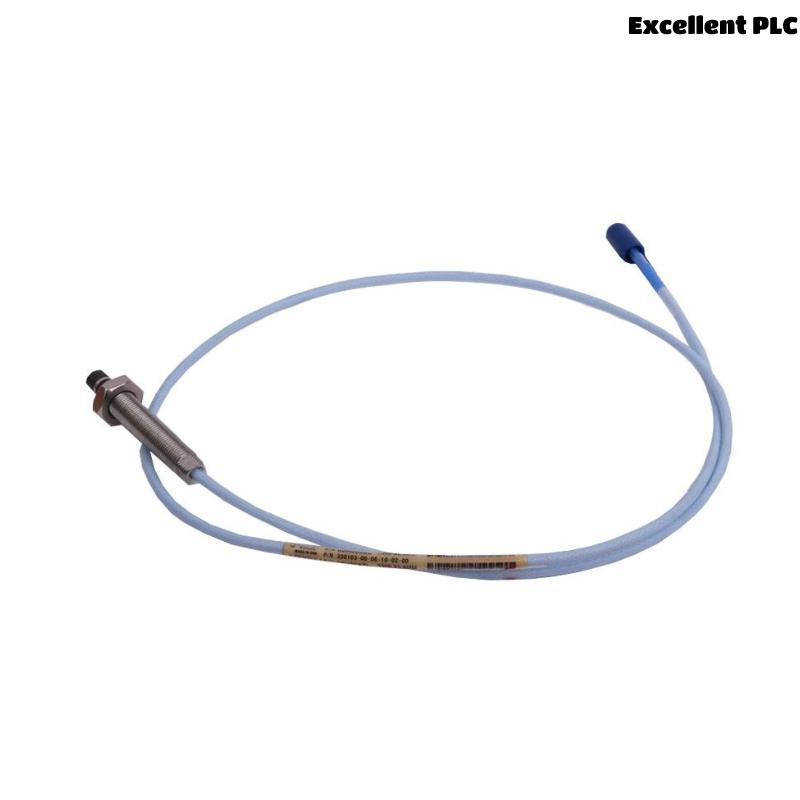

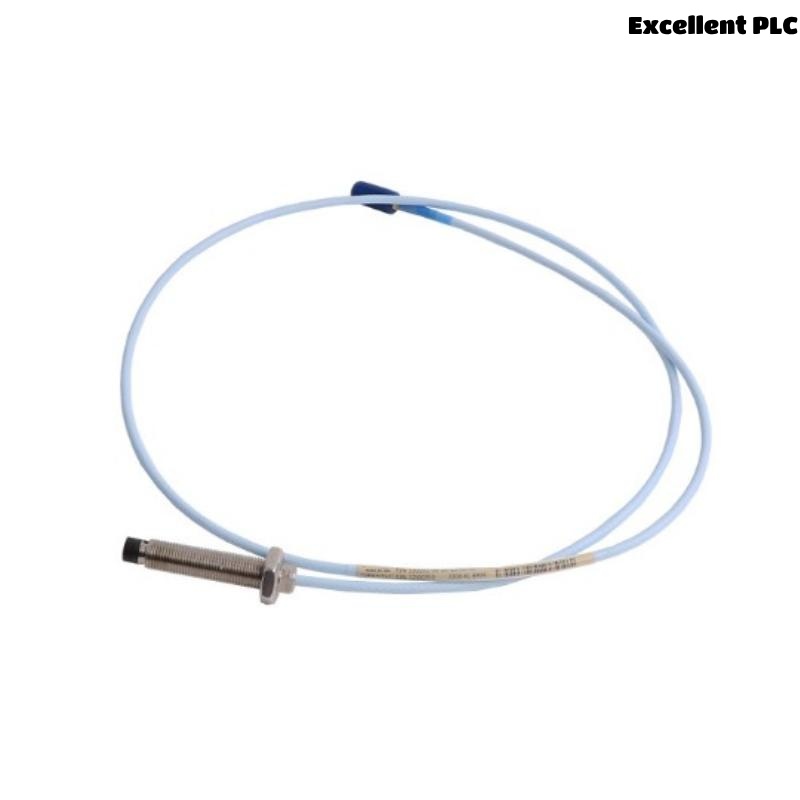

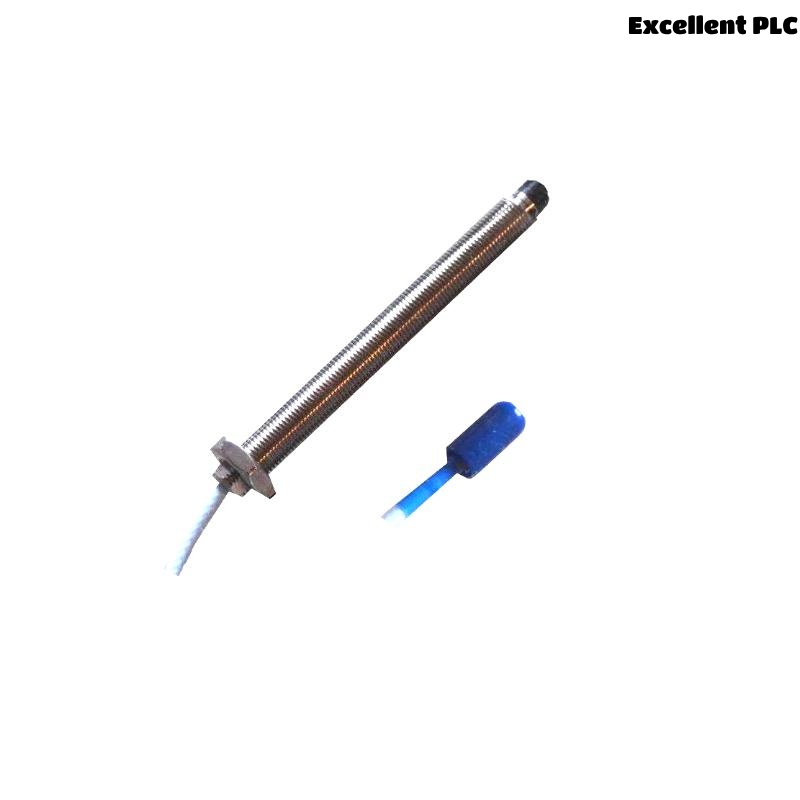

The Bently Nevada 330103-00-06-10-12-00 is a 3300 XL 8 mm Proximity Probe, designed for precise static and dynamic measurements of vibration and position on fluid-film bearing machinery. It integrates seamlessly with the 3300 XL system, ensuring API 670 compliance, high robustness, and excellent EMI/RFI immunity. Its compact M10 x 1 thread is ideal for metric installations with tight mounting space.
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Tip Diameter | 8.0 mm |
| Thread Size | M10 x 1 |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | 75Ω triaxial, FEP insulation |
| Operating Temperature | -52°C to +177°C (standard) |
| Storage Temperature | -52°C to +177°C (standard) |
| Humidity | ≤3% ASF change @ 93% RH (56 days) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Linear Range | 0.25–2.3 mm (10–90 mils) |
| Minimum Target Size | 15.2 mm flat surface |
| Recommended Shaft Diameter | ≥76.2 mm |
Applications
-
Vibration monitoring in turbines, compressors, and pumps
-
Position measurement of rotating shafts
-
Keyphasor reference and overspeed protection
-
Suitable for high-density DIN-rail or panel mounting
Advantages
-
Fully API 670 compliant
-
Backward compatible with earlier 3300 series
-
High immunity to RFI/EMI, no special shielding required
-
Patented TipLoc and CableLoc designs improve durability
-
Optional FluidLoc cables prevent fluid ingress
-
Finger-tight ClickLoc connectors, no special tools needed
FAQ
Q1: What is the thread type of this probe?
A1: The 330103 uses an M10 x 1 metric thread.
Q2: Can this probe be used with older 3300 systems?
A2: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm systems.
Q3: What is the recommended shaft diameter for installation?
A3: A minimum shaft diameter of 76.2 mm is recommended for accurate readings.
Q4: Is this probe compliant with API 670?
A4: Yes, it meets API 670 standards for mechanical configuration and accuracy.
Q5: Does it require special tools to install the connectors?
A5: No, ClickLoc connectors can be installed finger-tight without tools.
Q6: What’s the maximum operating temperature?
A6: The standard probe operates up to +177°C.
Q7: What is the total length and weight of this model?
A7: It is 1.0 meter long and weighs approximately 0.323 kg.
Q8: Does it support both vibration and position measurements?
A8: Yes, it measures both static (position) and dynamic (vibration) displacements.
Q9: Is a shielded housing necessary for EMC compliance?
A9: No, it is CE compliant even in non-metallic enclosures.
Q10: Are armored cables available for this probe?
A10: Yes, armored versions are available as separate part numbers.
