Product Introduction

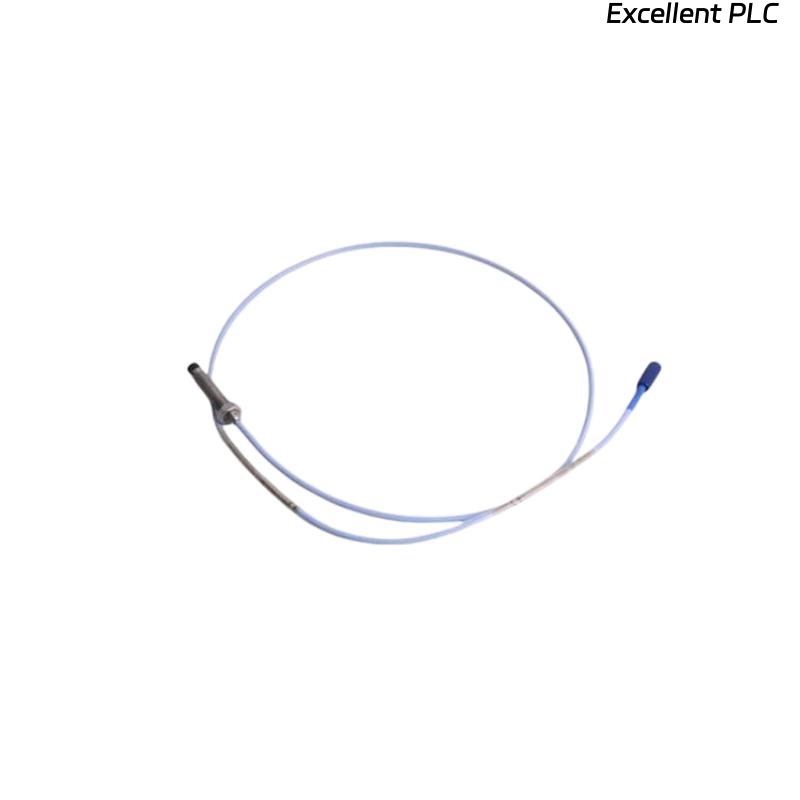

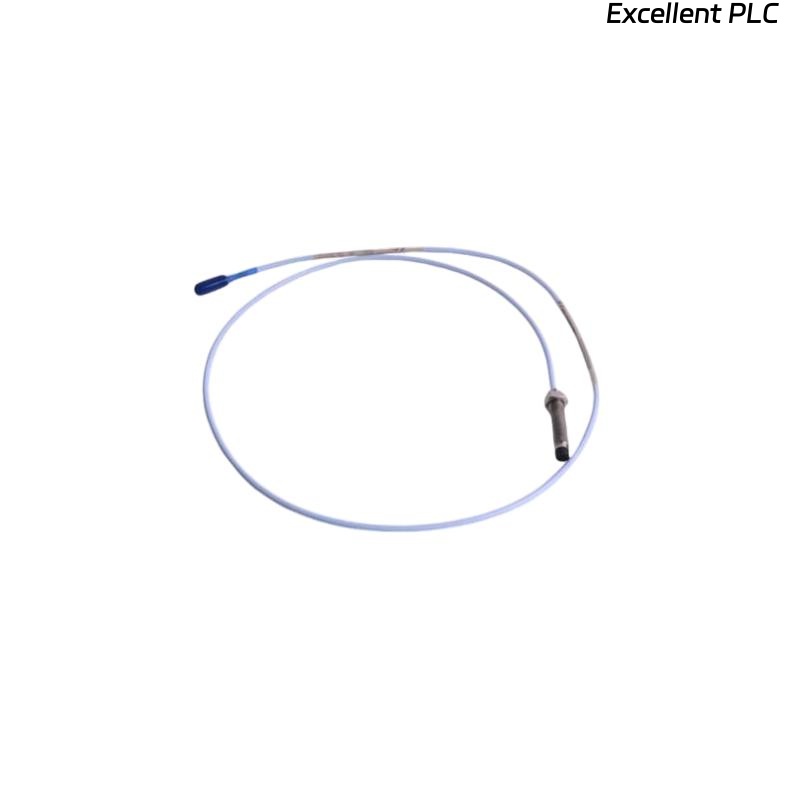

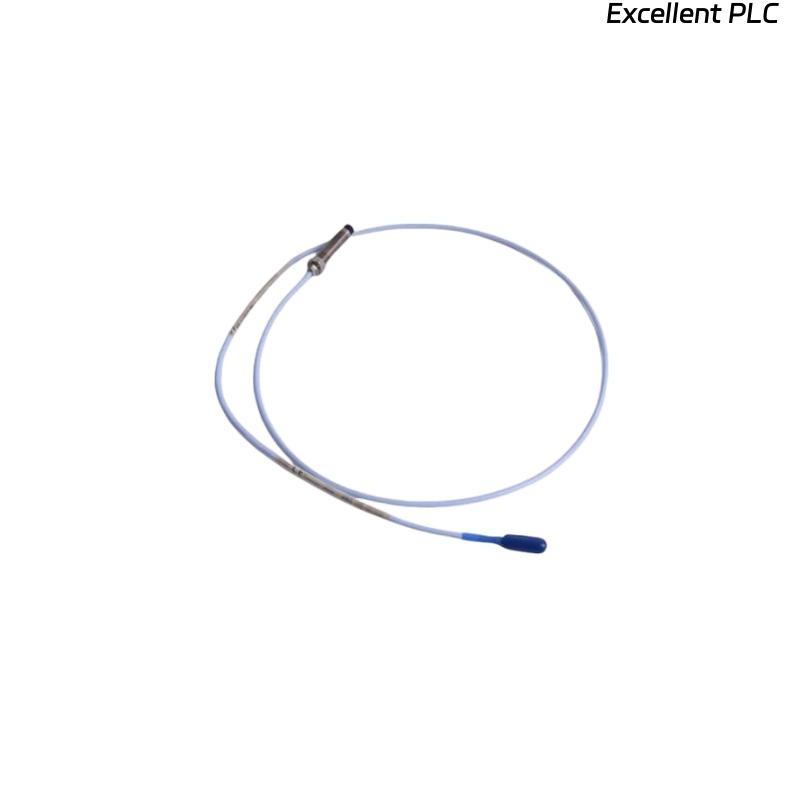

The Bently Nevada 330103-00-07-10-01-CN is a high-precision 8 mm proximity probe from the 3300 XL series, designed for continuous vibration and displacement monitoring in rotating machinery. It features a 1.0-meter cable, providing flexibility for standard industrial installations. Constructed with a PPS probe tip and stainless steel housing, the probe ensures reliable performance under challenging conditions, including elevated temperatures, humidity, and industrial contamination.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 330103-00-07-10-01-CN |
| Measurement Range | 8 mm |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Housing Material | Stainless Steel (AISI 303/304) |
| Connector Type | Miniature Coaxial ClickLoc™ |
| Cable Type | Standard Industrial Cable |
| Thread Type | M10 × 1 |
| Operating Temperature | –40 °C to +120 °C |
| Target Material | AISI 4140 Steel |
| Compliance | API 670 4th Edition |
Applications
-
Vibration Monitoring: Continuously measures radial and axial shaft vibrations for predictive maintenance.
-
Shaft Displacement Measurement: Provides precise real-time displacement data for alignment and rotor balancing.
-
Keyphasor® Pulse Output: Offers synchronized pulses for protection and control systems.
-
Industrial Environment Adaptation: Designed to function reliably under high temperature, high humidity, and dusty conditions.
Product Advantages
-
High Accuracy: Non-contact measurement with excellent repeatability.
-
Durable Construction: PPS tip and stainless steel housing resist harsh industrial environments.
-
System Compatibility: Fully compatible with the 3300 XL monitoring platform.
-
Compliance: Meets API 670 standards for machinery protection.
-
Installation Flexibility: 1-meter cable supports standard installation setups.
FAQ
Q1: How do I properly set the probe-to-shaft gap?
A1: Use a feeler gauge to ensure the gap matches the recommended value.
Q2: Can the probe maintain accuracy at variable rotational speeds?
A2: Yes, the probe maintains precision within its rated speed range.
Q3: How do I prevent electrical interference on the signal?
A3: Ensure proper shielding, grounding, and routing of cables away from noise sources.
Q4: How can I verify the probe’s functionality after installation?
A4: Conduct system self-tests and check Keyphasor® pulses along with vibration signals.
Q5: Is the PPS tip suitable for all shaft materials?
A5: Yes, it is compatible with standard steel and alloy targets.
Q6: How is Keyphasor® signal timing confirmed?
A6: Compare the pulse output to a reference signal under stable operation.
Q7: Can I extend the cable beyond 1 meter?
A7: Cable extensions may affect signal quality; for guidance, please contact us.
Q8: What does an irregular signal indicate?
A8: Irregular pulses or noise spikes may point to issues with the probe, cable, or grounding.
Q9: Do I need recalibration after replacing the probe?
A9: No, 3300 XL probes are plug-and-play.
Q10: How should signal issues be addressed?
A10: Check gap, cable, and grounding; for expert troubleshooting, please contact us.
Recommended Models (Same Series / Related)
| Model | Description |
|---|---|
| 330101-00-07-10-01-CN | 8 mm probe, 1 m standard cable |
| 330102-00-07-10-01-CN | 8 mm armored probe, 1 m cable |
| 330103-00-07-10-01-R0 | Standard 8 mm probe, 1 m cable |
| 330104-00-07-10-01-CN | Smooth-case 8 mm probe, 1 m cable |
| 330191-00-07-10-01-CN | Low-temperature 8 mm probe, 1 m cable |
| 330106-00-07-10-01-CN | Reverse-mount 8 mm probe, 1 m armored cable |
