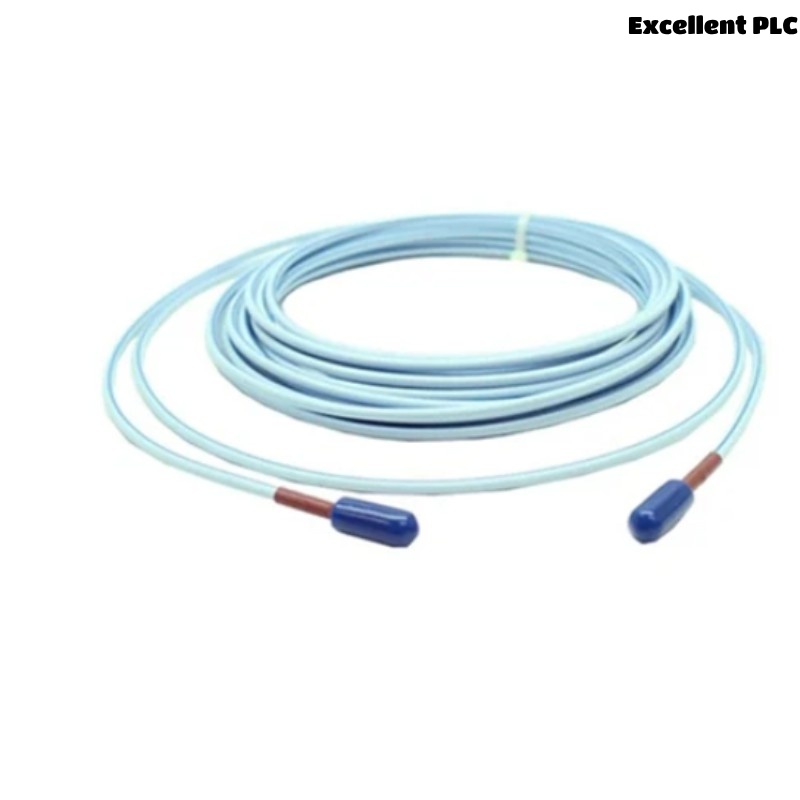

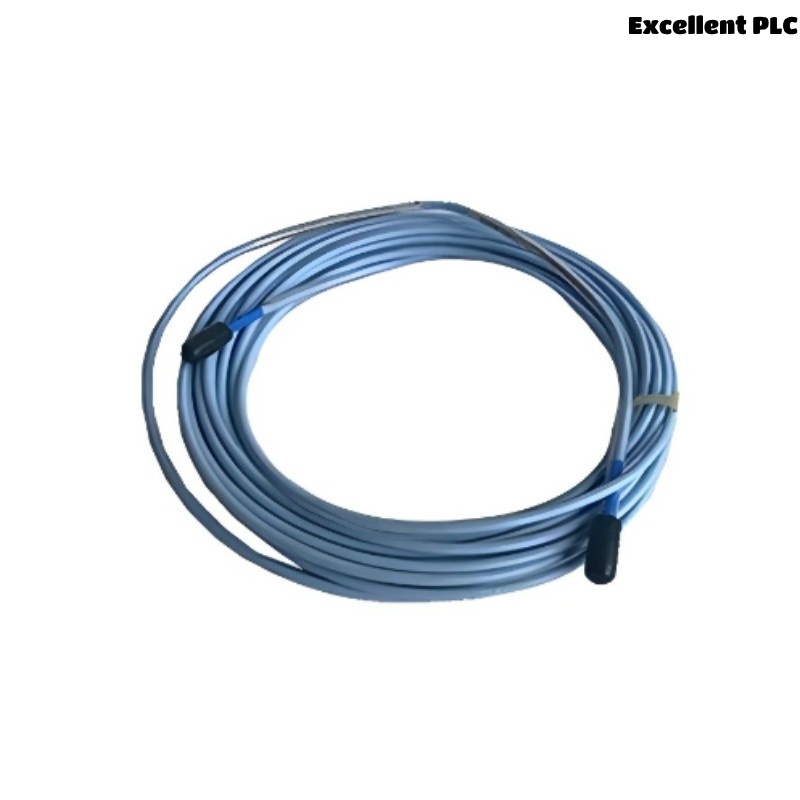

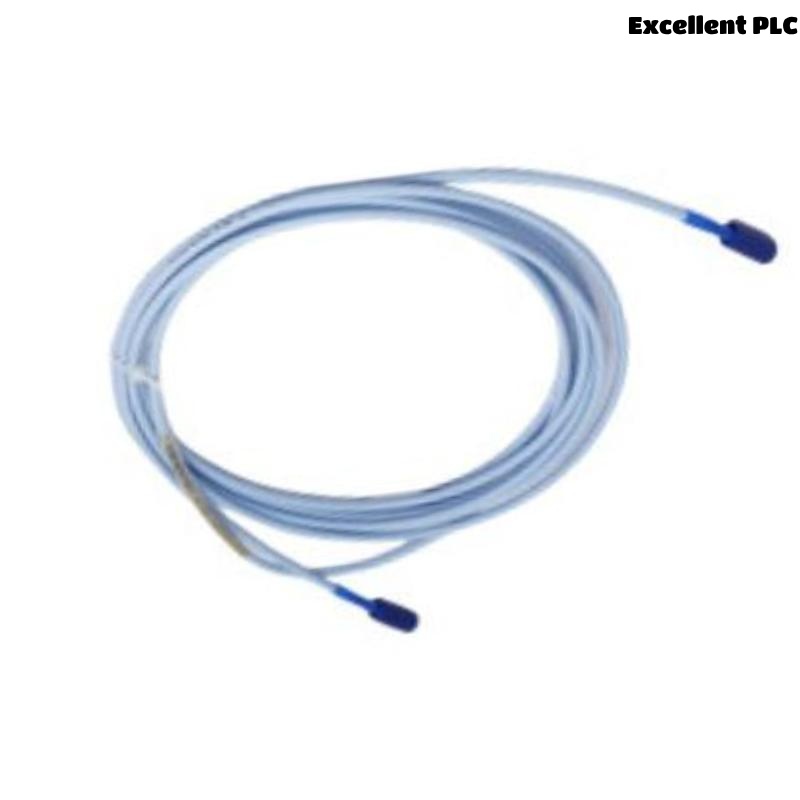

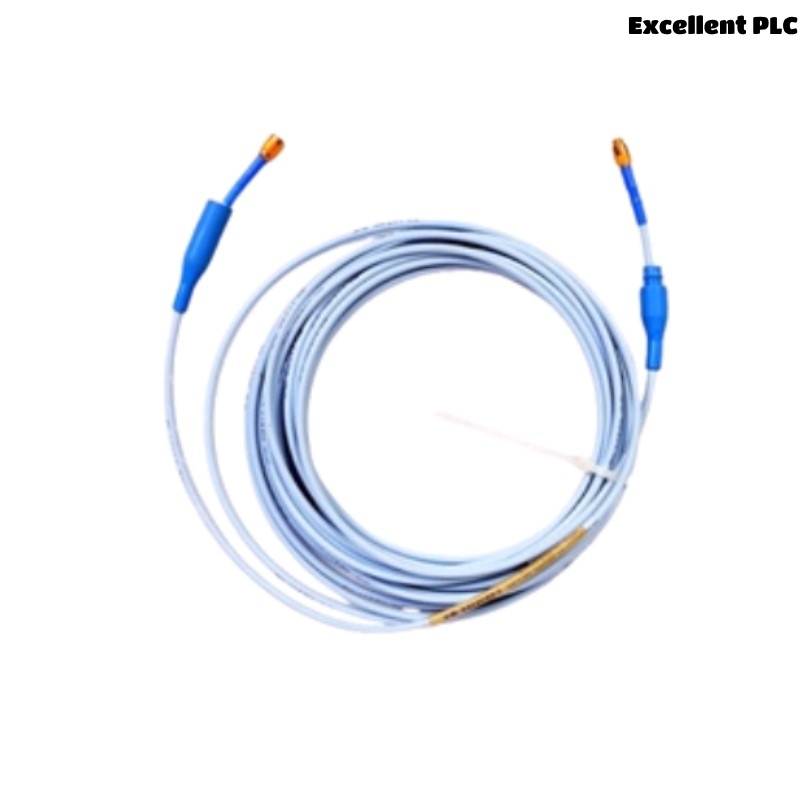

Bently Nevada 330103-00-07-20-02-00 3300 XL 8 mm Proximity Probe

Product Overview

The Bently Nevada 330103-00-07-20-02-00 is a precision-engineered 8 mm proximity probe from the 3300 XL series, designed for high-accuracy shaft displacement and vibration measurement. It utilizes eddy current technology for non-contact displacement measurements, making it essential for condition monitoring and machinery protection in critical equipment. Whether used in turbines, motors, compressors, or pumps, the 3300 XL proximity probes offer reliable data for early fault detection and predictive maintenance.

This configuration comes with a 7-meter probe and 20-meter extension cable, making it ideal for installations in large or complex machinery where long cable runs are necessary. This probe integrates seamlessly with the Bently Nevada 3300 XL Proximitor sensor, ensuring consistent and high-performance monitoring in demanding environments.

Key Features

• 8 mm probe tip designed for standard industrial shaft displacement measurements

• 7-meter probe combined with a 20-meter extension cable for extended reach in large installations

• Non-contact measurement using eddy current technology for precise displacement readings

• High vibration and shock resistance, capable of withstanding up to 20 g continuous vibration

• Stainless steel housing for superior durability and resistance to harsh environmental conditions

• EMI/RFI shielding for reliable signal transmission in electrically noisy environments

• Fully compatible with 3300 XL Proximitor sensors for seamless integration into condition monitoring systems

• 10-pin Bendix-style connector for secure and stable electrical connection

Technical Specifications

Note: The total system length refers to the combination of the 7-meter probe and 20-meter extension cable, designed for installations requiring extended reach.

Typical Applications

• Turbine and Compressor Monitoring: Essential for monitoring shaft displacement and vibration in turbines, compressors, and other critical rotating machinery.

• Power Generation: Widely used in power plants for monitoring key components such as motors, pumps, and turbines.

• Predictive Maintenance: Enables proactive maintenance by identifying issues such as misalignment, imbalance, or wear before they lead to machinery failure.

• Oil & Gas: Used in offshore and onshore applications, including monitoring pumps and compressors on oil rigs and pipelines.

• Heavy Manufacturing: Critical in manufacturing plants for detecting misalignment or imbalance in large machines, preventing unexpected downtime.

• Aerospace: Used to ensure the performance and safety of aerospace machinery, such as turbine engines, by providing real-time vibration and displacement data.

Advantages

• Extended Cable Length: The 7-meter probe combined with a 20-meter extension cable is ideal for installations where longer cable runs are necessary.

• High Accuracy: The ±1.0 mm linear measurement range ensures precise displacement measurements for critical equipment.

• Non-Contact Measurement: Eddy current technology provides non-contact sensing, reducing wear and tear on the machinery and improving probe longevity.

• Rugged Construction: Built with a stainless steel body and EMI/RFI shielding, the probe performs reliably in harsh environments with high vibration or electromagnetic interference.

• Durability: Designed to withstand up to 20 g of continuous vibration and 500 g of peak shock, making it highly resistant to mechanical stress.

• Seamless Integration: Fully compatible with 3300 XL Proximitor sensors, enabling straightforward integration into condition monitoring systems.

Frequently Asked Questions (FAQ)

1. What is the total length of this proximity probe system?
   The system includes a 7-meter probe and a 20-meter extension cable, providing a total length of 27 meters.

2. What is the linear measurement range of the probe?
   The probe offers a ±1.0 mm linear measurement range, allowing it to detect a total displacement of 2.0 mm.

3. Can the probe cable be replaced or extended?
   Yes, the probe cable and extension cable are modular and can be replaced or extended as required.

4. How accurate is the measurement from this probe?
   The probe offers high accuracy with a system accuracy of ±0.07 mm (±0.0028 in) over its linear range.

5. What is the shock limit for this probe?
   The probe can withstand up to 500 g of peak shock, making it suitable for use in high-impact and vibration-heavy environments.

6. What industries typically use this probe?
   Common industries include power generation, oil & gas, aerospace, and manufacturing for monitoring critical rotating machinery.

7. What is the operating temperature range of the probe?
   The probe operates effectively within a temperature range of -40 °C to +120 °C.

8. What type of connector does the probe use?
   The probe utilizes a 10-pin Bendix-style male connector for secure and stable electrical connections.

9. Can the probe be used for offshore applications?
   Yes, the stainless steel body and IP65 protection rating make this probe suitable for harsh, offshore, and industrial environments.

10. Is this probe suitable for high-vibration environments?
    Yes, the probe is designed to withstand up to 20 g of continuous vibration and is perfect for applications with high mechanical stress.
