Product Description

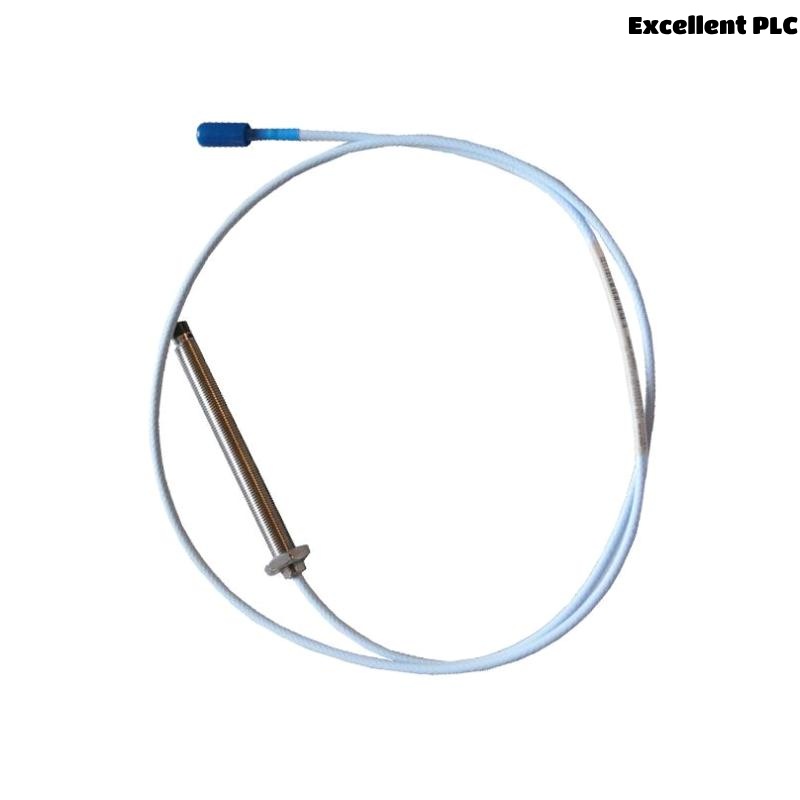

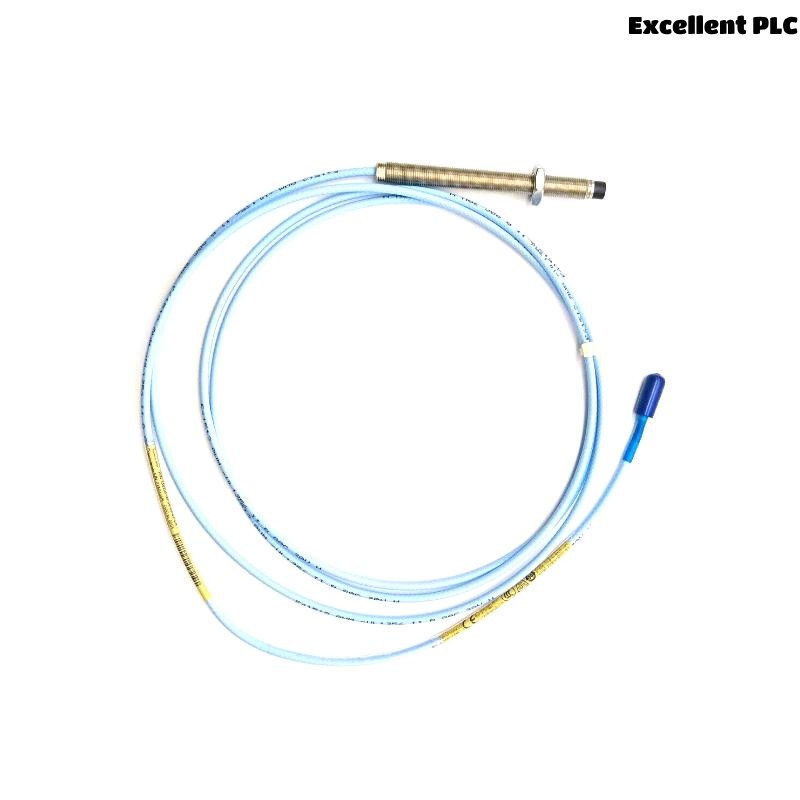

The Bently Nevada 330103-00-07-50-02-05 is part of the 3300 XL 8 mm Proximity Transducer System. It measures static (position) and dynamic (vibration) displacement of conductive surfaces. Designed to meet API 670 standards, it ensures high accuracy, temperature stability, and interchangeability. Its robust design with improved RFI/EMI immunity and easy installation features makes it ideal for fluid-film bearing machines and Keyphasor speed measurements.
Technical Specifications
| Parameter | Value |
|---|---|
| Total Length | 5.0 m (16.4 ft) |
| Weight | 1.615 kg |

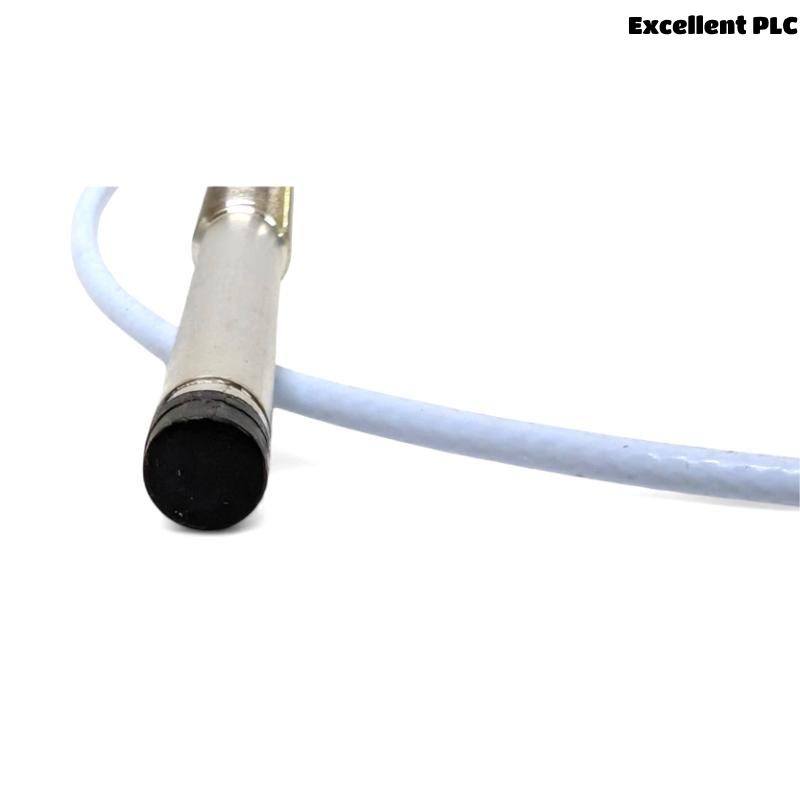

| Probe Tip Diameter | 8 mm |
| Probe Thread | M10 x 1 |
| Linear Range | 0.25–2.3 mm (10–90 mils) |
| Operating Temperature | -52°C to +177°C (standard) |
| Extended Temperature Range | Up to +218°C (probe tip) |
| Output Scale Factor | 200 mV/mil ±5% |
| Frequency Response | 0–10 kHz (+0/-3 dB) |
| Minimum Target Size | 15.2 mm diameter |
| Recommended Shaft Diameter | ≥76.2 mm |
| Compliance | API 670, CE, RoHS, SIL 2/3 |
Applications
-
Vibration monitoring of rotating machinery
-
Shaft position and displacement measurement
-
Keyphasor reference signals
-
Overspeed protection systems
-
High-density installations in industrial environments
Advantages
-
Full API 670 compliance
-
High robustness with improved bonding and pull strength
-
Backward and cross-compatibility with older systems
-
Excellent RFI/EMI immunity, reducing installation costs
-
SpringLoc connections for fast, reliable wiring
-
Extended temperature options available
-
Environmentally protected connectors
Frequently Asked Questions (FAQ)
Q1: What is the linear range of the 330103 probe?
A1: The linear range is approximately 0.25 to 2.3 mm (10–90 mils).
Q2: Is the probe compatible with older 3300 systems?
A2: Yes, it is electrically and physically interchangeable with non-XL 3300 8 mm and 5 mm components.
Q3: Does this probe meet API 670 standards?
A3: Yes, it fully complies with API 670 mechanical and performance standards.
Q4: What is the standard operating temperature range?
A4: The standard probe operates between -52°C and +177°C.
Q5: What is the minimum recommended shaft diameter?
A5: At least 76.2 mm (3 inches) for accurate vibration measurements.
Q6: Is special shielding required for installation?
A6: No, the probe’s improved EMI immunity eliminates the need for special shielded conduit.
Q7: Can this probe be used in hazardous areas?
A7: Yes, it has ATEX, IECEx, and CSA approvals for hazardous area applications.
Q8: How is the probe connected?
A8: Using corrosion-resistant, gold-plated ClickLoc connectors with finger-tight torque.
Q9: Is the probe available in extended temperature versions?
A9: Yes, optional ETR versions can handle up to +218°C at the probe tip.
Q10: What is the tensile strength of the probe cable?
A10: The probe-to-lead bond withstands up to 330 N (75 lbf) pull strength.
Related Models (Same Series or Category)
| Model Number | Thread Type | Length | Weight |
|---|---|---|---|
| 330101-00-08-05-02-00 | 3/8-24 UNF | 5.0 m | 1.6 kg |
| 330102-00-20-10-02-00 | 3/8-24 UNF (Armor) | 2.0 m | 1.2 kg |
| 330104-00-06-10-02-00 | M10 x 1 (Armor) | 1.0 m | 0.8 kg |
| 330105-02-12-05-02-05 | 3/8-24 UNF (Reverse) | 0.5 m | 0.5 kg |
| 330140-00-50-02-00 | Smooth Case | 5.0 m | 1.6 kg |
| 330191-00-50-05-02-00 | ETR 3/8-24 UNF | 5.0 m | 1.6 kg |
Popular Bently Nevada Models
| Model Number | Product Type | Application | Weight |
|---|---|---|---|
| 3300/50 | Proximitor Monitor | Vibration Monitoring | 0.9 kg |
| 3500/42M | Proximitor Seismic Monitor | Machinery Health | 1.2 kg |
| 3500/22M | Transient Data Interface | Data Acquisition | 1.0 kg |
| 3500/32M | Relay Module | Alarm/Shutdown Relay | 0.8 kg |
| 330180-51-05 | 3300 XL Proximitor Sensor | Probe Signal Conditioning | 0.9 kg |
| 330130-070-00-00 | 3300 XL Extension Cable | Probe to Sensor Connection | 0.3 kg |
