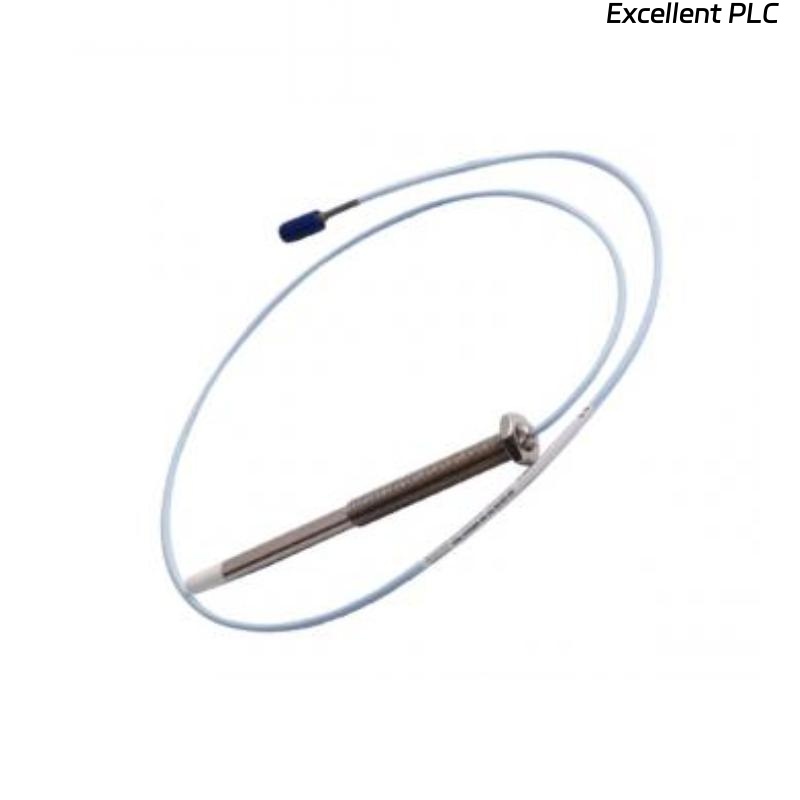

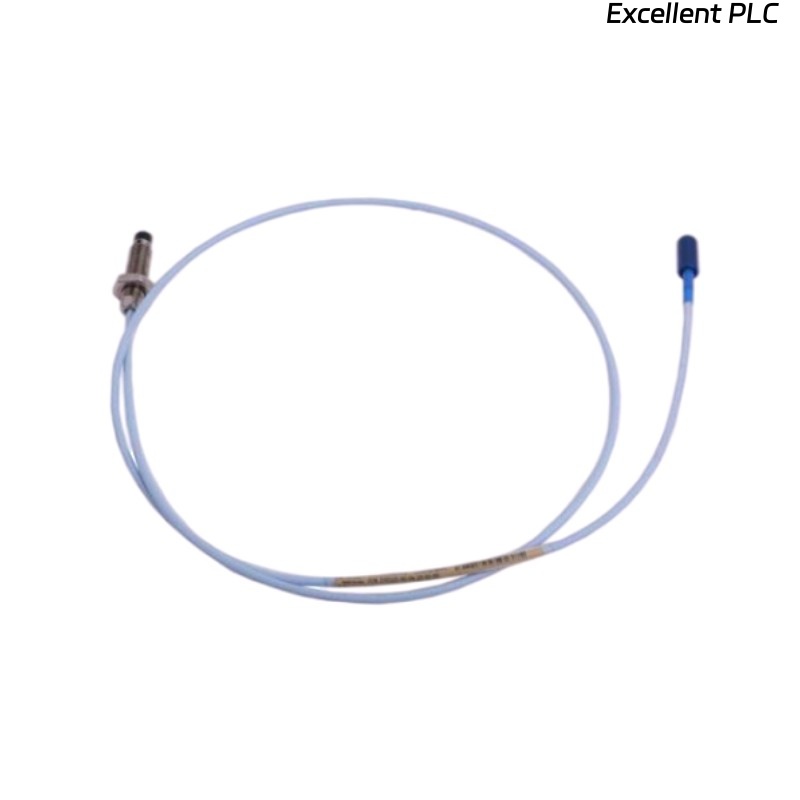

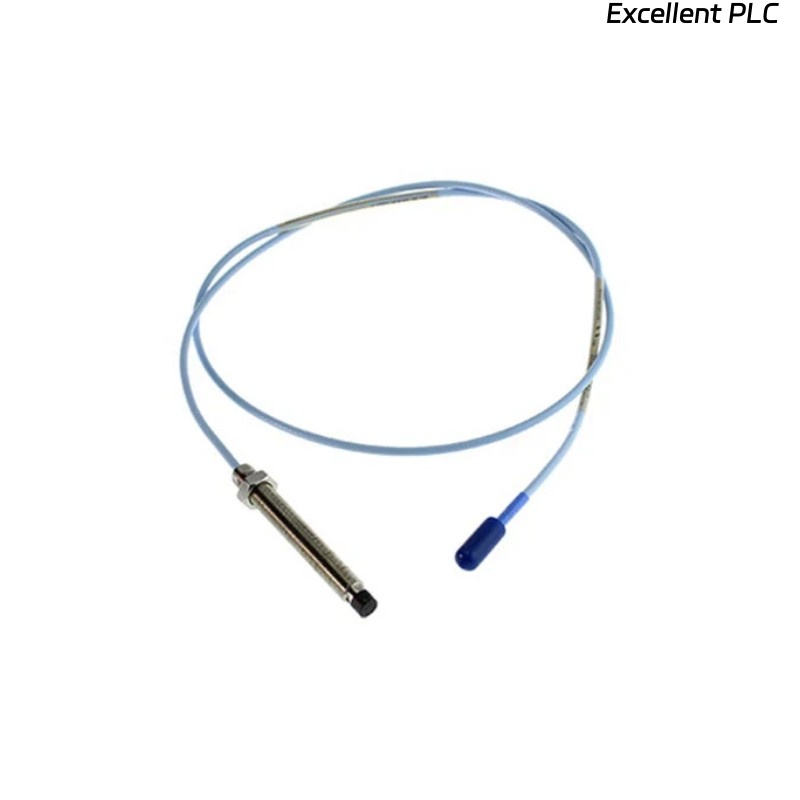

Bently Nevada 330103-00-08-05-01-CN 3300 XL 8 mm Proximity Probe

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Bently Nevada 330103-00-08-05-01-CN 3300 XL 8 mm Proximity Probe is a precision-engineered probe designed to measure the relative displacement of a machine shaft relative to the probe mounting location. As part of the renowned 3300 XL series, this model provides high accuracy and long-term reliability for machinery protection and condition monitoring systems. It is widely applied in rotating machinery such as turbines, compressors, pumps, and generators, ensuring effective vibration analysis and shaft position monitoring.

---

Technical Specifications

---

Product Applications

• Power Generation: Monitoring turbines and generators to prevent shaft rubs and detect misalignment.

• Oil & Gas: Ensuring compressors and pumps run within safe vibration limits.

• Petrochemical Plants: Continuous monitoring of critical rotating equipment to avoid costly downtime.

• Manufacturing: Used in motors and gearboxes for predictive maintenance.

• Aerospace and Defense: Integrated into testing rigs for high-speed rotating equipment.

---

Product Advantages

• High Accuracy and Stability: Ensures precise shaft displacement measurements with minimal drift.

• Robust Industrial Design: Resistant to harsh environmental conditions such as high heat, humidity, and contamination.

• Wide Compatibility: Fully compatible with the 3300 XL series drivers and extension cables, providing flexible system design.

• Ease of Integration: Simple installation into standard probe mounts with threaded fittings.

• Enhanced Reliability: Long operational life with minimal maintenance requirements.

• Proven Performance: Used worldwide across industries with a long track record of trusted performance.

---

FAQ

Q1: What is the linear range of the 330103-00-08-05-01-CN probe?
A1: The linear range is typically 2 to 4 mm depending on the configured driver and installation setup.

Q2: How does the probe achieve electrical isolation?
A2: The probe incorporates an insulated design where the sensing tip is isolated from the stainless steel body to prevent grounding interference.

Q3: Can this probe operate under high vibration conditions?
A3: Yes, it is designed to withstand vibration levels up to 10 g peak within the 5–2,000 Hz frequency range.

Q4: What type of drivers is this probe compatible with?
A4: It is fully compatible with the 3300 XL Proximitor drivers, particularly the 3300-xx series.

Q5: How is sensitivity calibrated?
A5: Sensitivity is factory-calibrated to -200 mV/µm (±6%), ensuring consistent output across probes.

Q6: What is the maximum shock the probe can withstand?
A6: The probe can handle shock loads up to 500 g peak without damage.

Q7: Does cable length affect the probe’s output?
A7: Yes, correct calibration is dependent on the specified probe, extension cable, and driver combination. Deviations can affect accuracy.

Q8: What is the recommended nominal gap for installation?
A8: The recommended gap is 2.0 mm to ensure accurate linear response.

Q9: Can the probe be used in high-temperature applications?
A9: Yes, the operating temperature range is -35 °C to +175 °C, suitable for high-temperature machinery.

Q10: How does this probe integrate with monitoring systems?
A10: The probe connects to a proximitor sensor via extension cable, which converts the displacement into a voltage signal for the monitoring system.

---
