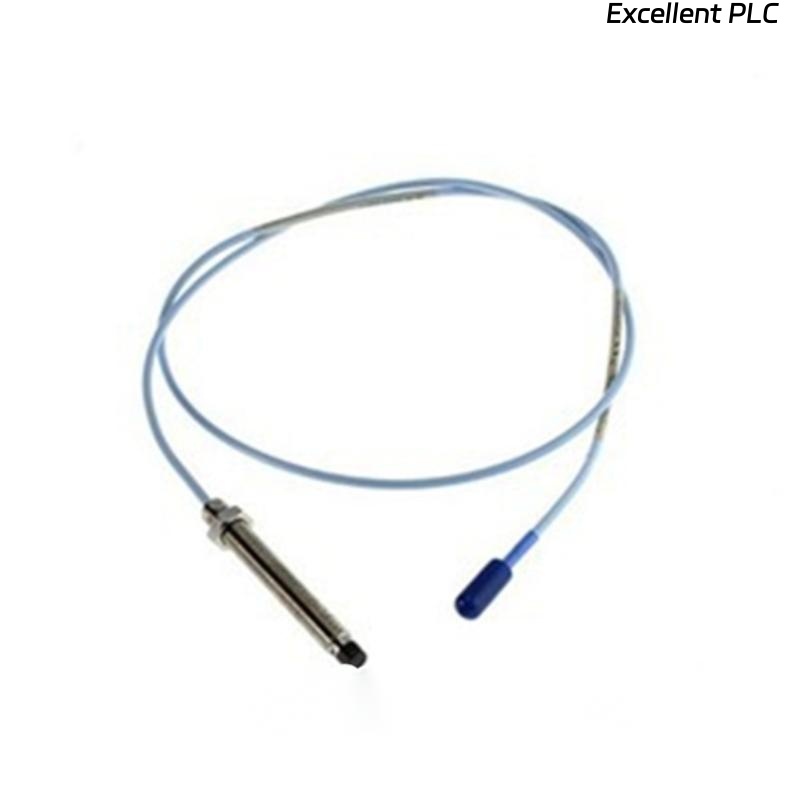

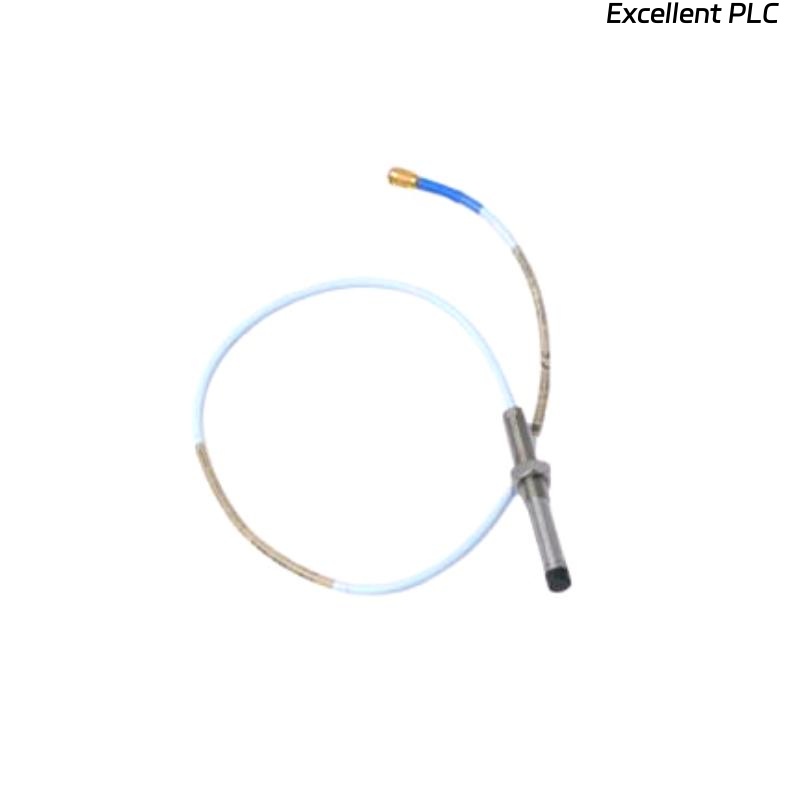

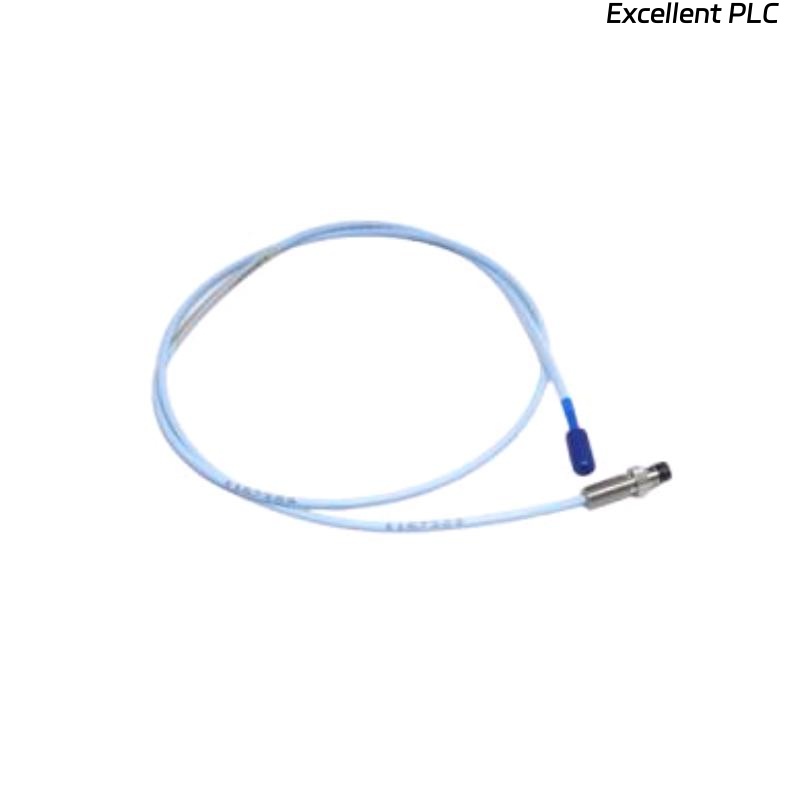

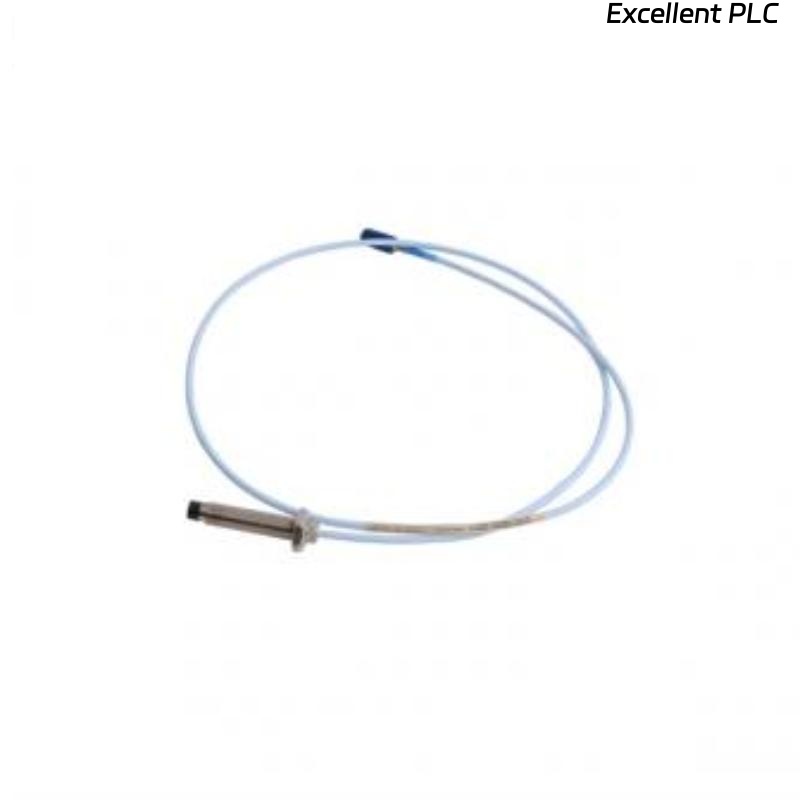

Bently Nevada 330103-00-08-05-12-05 3300 XL 8 mm Proximity Probe

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Bently Nevada 330103-00-08-05-12-05 3300 XL 8 mm Proximity Probe is an advanced component designed for precise shaft vibration and position measurements in critical rotating machinery. Developed as part of the 3300 XL series, this probe provides reliable proximity detection and robust performance under challenging industrial conditions.

---

Technical Specifications

---

Product Applications

• Turbomachinery Monitoring: Detecting shaft vibration and position in turbines, compressors, and pumps.

• Bearings and Gearbox Diagnostics: Monitoring bearing clearances and detecting early-stage wear or misalignment.

• Critical Machinery Protection: Acting as a primary input sensor for vibration protection systems.

• Condition-Based Maintenance: Providing data for predictive maintenance strategies, minimizing unexpected shutdowns.

• Process Industries: Ensuring stable operations in oil refineries, chemical plants, and steel manufacturing.

---

Product Advantages

• High Accuracy: Provides precise and repeatable measurements even under harsh environments.

• Wide Temperature Range: Suitable for both cryogenic and high-temperature industrial applications.

• Rugged Construction: Stainless steel design ensures durability in corrosive and high-vibration environments.

• Reliable Compatibility: Fully compatible with 3300 XL Proximitor sensors and cabling systems.

• Extended Linear Range: Allows accurate monitoring of shaft displacement and vibration amplitudes.

• Field Proven Reliability: Backed by extensive use in global industrial machinery monitoring systems.

• Easy Installation: Threaded body design ensures simple and secure mounting.

---

FAQ

Q1: How does the 330103-00-08-05-12-05 proximity probe measure shaft vibration?
A1: It uses an eddy current principle to sense changes in the electromagnetic field caused by shaft motion, converting them into voltage signals proportional to displacement.

Q2: What signal output does this probe generate?
A2: The probe produces a linear output of approximately 200 mV per mil (7.87 mV/µm) of shaft displacement.

Q3: Can this probe be used with extension cables of different lengths?
A3: Yes, but it must be matched with the correct Proximitor sensor to maintain calibration and accuracy.

Q4: How is the probe gap adjusted during installation?
A4: The probe should be set to its nominal gap (typically 1.0 mm) using a non-conductive feeler gauge to ensure accurate baseline measurements.

Q5: Is the probe resistant to electromagnetic interference (EMI)?
A5: Yes, the 3300 XL series incorporates shielding to reduce the effects of EMI in industrial environments.

Q6: What type of shaft materials provide optimal performance with this probe?
A6: The probe is calibrated for 4140 steel (with a conductivity factor of 1.0). Performance may vary slightly with other alloys.

Q7: How does the probe interface with a monitoring system?
A7: It connects via an extension cable to a 3300 XL Proximitor sensor, which conditions the signal for monitoring and protection systems.

Q8: Can the probe be used in hazardous environments?
A8: Yes, with proper installation and certification, the probe can be used in ATEX or Class I Division 2 hazardous environments.

Q9: What happens if the probe is mounted too close or too far from the shaft?
A9: Incorrect gap settings can cause non-linear output, reduced sensitivity, or inaccurate displacement readings.

Q10: Does the probe support dynamic vibration and static position measurements?
A10: Yes, it is designed to provide both static shaft position and dynamic vibration monitoring simultaneously.

---
