Product Introduction

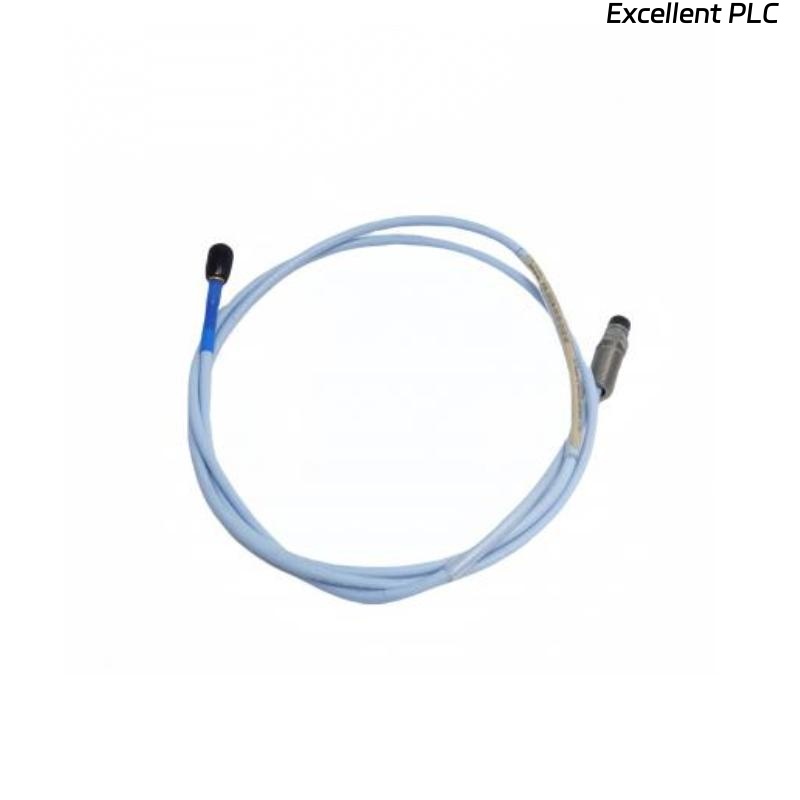

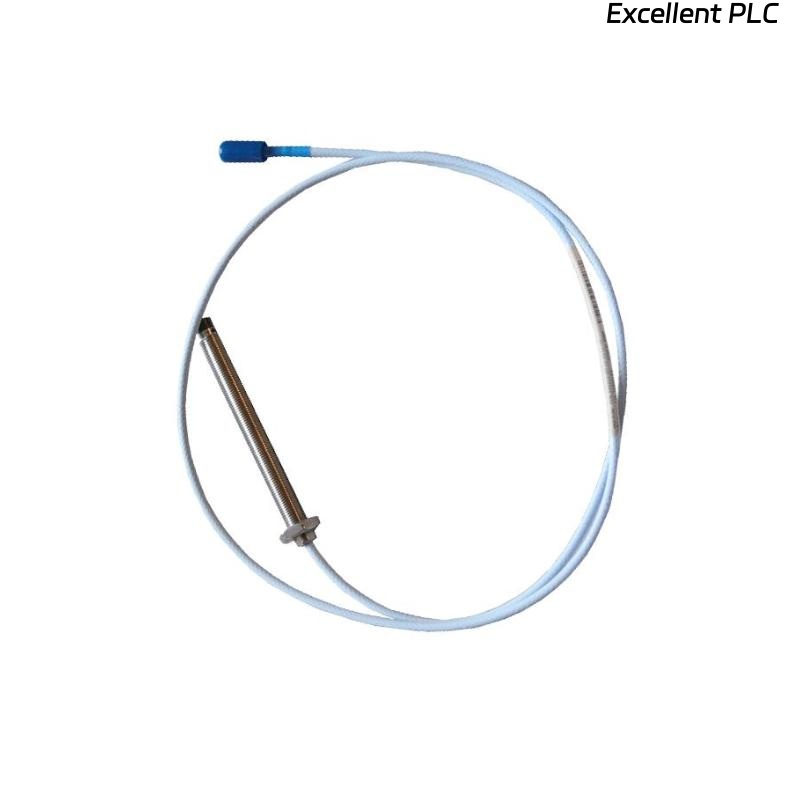

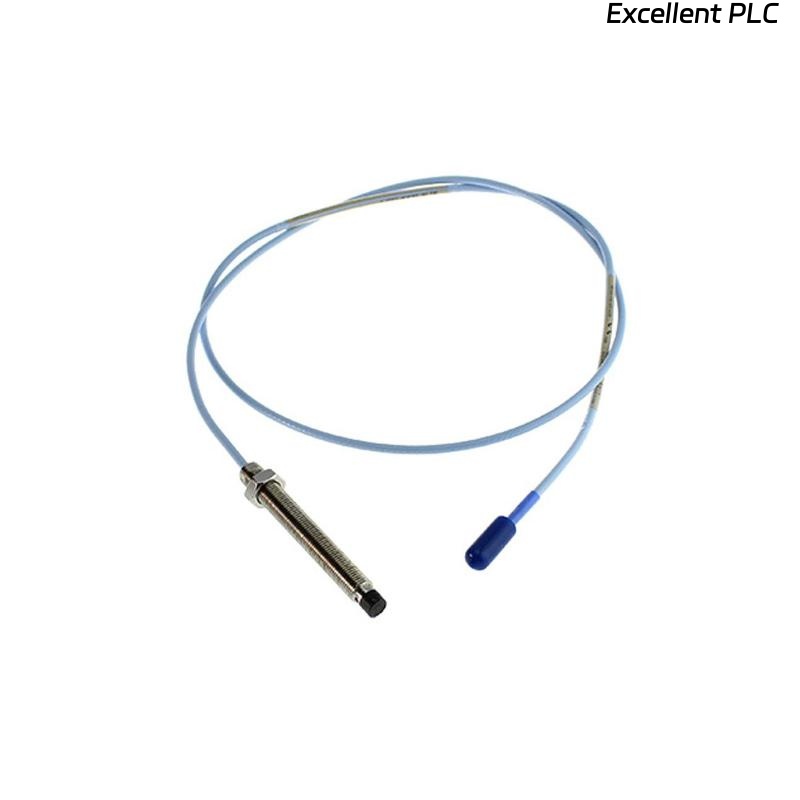

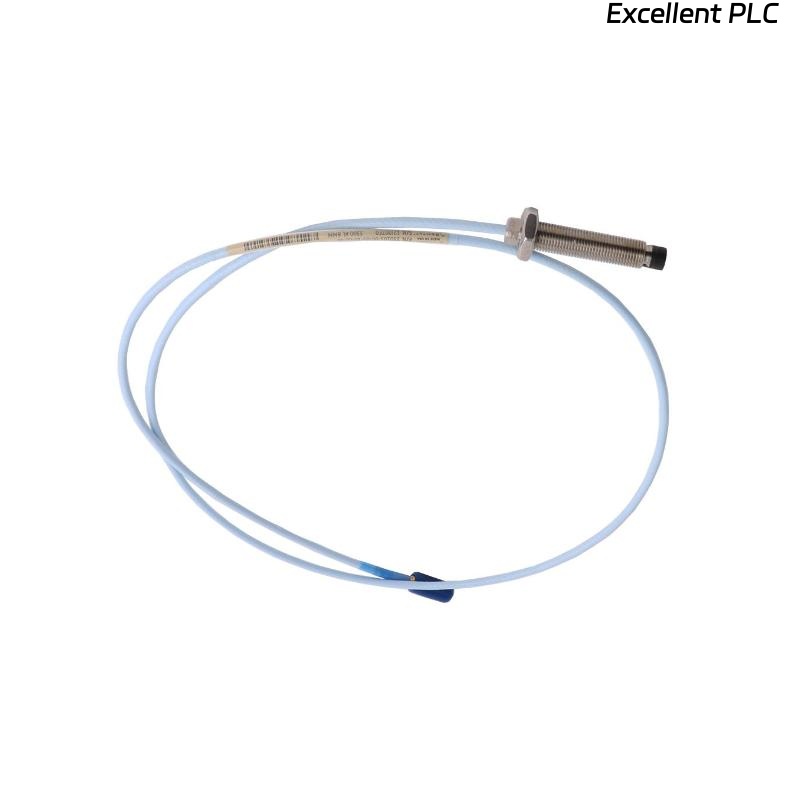

The Bently Nevada 330103-00-08-10-12-RU 3300 XL 8 mm Proximity Probe is an advanced vibration and displacement sensing device designed for critical rotating machinery applications. This probe is part of the trusted 3300 XL series, a family of probes widely recognized for their high reliability and accuracy in industrial monitoring systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330103-00-08-10-12-RU |
| Series | Bently Nevada 3300 XL 8 mm Proximity Probe |
| Probe Tip Diameter | 8 mm (standard sensing tip) |
| Connector Type | Standard BNC or compatible ruggedized connector |
| Material | Stainless steel probe housing with fluoropolymer insulated cable |
| Frequency Response | DC to 10 kHz |
| Temperature Range | -35 °C to +177 °C (probe body) |
| Total Length | 1 m |
| Weight | 0.323 kg |
| Compliance | API 670, CE, and CSA certified |
Product Applications
-
Turbomachinery Monitoring: Used in steam turbines, gas turbines, and hydro turbines for shaft vibration and position measurement.
-
Compressors and Pumps: Ensures safe operation by continuously detecting displacement and vibration anomalies.
-
Generators and Motors: Protects electrical machines from rotor-to-stator contact or imbalance conditions.
-
Petrochemical and Refining: Ensures high uptime in refineries and chemical plants by providing reliable monitoring.
-
Aerospace and Defense Equipment: Adapted for precision monitoring in specialized high-speed rotating equipment.
-
Industrial Manufacturing: Applied in critical drive systems, gearboxes, and fans for predictive maintenance.
Product Advantages
-
High Accuracy: Provides precise shaft displacement and vibration measurements for reliable monitoring.
-
Rugged Design: Stainless steel probe body and durable cable insulation withstand harsh industrial environments.
-
Electromagnetic Immunity: Designed to operate in areas with strong EMI/RFI without compromising accuracy.
-
Industry Standard Compliance: Fully compliant with API 670, ensuring global compatibility with monitoring systems.
-
Wide Temperature Range: Capable of withstanding extreme temperatures, making it versatile for diverse applications.
-
Ease of Integration: Seamlessly integrates with Bently Nevada Proximitor Sensors and monitoring systems.
-
Long Service Life: Built with high-quality materials to reduce replacement frequency and maintenance costs.
FAQ
Q1: What type of displacement measurement does the 330103-00-08-10-12-RU probe provide?
A1: It provides non-contact eddy current displacement measurement for monitoring shaft vibration and position.
Q2: Can this probe be directly connected to a monitoring system?
A2: No, it must be connected via a 3300 XL Proximitor Sensor, which conditions the signal for monitoring systems.
Q3: What is the linear measurement range of this probe?
A3: The effective linear range is typically around 2 mm depending on calibration and setup.
Q4: Does this probe require field calibration?
A4: Factory calibration is provided, but system calibration may be necessary during installation to ensure accuracy.
Q5: What frequency response does the probe support?
A5: The probe supports a DC to 10 kHz frequency response, suitable for most rotating machinery monitoring.
Q6: How does it handle electromagnetic interference?
A6: The probe design incorporates shielding and insulation, ensuring performance in environments with high EMI/RFI.
Q7: Is the probe interchangeable with older Bently Nevada probes?
A7: Yes, it is backward compatible with older Bently Nevada systems provided proper Proximitor Sensors are used.
Q8: What is the maximum cable length supported?
A8: Standard lengths are available up to 9 meters, but probe + extension + Proximitor system combinations can reach longer lengths.
Q9: What standards does this probe comply with?
A9: It complies with API 670, CE, and CSA requirements for vibration and displacement monitoring systems.
Q10: Can this probe be used in hazardous environments?
A10: Yes, when paired with appropriately certified Proximitor Sensors, the system can be installed in hazardous locations.
