Product Introduction

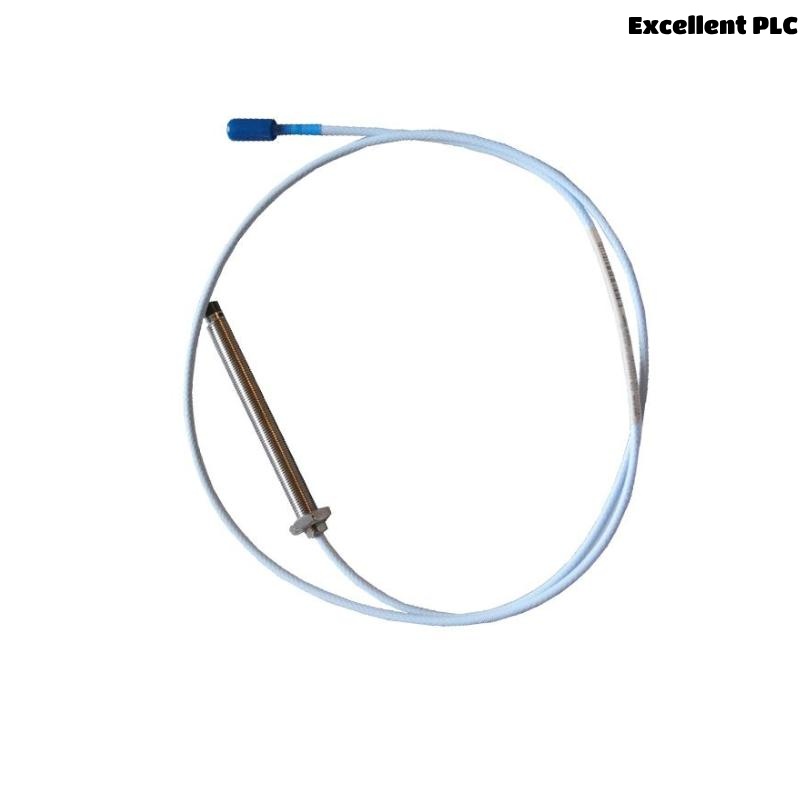

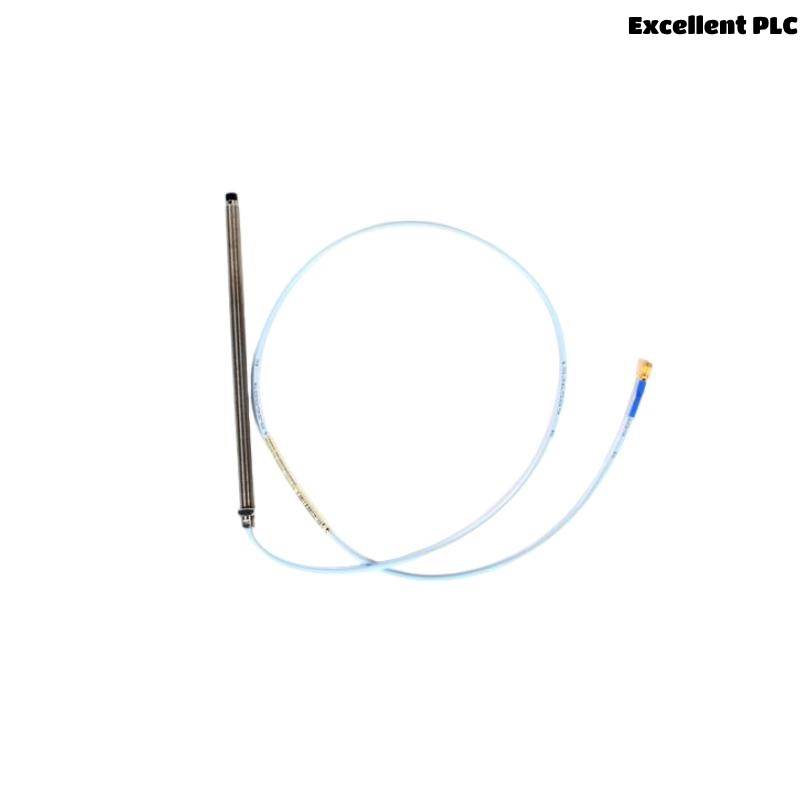

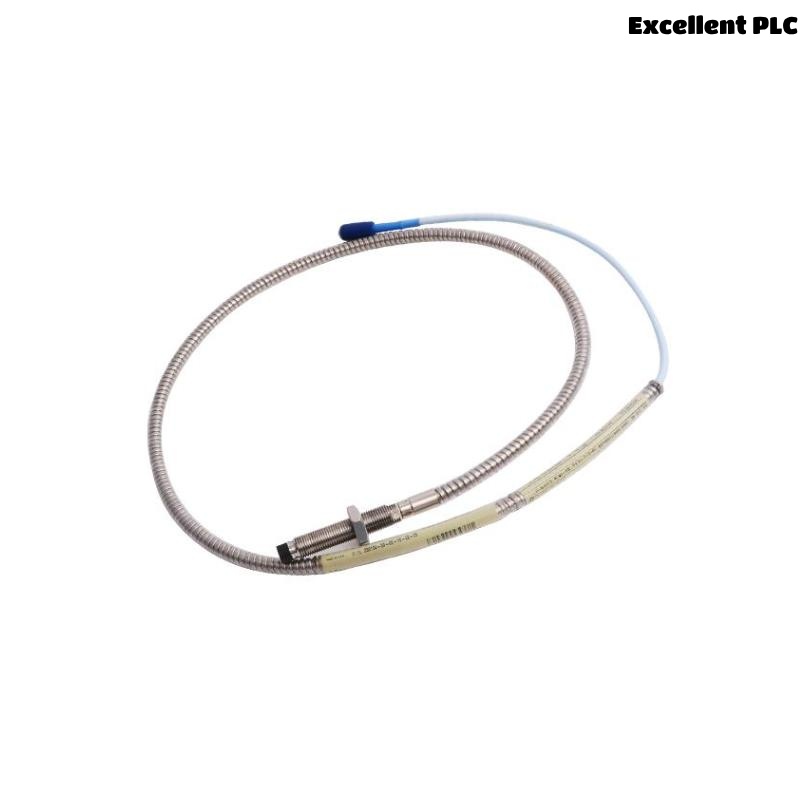

The Bently Nevada 330103-00-08-50-02-00 is an 8mm proximity probe from the 3300 XL Series. This probe is specifically designed for high-precision vibration and displacement measurements in critical machinery monitoring applications. It is widely used across various industries, including power generation, oil and gas, and manufacturing, to ensure the proper functioning of rotating equipment such as turbines, motors, pumps, and compressors.
This 8mm proximity probe is engineered for demanding industrial environments and provides continuous monitoring of machine health. With a total length of 5.0 meters and a weight of 1.615 kg, it offers a high degree of flexibility and is suitable for machinery that requires longer cables or specific installation configurations. The probe can be used for both vibration monitoring and displacement measurement, enabling predictive maintenance and reducing the risk of catastrophic equipment failures.
Product Specifications
| Parameter | Details |
|---|---|
| Model | 330103-00-08-50-02-00 |
| Series | 3300 XL Series |
| Probe Diameter | 8 mm |
| Total Length | 5.0 meters |
| Weight | 1.615 kg |
| Mount Type | Standard Mount |
| Temperature Range | -40°C to +121°C |
| Frequency Range | 2 Hz to 10 kHz |
| Signal Output | AC or DC |
| Cable Length | 5.0 meters |
| Material | Stainless Steel |
| Environmental Protection | IP65 (dustproof and waterproof) |
Applications
The Bently Nevada 330103-00-08-50-02-00 8mm proximity probe is widely used in industrial machinery monitoring and offers the following applications:
-
Turbine Monitoring: Measures axial displacement in turbines, ensuring that any misalignment or imbalance is detected early, preventing catastrophic turbine failure.
-
Electric Motor Monitoring: Helps in continuous monitoring of motor vibration levels to identify any potential mechanical issues such as bearing wear, misalignment, or imbalance.
-
Pump Monitoring: Ideal for centrifugal pumps, this probe detects imbalance or mechanical damage that could lead to reduced efficiency or failure.
-
Compressor Monitoring: Provides crucial data on compressor health by measuring displacement and vibrations, ensuring early detection of problems such as misalignment, imbalance, or damaged bearings.
-
Generator Condition Monitoring: Monitors the displacement and vibration of generators, helping to detect potential failures before they occur.
-
General Machinery Health: This probe can be used for general monitoring of rotating machinery, providing valuable information that assists in predictive maintenance and performance optimization.
Product Advantages
-
High Precision: The Bently Nevada 330103-00-08-50-02-00 provides accurate displacement and vibration measurements, ensuring early detection of faults in machinery.
-
Extended Length: With a total length of 5.0 meters, this probe is ideal for installations where longer cable runs are required, providing flexibility in difficult-to-reach installations.
-
Durable Construction: The probe is built with stainless steel, offering long-lasting durability and resistance to wear and corrosion, even in challenging environments.
-
Wide Temperature Range: This probe operates in temperatures ranging from -40°C to +121°C, making it versatile for both extremely cold and hot industrial environments.
-
Versatile Applications: The 8mm standard mount allows it to be used across a broad range of machinery, including turbines, motors, pumps, compressors, and more.
-
IP65 Protection: With an IP65 rating, this probe is dustproof and waterproof, ensuring reliable operation even in harsh environments where dust or moisture may be present.
-
Improved Operational Efficiency: By enabling real-time monitoring of machine health, the probe helps reduce the risk of unplanned downtime and ensures more efficient, predictive maintenance.
Frequently Asked Questions (FAQs)
Q1: What is the frequency range of the Bently Nevada 330103-00-08-50-02-00 probe?
A1: The probe operates within a frequency range of 2 Hz to 10 kHz, allowing it to monitor a wide spectrum of vibration frequencies in rotating machinery.
Q2: What type of signal does the probe output?
A2: The probe provides an AC or DC signal depending on the configuration and the measurement system requirements.
Q3: What is the total length of the Bently Nevada 330103-00-08-50-02-00 probe?
A3: The total length of the probe is 5.0 meters, providing extra flexibility for installations in machines requiring longer cable lengths.
Q4: How much does the Bently Nevada 330103-00-08-50-02-00 probe weigh?
A4: The probe weighs 1.615 kg, making it relatively easy to handle during installation and maintenance.
Q5: What temperature range can this probe withstand?
A5: The probe operates effectively in environments with temperatures ranging from -40°C to +121°C, which covers a wide range of industrial settings.
Q6: Is the Bently Nevada 330103-00-08-50-02-00 probe resistant to environmental factors?
A6: Yes, the probe has an IP65 rating, meaning it is both dustproof and waterproof, making it suitable for harsh, industrial environments.
Q7: What machinery can the Bently Nevada 330103-00-08-50-02-00 probe be used with?
A7: This probe is versatile and can be used with a variety of rotating machinery, including turbines, motors, pumps, compressors, and generators.
Q8: How does this probe help in predictive maintenance?
A8: The probe continuously monitors vibration and displacement, providing early warning signs of mechanical issues like misalignment, imbalance, or bearing wear, which can help plan maintenance before a failure occurs.
Q9: What material is the Bently Nevada 330103-00-08-50-02-00 probe made from?
A9: The probe is constructed from stainless steel, providing strength, durability, and resistance to wear and corrosion in demanding environments.
Q10: Is the Bently Nevada 330103-00-08-50-02-00 probe easy to install?
A10: Yes, the probe is designed for easy installation with its standard mount and flexible 5.0-meter cable, which allows for a variety of installation configurations.
Related Models
| Model | Description | Frequency Range | Total Length (m) | Weight (kg) |
|---|---|---|---|---|
| 330103-00-08-50-02-01 | 3300 XL 8mm Proximity Probe, Extended Cable | 2 Hz to 10 kHz | 6.0 | 1.8 |
| 330103-00-08-50-02-02 | 3300 XL 8mm High Sensitivity Probe | 2 Hz to 10 kHz | 5.0 | 1.7 |
| 330103-00-08-50-02-03 | 3300 XL 8mm Standard Mount Probe | 2 Hz to 10 kHz | 4.0 | 1.5 |
| 330103-00-08-50-02-04 | 3300 XL 8mm Extended Mount Probe | 2 Hz to 10 kHz | 5.0 | 1.6 |
| 330103-00-08-50-02-05 | 3300 XL 10mm Proximity Probe | 2 Hz to 10 kHz | 5.0 | 1.9 |
| 330103-00-08-50-02-06 | 3300 XL 12mm Proximity Probe | 2 Hz to 10 kHz | 6.0 | 2.0 |
