Product Introduction

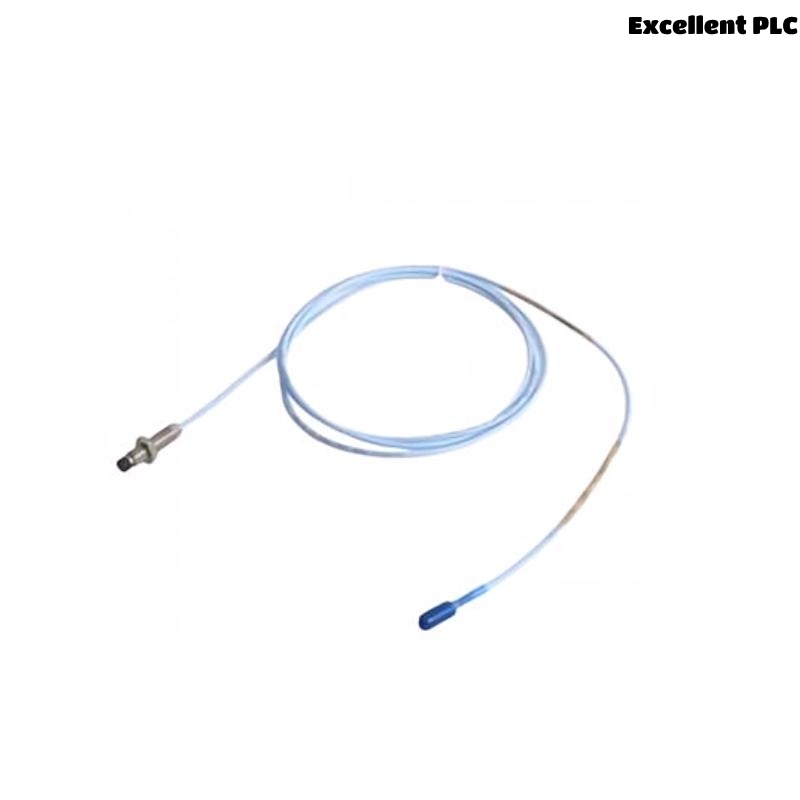

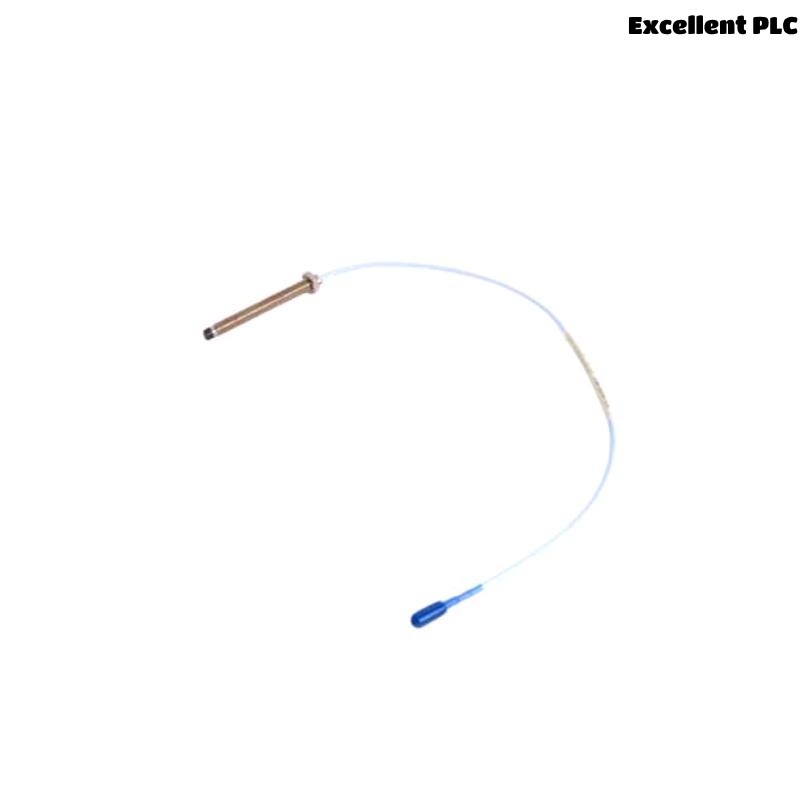

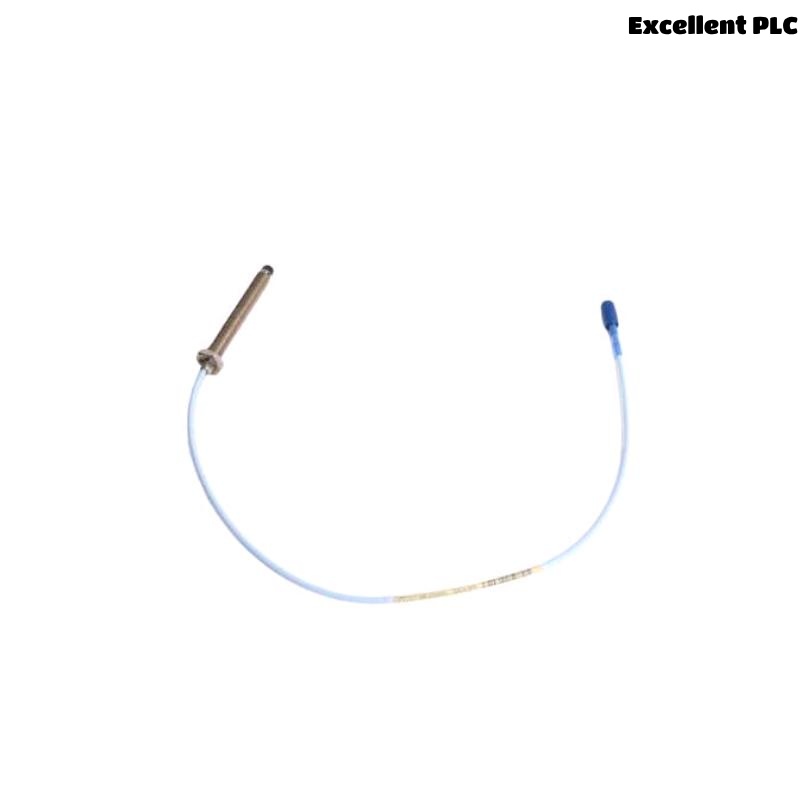

The Bently Nevada 330103-00-09-10-02-05 is a high-performance proximity probe designed for use in the 3300 XL series proximity transducer systems. Manufactured by Bently Nevada, a global leader in condition monitoring and machinery protection, this probe is commonly installed on rotating equipment to measure dynamic and static displacements.
This particular model features a 1.0 meter total length, a 10 mm probe tip, a Mini-Coax connector, and a radial-mount configuration. It is widely used to monitor the relative shaft vibration and position in critical machinery such as turbines, compressors, motors, and pumps. Its rugged design ensures long-term reliability even in harsh industrial environments, including high temperatures and areas with substantial vibration.
Product Specifications
| Parameter | Details |
|---|---|
| Product Code | 330103-00-09-10-02-05 |
| Manufacturer | Bently Nevada (Baker Hughes Company) |
| Product Type | Proximity Probe |
| Series | 3300 XL Series |
| Tip Diameter | 10 mm (0.39 in) |
| Total Length | 1.0 meter |
| Connector Type | Mini-Coax Connector (proximitor end) |
| Thread Size | 3/8-24 UNF-2A (Unified Fine Thread) |
| Mounting Type | Radial Mount |
| Sensing Range | Up to 2 mm (Typical for 3300 XL 8 mm system) |
| Target Material | Typically used with conductive materials (e.g., steel shafts) |
| Sensitivity | 200 mV/mil (7.87 mV/μm) |
| System Compatibility | Works with 3300 XL Proximitor sensors and extension cables |
| Operating Temperature | -35°C to +177°C (-31°F to +350°F) |
| Vibration Rating | 50 g peak, 10–2000 Hz |
| Enclosure Rating | IP67 (with connector properly sealed) |
| Weight | 0.323 kg |
| Standards Compliance | CE, RoHS, CSA, ATEX (depending on configuration) |
Product Applications
The 330103-00-09-10-02-05 proximity probe is widely adopted in condition monitoring systems across several industries. Key applications include:
-
Shaft vibration and position monitoring on turbines and compressors
-
Thrust position measurement on axial machines
-
Radial and axial vibration monitoring in critical rotating equipment
-
Bearing wear detection in electric motors and centrifugal pumps
-
Predictive maintenance systems in oil refineries and petrochemical plants
-
Vibration protection systems in high-speed gearboxes
-
Process industries requiring API 670 compliance
Product Advantages
-
Industry Proven Performance: Part of Bently Nevada’s flagship 3300 XL series, known for unmatched reliability and field performance.
-
Extended Temperature Range: Capable of operation in extreme temperature environments without performance degradation.
-
Long Cable Design: Allows flexible installation over long distances without signal degradation.
-
Mechanical Robustness: Withstands harsh industrial conditions, including vibration, shock, and temperature cycling.
-
High Sensitivity and Precision: Offers accurate vibration and displacement measurements with industry-standard sensitivity.
-
Modular System Compatibility: Integrates easily with other 3300 XL system components such as extension cables and Proximitor sensors.
Frequently Asked Questions (FAQ)
-
Q: What system is the 330103-00-09-10-02-05 designed for?
A: It is designed for use in Bently Nevada’s 3300 XL Proximity Transducer System. -
Q: Can this probe be used in high-temperature environments?
A: Yes, it is rated for operation up to 177°C (350°F). -
Q: What is the cable length of this model?
A: This model includes a 1.0 meter total length. -
Q: Is the probe compatible with older Bently Nevada proximitor modules?
A: While primarily designed for 3300 XL modules, it maintains backward compatibility with certain legacy systems. Check specific module support. -
Q: What kind of measurements does this probe perform?
A: It measures both dynamic (vibration) and static (position) displacements. -
Q: Is this probe suitable for hazardous areas?
A: Yes, ATEX-certified versions are available for hazardous locations. Please check model-specific certifications. -
Q: What material should the target be for proper operation?
A: Typically, a conductive metal such as steel or another ferromagnetic material. -
Q: Can the probe be submerged or exposed to fluids?
A: It is IP67-rated when properly installed, making it resistant to limited water exposure. -
Q: What kind of connector is used at the proximitor end?
A: A standard Mini-Coax connector is used. -
Q: What mounting configuration is this model?
A: This is a radial mount probe with 3/8-24 UNF threads.
Recommended Related Models (Same Series or Compatible)
| Model | Description | Cable Length | Mounting |
|---|---|---|---|
| 330103-00-05-10-02-05 | 5 m cable, 10 mm tip proximity probe | 5 m | Radial |
| 330103-00-06-10-02-05 | 6 m cable, 10 mm tip, radial proximity probe | 6 m | Radial |
| 330104-00-12-10-02-05 | 12 m cable, 10 mm tip, reverse mount probe | 12 m | Reverse (Axial) |
| 330106-05-30-10-02-00 | Short probe, 5 m cable, axial mount, hazardous rated | 5 m | Axial |
| 330130-040-00-00 | Extension Cable for 3300 XL Probes (40 ft) | 12.2 m | N/A (Extension) |
| 330180-91-05 | 3300 XL Proximitor Sensor, hazardous-rated | N/A | DIN rail mount |
