Product Introduction

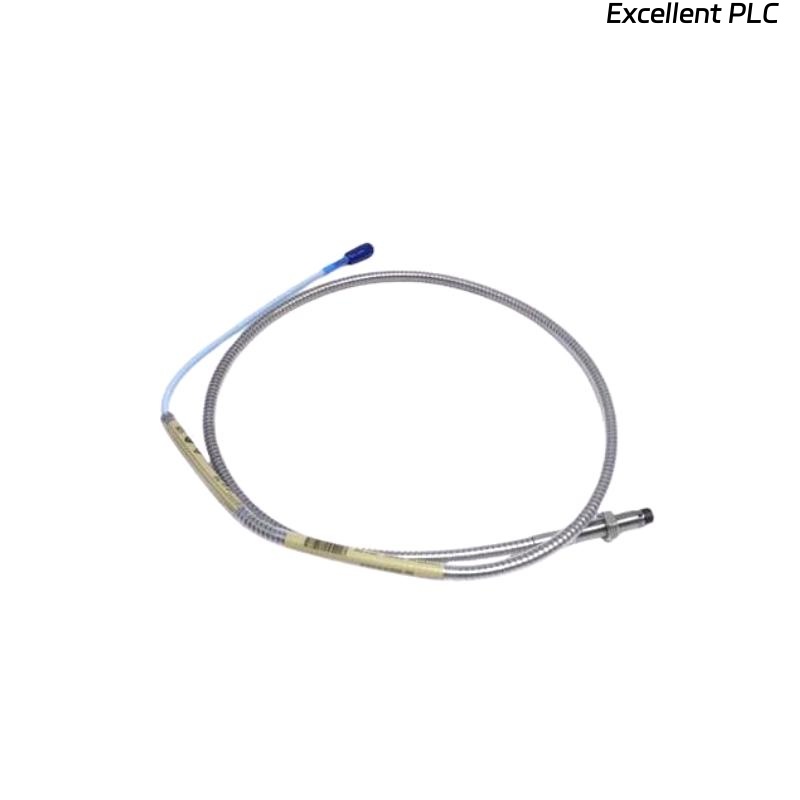

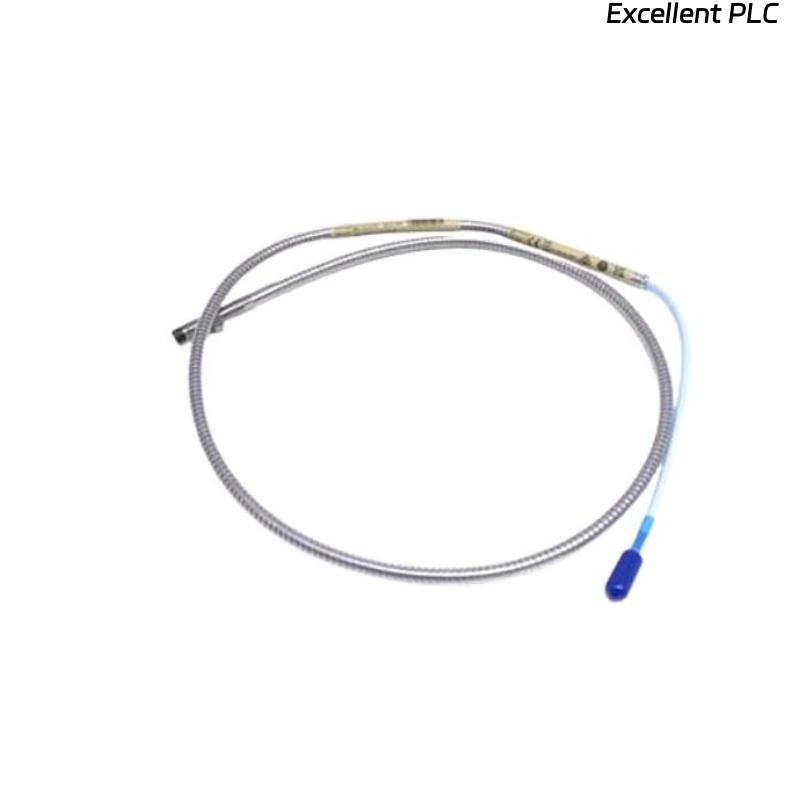

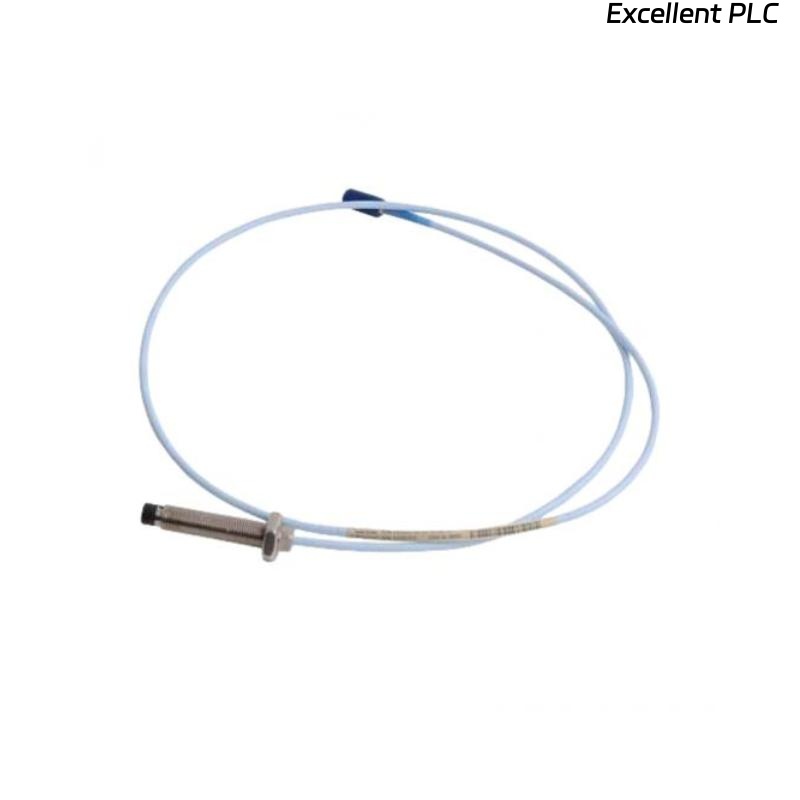

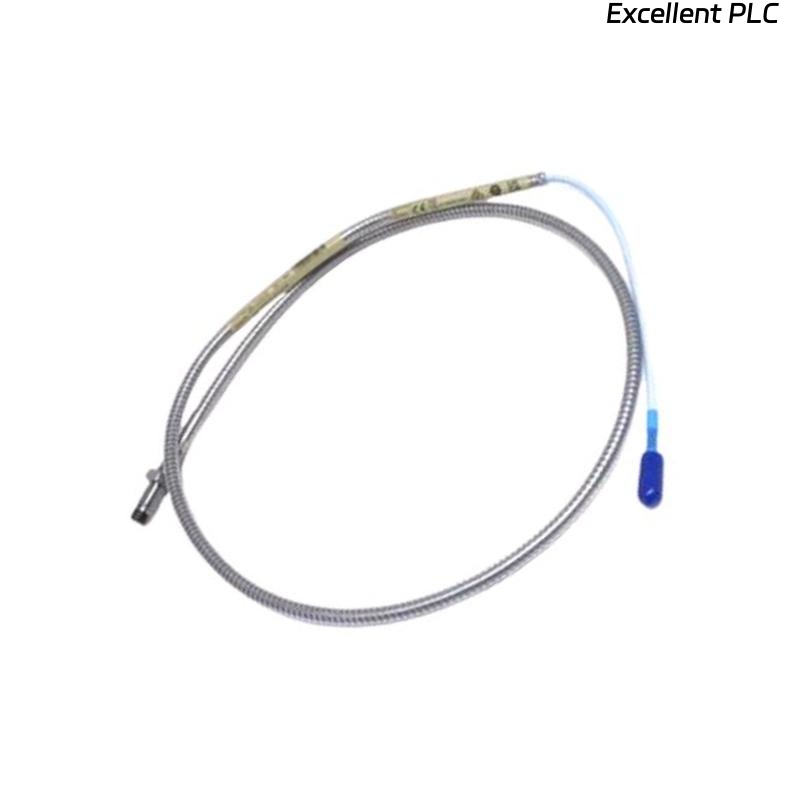

The Bently Nevada 330103-00-09-10-11-00 3300 XL 8 mm Proximity Probe is a high-performance, industrial-grade proximity sensor designed for precise monitoring of rotating machinery. Part of the 3300 XL series, this probe ensures reliable vibration and position measurement in critical applications across power generation, oil and gas, petrochemical, and heavy industrial equipment. The 8 mm probe tip design allows for extended sensing range while maintaining a high level of sensitivity and accuracy.
Product Advantages
-
High Precision Measurement: Offers extremely accurate displacement and vibration readings with minimal signal noise.
-
Wide Operating Temperature Range: Designed to operate reliably in harsh industrial environments.
-
Robust Construction: Durable materials ensure long-term reliability under high vibration and contamination conditions.
-
Extended Cable Life: Specially engineered cable and shielding prevent electrical interference and mechanical damage.
-
Seamless System Integration: Fully compatible with Bently Nevada 3300 XL monitoring systems for vibration, position, and orbit analysis.
-
Fast Response: Capable of capturing high-frequency events in rotating machinery.
-
Reduced Maintenance Requirements: Minimal recalibration needed due to stable sensing elements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330103-00-09-10-11-00 |
| Series | 3300 XL |
| Probe Type | 8 mm Non-Contact Proximity Probe |
| Linearity | ±1% of full-scale |
| Frequency Response | 0–10 kHz |
| Cable Length | Standard 10 ft (other lengths available) |
| Operating Temperature | -40°C to 120°C |
| Housing Material | Stainless steel |
| Insulation Resistance | > 100 MΩ at 500 VDC |
| Total Length | 1 m |
| Weight | 0.323 kg |
| Vibration Resistance | 20 g at 5–500 Hz |
| Cable Shielding | Coaxial with braid shield |
Product Applications
-
Rotating Machinery Monitoring: Ideal for turbines, generators, motors, and compressors.
-
Vibration Analysis: Detects misalignment, imbalance, or bearing wear in machinery.
-
Position Sensing: Accurate shaft displacement measurement for real-time feedback.
-
Condition-Based Maintenance: Enables predictive maintenance to prevent catastrophic failures.
-
Industrial Process Plants: Used in oil & gas, chemical processing, and power plants for continuous monitoring.
-
Dynamic Analysis: Captures high-frequency vibration events for detailed machinery diagnostics.
FAQ
Q1: What is the maximum sensing distance for this probe?
A1: The standard sensing range is 2 mm; extended ranges are available for specialized applications.
Q2: Can the 330103-00-09-10-11-00 operate in high electromagnetic interference environments?
A2: Yes, the probe’s coaxial shielding provides excellent protection against EMI and ensures signal integrity.
Q3: What is the linearity specification of this proximity probe?
A3: The probe has a linearity of ±1% of full scale across its measurement range.
Q4: Is this probe compatible with older 3300 series monitors?
A4: Compatibility is guaranteed with the 3300 XL series monitors, while older 3300 models may require adapters or calibration adjustments.
Q5: What connector type does this probe use?
A5: It uses a coaxial connector specifically designed for 3300 XL system integration.
Q6: How does the probe handle vibration and shock?
A6: It is rated to withstand 100 g shock for 11 ms and 20 g vibration at 5–500 Hz.
Q7: Can this probe operate at elevated temperatures?
A7: Yes, it supports an operating temperature range from -40°C to 120°C.
Q8: How does cable length affect probe performance?
A8: Standard cables are 10 ft; longer cables may require signal compensation to maintain accuracy.
Q9: Is the probe suitable for hazardous environments?
A9: With proper system integration and grounding, the probe can be used in industrial areas with moderate hazard levels, following site-specific safety requirements.
Q10: What maintenance is required for the probe?
A10: Minimal maintenance is required; periodic inspection for physical damage and cable integrity is recommended.
